19" rack na montáž na stenu 2U vhodný pre jednoduchú inštaláciu v dome, napr. patch panel + sieťový prepínač s krytom (horný/dolný) pre polovičnú montážnu hĺbku kompaktný dizajn, jednoduchá montáž Vrátane sady 8x klietkových matíc M6 a sady 4x skrutiek na montáž na stenu Dodávka je zložená, čím sa mimoriadne šetrí miesto Hĺbka individuálne nastaviteľná od 24 do 40 cm Nosnosť: model 2U cca 10 kg max., 4U cca 12 kg max.
| Výška článku | 0,20 cm |
| Dĺžka článku | 0,20 cm |
| Šírka článku | 17,00 cm |
| Značka | InLine® |
| Farba | Sivá (RAL7035) |
| Krajina pôvodu | Čína |
| Číslo colného sadzobníka | 8538100000 |
| Čiarový kód EAN | 4043718284856 |
| Výška (vonkajšia) | 183 mm |
| Výška balenia | 0,062 m |
| Jednotka výšky | 4 U |
| Dĺžka balenia | 0,520 m |
| Informácie o výrobcovi | INTOS ELECTRONIC AGSiemensstrasse 1135394 GießenDeutschlandservice@inline-info.com |
| Číslo výrobcu | 19104D |
| Čistá hmotnosť | 5,129 kg |
| Objem balenia | 0,0067 m3 |
| Hmotnosť | 5,506 kg |
| Šírka | 494 mm |
| Šírka balenia | 0,215 m |

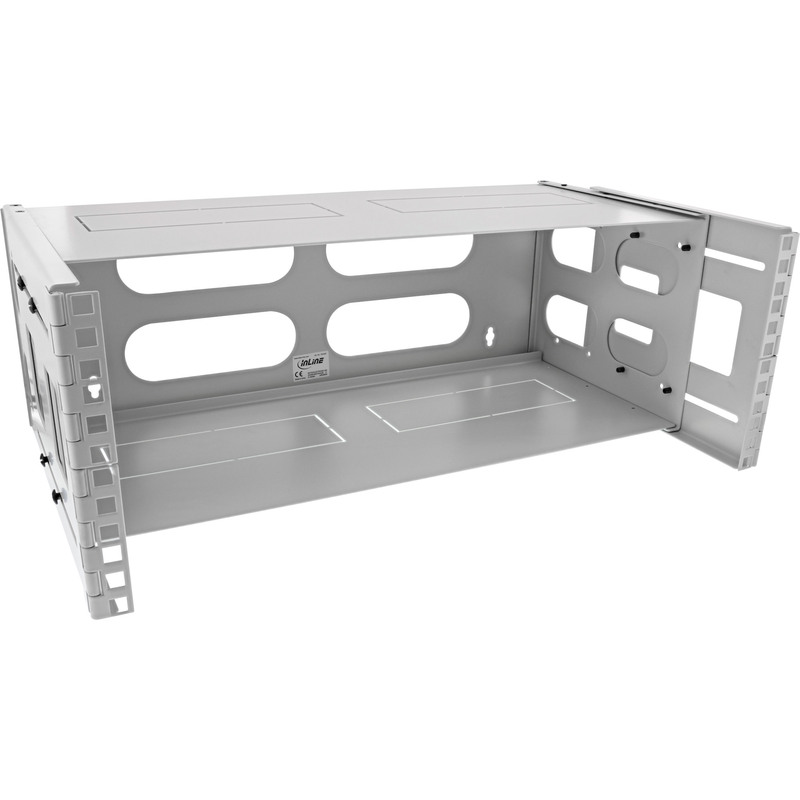

19" wall rack with adjustable depth for compact network installations
- Space-saving wall mounting: The 19-inch wall rack allows compact installation of 19-inch components directly on the wall for organised network component placement.
- Adjustable installation depth: The adjustable 24-40cm depth adapts to different installations and offers a flexible solution for various 19-inch components.
- Protected installation: Top and bottom covers protect installed components, covering half the mounting depth for a compact, structured installation.

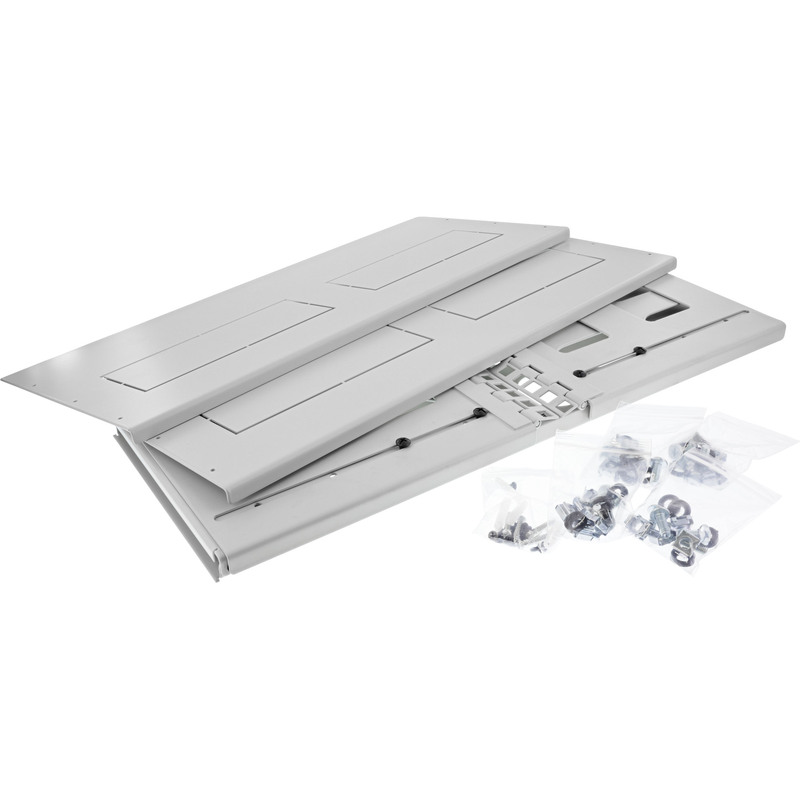

- Easy assembly: The folded rack is easy to transport with little space and includes eight M6 cage nuts and four wall-mounting screws.

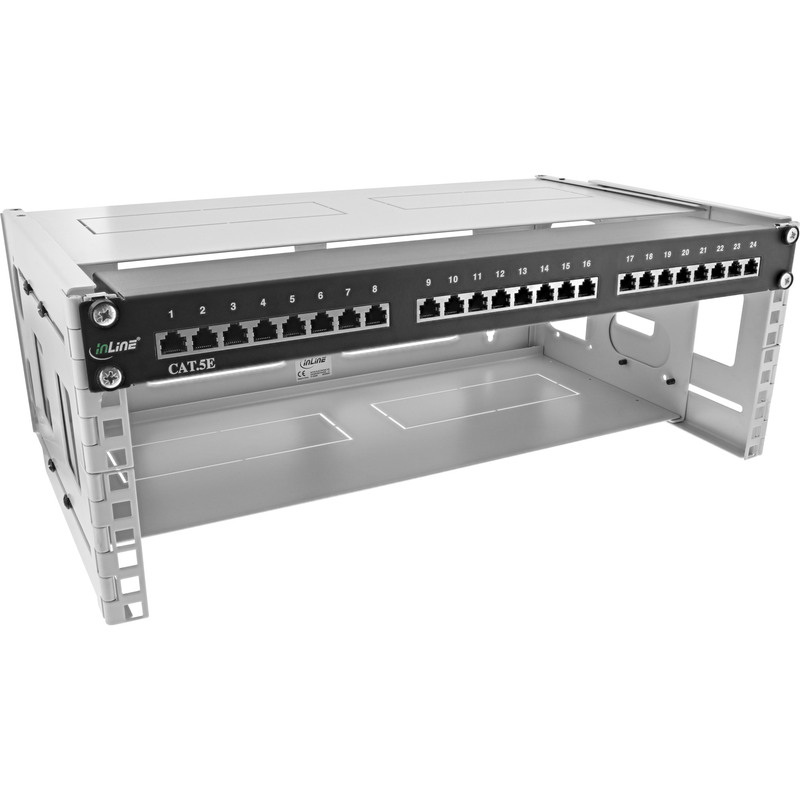

- Versatile use: The 19-inch rack is available in 2U and 4U versions for suitable components such as patch panels and network switches.
The InLine 19-inch wall rack is a compact solution for mounting 19-inch components directly on a wall. Its space-saving design allows organised installation in various environments.
The rack depth adjusts from 24-40cm to suit different components. Top and bottom covers provide protected placement in a compact design.
Available in 2U and 4U versions with different mounting heights for suitable components. Supplied folded for space-saving storage.
Content of delivery includes eight M6 cage nuts and four wall-mounting screws.
The InLine 19-inch wall rack suits structured 19-inch installations and provides a flexible solution for compact wall mounting.

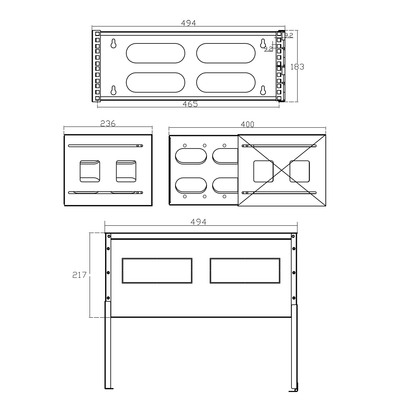

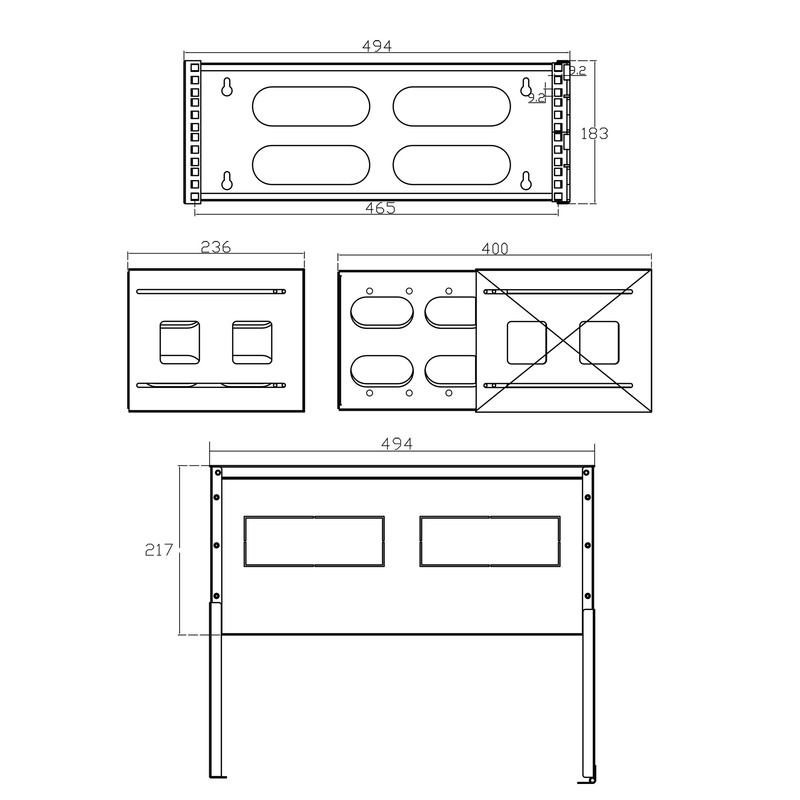

- Design: 19-inch wall-mount rack
- Mounting height: 2U or 4U
- Adjustable depth: 24-40cm
- Width: 49.4cm
- Height of 2U version: 92mm
- Height of 4U version: 183mm
- Covers: top and bottom, covering half the mounting depth
- Load capacity of 2U model: approx. 10kg max.
- Load capacity of 4U model: approx. 12kg max.
- Content of delivery: eight M6 cage nuts and four wall-mounting screws
