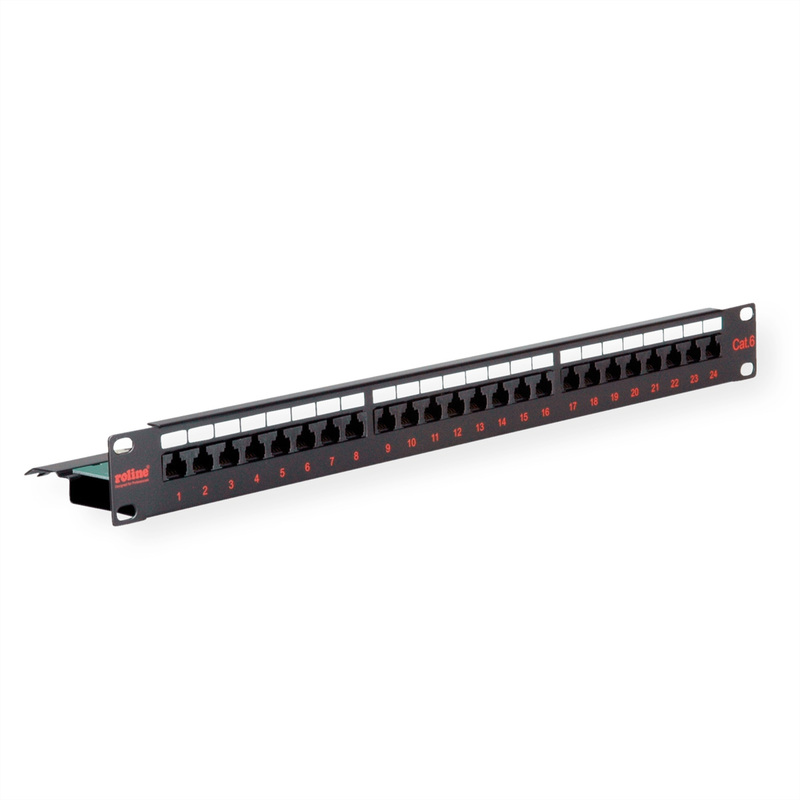

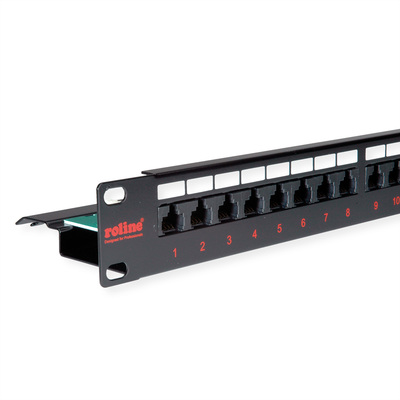

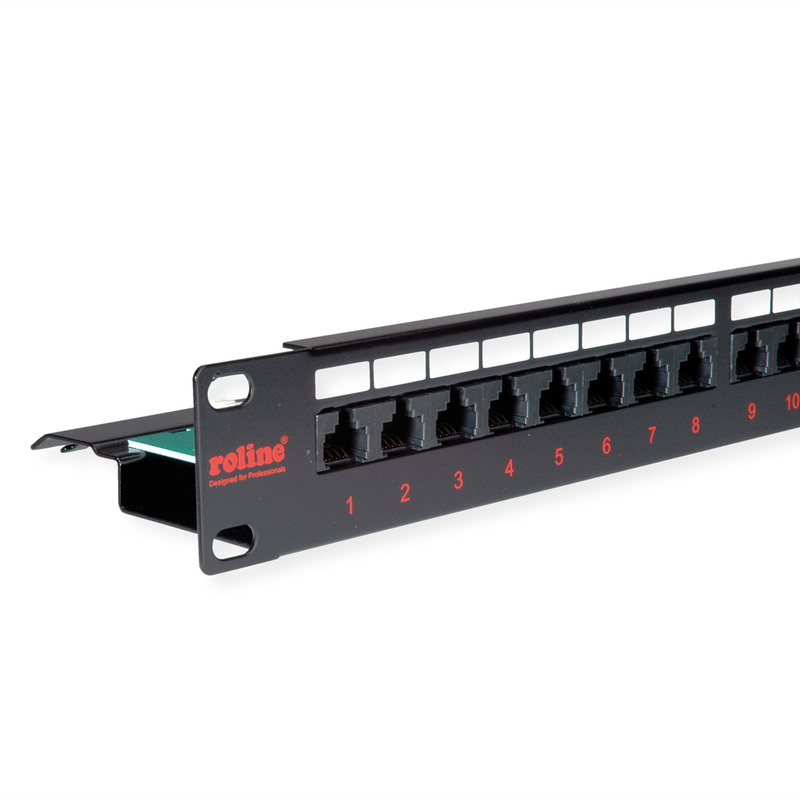

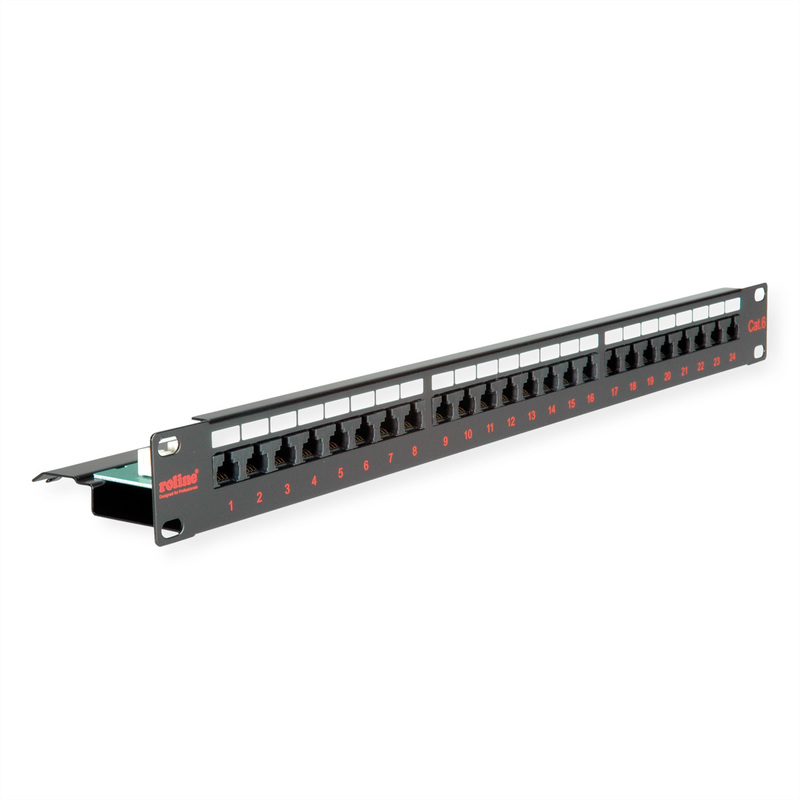

- 19" patch panel ROLINE Cat.6/Class E spĺňa štandard Cat.6/Class E Permanent Link Standard a je ideálny pre siete Gigabit Ethernet

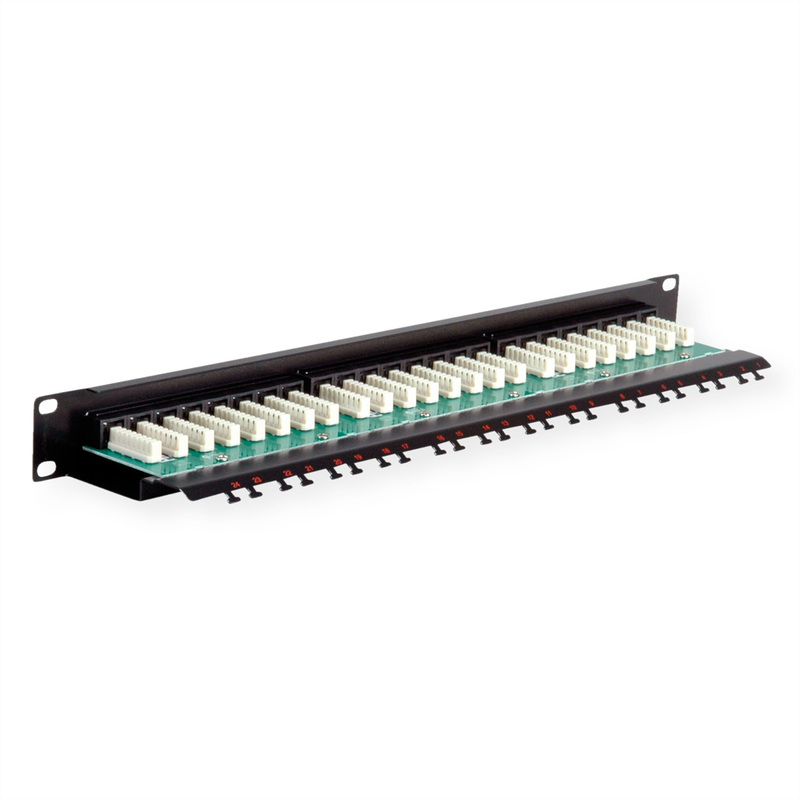

- Montáž káblov prebieha pomocou prepichovacích koncoviek LSA-plus s farebným kódovaním na vrchu v súlade s EIA/TIA 568
- 24 portov
- Farba: Čierna
Pre systém štruktúrovanej kabeláže odporúčame použiť nasledujúce komponenty:
UTP kábel ROLINE Cat.6, plný drôt, AWG23: 21.15.0990 (100 m), 21.15.0991 (300 m)
ROLINE Cat.6 Flush Mount Jack, netienený: 25.16.8494 (biely), 25.16.8500 (slonovina)
ROLINE Cat.6 Surface Mount Wall Jack, netienený: 25.16.8394 (biely), 25.16.8395 (slonovina)
19" Patch Panel ROLINE Cat.6, 24 portov, netienený: 26.11.0355 (svetlosivá), 26.11.0362 (čierna)
ROLINE Cat.6 UTP Patch Cord, sivý, 5 m: 21.15.0935
Naše interné laboratórium testovalo túto kombináciu kábla a zástrčky v kanáli 100 metrov v súlade so špecifikáciami triedy E.
Technické špecifikácie
| Skupina produktov | Technológia pripojenia TP |
| Typ produktu | Patchpanel Cat.6 / Trieda E |
| Farba | čierna |
| Typ štítu | Nepreverené |
| Kvalita prenosu | Cat6 / Trieda E |
| Skriňový systém | 19"-Technika |
| Množstvo portov | 24 |
| Pripojenie montážneho kábla | Krone LSAplus |
| Pridelenie | EIA/TIA 568A a 568B |
| Modulárna zostava | nie |
| Kontakty štítu | nie |
| samostatné uvoľnenie napätia | Áno |
| Smer pripojenia | Rovno |
| Výškové jednotky | 1 UH |
| Hmotnosť | 870,3 g |
- The ROLINE Cat.6/Class E 19" patch panel fulfils the Cat.6/Class E Permanent Link Standard and is ideal for Gigabit Ethernet networks
- Cable assembly takes place using LSA-plus piercing terminals with colour coding on the top in accordance with EIA/TIA 568
- 24 ports
- Colour: Black
For a structured cabling system we recommend to use the following components:
ROLINE Cat.6 UTP Cable, Solid Wire, AWG23: 21.15.0990 (100 m), 21.15.0991 (300 m)
ROLINE Cat.6 Flush Mount Wall Jack, unshielded: 25.16.8494 (white), 25.16.8500 (ivory)
ROLINE Cat.6 Surface Mount Wall Jack, unshielded: 25.16.8394 (white), 25.16.8395 (ivory)
ROLINE Cat.6 19" Patch Panel, 24 Ports, unshielded: 26.11.0355 (light grey), 26.11.0362 (black)
ROLINE Cat.6 UTP Patch Cord, grey, 5 m: 21.15.0935
Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class E specifications.
Technical specifications
| Product group | Connection technology TP |
| Product type | Patchpanel Cat.6 / Class E |
| Colour | black |
| Scope of delivery | 1x patch panel, cable ties, installation instructions |
| Shield type | Not screened |
| Transfer quality | Cat6 / Class E |
| Cabinet system | 19"-Technique |
| Quantity of ports | 24 |
| Assembly cable connection | Krone LSAplus |
| Assignment | EIA/TIA 568A&568B |
| Modular assembly | no |
| Shield contacts | No |
| separate strain relief | yes |
| Connection direction | Straight |
| Height units | 1 |
| Height | 44 |
| Width | 482.6 |
| Depth | 109 |
| Weight | 870.3 |
| Height of packaging (single piece) | 80 |
| Width of packaging (single piece) | 140 |
| Depth of packaging (single piece) | 550 |
| Package weight (single piece) | 1.136 |
| Gross weight | 1.136 |
Počet portov
24 port
Typ montáže
Panel do 19" rozvádzača
Kategória
Cat.6
Tienený
nie
Typ panela
LSA (krone)
Farba
čierna
Veľkosť
1U (HE)
