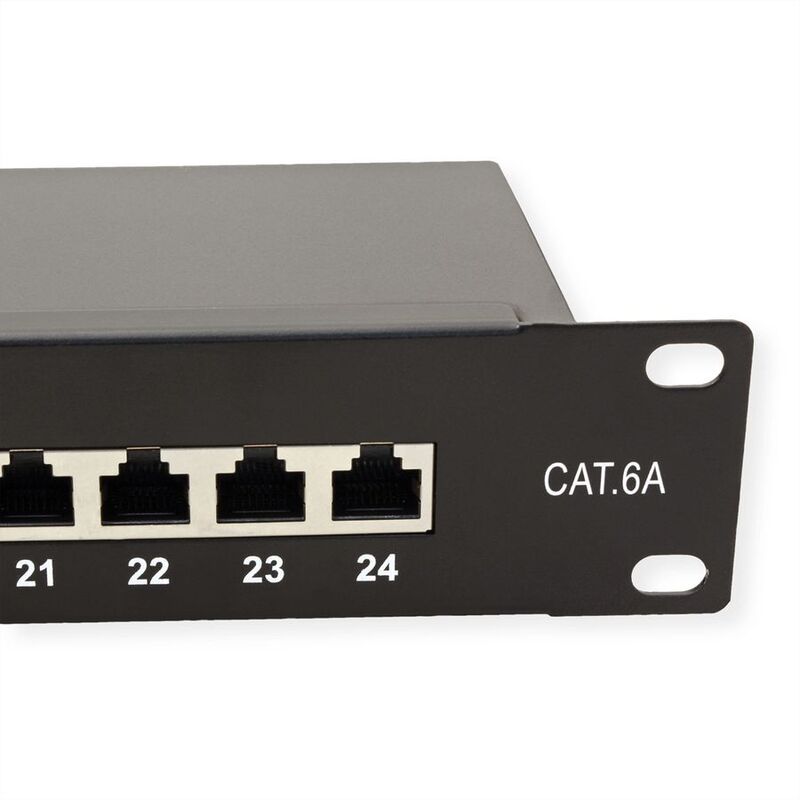

- VALUE Kat. 6a 19" patch panely spĺňajú štandard trvalého spojenia Cat. 6a/Class E a sú ideálne pre 10 Gigabit Ethernet siete
- Montáž káblov prebieha pomocou prepichovacích koncoviek LSA plus s farebným kódovaním na vrchu v súlade s EIA/TIA 568A
- Puzdro a kryt z oceľového plechu
- Farba: čierna
Technické špecifikácie
| Skupina produktov | Technológia pripojenia TP |
| Typ produktu | Patchpanel Cat.6A / Trieda EA |
| Farba | čierna |
| Typ štítu | Preverené |
| Kvalita prenosu | Cat6A / Trieda EA |
| Skriňový systém | 19"-Technika |
| Množstvo portov | 24 |
| Pripojenie montážneho kábla | Krone LSAplus |
| Pridelenie | EIA/TIA 568A a 568B |
| Modulárna zostava | nie |
| Materiál (plášť) | Kovové |
| samostatné uvoľnenie napätia | Áno |
| Výškové jednotky | 1 UH |
| Hmotnosť | 1472,7 g |

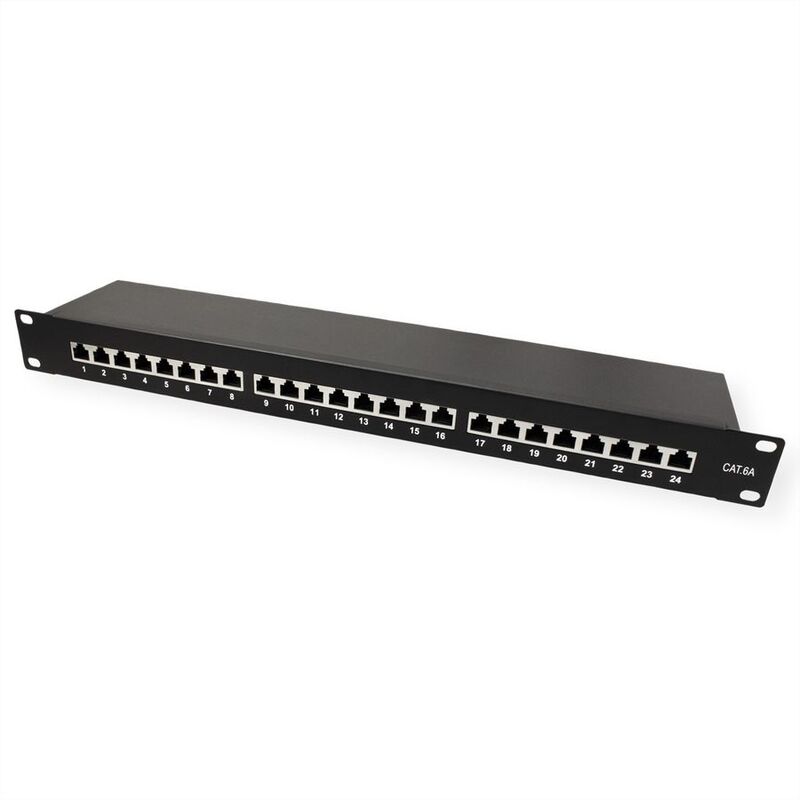

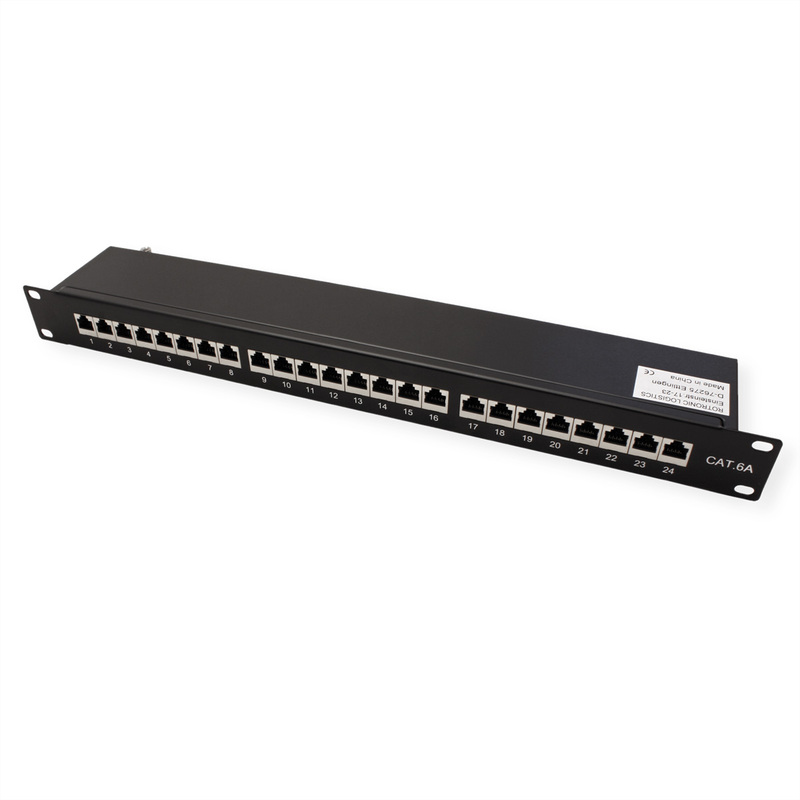

Cat. 6A (Class EA) 19" Patch Panel, shielded, 1U, with 24 ports, for installation in 19″ cabinets, incl. mounting material.
- This VALUE Cat. 6A 19" patch panel fulfisl the Cat. 6A/Class E permanent link standard and is ideal for use 10 Gigabit Ethernet networks

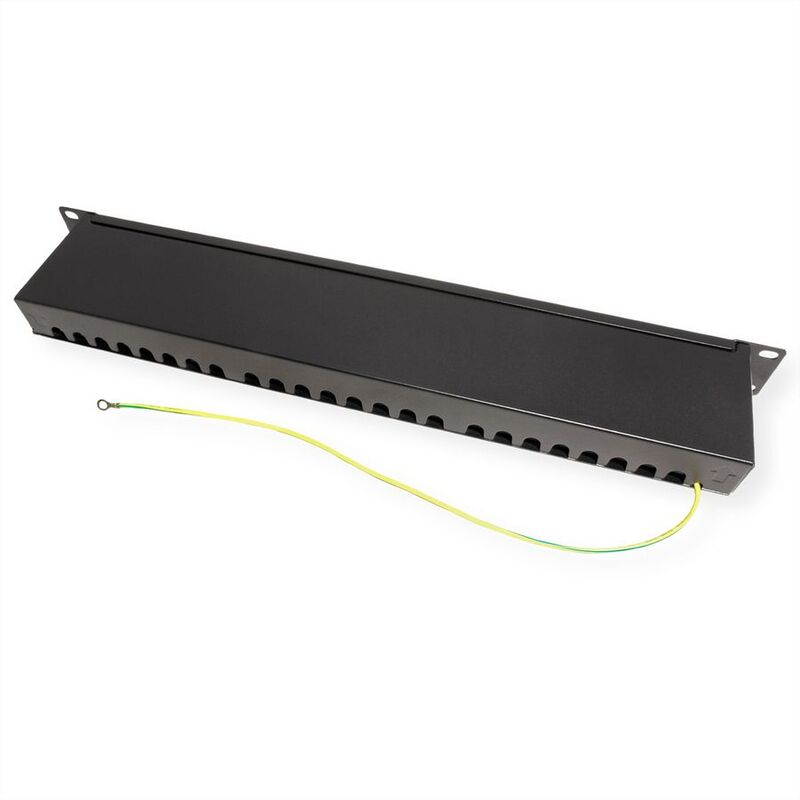

- Sheet steel housing
- Shielded

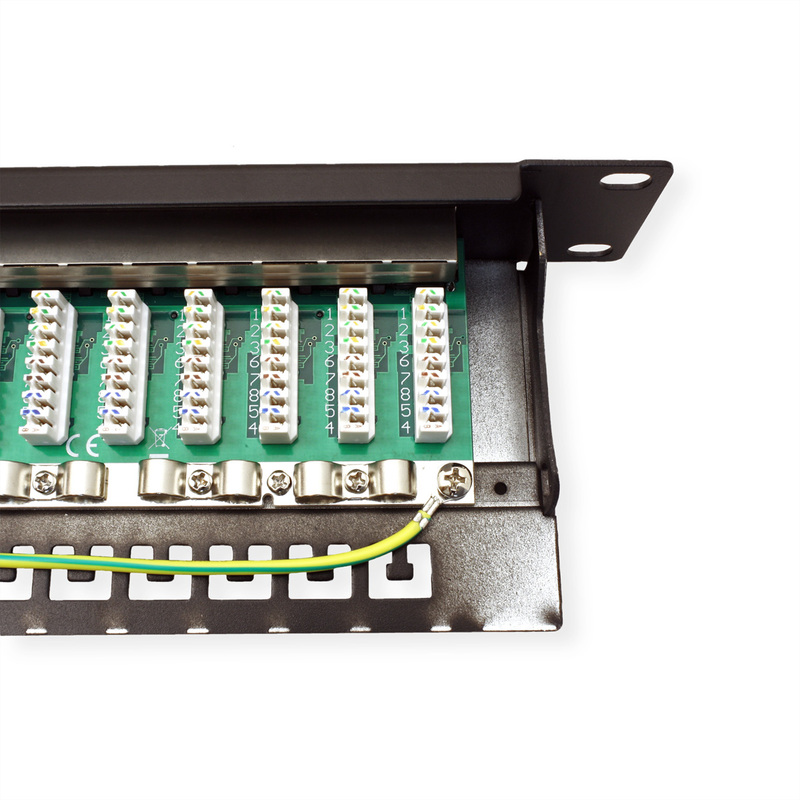

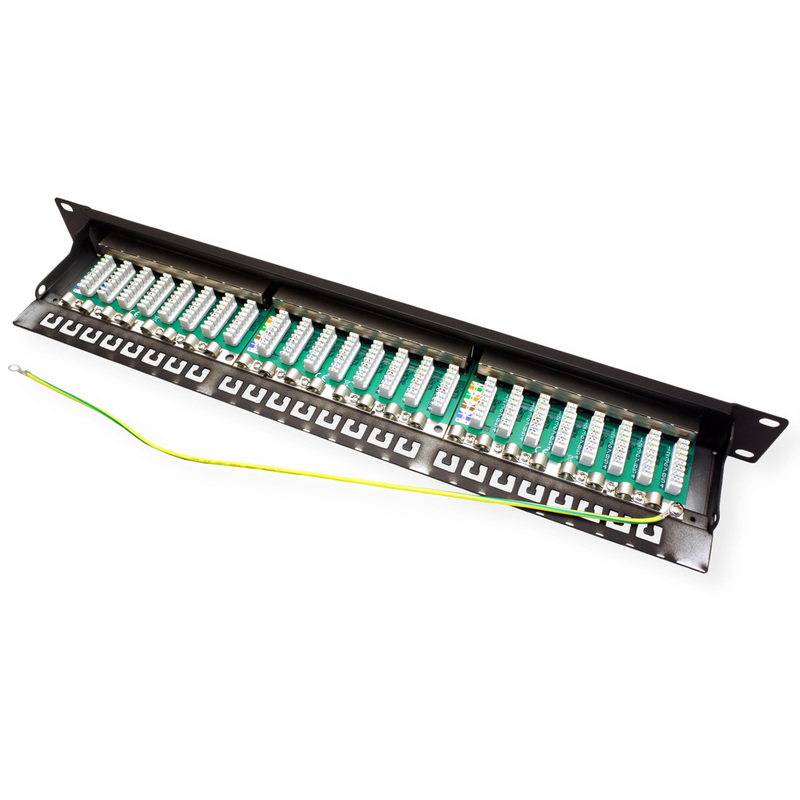

- Cable assembly takes place using LSA plus piercing terminals with colour coding on the top in accordance with EIA/TIA 568A
- Separate strain relief
- For 22-26 AWG Cable
- Colour: black
Technical specifications
| Product group | Connection technology TP |
| Product type | Patchpanel Cat.6A / Class EA |
| Colour | black |
| Scope of delivery | Patch Panel, Mounting Material, Installation Instructions |
| Shield type | Screened |
| Transfer quality | Cat6A / Class EA |
| Cabinet system | 19"-Technique |
| Quantity of ports | 24 |
| Assembly cable connection | Krone LSAplus |
| Assignment | EIA/TIA 568A&568B |
| Material (casing) | Metal |
| separate strain relief | yes |
| Dimensions (HxWxD) | 44,2 x 482,6 x 88 mm |
| Height units | 1 |
| RAL colour | RAL 9005 Jet black |
| Operating temperature min. | -10 |
| Operating temperature max. | 60 |
| Storage temperature min. | -40 |
| Storage temperature max. | 70 |
| Height | 44.2 |
| Width | 482.6 |
| Depth | 88 |
| Weight | 1510 |
| Height of packaging (single piece) | 50 |
| Width of packaging (single piece) | 140 |
| Depth of packaging (single piece) | 500 |
| Package weight (single piece) | 1.7 |
| Gross weight | 1.7 |
Počet portov
24 port
Typ montáže
Panel do 19" rozvádzača
Kategória
Cat.6a
Tienený
áno
Typ panela
LSA (krone)
Farba
čierna
Veľkosť
1U (HE)
