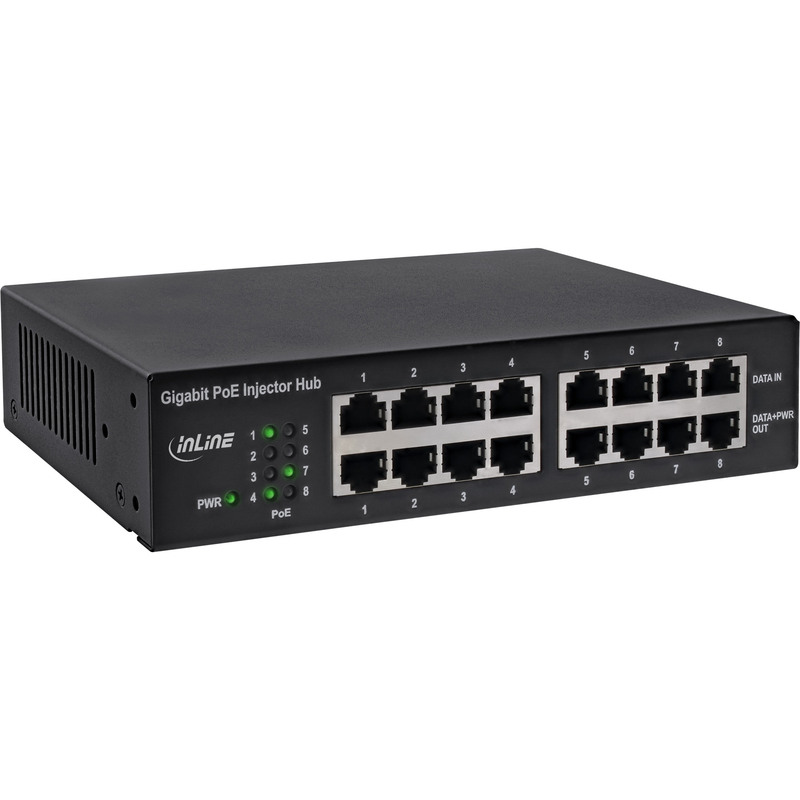

19" PoE+ Injector Gigabit 8port, 8xPoE+ (120W), 1U, čierny
19" PoE+ Injector Gigabit 8port, 8xPoE+ (120W), 1U, čierny
InLine® PoE+ Gigabit Network Injector Hub je rýchle a flexibilné riešenie pre upgrade existujúcej siete na Power ov..... celý popis
- Štandardy: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
- Porty "DATA IN": 8x 10/100/1000Base-T RJ45, Auto-MDI/MDI-X
- Porty "DATA + PWR OUT": 8x 10/100/1000Base-T RJ45, Auto-MDI/MDI-X
- PoE typ napájania: Endspan
- Výstupné napätie PoE: Na port 48~56V DC
- Výstupný výkon PoE: na port max. 30 wattov
- Priradenie napájacieho kolíka: 1/2(+), 3/6(-)
- Celkový výkon: 120 wattov (až 240 wattov cez napájaciu svorkovnicu)
- LED indikátory: PWR, PoE (1-8)
- Rozmery (Š x H x V): 188x120x44mm
- Hmotnosť všetkých elektrických komponentov: cca. 1,521 kg
- Požiadavka na napájanie: 56V DC externý napájací adaptér alebo napájacia svorkovnica
- Prevádzkové prostredie: Prevádzková teplota 0-40°C, skladovacia teplota -20-70°C, vlhkosť 20-95% nekondenzujúca
- 1x InLine® PoE+ Gigabit Network Injector Hub 8 Port
- 2x Návod na použitie (nemecký/anglický)
- 1x napájací zdroj

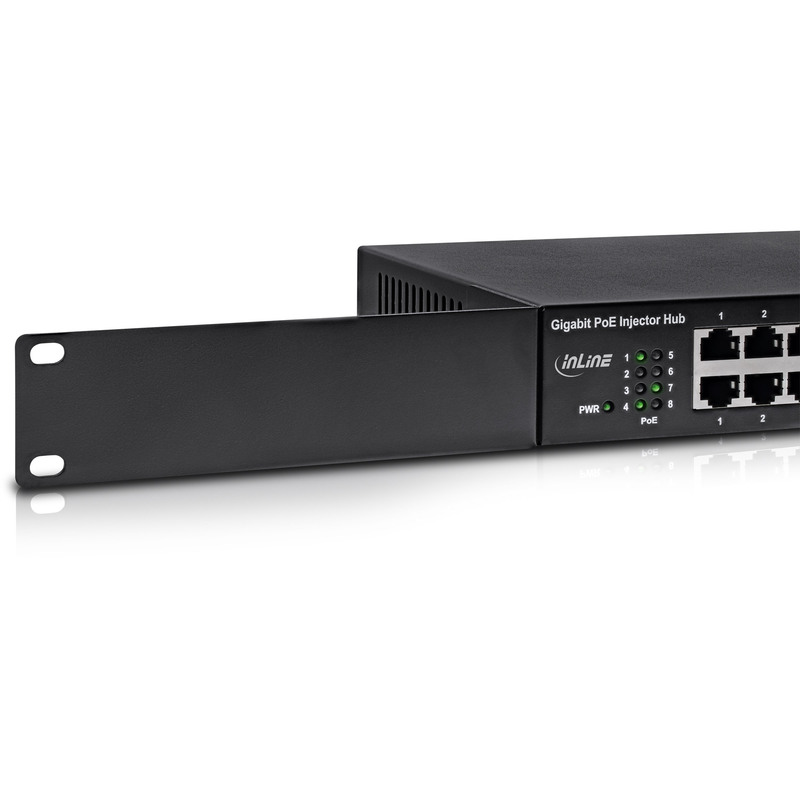

- 2x 19" montážne konzoly
- 6x skrutky pre montážne konzoly
- 4x Gumové nožičky
- 8-port PoE+ injector hub with up to 30 W power per port (total up to 240 W)
- Supports IEEE 802.3af/at for PoE and PoE+ devices such as IP cameras&access points
- Wireless design for noiseless operation in a 19" rack (1U)
- Triple protection: overcurrent, overvoltage and overheating protection per port
- High energy efficiency with over 91% efficiency in operation
The InLine® PoE+ Gigabit network injector hub is the ideal solution for upgrading existing networks to Power over Ethernet – without having to replace existing switches. The hub offers eight RJ45 ports for data and power supply in accordance with IEEE 802.3af (PoE) and IEEE 802.3at (PoE+), each with up to 30 watts of output power per port. This allows network devices such as IP cameras or WLAN access points to be operated flexibly and independently of a power socket.
With a combined total PoE output of up to 120 watts via the power supply unit or 240 watts via the screw terminal connection block, the injector hub is particularly powerful. The integrated protection function against overcurrent, overvoltage and overheating offers additional safety in professional network operation. Thanks to its fanless design, the device operates silently and is ideal for installation in offices or technical rooms.
The standard-compliant support of 10/100/1000Base-T enables flexible integration into a wide range of network infrastructures. LED indicators provide information on the operating status and active PoE connections at all times.
Technical specifications:
- Ports DATA IN: 8x RJ45 10/100/1000Base-T, Auto-MDI/MDI-X
- Ports DATA + PWR OUT: 8x RJ45 10/100/1000Base-T, Auto-MDI/MDI-X
- PoE type: Endspan
- PoE output: 48–56 V DC, max. 30 W per port
- Total power: 120 W (240 W via screw terminal connection block)
- Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at
- Voltage input: 100–240 V AC, 47–63 Hz
- Output voltage/current: 56 V DC / 2.2 A
- Power consumption in idle mode: 0.16 W
- Energy efficiency: 91.4%
- LED indicators: PWR, PoE (1–8)
- Dimensions: 188 x 120 x 44 mm
- Weight: approx. 1.521 kg
- Operating temperature: 0–40 °C
- Storage temperature: -20–70 °C
- Humidity: 20–95 %, non-condensing
Scope of delivery:
- 1x InLine® PoE+ Gigabit network injector hub 8 port
- 1x power supply
- 2x operating instructions (German/English)
- 2x 19" mounting bracket
- 6x screws for mounting bracket
- 4x rubber feet
