- technológia rekombinácie kyslíka pre bezúdržbové použitie
- anóda zo zliatiny na minimalizáciu úniku plynu a veľmi nízke samovybíjanie
- Kryt batérie vyrobený z veľmi odolného materiálu ABS
- postriebrené medené koncovky zlepšujú elektrickú vodivosť
- použitie: viacúčelové, UPS, núdzové osvetlenie, záložné napájanie, bezpečnostné systémy
Technické špecifikácie
| max. kapacita | 3,4 Ah |
| max. kapacita | 3400 mAh |
| dobíjacie | Áno |
| technológie | olovená batéria |
| Napätie | 12 V |
| Aplikácie | záložné napájanie, batérie, núdzové osvetlenie, núdzový zdroj, hlavný zdroj, necyklické aplikácie, neprerušiteľný zdroj napájania (UPS) |
| Označenia | VdS |
| Jednotka spotreby | 1 ks. objem |
| Výška | 61 mm |
| Dĺžka | 134,4 mm |
| Označenie výrobcu | UL3.4-12 |
| Označenie modelu | UL3.4-12 |
| šírka | 67,5 mm |
| Typ pripojenia | Faston (4,8 mm) |

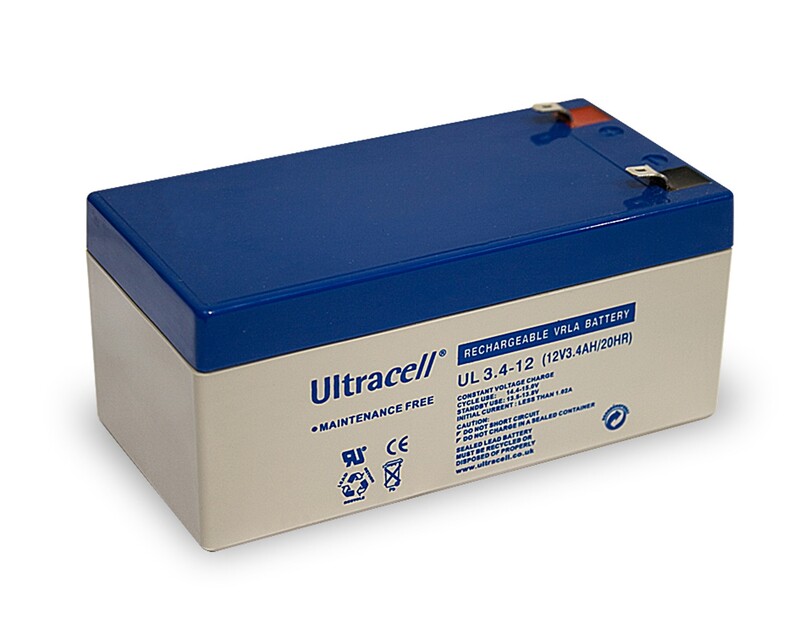

- The Ultracell lead acid battery features silver-plated copper terminals for improved electrical conductivity.
- The 12 V VRLA battery provides uninterruptible power supply, feeds emergency lighting, emergency power and security systems.
- PbCaSN alloy on the grid anode ensures only minor gas leakage and very little self-discharge.
- The casing of the UL3.4-12 rechargeable VRLA battery is made of durable ABS material for a long service life.
- The Ultracell 12 V lead acid battery is produced according to modern quality standards and has a life expectancy of up to 5 years.
- The Ultracell lead acid battery is VdS-certified.
Technical specifications
| Technology | lead acid battery |
| rechargeable | yes |
| Connection, type | Faston (4.8mm) |
| Color version | white-blue |
| Color | white, blue |
| Material | ABS |
| Applications | backup power, batteries, emergency lighting, emergency Power Supply, main power supply, non-cyclical applications, uninterruptible power supply (UPS) |
| Consumption Unit | 1 pc. bulk |
| Packaging type | Bulk |
| Voltage | 12 V |
| max. capacity | 3400 mAh |
| max. capacity | 3.4 Ah |
| Markings | VdS, BattVO Pb |
| Operating temperature from | -15 °C |
| Operating temperature up to | 40 °C |
| Length | 134.4 mm |
| Width | 67.5 mm |
| Height | 61 mm |
| Weight | 1380 g |
| SCIP no. | 727f7c60-e5bb-4b9c-8f03-dba503e748a5 |
| chemical substance | Pb |
| CAS no. | 7439-92-1 |
