- CAT 6 Trieda E až do 250 MHz
- schopný pre 10 GBit Ethernet / vhodný pre PoE+ podľa IEEE 802.3at
- centrálna doska s integrovanými protiprachovými doskami
- tienený konektor RJ45, 8P8C
- prehliadacie okná so štítkom
- 360° kontakt štítu
- kompletné tienenie RJ45 zásuvky a LSA bloku cez tlakovo liatu kovovú krabicu
Technické špecifikácie
| Špecifikácia | CAT 6 |
| počet vstupov | 2 ks. |
| Označenia | WEEE, CE |
| Pripojenia, správa káblov | horizontálne |
| Pripojenie, tienenie | Áno |
| Typ pripojenia | pre konektory IDC (bez nástrojov) |
| Farba | biely |
| Jednotka spotreby | 1 ks. v kartónovej krabici |
| Farebné prevedenie | biely |
| Vstup, typ | RJ45 samica (8P8C) |
| Návod na obsluhu | en, de, fr, it, es, nl, da, se, pl, cz |

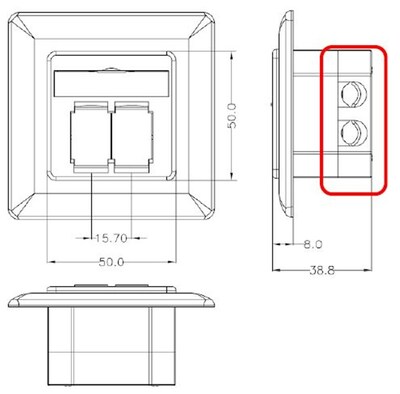

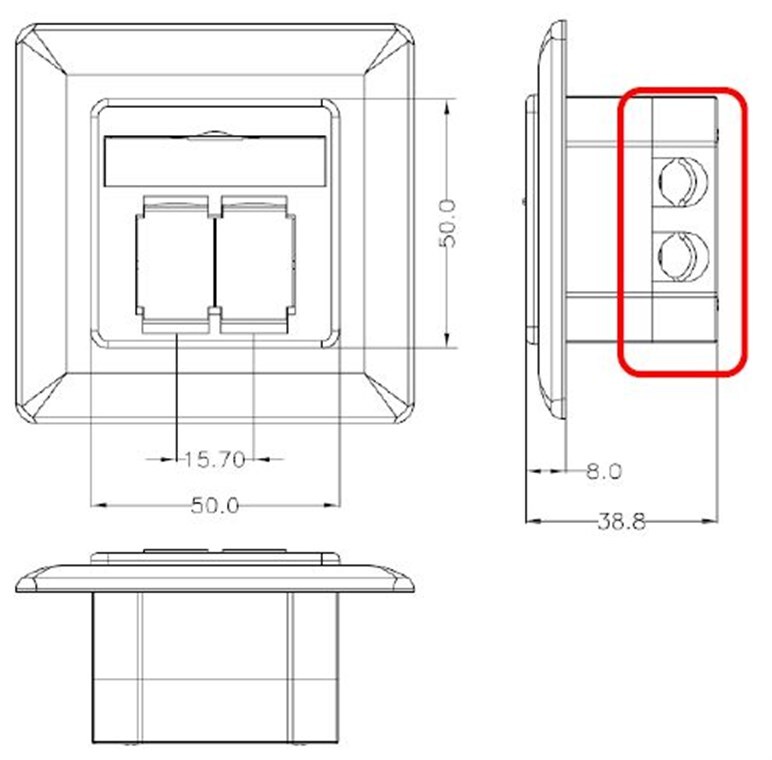

Whether flush-mounted or surface-mounted: The flexible network socket can be installed with a surface-mounted housing or as a flat flush-mounted version without a housing, depending on your requirements. With its neutral design in signal white (RAL 9003), the socket fits perfectly into any room concept and with numerous switch ranges.
- Shielded Ethernet socket with integrated dust protection cover plates to connect 2x network cables with RJ45 plugs
- The IDC strips and RJ45 sockets are fully shielded by the completely enclosed die-cast metal housing (360° shield contact)

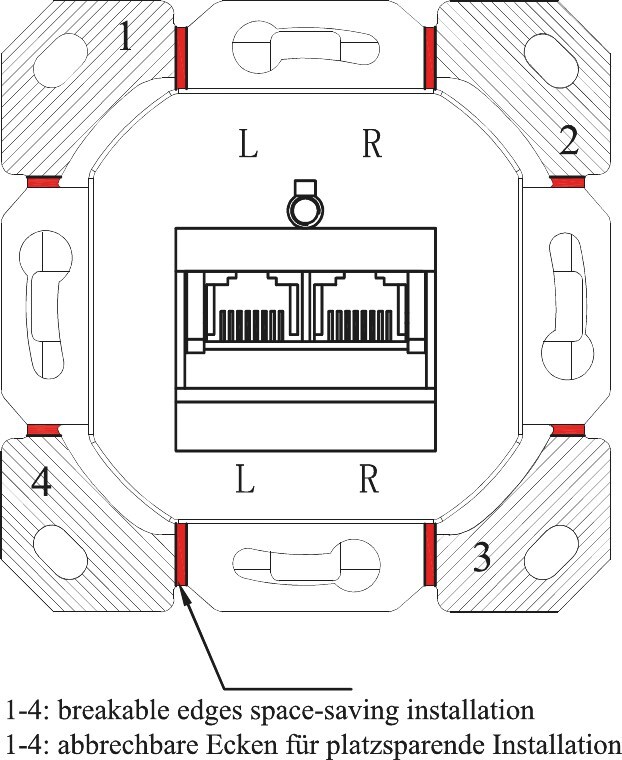

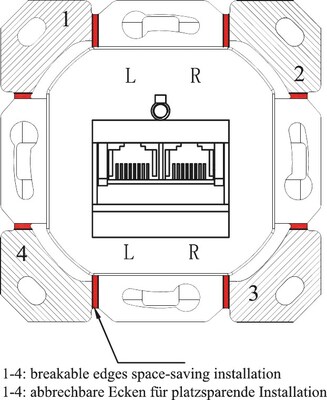

- The surface-mounted housing can be removed if necessary to install the metal frame and cover plate separately as a flush-mounted box
- With a maximum bandwidth of 250 MHz (CAT 6 Class E), the internet wall socket is ideal for connecting PCs, laptops, game consoles, printers and receivers to the network
- Suitable as a CAT 6 surface-mounted wall outlet for 10 Gigabit Ethernet and PoE+ applications (IEEE 802.3 at)
- With a clear plastic display to label the individual connections for a perfect cable management
- The metal plate in the data socket is compatible with all common switch ranges (designable)
Technical specifications
| Connection, contact material | gold-plated 3µm |
| Connection, shielding | yes |
| Connection, type | for IDC connection (toolless) |
| Connections, cable management | horizontal |
| Input, type | RJ45 female (8P8C) |
| Color version | Signal white RAL 9003 |
| Color | Signal white RAL 9003 |
| Consumption Unit | 1 pc. in cardboard box |
| Operation manual | de, en, fr, it, es, nl, da, se, cz, pl |
| Packaging type | White Box with Label |
| Specification | CAT 6 |
| number of inputs | 2 |
| max. bandwidth | 250 MHz |
| Markings | CE |
