Multiple measurements quickly and safely in one device

• Extensive measurement parameters in one device: Measure voltage, current, temperature, humidity, light, and sound.
• Fast evaluation without manual switching: Auto-Range and relative measurement speed up the work.
• Perform troubleshooting efficiently: Diode and continuity test support diagnosis.
• Good readability on site: Illuminated, 4-digit display and Data-Hold facilitate documentation.
• Safe measurements in building installations: CAT III 600 V and overload protection support use.

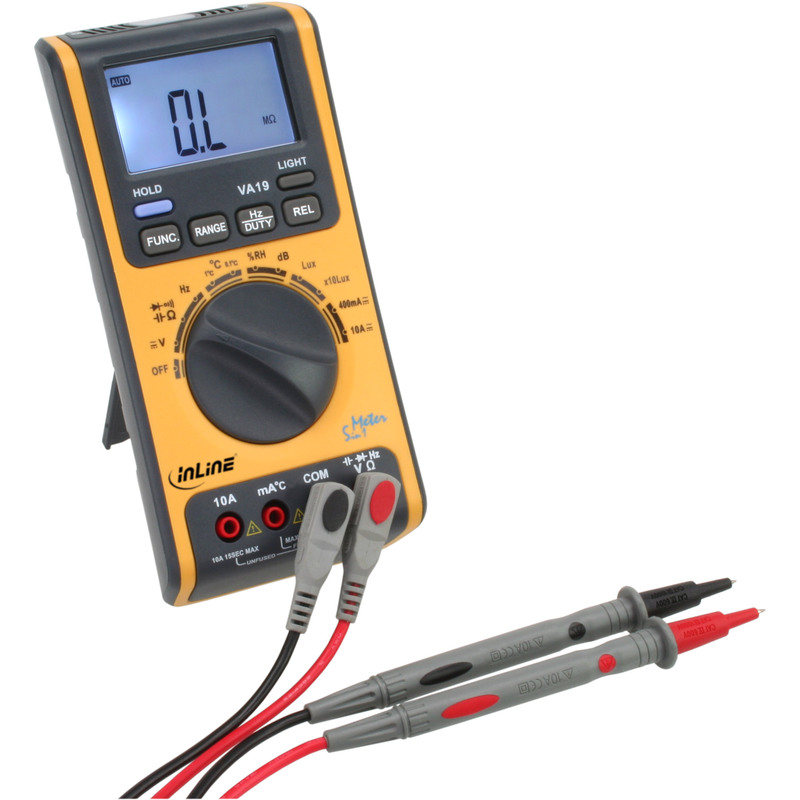

This 5-in-1 multimeter combines the electrical standard measurements with temperature, humidity, illuminance, and sound level measurement in a compact device. Auto-Range, Data-Hold, and relative measurement facilitate precise measurements and rapid evaluation, while the illuminated display shows values clearly even in poorly lit environments.

In on-site installations, service deployments, and existing infrastructures of companies and public institutions, the device enables reliable testing and documentation. It supports safe operation in professional environments thanks to CAT III 600 V and integrated overload protection.

• Voltage DC: 0.1 mV-600 V
• Voltage AC: 1 mV-600 V (40-500 Hz)
• Current AC/DC: 10 mA-10 A (AC: 40-200 Hz)
• Temperature measurement: -20-1000 °C
• Frequency measurement: 1 Hz-200 kHz
• Humidity: 30-90 %
• Illuminance: 4000/400000 Lux
• Sound level: 35-100 dB
• Tests: diode test, continuity test
• Functions: Data-Hold, Auto-Range, auto power-off, relative measurement
• Protection: overload protection
• Display: illuminated, 4-digit
• Power supply: 9 V block battery (included)
• Safety: CAT III 600 V IEC1010-1
• Operating temperature: 0-40 °C
• Dimensions: 185 x 85 x 44 mm
