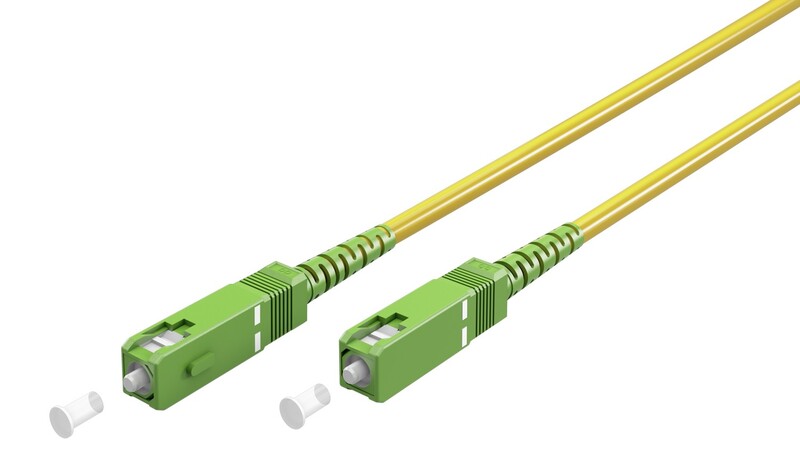

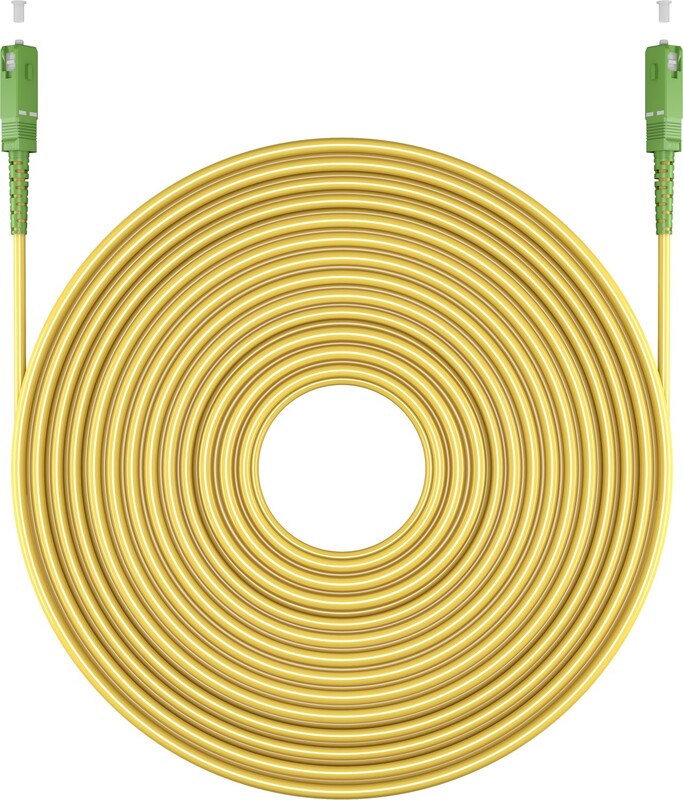

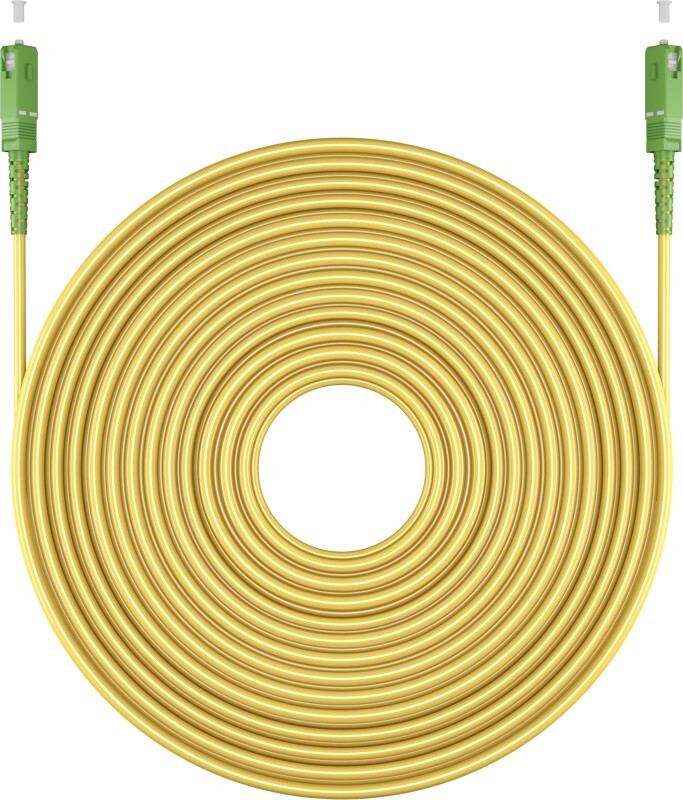

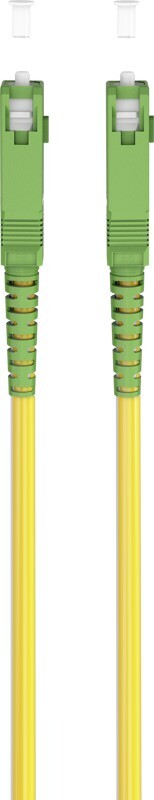

Fiber kábel SC/APC-SC/APC, 3m Simplex OS2(9/125µm), LSOH, 3mm, Kábel pre Orange a Magio, žltý

Kód: {{ productModel }}

Výrobca: Wentronic

Kat. č.: W.59640

EAN: 4040849596407

The patch cable is suitable for private and industrial applications, including fibre to the home (FTTH), and i..... celý popis

Konektory SC/APC-SC/APC

Typ kábla Simplex

Typ vlákna Singlemod OS2(9/125µm) žltý

Dĺžka kábla 3m

Prevedenie kábla okrúhly kábel ø3mm

3 ks na sklade

6,23 € s DPH 5,19 € bez DPH

Predajňa	dostupné ihneď
E-shop	doručenie kuriérom

Pridať do zoznamu

Konektory SC/APC-SC/APC

Typ kábla Simplex

Typ vlákna Singlemod OS2(9/125µm) žltý

Dĺžka kábla 3m

Prevedenie kábla okrúhly kábel ø3mm

Popis a parametre produktu

Máte nás radi? Dajte to vedieť aj ostaným

Popis produktu

The patch cable is suitable for private and industrial applications, including fibre to the home (FTTH), and is compatible with the FTTH options of a wide range of telecom providers. Thanks to an optimised bend radius of the fibre optic cable, space-saving installation is possible without increasing attenuation and risking interference.

mono-mode fibre optic cable designed for connection types such as FTTH, FTTB, FTTx, for use at home, in the office, in data centres etc.
the patch cord forms the connection between the house transfer point and the Optical Network Terminal (ONT) indoors

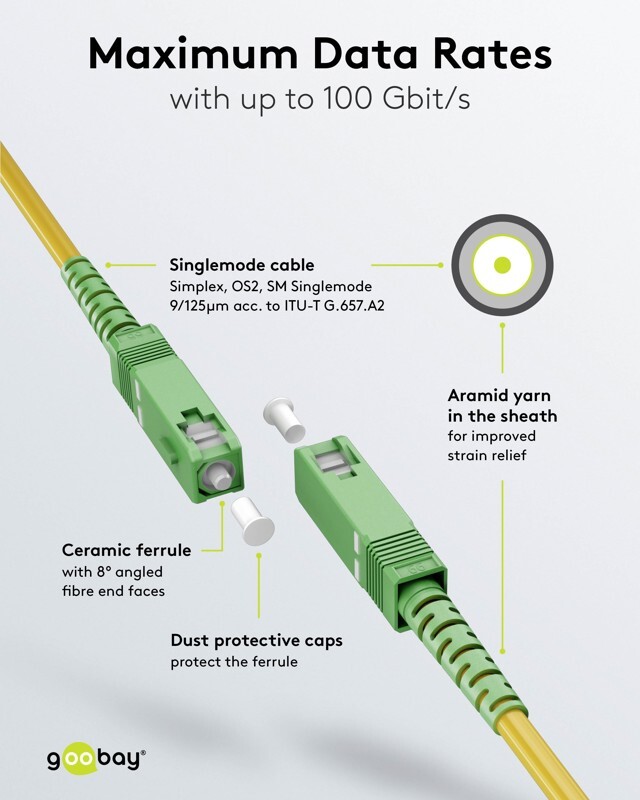

optical fibre cable for up to 100 Gbit/s that is bend-optimised and space-saving with a minimum bending radius of 30 mm (static)
LSZH-compliant: cable sheath is halogen-free and flame-retardant according to IEC 60754 2, IEC 60332 1 and IEC 61034
strain relief reinforced with aramid yarn provides extra stability

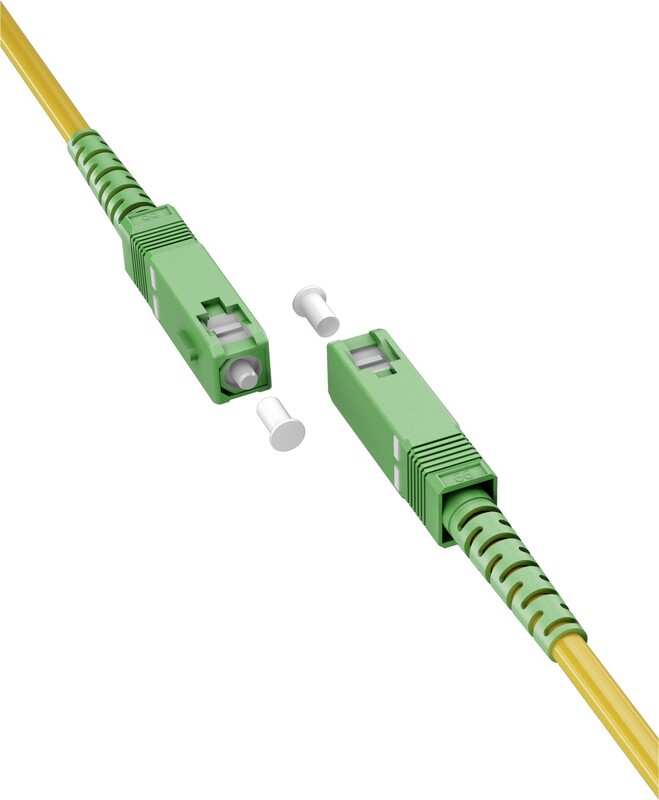

equipped with dust protection caps, connector: Simplex, fibre type: OS2, SM singlemode 9/125µm according to ITU T G.657
individual test protocol with measurement of return loss and insertion loss

Technical specifications

bending radius >	30 mm
Specification	Singlemode (OS2) Yellow
Cable sheath diameter (approx.)	3 mm
Optical fiber core diameter	9 µ
Optical fiber sheath diameter	125 µ
Wavelength	1310 nm
Contacting	Ceramic Ferrule
Operating temperature up to	85 °C
Operating temperature from	-40 °C
CAS no.	7439-92-1
chemical substance	Pb
Kink protection	yes
Cable type	simplex cable
Cable fiber type	Glass Fibre G657.A2
Material cable sheath	LSZH
LSZH compliant	yes
Connection, type	SC-APC (8°) male
Connection 2, type	SC-APC (8°) male
Color	yellow
Color version	yellow
Consumption Unit	1 pc. in polybag
Cable length	3 m
SCIP no.	4d390d81-9f8b-47aa-8ecd-a26d3bd42f19
