- dvojité tienenie s vysokou hustotou pre prenos signálu bez rušenia
- plne tienená, obojstranne zapuzdrená zástrčka, ochrana proti prachu, špine a mechanickému zaťaženiu
- poniklované kontakty
- s feritovými filtrami
Technické špecifikácie
| Priemer plášťa kábla (približne) | 5,3 mm |
| vnútorný vodič, priemer jadra | 0,5 |
| Počet tienenia | 2 x |
| Označenia | WEEE, CE |
| Impedancia | 75 O |
| Účinnosť tienenia | 80 dB |
| Typ kábla | |
| Feritové jadro | |
| Materiál vnútorného vodiča | |
| Typ 1, tienenie | |
| Typ 2, tienenie | |
| Pripojenie, tienenie | |
| Typ pripojenia | Koaxiálny samec |
| Pripojenie 2, typ | Koaxiálna samica |
| Dĺžka kábla | 5 m |
| Materiál plášťa kábla | PVC |
| Spojenie, kontaktný materiál | |
| Farba | |
| Jednotka spotreby | 1 ks. v polybagu |
| Farebné prevedenie | biely |

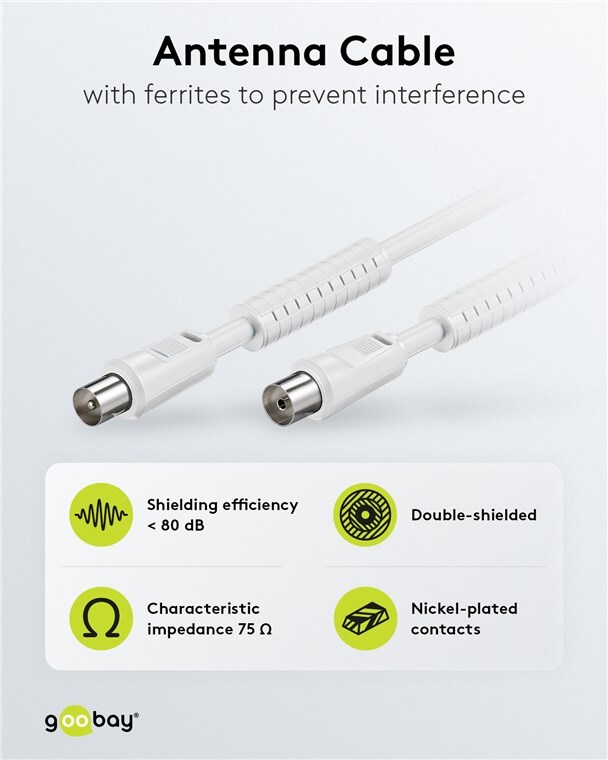

- Double-shielded antenna connection cable with ferrite core for interference-free transmission
- Suitable for Sat&BK systems

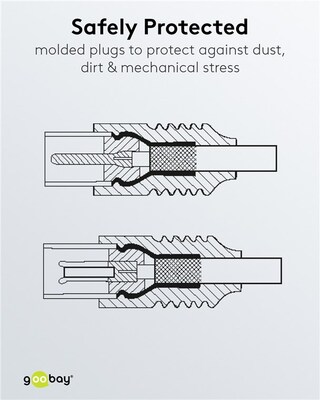

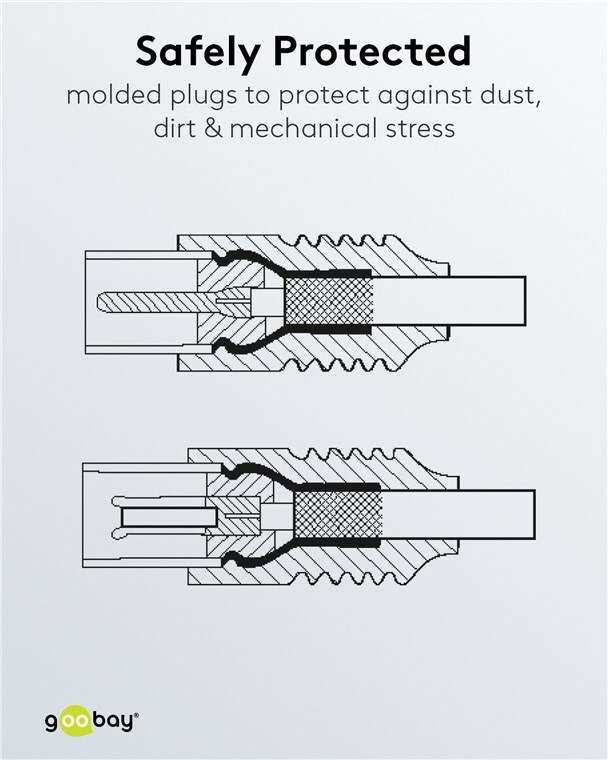

- Molded plug on both sides to protect against dust, dirt and mechanical stresses
- Coaxial cable with nickel-plated, precision-fit contacts
- Coax cable with sheath current filter to avoid interference noise.

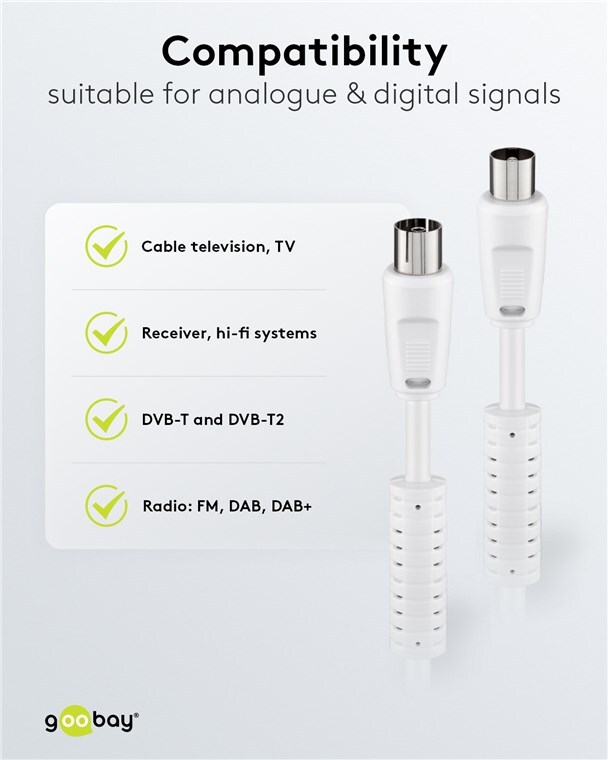

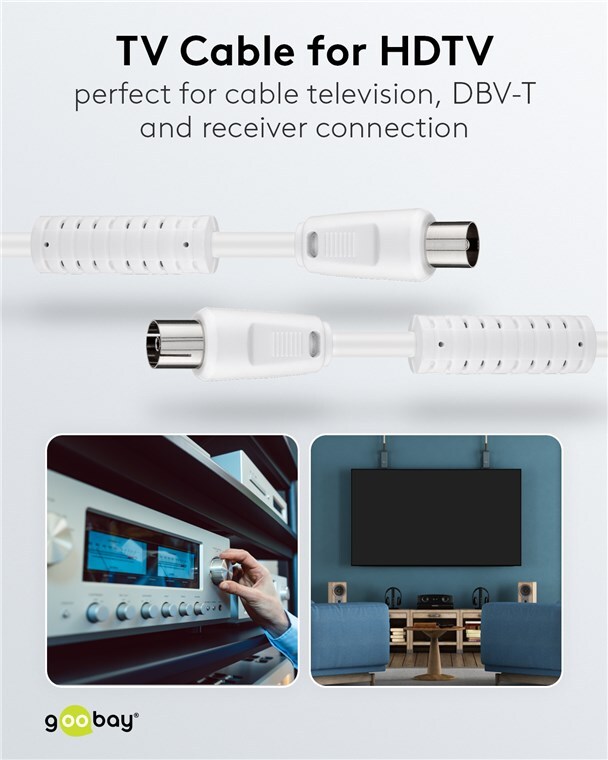

- TV aerial cable for connecting devices with a coaxial connection such as televisions, receivers and radios
Technical specifications
| Connection, contact material | nickel-plated |
| Connection, type | Coaxial male (plug) |
| Connection 2, type | Coaxial female (socket) |
| Connection, shielding | yes |
| Cable type | coaxial cable |
| Inner conductor material | CCS |
| Type 1, shielding | foil (aluminium) |
| Type 2, shielding | braid (aluminium) 112x |
| Material cable sheath | PVC |
| Ferrite core | yes |
| Color | white |
| Consumption Unit | 1 pc. in polybag |
| Packaging type | Bulk |
| Cable length | 5 m |
| Cable sheath diameter (approx.) | 5.3 mm |
| inner conductor, core diameter | 0.5 mm |
| Number of shieldings | 2 x |
| Impedance | 75 O |
| Shielding efficiency | 80 dB |
| Markings | WEEE, CE |
| SCIP no. | fe1bceda-e5dc-4745-bef9-6901a217326d |
| chemical substance | Pb |
| CAS no. | 7439-92-1 |
