Upozornenie
Je nutné dodržať smer signálu, podľa označenia na konektoroch -SOURCE (vstup), MONITOR (výstup)
Upozornenie
Je nutné dodržať smer signálu, podľa označenia na konektoroch -SOURCE (vstup), MONITOR (výstup)
- mechanické uzamknutie konektora DisplayPort zabraňuje uvoľneniu pripojenia

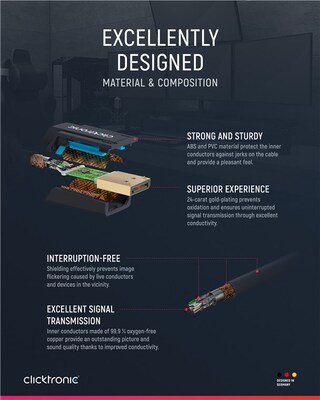

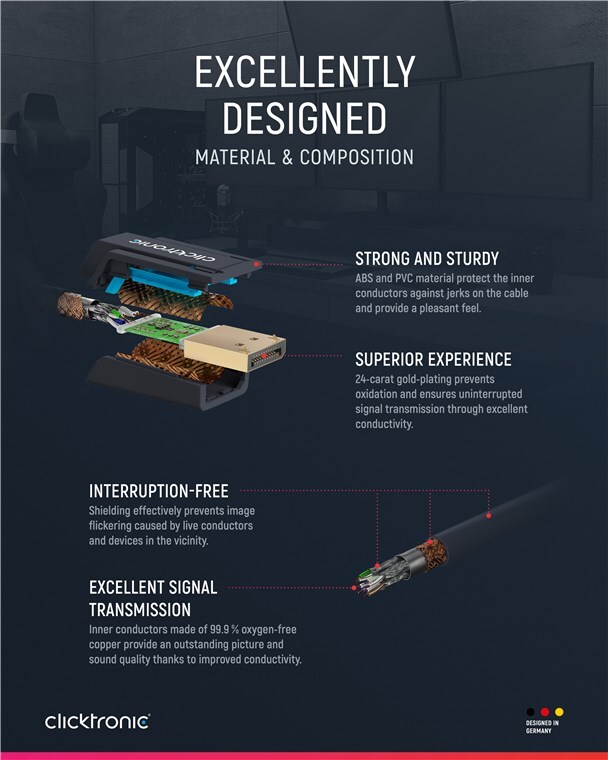

- čistý medený vodič a 2-cestné tienenie pre čistú kvalitu signálu
- podporuje maximálne rozlíšenie až 1920 x 1200p
- 24 karátové pozlátené kontakty pre minimálny prenosový odpor
Technické špecifikácie
| AWG | 30 |
| Priemer plášťa kábla (približne) | 6 mm |
| vnútorný vodič, priemer jadra | 0,25 |
| Číslo vnútorného vodiča | 1 kus |
| Počet tienenia | 2 x |
| Pripojenie, výška | 10 mm |
| Spojenie, dĺžka | 59,3 mm |
| Pripojenie, šírka | 20,5 mm |
| Prípojka 2, výška | 16,8 mm |
| Spojenie 2, dĺžka | 51,1 mm |
| Prípojka 2, šírka | 40 mm |
| Prevádzková teplota až | 80 °C |
| Prevádzková teplota od | -10 °C |
| Záruka | 10 rokov |
| Impedancia | 100 O |
| Ochrana proti zalomeniu | |
| Typ kábla | |
| Feritové jadro | |
| Materiál vnútorného vodiča | |
| Vyhovuje LSZH | |
| Typ 2, tienenie | |
| Spojenie, materiál puzdra | |
| Spojenie, kontaktný materiál | |
| Pripojenie, tienenie | |
| Jednotka spotreby | |
| Zosilnenie signálu | |
| Dĺžka kábla | 2 m |
| Označenia | WEEE, CE |
| Typ pripojenia | DisplayPort samec |
| Pripojenie 2, typ | DVI-D samec Dual-Link (24+1 pin) |
Upozornenie
Je nutné dodržať smer signálu, podľa označenia na konektoroch -SOURCE (vstup), MONITOR (výstup)

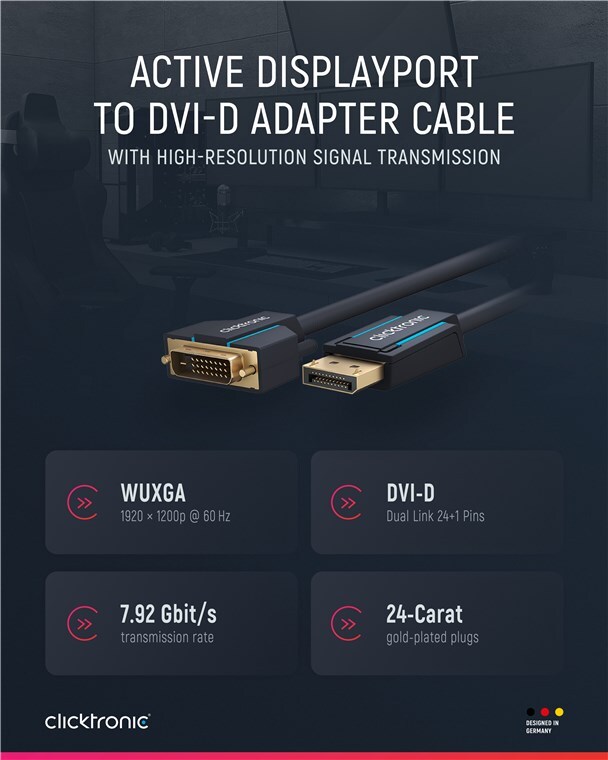

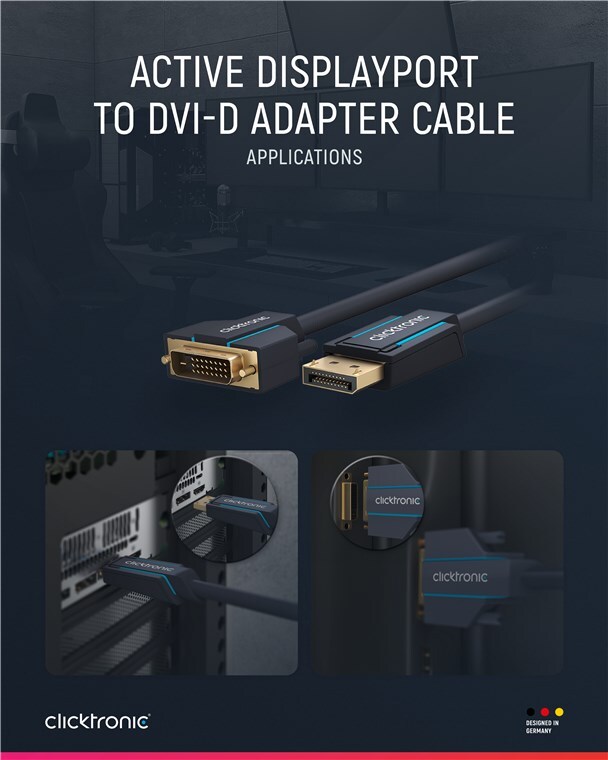

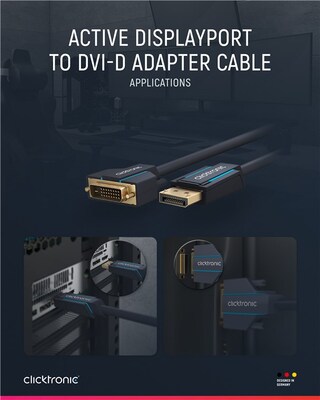

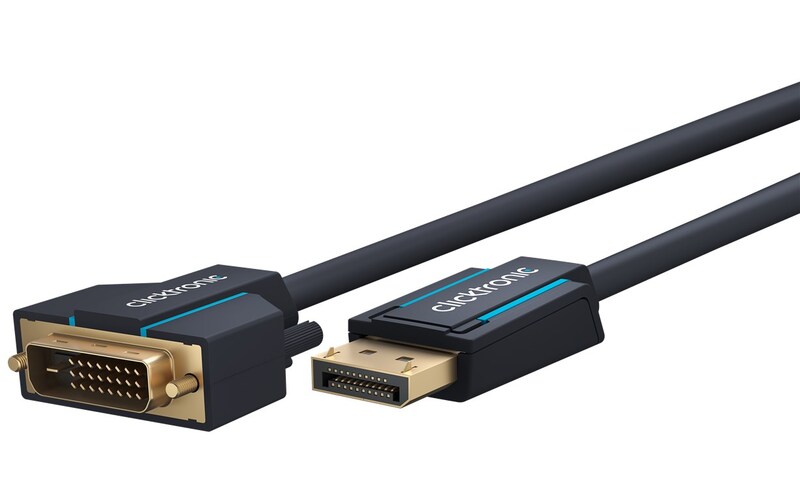

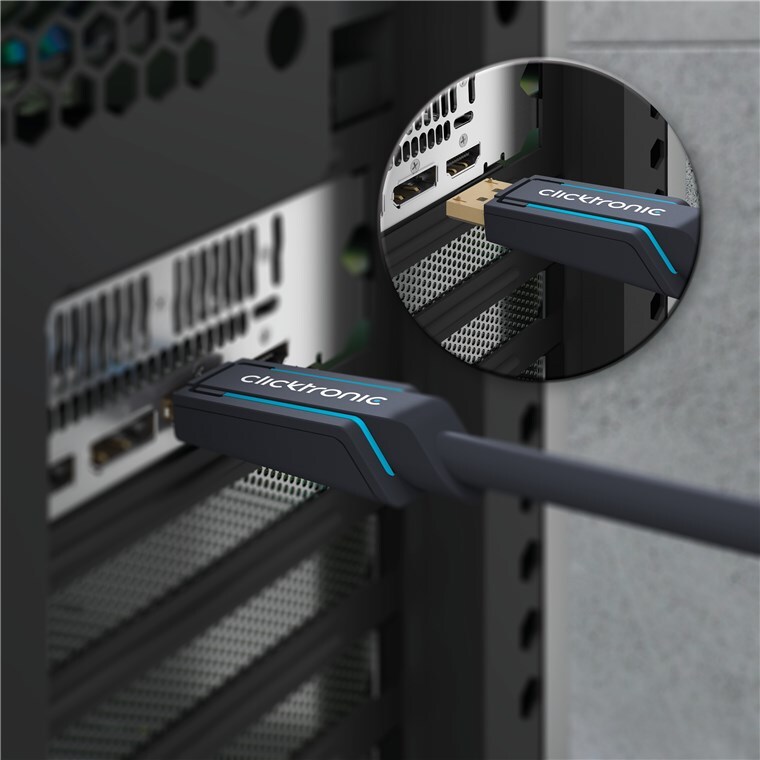

- DisplayPort to DVI cable connects external monitors and projectors to PC, laptop or Apple Mac.
- High-resolution signal transmission with Full HD @ 60 Hz (1080p) for crystal-clear sound and razor-sharp video and picture quality
- Monitor cable with max. transfer rate of up to 7.92 Gbit/s for an optimal entertainment experience
- Integrated signal amplifier prevents signal loss, making the Clicktronic cable especially suitable for bridging longer distances.
- 24-carat gold-plated connectors prevent corrosion, ensuring optimal, interference-free transmission over the long term
- Connections with mechanical plug locking prevent loose contacts.
- Signal direction: Due to the integrated signal amplifier, the DisplayPort cable must be connected so that the printed triangles point from the transmitter (e.g. PC) to the receiver (e.g. monitor).
Technical specifications
| Connection, contact material | gold (24 kt) |
| Connection, housing material | ABS, PVC |
| Connection, shielding | yes |
| Connection, type | DisplayPort male |
| Kink protection | both sides |
| Connection 2, type | DVI-D male Dual-Link (24+1 pin) |
| Cable type | round cable |
| Inner conductor material | CU (copper) |
| Type 1, shielding | braid (copper) 112x |
| Type 2, shielding | foil (aluminium) |
| Type 3, shielding | foil (aluminium) |
| Material cable sheath | PVC |
| Ferrite core | no |
| LSZH compliant | no |
| Signal amplification | no |
| Consumption Unit | 1 pc. in cardboard box |
| Operation manual | de, en, fr, it, es, nl, da, se, cz, pl |
| Packaging type | Retail Box |
| Cable length | 2 m |
| Cable sheath diameter (approx.) | 6 mm |
| AWG | 26 |
| Number of shieldings | 3 x |
| Max. resolution | Full HD (1920x1080p) 60 Hz |
| max. transmission rate | 7.92 Gbit/s |
| Markings | WEEE, CE |
| Operating temperature from | -10 °C |
| Operating temperature up to | 80 °C |
| Warranty | 10 years |
