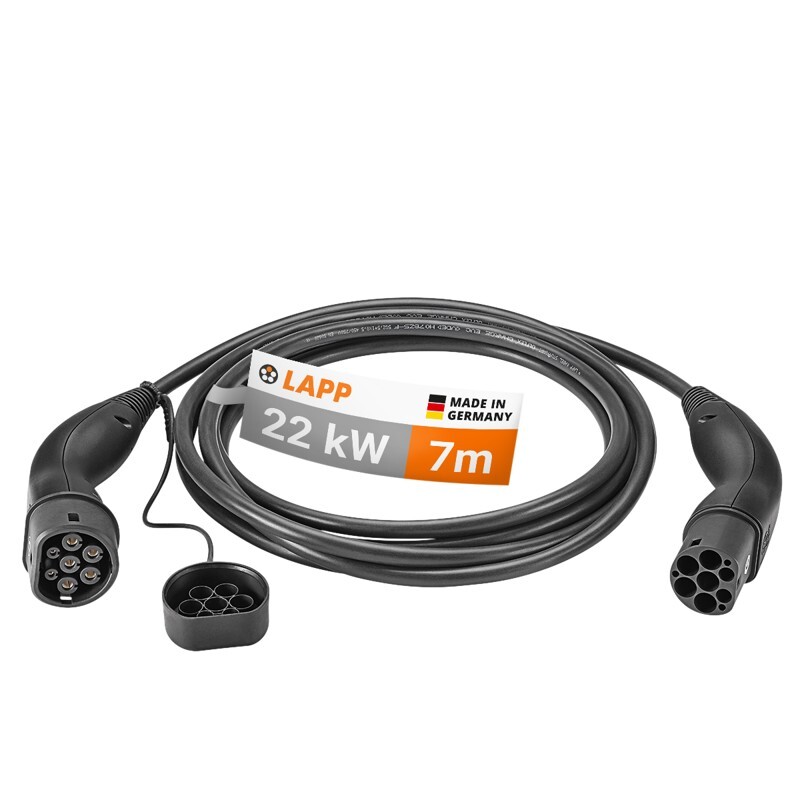

Kábel LAPP nabíjací pre elektromobily Type 2, 7m, 22kW, 32A, 3 fázy, čierny
Kábel LAPP nabíjací pre elektromobily Type 2, 7m, 22kW, 32A, 3 fázy, čierny
Štandardné nabíjacie káble LAPP typu 2 pripájajú vaše elektromobil k nabíjacej stanici, nabíjaciemu pólu alebo nást..... celý popis
Štandardné nabíjacie káble LAPP typu 2 pripájajú vaše elektromobil k nabíjacej stanici, nabíjaciemu pólu alebo nástennej nabíjačke – pre jednoduché nabíjanie doma alebo na cestách. Jednoducho pripojte spojku kábla k autu a zástrčku k zdroju napájania. Proces nabíjania sa automaticky spustí a ukončí palubnou elektronikou. Nabíjacie káble LAPP sú vhodné pre plug-in hybridné vozidlá (PHEV) a batériové elektrické vozidlá (BEV).
| Dĺžka kábla | 7 m |
| Typ kábla | hladký kábel |
| Číslo CAS | 7439-92-1 |
| Farba | čierna |
| Farebná verzia | čierna |
| Pripojenie 2, typ | zástrčka typu 2 samec |
| Typ pripojenia | zástrčka typu 2, samica |
| Režim nabíjania | Režim 3 |
| chemická látka | Olovo |
| Prierez vnútorného vodiča | 6 mm² |
| Nosnosť až | 22 kW |
| Značky | OEEZ, CE |
| Materiál plášťa kábla | ÖLFLEX®CHARGE |
| maximálna prúdová kapacita | 32 A |
| Počet fáz | 3 |
| Prevádzková teplota od | -40 °C |
| Prevádzková teplota do | 50 °C |

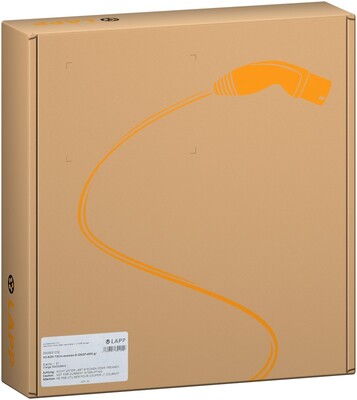

| Typ balenia | Maloobchodná krabica |
| trieda ochrany | IP55 |
| Menovité napätie | 440 V (striedavé napätie) |
| Číslo SCIP | 92ac866b-d201-4c6e-ac0a-f5f1b01570c7 |
| Špeciálna funkcia | Postriebrené kontakty odolné voči korózii, ergonomický dizajn rukoväte s pevnou gumou, certifikácia VDE, certifikácia VDE |
| Záruka | 5 rokov |
| Hmotnosť | 3890 g |

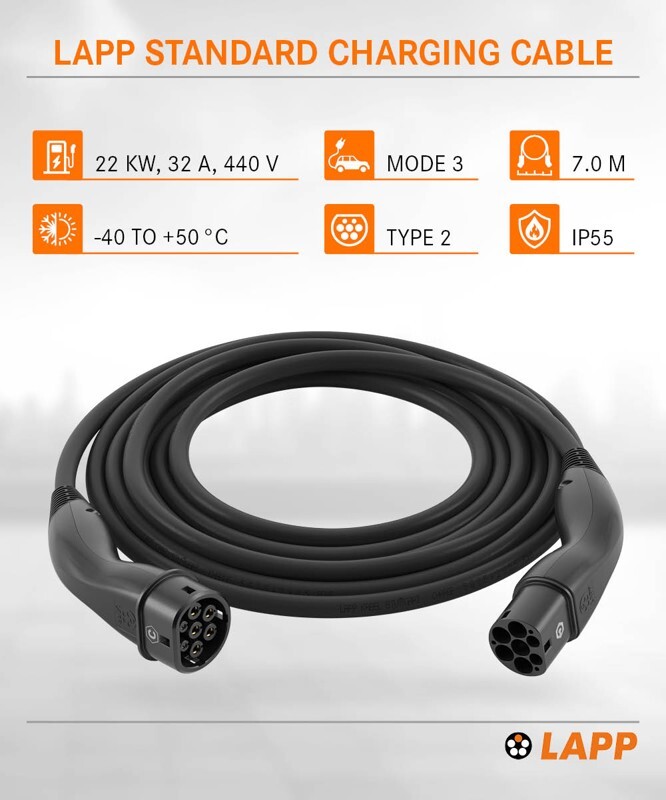

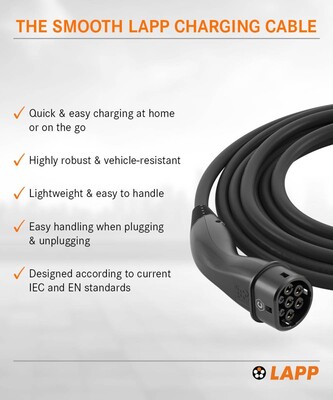

LAPP Type 2 standard charging cables connect your EV to the charging station, charging pole or wallbox - for easy charging at home or on the road. Simply connect the coupling of the cable to the car and the plug to the power source. The charging process is automatically started and finished by the on-board electronics. LAPP charging cables are suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
- The Type 2 charging cable from LAPP allows easy and fast charging with up to 22 kW at a public or private charging station or wallbox.
- Thanks to the 3-phase cable design, the cable charges particularly quickly and also supports 3-phase charging with 11 kW as well as 1-phase charging with 7.4 kW and 3.7 kW

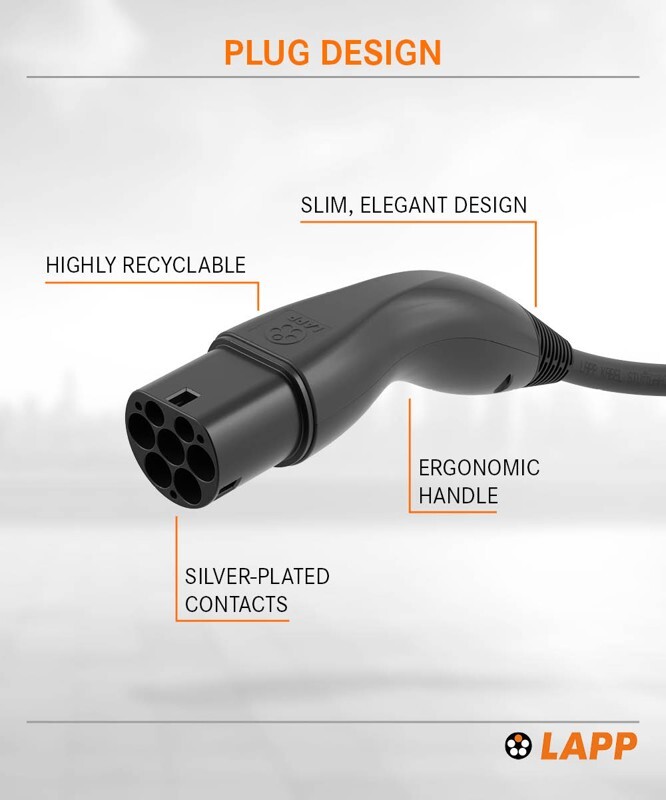

- Highly robust, vehicle-resistant cables and plugs with silver-plated contacts provide extra durability
- The cover cap on the vehicle-side coupling protects against ingress of dust, dirt and water in between charges.

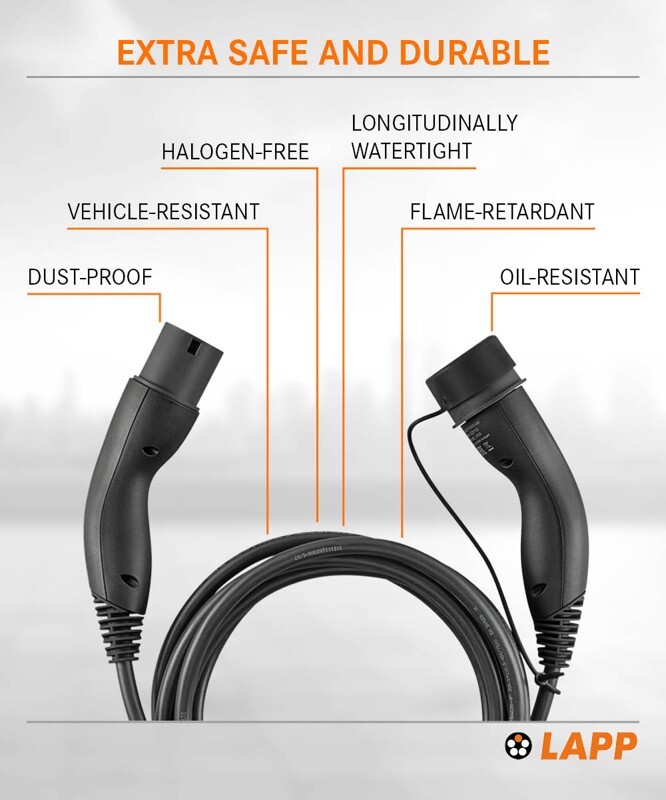

- Oil-resistant and longitudinally watertight EV charging cable with high moisture protection according to IP55, operating temperature -40 °C to 50 °C
- The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight.
- Mode 3 charging cable manufactured according to current IEC and EN standards, compatible with European vehicles and charging stations as well as with CCS connections (Combo 2)
Technical specifications
| Connection, type | type 2 female plug |
| Connection 2, type | type 2 male plug |
| Material cable sheath | ÖLFLEX®CHARGE |
| Cable type | smooth cable |
| Color version | black |
| Color | black |
| Special feature | Silver-plated, corrosion-resistant contacts, solid rubberized ergonomic grip design, VDE certified, VDE certified |
| Packaging type | Retail Box |
| Loading capacity up to | 22 kW |
| Charging mode | Mode 3 |
| Rated voltage | 440 V (AC) |
| max current capacity | 32 A |
| Number of phases | 3 |
| Cable length | 7 m |
| Markings | WEEE, CE |
| Operating temperature from | -40 °C |
| Operating temperature up to | 50 °C |
| protection class | IP55 |
| SCIP no. | 92ac866b-d201-4c6e-ac0a-f5f1b01570c7 |
| chemical substance | Pb |
| CAS no. | 7439-92-1 |
| Warranty | 5 years |
