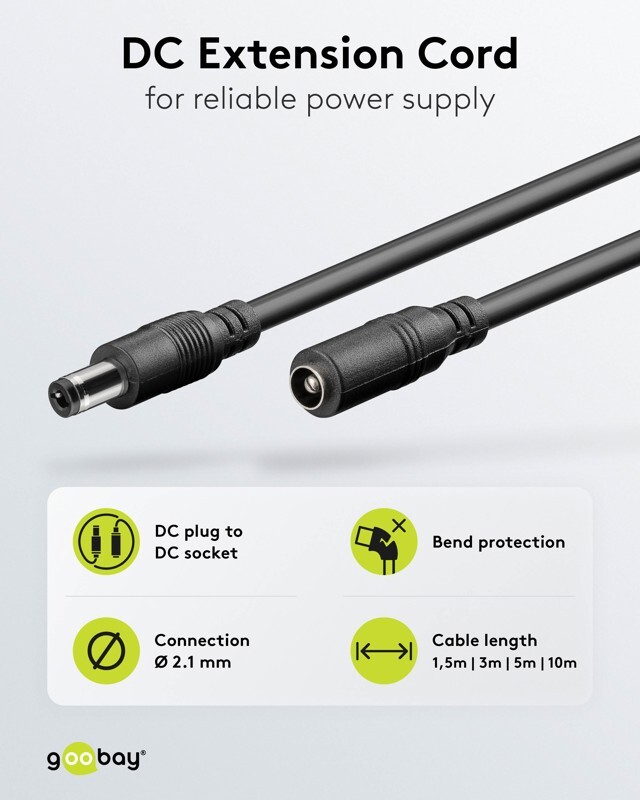

- predlžovací kábel na pripojenie napájania
- priemer pripojenia 2,1 mm
- Predlžovací kábel je vhodný pre aplikácie vyžadujúce jednosmerné napájanie, ako sú CCTV kamery, DVR, LED svetelné pásy, smerovače, tlačiarne, displeje, senzory atď.
Technické špecifikácie
| Vnútorný prierez vodiča | 0,5 mm |
| Číslo vnútorného vodiča | 2 kusy |
| Materiál vnútorného vodiča | meď |
| Typ pripojenia | DC samec (5,50 x 2,10 mm) |
| Pripojenie 2, typ | DC samica (5,50 x 2,10 mm) |
| Jednotka spotreby | 1 ks. v polybagu |
| Dĺžka kábla | 10 m |
| Hmotnosť | 400 g |

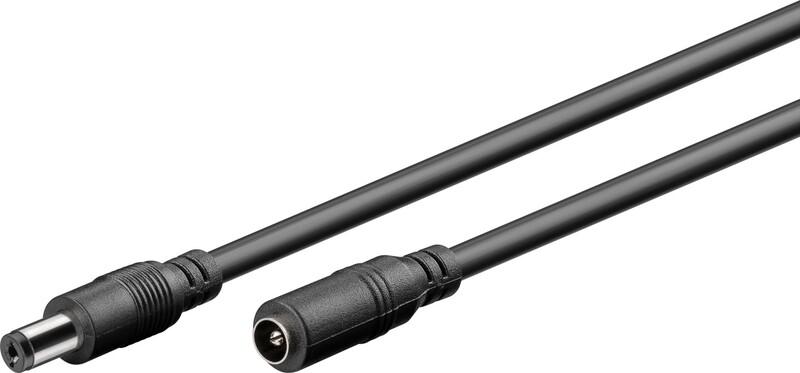

- Extends an existing mains connection cable or power supply unit by up to 10 m

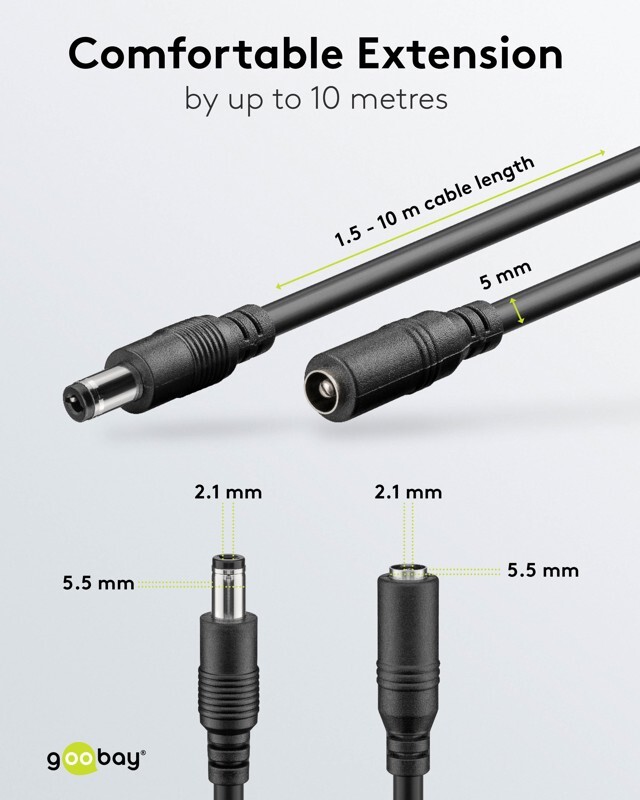

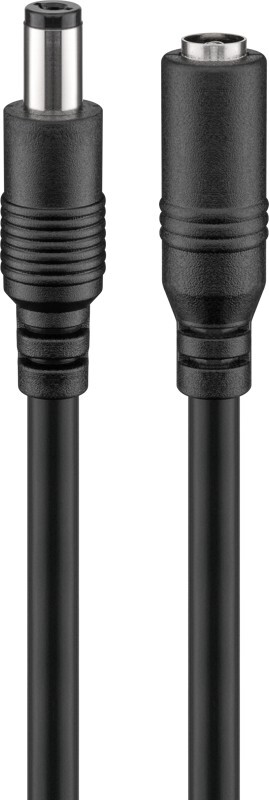

- Equipped with 1x DC plug (5.5 x 2.1 mm) and 1x DC socket (5.5 x 2.1 mm)

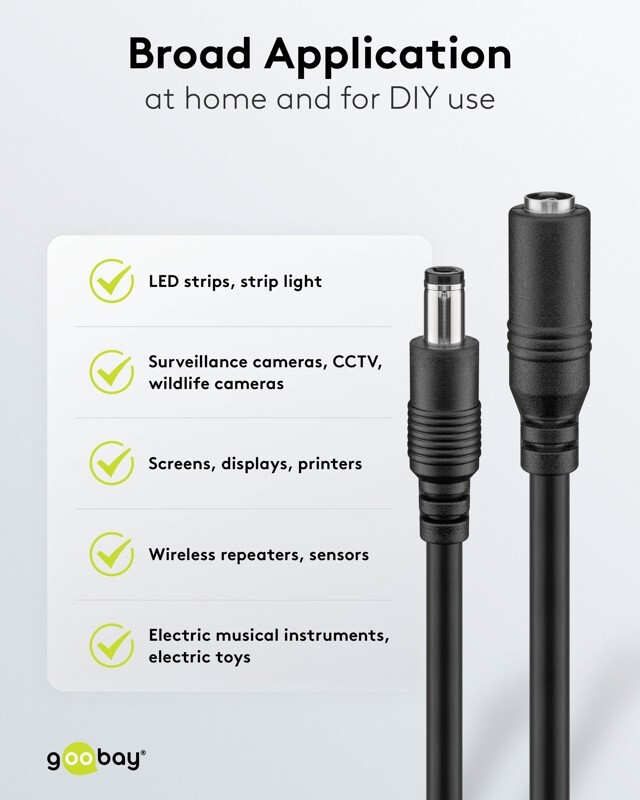

- Suitable for devices with 5-24 V (DC) and max. 5 A, e.g. LED light strips, routers such as the AVM Fritz!Box, electric toys, external hard drives and surveillance cameras

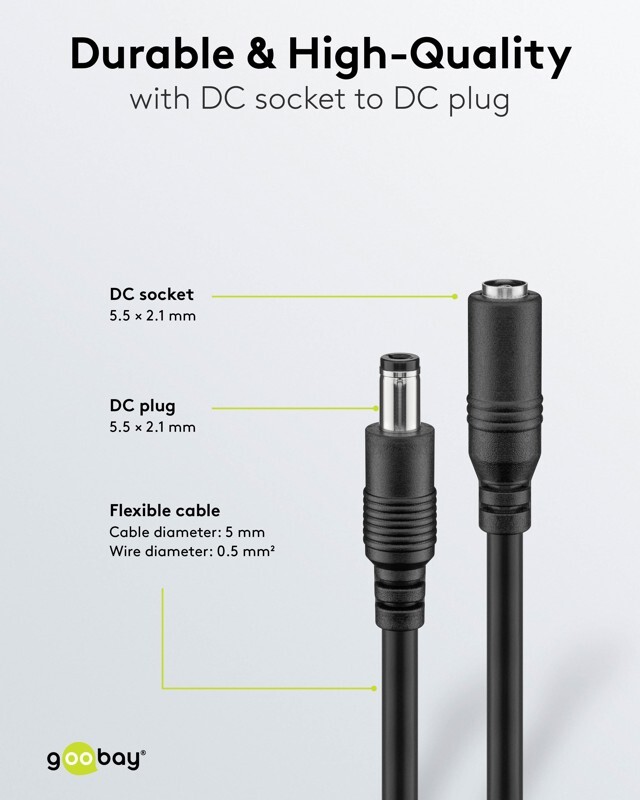

- Flexible DC cable with 5 mm diameter and plug housing with 9.5 mm diameter
- Bend protection on both sides prevents cable breakage
- Product is only suitable for hobbyist/DIY use

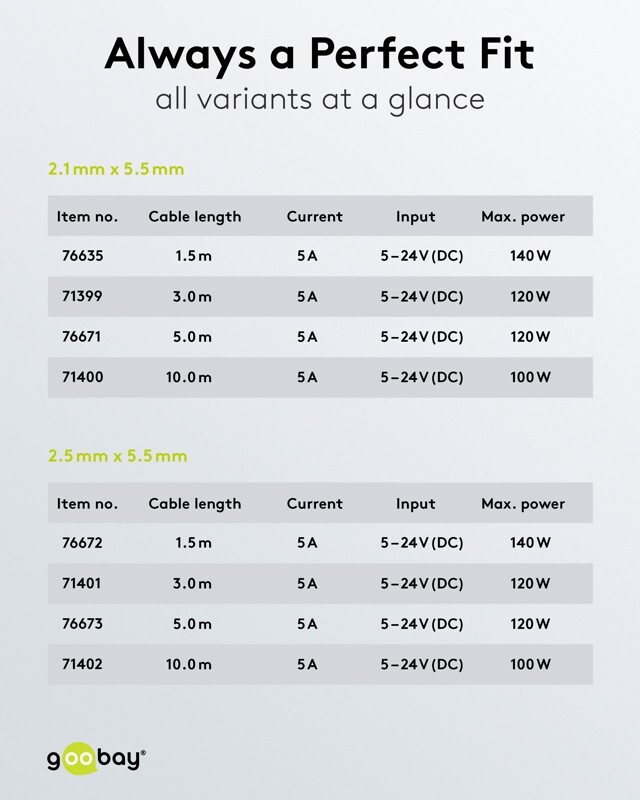

Technical specifications
| Connection, type | DC male (5.50 x 2.10 mm) |
| Connection 2, type | DC female (5.50 x 2.10 mm) |
| Inner conductor material | copper |
| Color version | black |
| Color | black |
| Consumption Unit | 1 pc. bulk |
| Packaging type | Cable Tag |
| Inner conductor cross-section | 0.5 mm˛ |
| max. performance | 100 W |
| max current capacity | 5 A |
| Inner Conductor number | 2 |
| AWG | 20 |
| Cable sheath diameter (approx.) | 5 mm |
| Cable length | 10 m |
| Input, Voltage Range | 5 - 24 (DC) V |
| Markings | CE, WEEE |
| Weight | 400 g |
