Greater reach for power supply and device

• Greater reach for your devices: The DC extension cable extends an existing power connection between the power supply and a compatible device, allowing for more flexible placement.
• Matching DC connection: The plug and socket have the same connector dimensions. This allows you to extend an existing connection without changing the current connection size between the power supply and the device.
• Rated for up to 140 W: The AWG 18 copper inner conductor supports compatible power connections at 12–24 V (DC) and is therefore suitable for various DC applications.
• Easy to integrate into existing installations: Connect the DC plug to the existing socket and connect the compatible device to the socket on the extension cable.
• Check compatibility easily: Before connecting, check the plug size, polarity, operating voltage and power requirements. The values must be compatible with the power supply, cable and connected device.

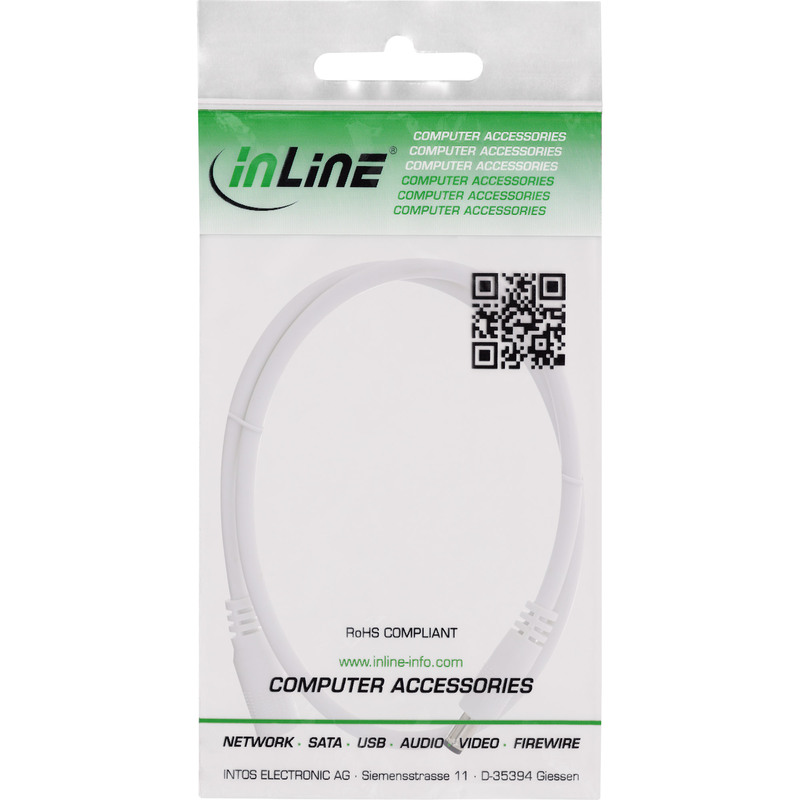

The InLine DC extension cable allows you to extend an existing power connection between a power supply and a compatible device. This enables you to bridge the distance to the power source if the existing connection cable does not provide the required reach.

The DC plug and DC socket have the same connection dimensions. This means the existing connection type is retained. The cable can be easily used between an existing power supply and the connected device.

The AWG 18 copper inner conductor supports an operating voltage of 12–24 V (DC) and a maximum power of 140 W. Before use, check the required connector size as well as the polarity, operating voltage and power requirements of the connected components.

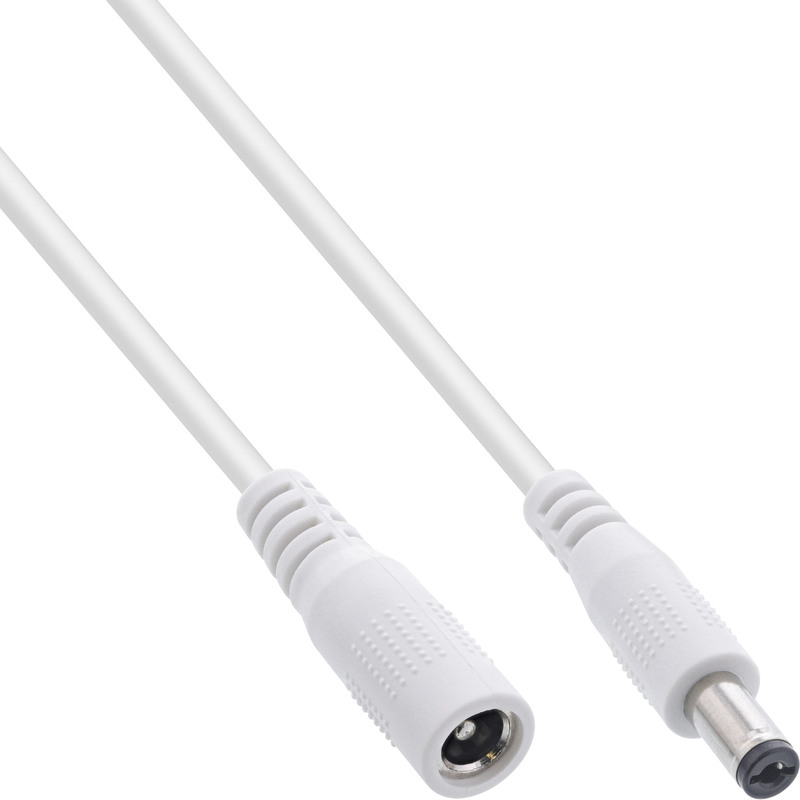

• Connector A: DC plug, straight
• Connector B: DC socket, straight
• Connector dimensions: 5.5 x 2.5 mm
• Conductor cross-section: AWG 18
• Inner conductor: Copper
• Operating voltage: 12–24 V (DC)
• Maximum power: 140 W
