- pre realizáciu koaxiálnych káblov cez rámy okien alebo dverí bez vŕtania!
- priehľadná, PCB film/fólia
- extrémne ploché prevedenie, hrúbka 0,3 mm
Technické špecifikácie
| Priemer plášťa kábla (približne) | 0,3 mm |
| Spojenie, dĺžka | 42,5 mm |
| Označenia | WEEE, CE |
| Impedancia | 75 O |
| Dĺžka kábla | 0,3 m |
| Typ kábla | plochý kábel |
| šírka plášťa kábla | 17 |
| výška plášťa kábla | 0,3 |
| Materiál vnútorného vodiča | CU (meď) |
| Jednotka spotreby | 1 ks. v polybagu |
| Dĺžka | 320 mm |
| Typ pripojenia | F samica |
| Pripojenie 2, typ | F samica |

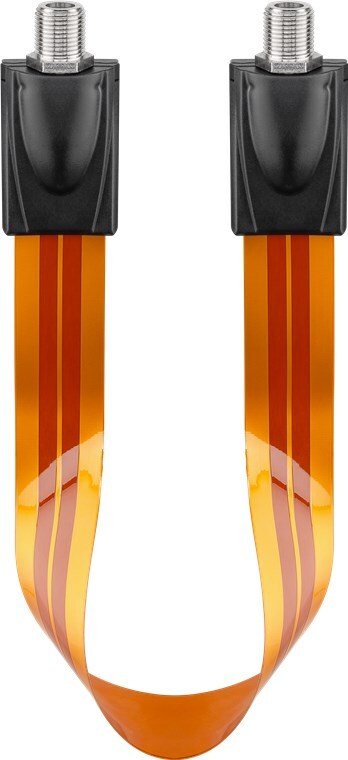

- Transparent SAT extension cable with PCB foil

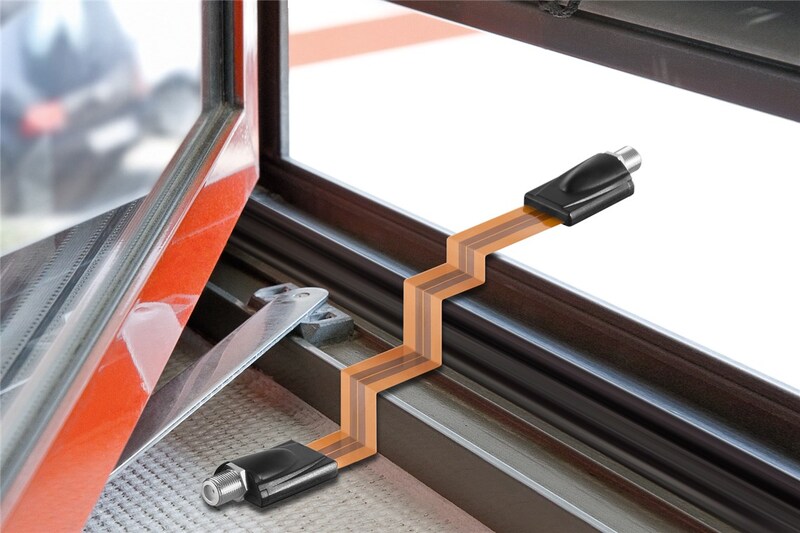

- For easy routing of coaxial cables through window and door frames with a small clearance without impairing the closing function
- Extremely flexible and flat at only 0.3 mm thick
- Can be used with all commercially available SAT cables and antenna cables with F plugs
Technical specifications
| Connection, type | F female |
| Connection 2, type | F female |
| Cable type | flat cable |
| Inner conductor material | CU (copper) |
| Consumption Unit | 1 pc. in polybag |
| Packaging type | Bulk |
| Connection, length | 42.5 mm |
| Cable length | 0.3 m |
| Cable sheath diameter (approx.) | 0.3 mm |
| height of cable sheath | 0.3 mm |
| width of cable sheath | 17 mm |
| Impedance | 75 O |
| Markings | WEEE, CE |
| Length | 320 mm |
