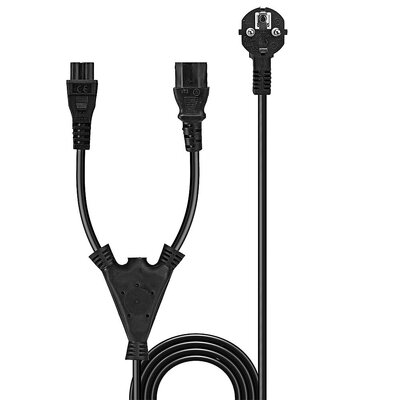

- Napájací kábel typu Y, plastový, zapuzdrený
- Pripojenia: Schuko zástrčka na 2 x IEC spojku, 1 x C13 studená spojka a 1 x C5 (Mickey Mouse, napríklad pre napájanie notebooku)
- Šnúrka Schuko: 1,0 mm2, cca. 1,8 m, materiál kábla H05 VV-F 3G X 1,0 mm2
- IEC pramene: 1,0 mm2, cca. 0,2 m, materiál kábla H05 VV-F 3G X 1,0 mm2
- 10 ročná záruka
Napájacie káble LINDY sú ideálne pre použitie v profesionálnych priestoroch (nahrávacie štúdiá, osvetľovacie systémy a tiež pre eventy akéhokoľvek druhu a pod.) – ale môžete ich použiť aj v súkromných priestoroch.
Vďaka vysokej teplotnej odolnosti od -10 do 70°C počas prevádzky je možné tieto káble použiť aj v neklimatizovaných priestoroch.
- Počet drôtov: 3
- Prierez drôtu: 1,50 mm2
- Dostupné dĺžky: 2m
- Schuko do Y: cca. 1,80 m
- Y do IEC C13 alebo IEC C5: cca. 0,20 m
- Prevádzková teplota: cca. -10 až 70 °C
- Skladovacia teplota: cca. -25 až 70 °C
- Farba: Čierna
- 10 rokov záruka
Upozornenie: Len na použitie v suchých priestoroch!
- Schuko to IEC C13&IEC C5 Mains Cable for use in professional areas and private sectors
- Provides max. 10A/250V (C13 Connector), 2.5A/250V (C5 Connector)
- Robust PVC/PBT housing and PVC cable jacket, lead-free connectors (<0.1% lead in brass)
- High temperature resistance allows the cable to be used in non air-conditioned areas
- 10 year warranty
Lindy Power Cables are high quality, reliable power delivery connections for use in a wide variety of professional and home environments.
This splitter cable is ideal for powering multiple devices from one power source. The IEC C13 connector fits to many devices such as computers, monitors, printers and many other devices with IEC C14 port. The C5 (Mickey Mouse) connector is ideal for the connection of a notebook power supply.
The brass used in the connectors has a lead content of far below 0.1% and is therefore SVHC-free, as are all other materials used in these cables.
Please note that this cable is for use in dry areas only.
Connectors
- Connector A: Schuko Plug (CEE 7/7 (Type EF)
- Connector B: IEC C13&IEC C5
- Housing Material:
- A: PVC
- B/C: PVC&PBT
- Pin Construction:
- A: Brass
- B/C: Phosphor Bronze
- Pin Plating: Nickel
- Dimensions (approx.) WxDxH:
- A: 36.5x71x36.5mm (1.44x2.8x1.44in)
- B: 25.6x65x16.5mm (1.01x2.56x0.65in)
- C: 22.8x64x15mm (0.9x2.52x0.59in)
Cable Construction
- Length: 2m (6.56ft)
- Colour: Black
- Conductor Material: Copper
- Cable Material: H05-VVF 3G 1.0mm², H05VV-F 3G 0.75mm²
- Number of Wires: 3
- Wire Gauge: 1.0mm², 0.75mm²
- Jacket Diameter: 6.8mm (0.27in), 6.4mm (0.25in)
- Jacket Material: PVC
Specifications
- Rated Voltage and Current: 10A/250V, 2.5A/250V
- Operating Temperature: -10degC - 60degC (14degF - 140degF)
- Storage Temperature: -20degC - 70degC (-4degF - 158degF)
Miscellaneous
- Packaging Type: Polybag
- Warranty (Years): 10
- Product Compliance: CE, RoHS, REACH, California Proposition 65
Purchasing Information
- No.: 30047
- EAN: 4002888300476
