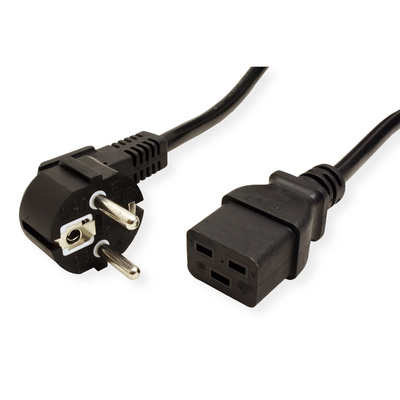

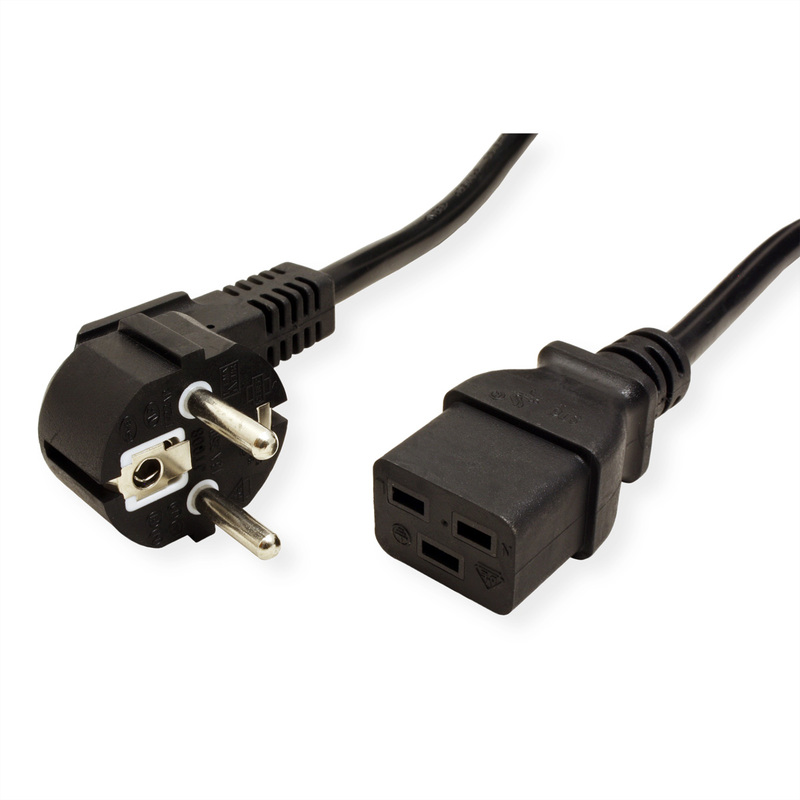

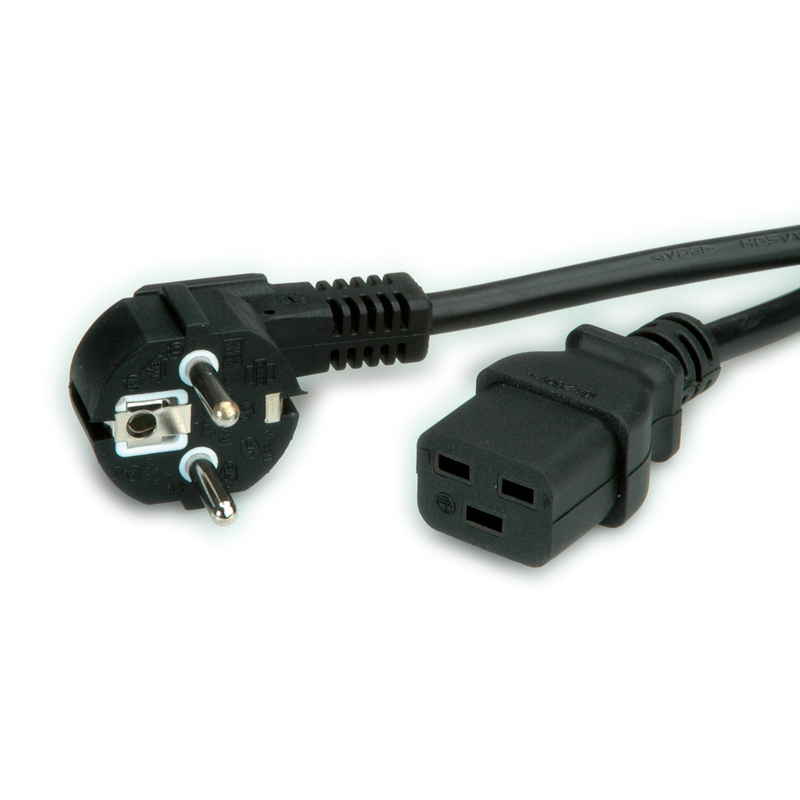

Kábel často používaný pre UPS od 3000 VA a pre pripojenie Blade serverov.
- Pripojovací kábel 16 A so zásuvkou IEC320 C19 a zástrčkou Schuko, lomený
- Kábel: H05VV-F 3G1.5 3x 1.5mm2
- Nominálne údaje: 250 VAC/16 A
- Farba: čierna
Technické špecifikácie
| Skupina produktov | Napájacie káble |
| Typ produktu | Pripojovací kábel |
| Farba | čierna |
| Dĺžka | 2 m |
| Pripojovacie porty | 3P. Nemčina, CEE 7/7 Samec / IEC320 C19, 16A Samec |
| Max. prúd | 16 A |
| Max. Napätie | 250V |
| Max. moc | 3600 W |
| Materiál kábla | H05VV-F |
| Prierez vodiča (mm2) | 1,5 mm2 |
| Množstvo drôtov | 3 |
| Popis strany 1 | Schuko |
| Strana 1 Typ pripojenia | Schuko |
| Strana 1 vonkajší priemer konektora (mm) | 40 mm |
| Popis strany 2 | Vstupný konektor |
| Strana 2 Typ pripojenia | IEC320 C19 |
| Vonkajší priemer bočného 2 konektora (mm) | 20 x 28 mm |
| Strana 1 Typ konektora | 3P. Nemčina, CEE 7/7 |
| Strana 1 Pohlavie konektora | Muž |
| Typ konektora na strane 2 | IEC320 C19, 16A |
| Strana 2 Pohlavie konektora | Žena |
| Hmotnosť | 321 g |
Connection cable with IEC320 C19 socket and safety plug (CEE 7/7) - often used for UPS
Cable often used for UPS from 3000 VA and for connecting Blade servers.- Connection cable 16 A with IEC320 C19 Female and German Type Plug, angled
- Cable: H05VV-F 3G1.5 3x 1.5mm˛
- Nominal data: 250 VAC/16 A
- Colour: black
Technical specifications
| Product group | Power Cables |
| Product type | Connection cable |
| Colour | black |
| Length | 2 |
| Scope of delivery | Power Cord |
| Connection ports | 3P. German, CEE 7/7, Type-E/F Male / IEC320 C19, 16A Female |
| Max. current | 16 A |
| Max. voltage | 250V |
| Max. power | 3600W |
| Cable material | H05VV-F |
| Conductor cross section (mm˛) | 1,5mm˛ |
| Quantity of wires | 3 |
| Side 1 description | German Type |
| Side 1 Connection type | 3P German Connector |
| Side 1 connector external diameter (mm) | 40 mm |
| Side 2 description | Inlet connector |
| Side 2 Connection type | IEC320 C19 |
| Side 2 connector external diameter (mm) | 20 x 28 mm |
| Side 1 Connector Type | 3P. German, CEE 7/7, Type-E/F |
| Side 1 Connector Gender | Male |
| Side 2 Connector Type | IEC320 C19, 16A |
| Side 2 Connector Gender | Female |
| Regional use | Germany, Austria, Netherlands |
| Weight | 321 |
| Height of packaging (single piece) | 50 |
| Width of packaging (single piece) | 90 |
| Depth of packaging (single piece) | 220 |
| Package weight (single piece) | 0.3 |
| Gross weight | 0.3 |
Konektor 1
CEE 7/7 230V - Lomená
Konektor 2
C19 - priamy
Dĺžka
2m
Farba
čierny
Prierez Vodiča
1.50mm²
LSOH
nie
