Nabíjačka LAPP do 230V pre elektomobily a hybridy, 2.3kW, 10A, čierna
Nabíjačka LAPP do 230V pre elektomobily a hybridy, 2.3kW, 10A, čierna
Dokovacia stanica LAPP Mobility Dock je praktické riešenie na napájanie elektromobilov aj bez nabíjacej stanice, na..... celý popis
Dokovacia stanica LAPP Mobility Dock je praktické riešenie na napájanie elektromobilov aj bez nabíjacej stanice, nabíjacieho stĺpika alebo nástennej nabíjačky. Ako núdzová nabíjačka je perfektným spoločníkom na cestách na nabíjanie plug-in hybridov (PHEV) a batériových elektromobilov (BEV).
| Číslo CAS | 7439-92-1 |
| Farba | antracitová, oranžová |
| Farebná verzia | antracitovo-oranžová |
| Pripojenie 2, typ | zásuvka typu 2 |
| Typ pripojenia | bezpečnostný plug hybrid (typ E/F, CEE 7/7) |
| hĺbka | 106 mm |
| Výška | 255 mm |
| Režim nabíjania | Režim 2 |
| chemická látka | Olovo |
| Nosnosť až | 2,3 kW |
| Značky | OEEZ, CE |
| maximálna prúdová kapacita | 10 A |
| Počet fáz | 1 |
| Prevádzková teplota od | -25 °C |
| Prevádzková teplota do | 45 °C |
| Typ balenia | Maloobchodná krabica |
| trieda ochrany | IP44 |
| Menovité napätie | 230 V (striedavé napätie) |
| Číslo SCIP | 20cd942d-99e7-43d3-8768-20bdf67c8677 |
| Špeciálna funkcia | Ovládanie nabíjania |
| Hmotnosť | 750 g |
| Šírka | 135 mm |

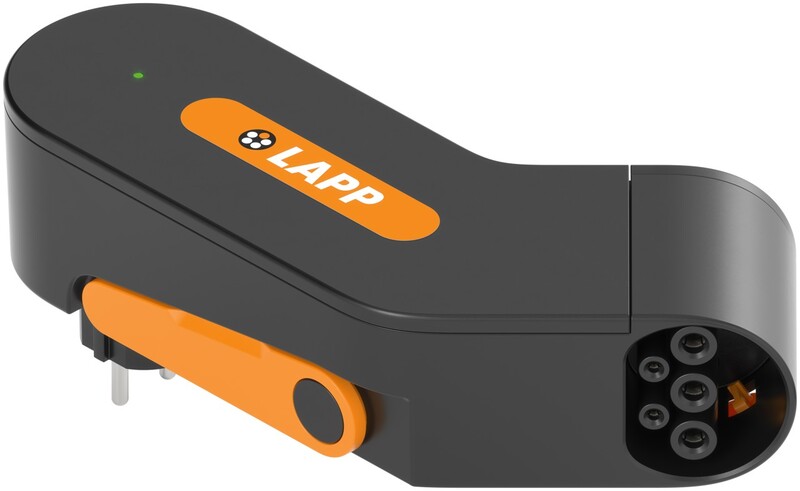

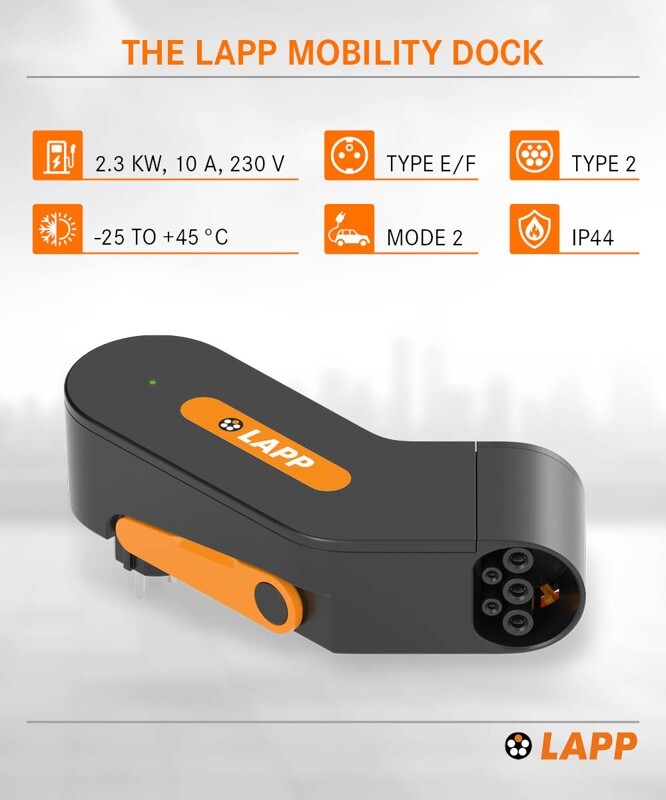

The LAPP Mobility Dock is a handy solution for supplying electric vehicles with power even without a charging station, charging pole or wallbox. As an emergency charger, it is the perfect companion on the road to charge plug-in hybrids (PHEV) and battery electric vehicles (BEV).

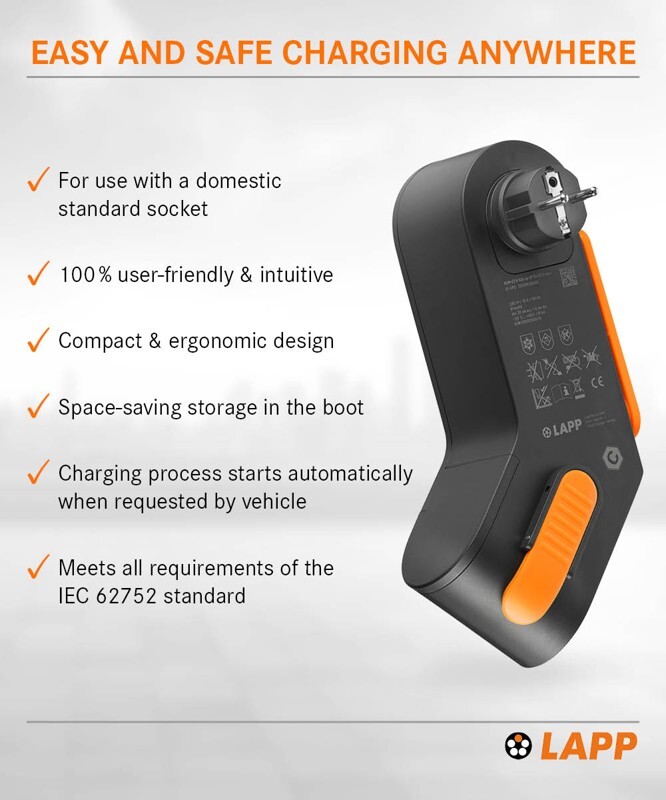

- The LAPP charger for simple, mobile charging via standard sockets (safety socket CEE 7/7, type E/F) is ideal for on the road or in the garage at home

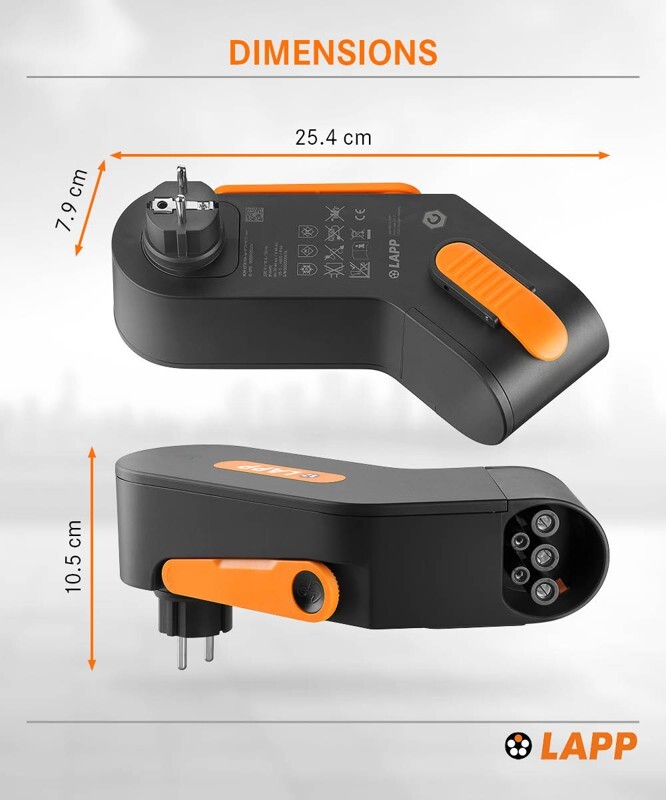

- The space-saving charging station for Mode 3 cables can easily be stored in the boot thanks to its compact design of 255 mm x 135 mm x 105 mm.
- The EV emergency charger is oil-resistant and supports a charging power of up to 2.3 kW at a nominal voltage of 230 V, operating temperature is -25 °C to +45 °C

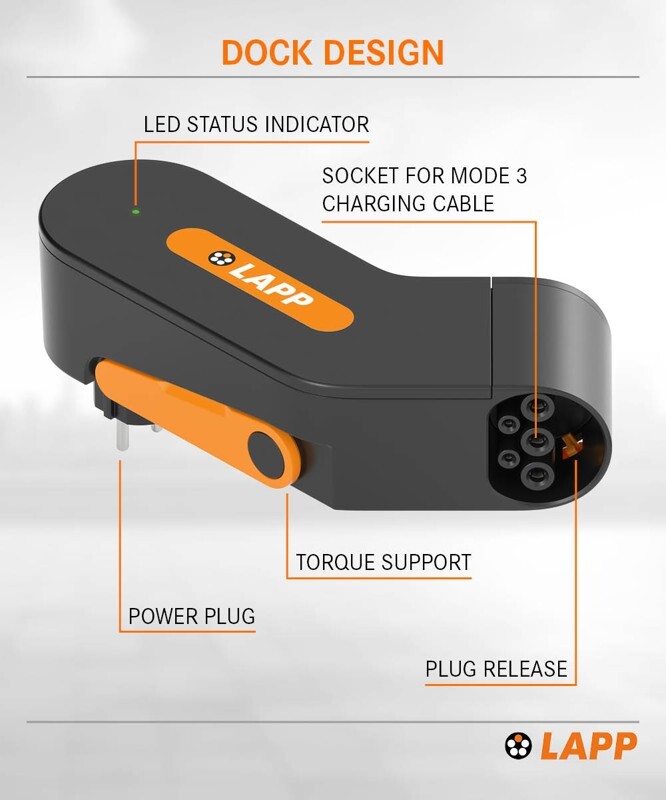

- The integrated lever releases the connected Type 2 cable after the charging process with just one simple movement.
- Fold-out torque support for bracing against the wall reduces the weight of the dock and cable on the connected outlet.
- The car charger is equipped with a convenient LED indicator lamp in the housing.

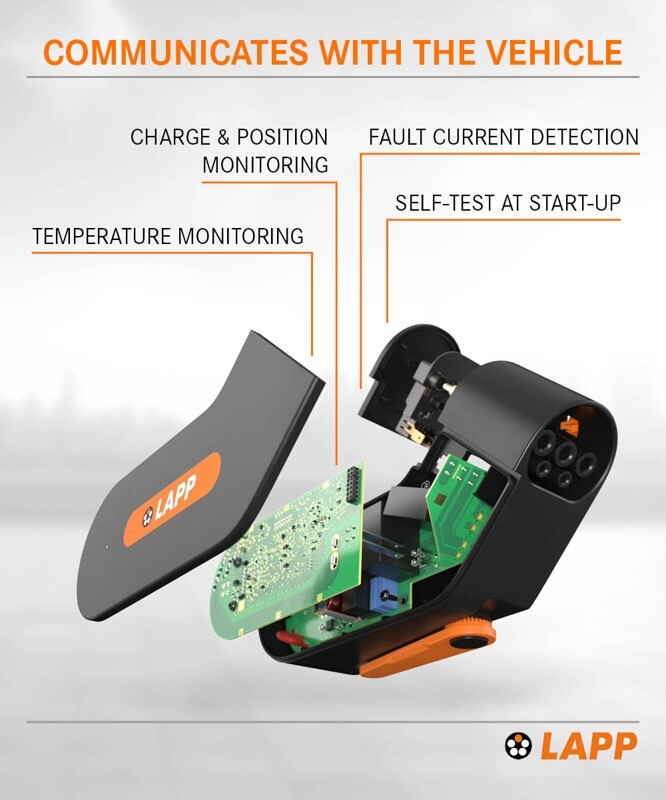

- The EV charger is particularly safe thanks to overcurrent and overvoltage protection as well as temperature monitoring in the mains plug and in the in-cable control box (ICCB).
Technical specifications
| Connection, type | safety plug hybrid (type E/F, CEE 7/7) |
| Connection 2, type | type 2 female socket |
| Color version | anthracite-orange |
| Color | anthracite, orange |
| Special feature | Charge control |
| Packaging type | Retail Box |
| Loading capacity up to | 2.3 kW |
| Charging mode | Mode 2 |
| Rated voltage | 230 V (AC) |
| max current capacity | 10 A |
| Number of phases | 1 |
| Markings | WEEE, CE |
| Operating temperature from | -25 °C |
| Operating temperature up to | 45 °C |
| Width | 135 mm |
| Height | 255 mm |
| depth | 106 mm |
| Weight | 750 g |
| protection class | IP44 |
| SCIP no. | 20cd942d-99e7-43d3-8768-20bdf67c8677 |
| chemical substance | Pb |
| CAS no. | 7439-92-1 |
