Gigabit fiber bridge up to 550 m for existing networks

• Fiber reach up to 550 m: Connect remote segments over multimode 1310 nm.
• Seamless migration without re-cabling: Convert RJ45 to SC Duplex and integrate copper and fiber links.
• Gigabit on the copper port, 1000Base-FX over fiber: Auto MDI/MDI-X and auto-negotiation make setup easier.
• Fast diagnostics and maintenance: Status LEDs and Link Fault Pass Through provide clear indications in case of faults.

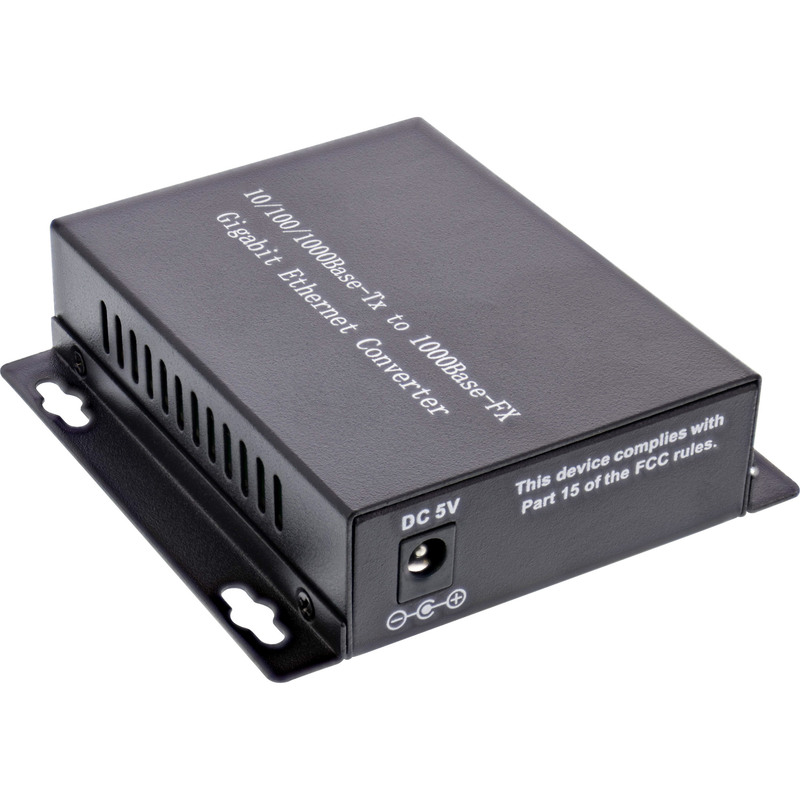

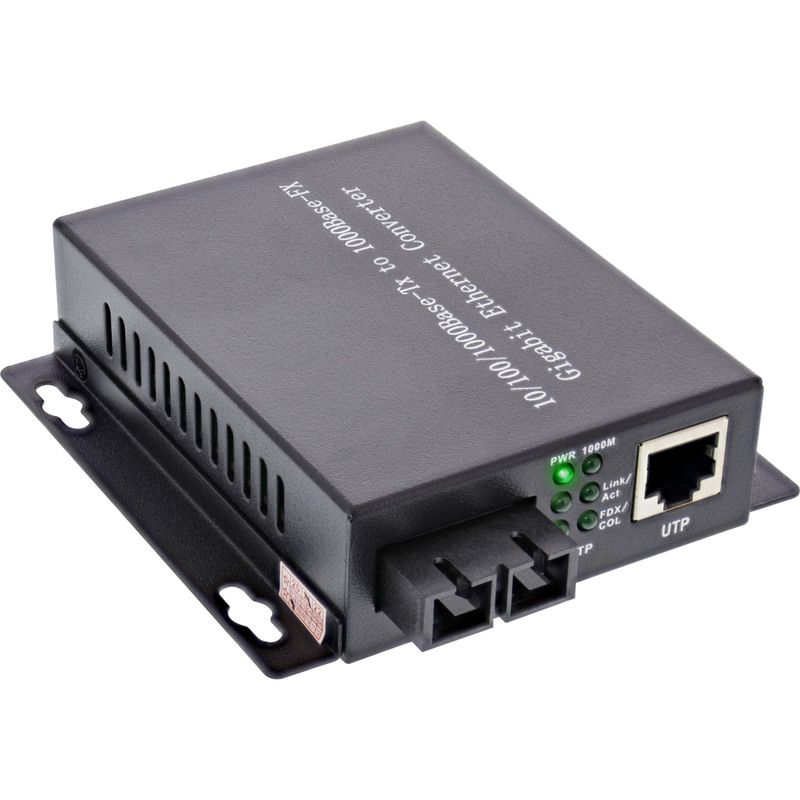

With this compact media converter you convert 10/100/1000Base-T to 1000Base-FX with SC Duplex and extend networks over fiber, for example for building interconnection or bridging up to 550 m. Your existing copper cabling remains untouched; the conversion is carried out without structural changes and enables quick commissioning.

In professional IT environments, in on-site installations and in service operations, you can also place the device in desktop environments thanks to its compact design. Status indicators simplify monitoring in existing infrastructures of companies and public institutions.

• Ports: 1x RJ45 port (10/100/1000Base-T), 1x SC Duplex (1000Base-FX, multimode)
• Wavelength: TX 1310 nm
• Range: up to 550 m
• Standards: IEEE802.3 10Base-T, IEEE802.3u 10/100Base-TX/X, IEEE802.1q, IEEE802.1p QoS, IEEE802.1d, IEEE802.3z, IEEE802.3ab
• Features: Auto MDI/MDI-X, automatic negotiation of full and half duplex, Link Fault Pass Through (LFP)
• Status LEDs: Power, Link, Activity

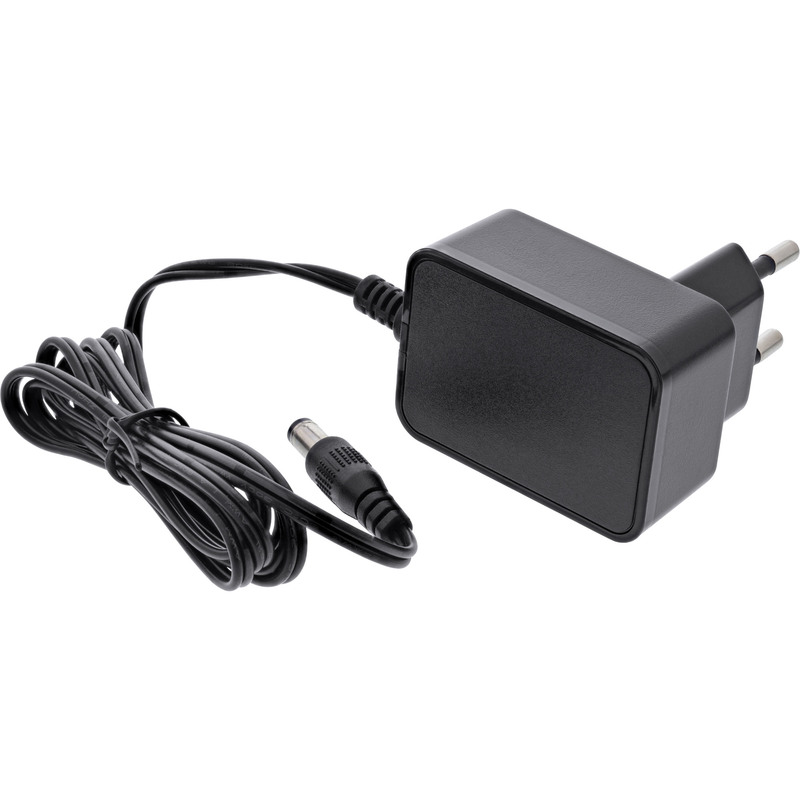

• Power supply: External switching power supply 5 V DC/1 A
• Operating temperature: 0-60 °C
• Storage temperature: -20-70 °C
