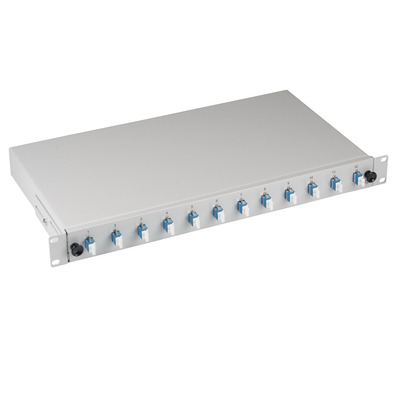

The pull-out splice box from EFB-Elektronik is designed for the structured pick-up of splices and the clear management of single-mode fibre optic connections in a 19-inch rack. The 1U version combines a service-friendly design with a pre-assembled assembly for OS2 in accordance with ITU-T G.652.D. The sheet steel housing in grey according to RAL 7035 supports robust integration into professional installations.

Ì 1U, 19-inch extendable design Í Allows for compact rack integration and easy access to the splice level.
Ì Front panel with 12 LC duplex couplings in a vertical orientation Í Ensures structured port routing and neatly pre-assembled assembly.
Ì 24 prepared LC pigtails with LSZH jacket and 2 m length Í Support efficient splicing organisation and reduce installation effort.

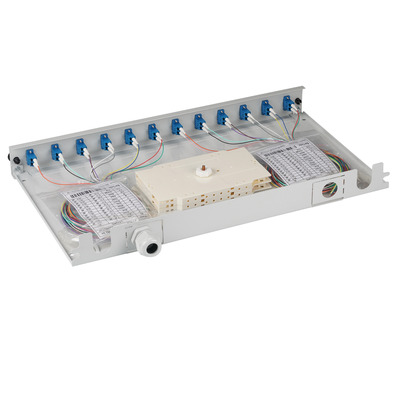

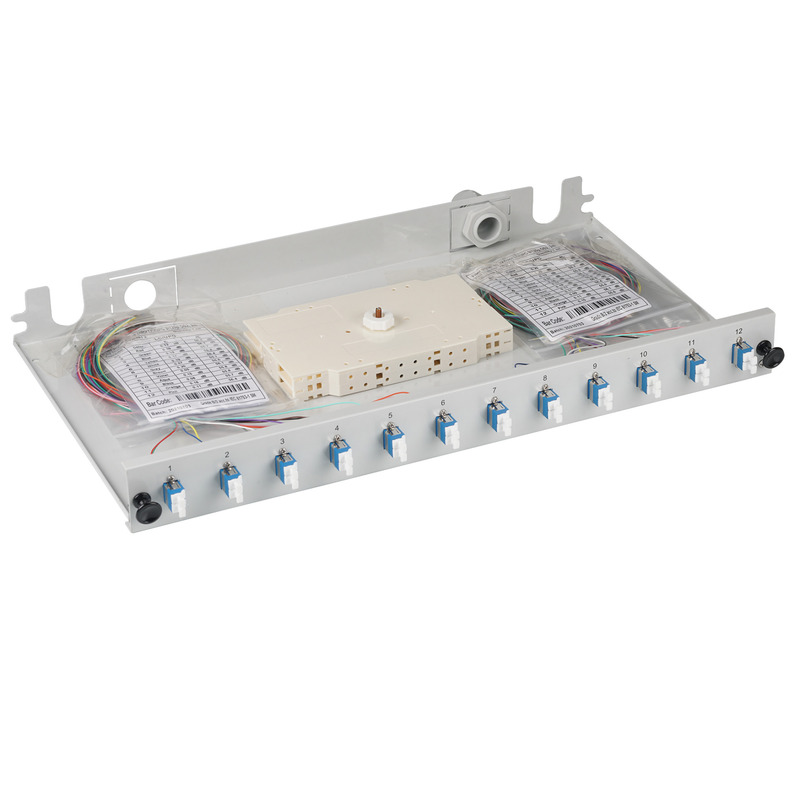

The splice box is designed for single-mode 9/125 in fibre class OS2 according to ITU-T G.652.D. LC duplex couplings with plastic housing and ceramic ferrule guide form the connection side. Two splice cassettes, each with four slots, as well as pre-assembled crimp/ANT splice holders and enclosed shrink splice holders, support orderly splice guidance. The LSZH material of the pigtails and the 19-inch 482.6 mm mounting complement the design for use in professional distribution environments.

Technical details
Ì Extendable: extendable
Ì Fibre class: OS2 according to ITU-T G.652.D
Ì Fibre type: Single-mode 9/125
Ì Couplings: LC-Duplex
Ì With number of couplings/adapters: 12
Ì Coupling material: plastic
Ì Couplings (ferrule guide): Ceramic
Ì Pigtail: 24 x LC
Ì Pigtail length: 2 m
Ì Pigtail Coating Material: LSZH
Ì Pigtails prepared: not settled
Ì Alignment of the couplings/adapters: vertical
Ì Number of U: 1U
Ì Mounting type: 482.6 mm (19 in) Installation
Ì Material: sheet steel
Ì Colour: grey
Ì With front panel: Yes
