- Compact dimensions
- Suitable for subsequent assembly
- Timeless design
- Versatile in application

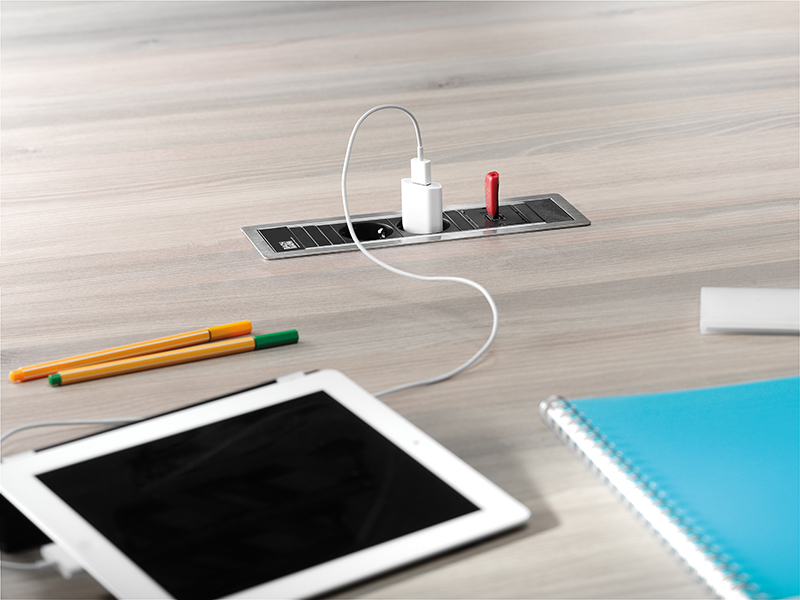

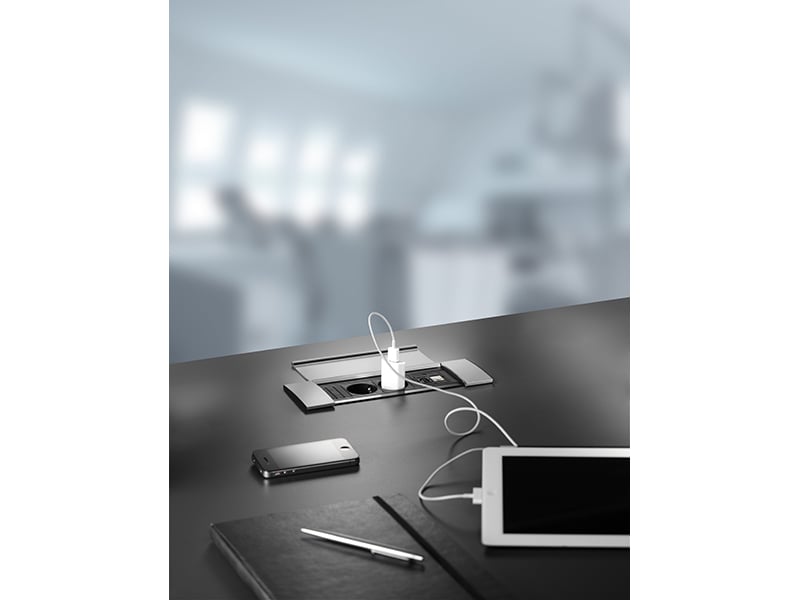

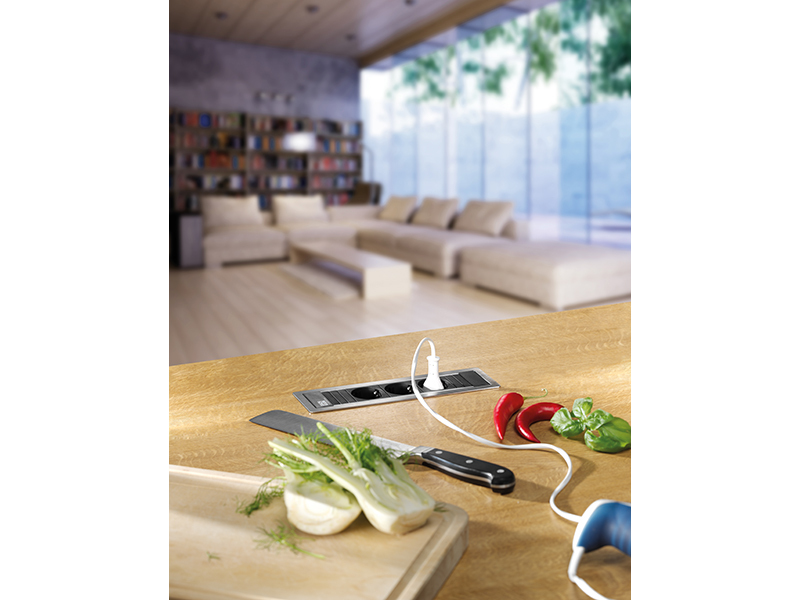

POWER FRAME is the compact solution for integrated and easily accessible power and data connections for workstations. Combining compact dimensions with high-quality timeless design, POWER FRAME opens up virtually unlimited application options that go far beyond the realm of office workstations. It is also perfect for sales showrooms and display windows, as well as trade fair and demonstration stands. In short, wherever secure and rapid connections are the order of the day.
Your chosen power strip simply plugs into the mounting frame from below without tools – a stroke of perfection. POWER FRAME is the ideal solution when you need compactness and efficiency.
POWER FRAME ľahko dostupná elektrifikačná jednotka
Kompaktné rozmery v kombinácii s vysoko kvalitným, nadčasovým dizajnom otvárajú pre POWER FRAME takmer neobmedzené možnosti použitia. Predlžovaciu lištu je možné jednoducho zasunúť do inštalačného rámu zospodu bez použitia náradia. - Kompaktné rozmery - Možnosť dodatočnej montáže - Nadčasový dizajn - Všestranné použitie - Rýchla inštalácia kompletných predlžovacích lišt - Biela (s práškovou farbou, podobná RAL9010) - Rozmery (Š x V x H): 284 x 73 x 36 mm - Materiál: Inštalačný rám: Oceľový plech - Zásuvka: Plast, hliník - Inštalačná hĺbka: Inštalačný rám: 34 mm - Inštalačný rám vrátane zásuvkovej lišty + bezpečnostného držiaka: 50 mm
| Množstvo v krabici | 1 ks |
| farba | Biely |
| Farba | biely |
| Obsahuje montážny materiál | + |
| Hĺbka | 73 mm |
| Hĺbka balenia (jeden kus) | 270 mm |
| Celková hmotnosť | 0,174 |
| Výška | 42 mm |
| Výška balenia (jeden kus) | 40 mm |
| Inštalačný manuál | [pdf, 223 kb] |
| Pozemok | Nemecko |
| Výrobca | BACHMANN |
| Výrobca/dovozca | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| kód_výrobcu | 915.005 |
| Hmotnosť balenia (jeden kus) | 0,174 kg |
| Rozmery balenia (DxŠxV v mm) | 284 x 72 x 35 |
| Skupina produktov | Energetické tyčinky |
| Produktový list | [pdf, 243 kb] |
| Typ produktu | Integrovaná jednotka POWER FRAME |
| Farba RAL | RAL 9010 Čistá biela |
| Regionálne použitie | Bez obmedzenia |
| RoHS / REACH | [pdf] |
| Vhodné pre | Bachmann Power Frame Einbaurahmen 4-fach |
| Bezpečnostné pokyny/varovania | [pdf] |
| Záruka | 3 roky |
| Hmotnosť | 185 g |
| Šírka | 284 mm |
| Šírka balenia (jeden kus) | 80 mm |
- Compact dimensions
- Suitable for subsequent assembly
- Timeless design
- Versatile in application
POWER FRAME is the compact solution for integrated and easily accessible power and data connections for workstations. Combining compact dimensions with high-quality timeless design, POWER FRAME opens up virtually unlimited application options that go far beyond the realm of office workstations. It is also perfect for sales showrooms and display windows, as well as trade fair and demonstration stands. In short, wherever secure and rapid connections are the order of the day.
Your chosen power strip simply plugs into the mounting frame from below without tools – a stroke of perfection. POWER FRAME is the ideal solution when you need compactness and efficiency.
POWER FRAME the easily accessible electrification unit

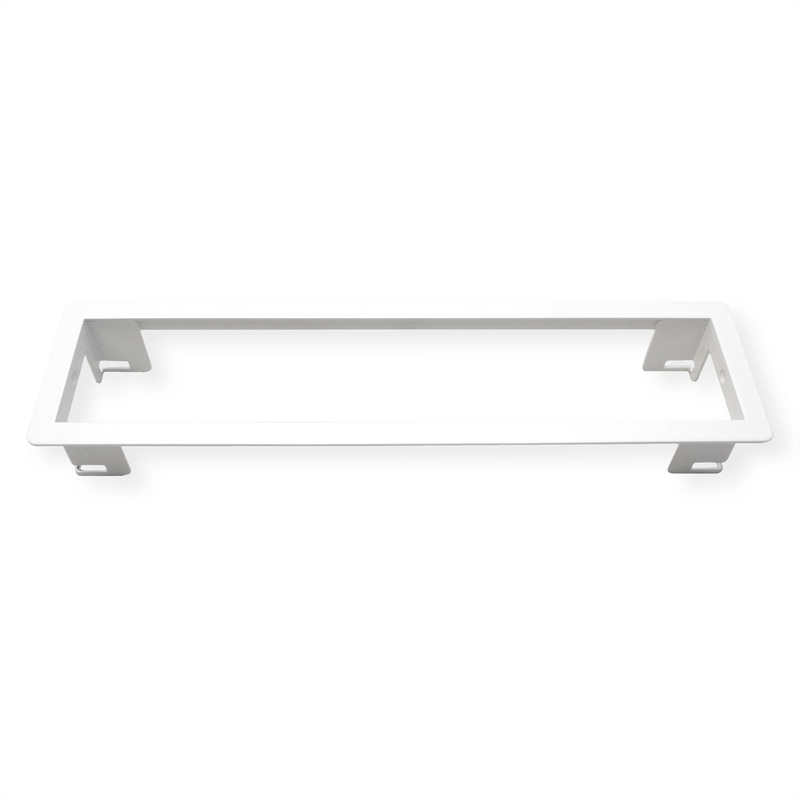

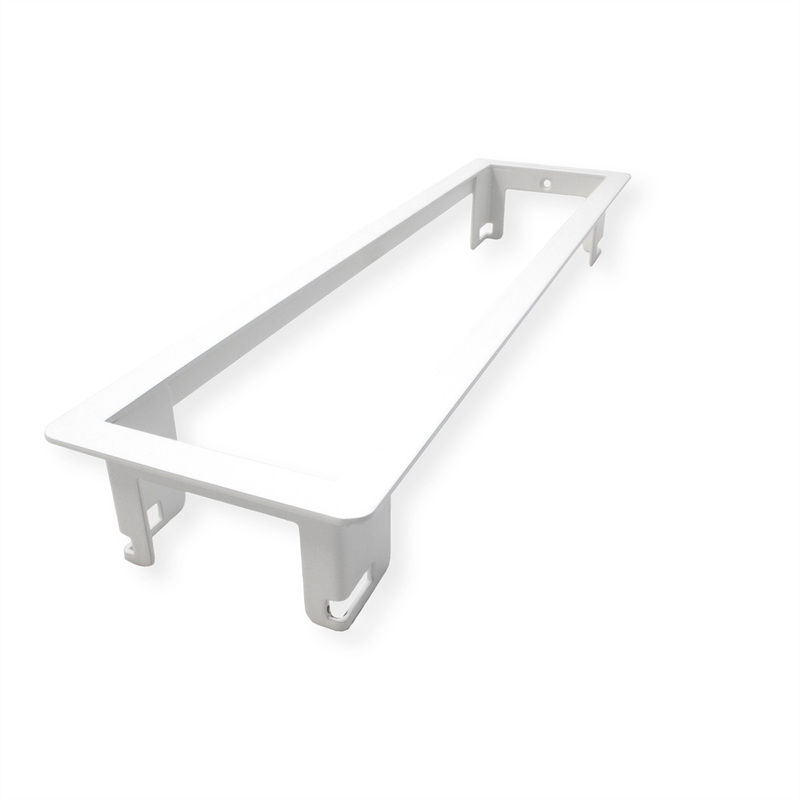

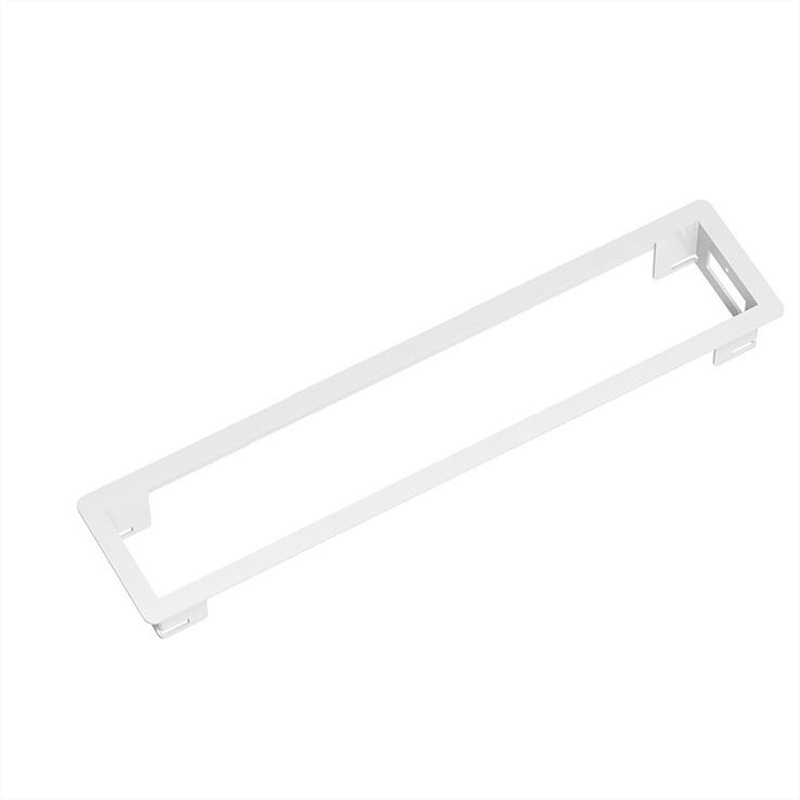

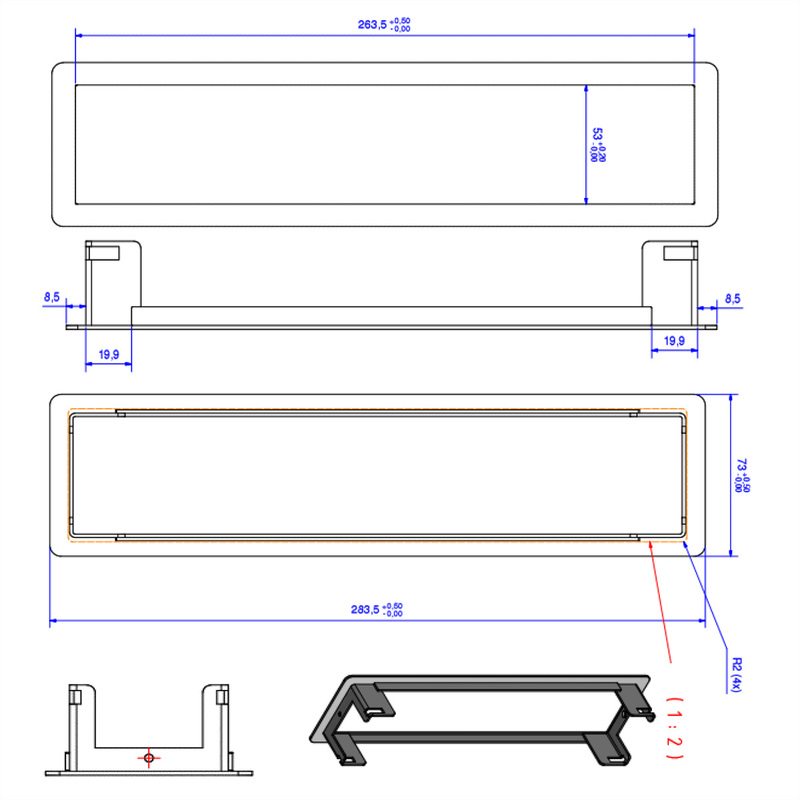

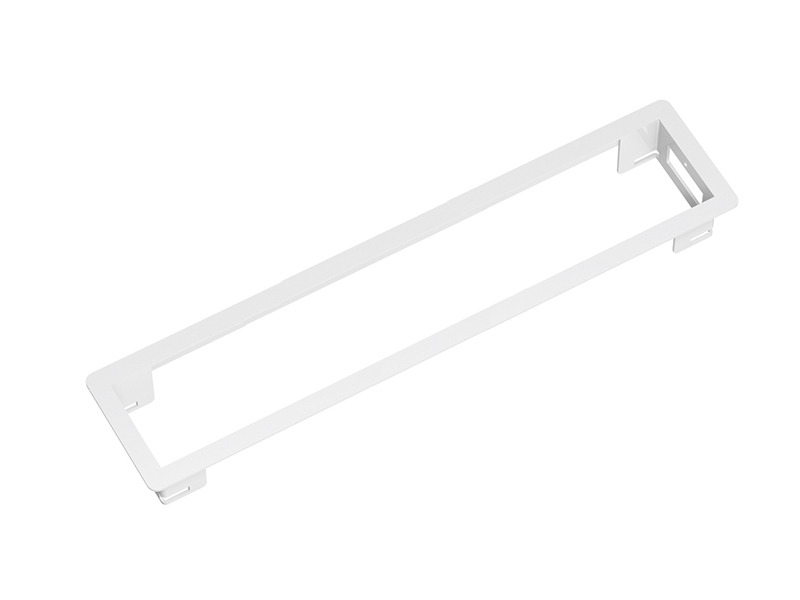

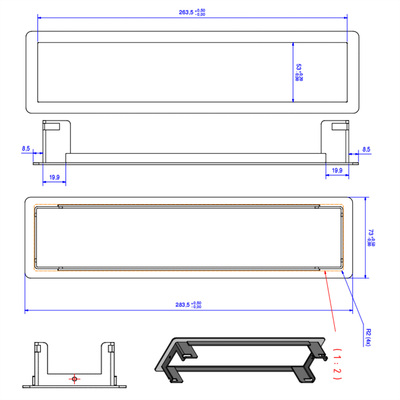

Compact dimensions combined with a high-quality, timeless design open up almost limitless application possibilities for POWER FRAME. The power strip can simply be inserted into the installation frame from below without tools. - Compact dimensions - Retrofitting possible - Timeless design - Versatile use - Quick installation of complete power strips - White (powder-coated, similar to RAL9010) - Dimensions (W x H x D): 284 x 73 x 36 mm - Material: Installation frame: Sheet steel - Socket outlet: Plastic, aluminium - Installation depth: Installation frame: 34 mm - Installation frame incl. socket strip + safety bracket: 50 mm
| BOX qty | 1 pcs |
| color | Weiß |
| Colour | white |
| Contains installation material | + |
| Depth | 73 mm |
| Depth of packaging (single piece) | 270 mm |
| Gross weight | 0.174 |
| Height | 42 mm |
| Height of packaging (single piece) | 40 mm |
| Installation manual | [pdf, 223 kb] |
| Land | Germany |
| Manufacturer | BACHMANN |
| Manufacturer/Importer | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| manufacturer_code | 915.005 |
| Package weight (single piece) | 0.174 kg |
| Packaging dimensions (LxWxH in mm) | 284 x 72 x 35 |
| Product group | Power Bars |
| Product sheet | [pdf, 243 kb] |
| Product type | Integrated unit POWER FRAME |
| RAL colour | RAL 9010 Pure white |
| Regional use | Without restriction |
| RoHS / REACH | [pdf] |
| Suitable for | Bachmann Power Frame Einbaurahmen 4-fach |
| Warning/safety instructions | [pdf] |
| Warranty | 3 years |
| Weight | 185 g |
| Width | 284 mm |
| Width of packaging (single piece) | 80 mm |
