Flexible switching between two USB-C sources or targets

• Instant switching by button: Switch between two USB-C sources or targets, 2x1 or 1x2, status via 2 LEDs.
• 8K at 60 Hz via DP Alt Mode: High-resolution video output to a monitor without replugging.
• Fast data up to 10 Gb/s: Use external SSDs and fast backups efficiently.
• Power pass-through up to 100 W: Power or charge devices depending on application.
• Robust aluminum housing: Compact form factor for durable use on the go and at the desk.

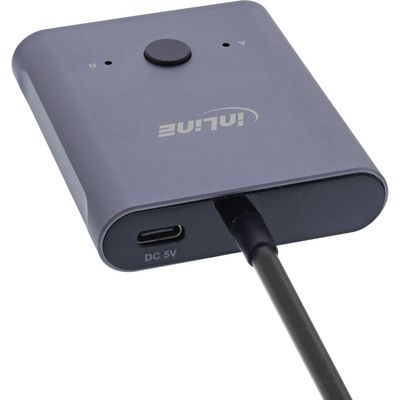

The bidirectional USB-C switch connects either two source devices to one target or the other way around. Press the button to switch the active connection, two LEDs show the selected port. Video signals are transmitted in DP Alt Mode up to 8K at 60 Hz when the USB-C cables used are no longer than 1 m. Data transfers are possible up to 10 Gb/s with cable lengths up to 20 cm, or up to 5 Gb/s up to 1 m. Power pass-through supports up to 100 W with cable lengths up to 2 m. The aluminum housing reliably provides stability in daily use.

In professional IT environments, in on-site installations and in existing infrastructures of companies and public institutions, the switch makes it easier to share a monitor between two computers or to alternately connect external drives to a computer. This keeps workstations and service deployments tidy, without frequent replugging and without additional software.

• Ports: 2x USB-C sockets
• Integrated cable: USB-C plug, 50 cm

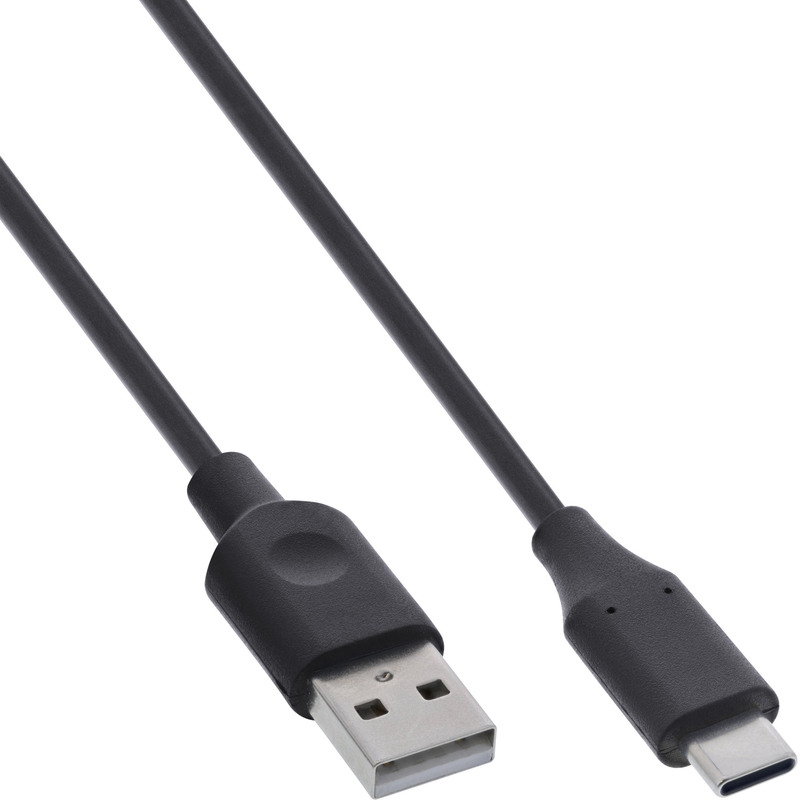

• Additional power supply: 1x USB-C socket (DC/5 V), USB-C-to-USB-A cable included
• Data rate: USB 3.2 Gen 2 (10 Gb/s)
• Power: 100 W
• Audio: Yes
• Interface: USB-C
• PC video type: USB-C (DP Alt Mode)
• Supported monitors: 1
• Daisy chain: No
• LED indicators: 2
• Housing: Aluminum
• Color: Gray
• Dimensions: 15 x 57.5 x 66.5 mm
• Weight: 70.2 g
• Number of ports: 3
