- F zásuvky
- tienenie 100 dB pre digitálne signály
- DC-pass na všetkých portoch
- vložená strata pri 1750 MHz: 12,3 dB
- vložená strata pri 1750 MHz: 14 dB
Technické špecifikácie
| Označenia | CE, WEEE |
| Počet výstupov | 4 porty |
| počet vstupov | 1 ks. |
| Farba | striebro |
| Jednotka spotreby | 1 ks. v polybagu |
| Typ pripojenia | F samica |
| Pripojenie 2, typ | F samica |
| Vstup, typ | F samica |
| Výstup, typ | F samica |
| Farebné prevedenie | striebro |

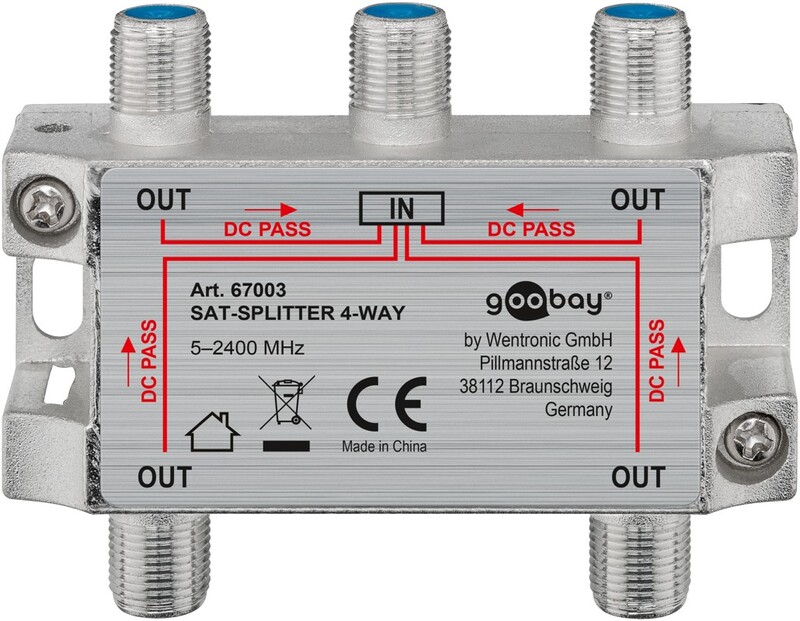

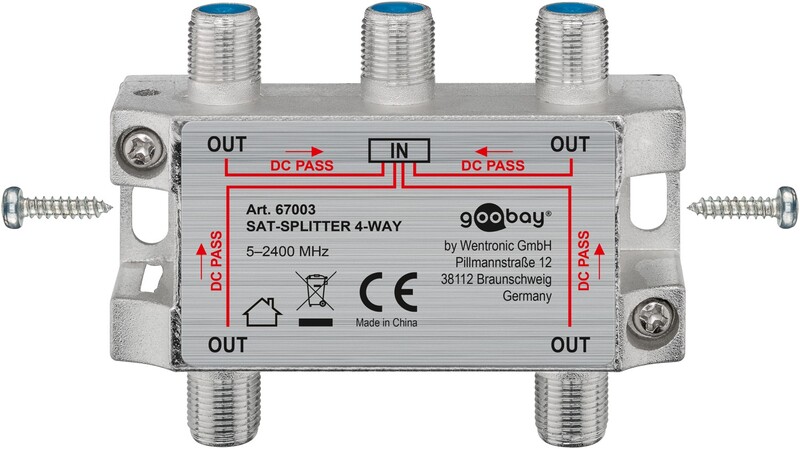

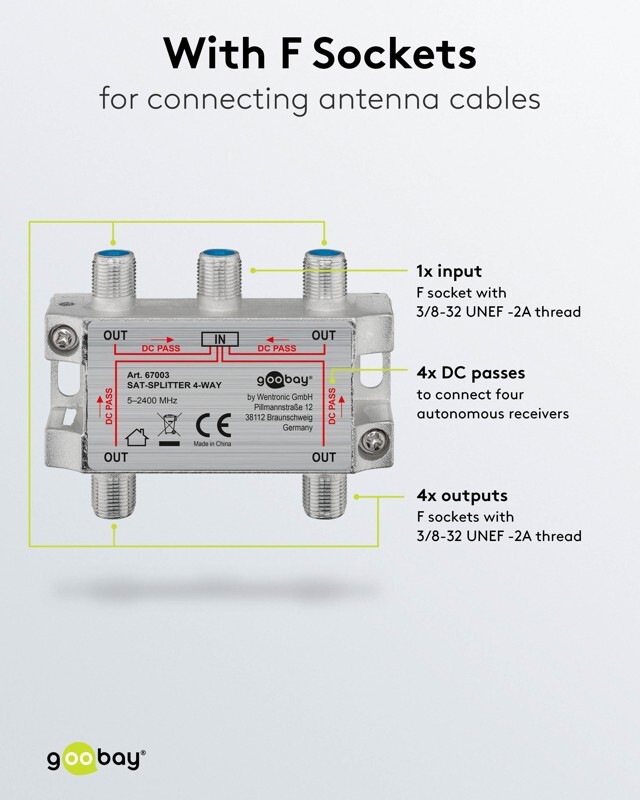

- For distributing a satellite signal to 4 connections
- With F couplings for connecting antenna cables

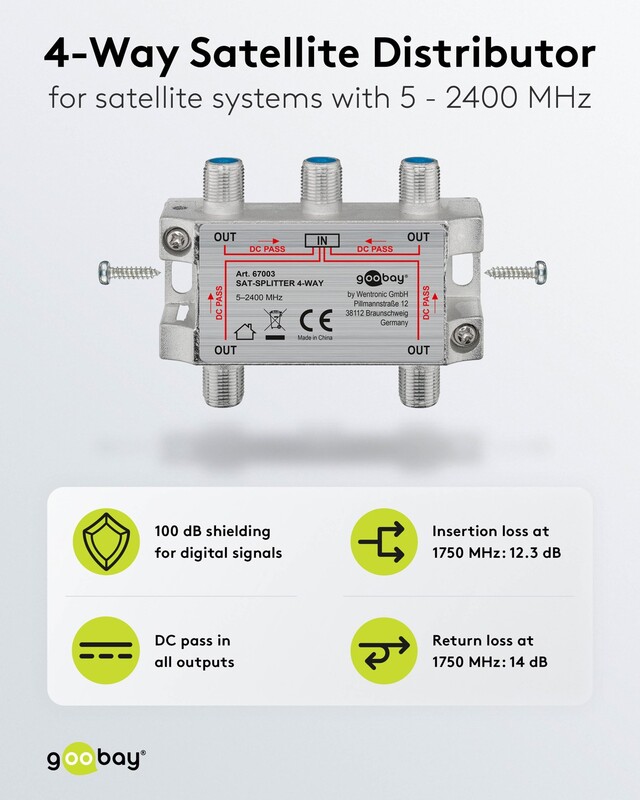

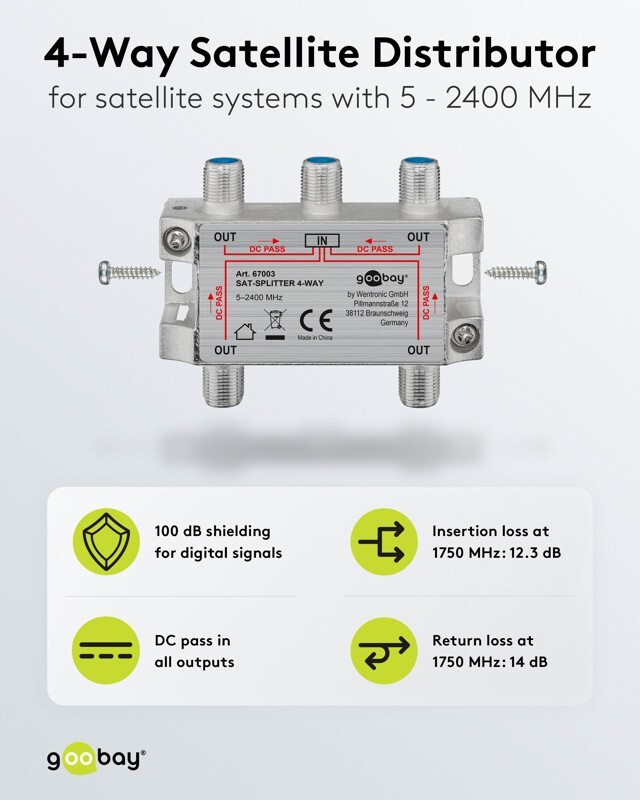

- SAT splitter with 100 dB shielding for digital signals
- DC continuity at all connections, diode-decoupled
- Distribution loss at 1750 MHz: 12.3 dB
- Return loss at 1750 MHz: 14 dB
Technical specifications
| Connection, type | F female |
| Input, type | F female |
| Connection 2, type | F female |
| Output, type | F female |
| Color version | silver |
| Color | silver |
| Consumption Unit | 1 pc. in polybag |
| Packaging type | Bulk |
| number of inputs | 1 |
| Number of outputs | 4 |
| Frequency range from | 5 MHz |
| Frequency range until | 2400 MHz |
| Markings | CE, WEEE |
| Details | INSERTION LOSS (IN-OUT):5 - 40 MHz: 8 dB40 -1000 MHz: 8.5 dB1000 - 2050 MHz: 11 dB2050 - 2400 MHz: 12 dB INSERTION LOSS (OUT-OUT):5 - 40 MHz: 18 dB40 -1000 MHz: 20 dB1000 - 2050 MHz: 20 dB2050 - 2400 MHz: 20 dB RETURN LOSS:5 - 40 MHz: 10 dB40 -1000 MHz: 12 dB1000 - 2050 MHz: 12 dB2050 - 2400 MHz: 10 dB |
