- Na použitie s dvoma pripojeniami 10/100 LAN cez jeden (plnokáblový) 8-žilový kábel
- Pripojovací kábel (17 cm) s konektorom RJ-45; adaptér s dvoma konektormi RJ-45
- Priradenie pinov konektorov: páry 1, 2 a 3, 6
- Schéma zapojenia na adaptéri
- Pre kat. 5e inštalácie
- Poznámka: Adaptéry je možné používať iba v pároch
Technické špecifikácie
| Skupina produktov | Technológia pripojenia TP |
| Typ produktu | Netzwerkapter |
| Farba | biely |
| Dĺžka | 0,15 m |
| Typ štítu | Preverené |
| Kvalita prenosu | Cat5e / Trieda D |
| Materiál (plášť) | Plastové |
| Kontakty štítu | nie |
| samostatné uvoľnenie napätia | nie |
| Smer pripojenia | Rovno |
| Hmotnosť | 46,3 g |

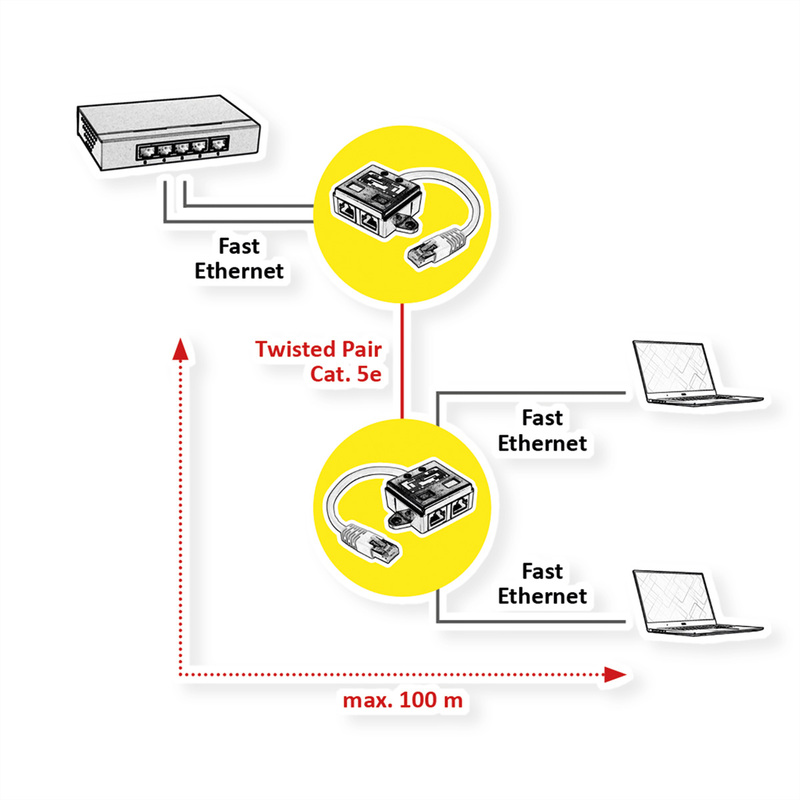

- For the use with two 10/100 LAN connections over one (full wired) 8-wire cable

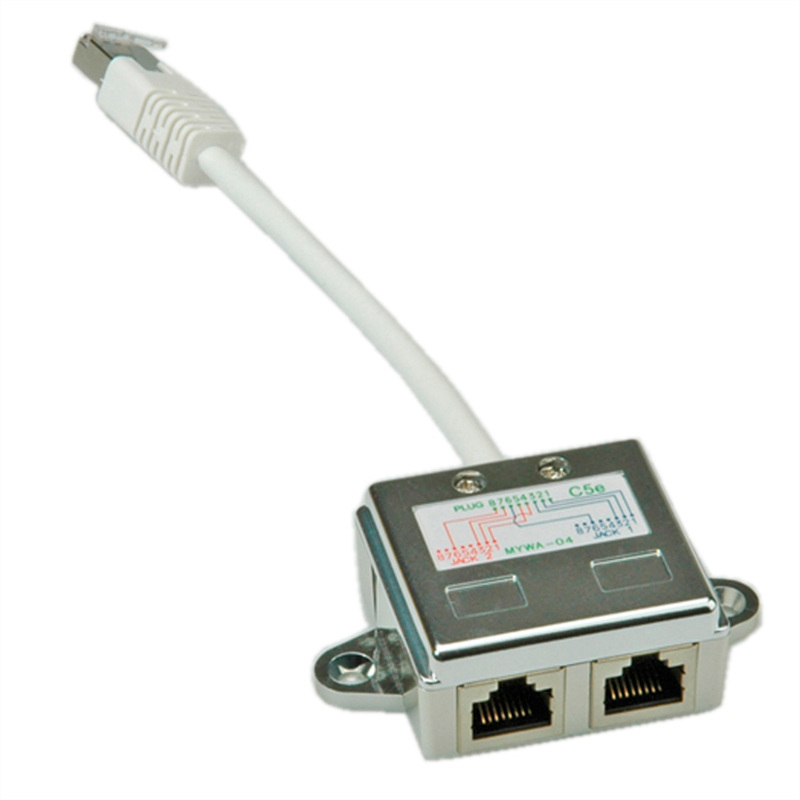

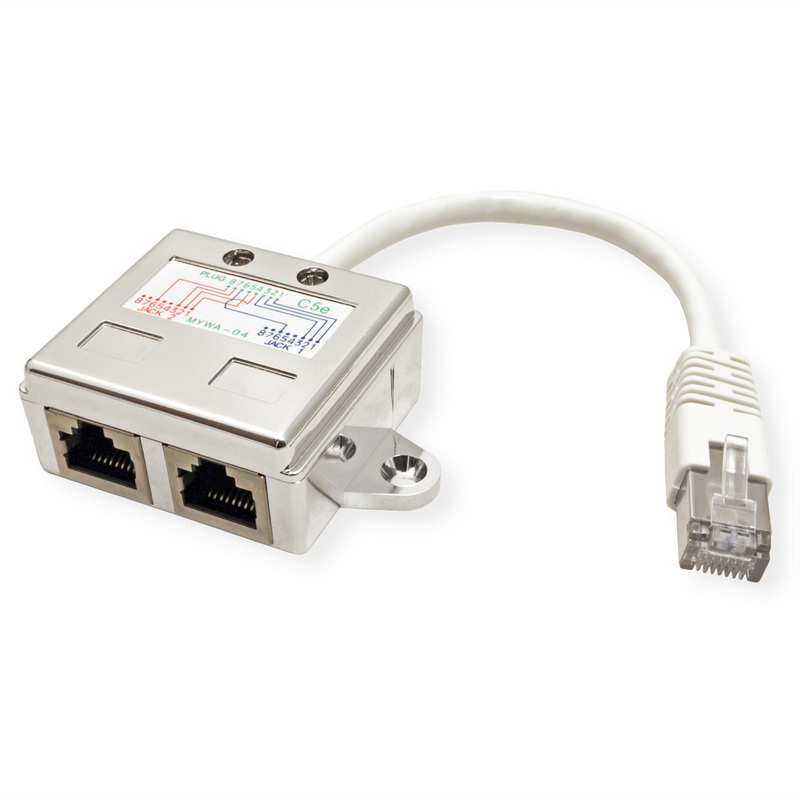

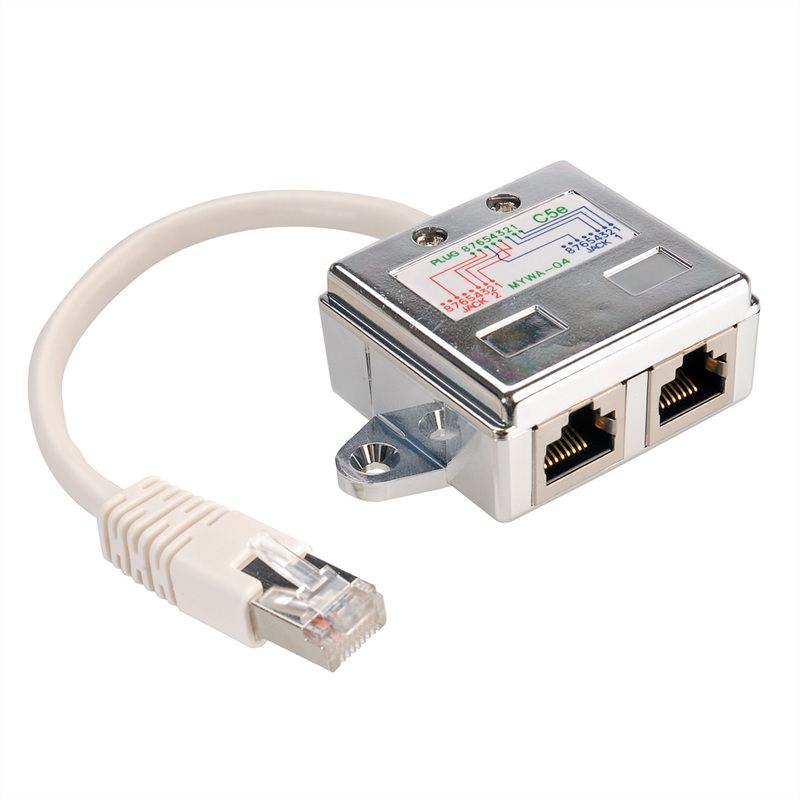

- Connection cable (17 cm) with RJ-45 plug; adapter with two RJ-45 jacks
- Pin assignment of connectors: pairs 1, 2 and 3, 6

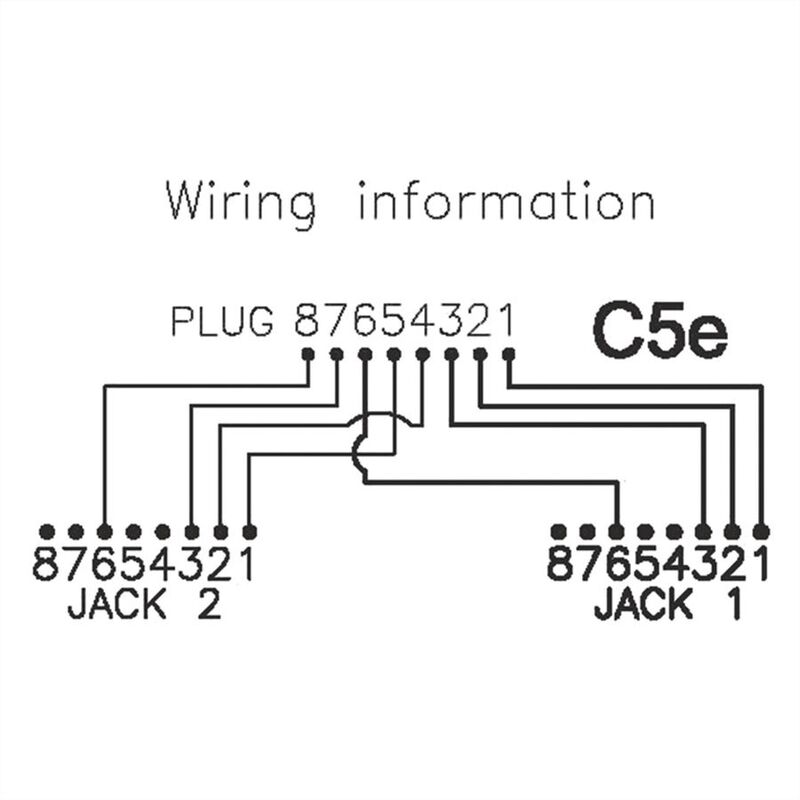

- Wiring scheme on the adapter
- For Cat. 5e installations
- Note: The adapters can be used only pairwise
Technical specifications
| Product group | Connection technology TP |
| Product type | Network adapters |
| Colour | white |
| Length | 0.15 |
| Scope of delivery | 1x T-adapter |
| Shield type | Screened |
| Transfer quality | Cat5e / Class D |
| Quantity of ports | 2 |
| Side 1 Connector Type | RJ-45 |
| Side 1 Connector Gender | Male |
| Side 2 Connector Type | RJ-45 |
| Side 2 Connector Gender | Female |
| Material (casing) | Plastic |
| Shield contacts | No |
| separate strain relief | no |
| Connection direction | Straight |
| Operating temperature min. | -10 |
| Operating temperature max. | 60 |
| Height | 22.5 |
| Width | 58 |
| Depth | 42 |
| Weight | 46.3 |
| Height of packaging (single piece) | 20 |
| Width of packaging (single piece) | 80 |
| Depth of packaging (single piece) | 220 |
| Package weight (single piece) | 0.05 |
| Gross weight | 0.05 |
