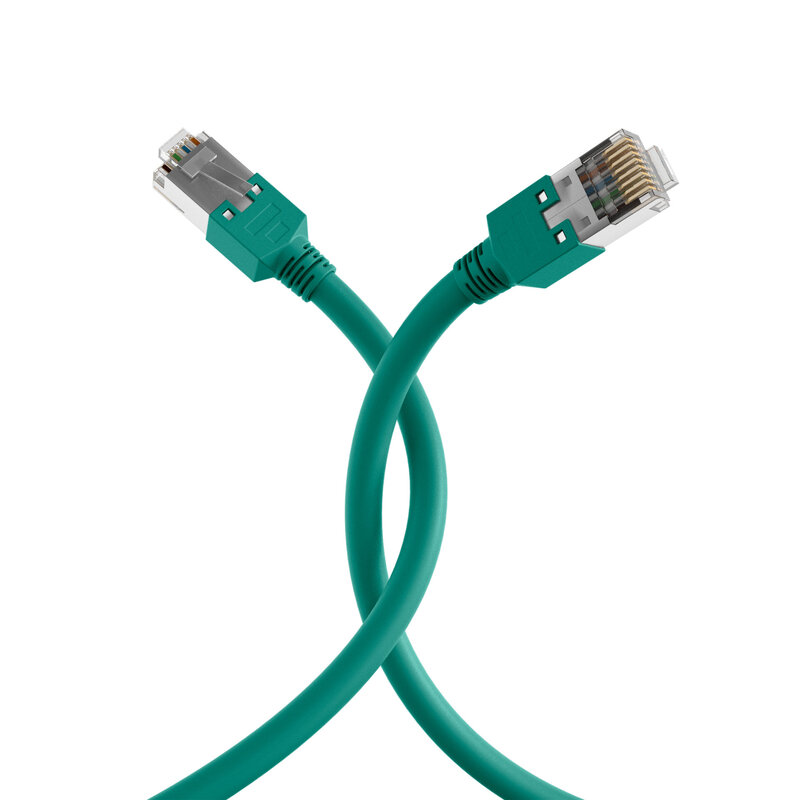

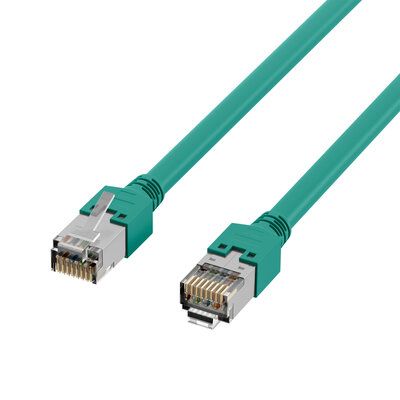

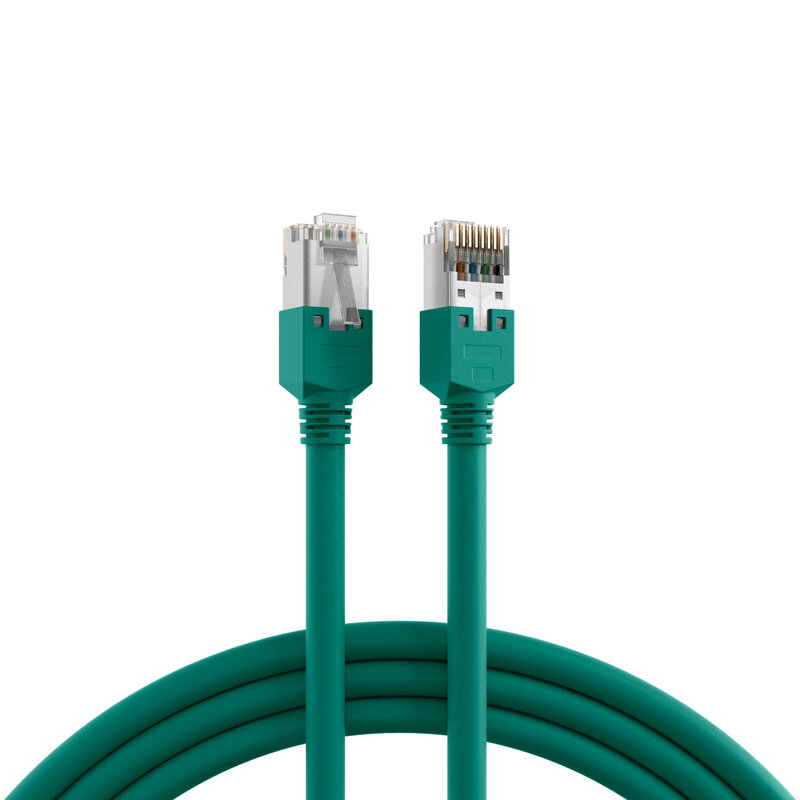

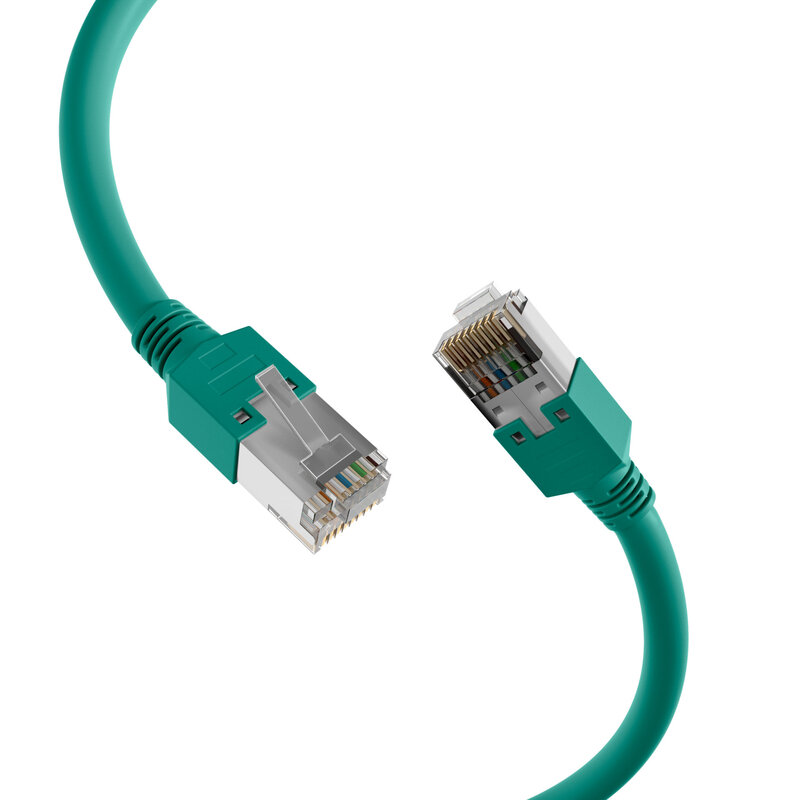

S/FTP Patchkábel PVC 7.5m cat.5e, zelený, Cu, Datwyler 5502 flex s TM11
S/FTP Patchkábel PVC 7.5m cat.5e, zelený, Cu, Datwyler 5502 flex s TM11
Prepojovací kábel RJ45 Cat.5e SF/UTP LSZH Draka UC300 TM11 prekrížený Patch kábel Cat.5e má pozlátené konta..... celý popis
Prepojovací kábel RJ45 Cat.5e SF/UTP LSZH Draka UC300 TM11 prekrížený
Patch kábel Cat.5e má pozlátené kontakty a spĺňa požiadavky pre 2,5 Gbit Ethernet.
Technické vlastnosti produktu< br> Kat. 5e
Kábel SF/UTP s prierezom AWG26/7
Materiál plášťa vyrobený z bezhalogénového LSZH
Protipožiarna ochrana: samozhášacia, bez halogénov, s nízkou úrovňou dymu
Zásuvkové pripojenie: RJ45 na RJ45
Má pozlátené kontakty
Plášť tieneného patch kábla je vyrobený z bezhalogénového materiálu LSZH. Kábel navyše ponúka možnosť napájania cez PoE podľa IEEE802.3af, PoE+ podľa IEEE802.3at a 4PPoE podľa IEEE802.3bt.
Priradenie zástrčiek TM11 je klasické kríženie pre gigabitový Ethernet: 1-3, 2-6, 3-1, 4-7, 5-8, 6-2, 7-4, 8-5.
Sieťový kábel má medené vodiče a je ideálny pre aplikácie v štruktúrovanej kabeláži budov, priemyselnom ethernete a dátových centrách. Šírka pásma je až 100 MHz.
Patch kábel Cat.5e má pozlátené kontakty a spĺňa požiadavky pre 2,5 Gbit Ethernet.
Technické vlastnosti produktu< br> Kat. 5e
Kábel SF/UTP s prierezom AWG26/7
Materiál plášťa vyrobený z bezhalogénového LSZH
Protipožiarna ochrana: samozhášacia, bez halogénov, s nízkou úrovňou dymu
Zásuvkové pripojenie: RJ45 na RJ45
Má pozlátené kontakty
Plášť tieneného patch kábla je vyrobený z bezhalogénového materiálu LSZH. Kábel navyše ponúka možnosť napájania cez PoE podľa IEEE802.3af, PoE+ podľa IEEE802.3at a 4PPoE podľa IEEE802.3bt.
Priradenie zástrčiek TM11 je klasické kríženie pre gigabitový Ethernet: 1-3, 2-6, 3-1, 4-7, 5-8, 6-2, 7-4, 8-5.
Sieťový kábel má medené vodiče a je ideálny pre aplikácie v štruktúrovanej kabeláži budov, priemyselnom ethernete a dátových centrách. Šírka pásma je až 100 MHz.
This Cat.5e network cable from EFB-Elektronik supports data transfers up to 2.5Gbit. S/UTP shielding reliably protects against interference and ensures good signal quality. Because it is a Cat.5e data cable, it offers a frequency range of up to 100MHz.
Ě Cover fire protection requirements in compliance with standards Í flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.
Ě Power and connect devices via a cable Í reduces cabling effort because data and power are transmitted via 4PPoE to IEEE802.3bt on a single line. 4PPoE according to IEEE802.3bt can only be used up to certain cable lengths.
Ě Reliable performance for your network connection Í the pure copper conductor material ensures stable data transmission and supports consistent signal quality in typical IT and home network applications.
Product Description
The S/UTP LAN cable offers reliable performance under typical EMC loads. The braided shield reduces electromagnetic radiation, increases operational reliability and ensures stable data connections in the standard network. It can be used in a temperature range of -20 Í 60 řC. The wide range of possible applications is supported by the bending radius of >20 mm. The data cable has an IP20 rating. The polyvinyl chloride (PVC) jacket is a flexible standard jacket for network applications, without special fire protection properties.
Technical details
Ě Cat.5e
Ě Connector: RJ45 8(8) to RJ45 8(8) with TM11 connectors
Ě Shielding: S/UTP cable with 4x2 x AWG26/7
Ě Cable shape: round
Ě Pin assignment: 1:1 according to TIA/EIA 568B
Ě Equivalent to PoE class: PoE to IEEE802.3af, PoE+ to IEEE802.3at, and 4PPoE to IEEE802.3bt
Ě Gold-plated contacts
Ě Sheath: Polyvinyl chloride (PVC) sheath material
Ě Outer diameter: 5.1 mm
Ě With an attached anti-kink grommet
Ě Fire protection: flame-retardant according to IEC60332-1
Ě Degree of protection: IP20
Ě With a 360ř umbrella attachment
Ě Mating cycles: =750
Ě Brand: EFB-Elektronik
Ě Cover fire protection requirements in compliance with standards Í flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.
Ě Power and connect devices via a cable Í reduces cabling effort because data and power are transmitted via 4PPoE to IEEE802.3bt on a single line. 4PPoE according to IEEE802.3bt can only be used up to certain cable lengths.
Ě Reliable performance for your network connection Í the pure copper conductor material ensures stable data transmission and supports consistent signal quality in typical IT and home network applications.
Product Description
The S/UTP LAN cable offers reliable performance under typical EMC loads. The braided shield reduces electromagnetic radiation, increases operational reliability and ensures stable data connections in the standard network. It can be used in a temperature range of -20 Í 60 řC. The wide range of possible applications is supported by the bending radius of >20 mm. The data cable has an IP20 rating. The polyvinyl chloride (PVC) jacket is a flexible standard jacket for network applications, without special fire protection properties.
Technical details
Ě Cat.5e
Ě Connector: RJ45 8(8) to RJ45 8(8) with TM11 connectors
Ě Shielding: S/UTP cable with 4x2 x AWG26/7
Ě Cable shape: round
Ě Pin assignment: 1:1 according to TIA/EIA 568B
Ě Equivalent to PoE class: PoE to IEEE802.3af, PoE+ to IEEE802.3at, and 4PPoE to IEEE802.3bt
Ě Gold-plated contacts
Ě Sheath: Polyvinyl chloride (PVC) sheath material
Ě Outer diameter: 5.1 mm
Ě With an attached anti-kink grommet
Ě Fire protection: flame-retardant according to IEC60332-1
Ě Degree of protection: IP20
Ě With a 360ř umbrella attachment
Ě Mating cycles: =750
Ě Brand: EFB-Elektronik
Parametre
Kategória
cat. 5e / class D 100MHz / 1000 BASE-T
Tienenie
SF/UTP
Materiál vodiča
meď
Zapojenie
1:1 podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
nie
Vhodný do exteriéru
nie
Uhlový konektor/konektory
nie
Slim / Plochý
Nie
Certifikovaný kábel
nie
