Technické špecifikácie
| AWG | 27/7 (uviaznutý) |
| Ochrana proti zalomeniu | obe strany |
| Typ kábla | okrúhly kábel |
| Špecifikácia | CAT 6 |
| Priemer plášťa kábla (približne) | 5,9 mm |
| Materiál plášťa kábla | PVC |
| Materiál vnútorného vodiča | CCA (hliník potiahnutý meďou) |
| Trieda tienenia | S/FTP (PiMF) |
| Počet tienenia | 2 x |
| Typ 1, tienenie | fólia (alu) PiMF |
| Typ 2, tienenie | vrkoč (alu) celkový štít |
| Pripojenie, tienenie | Áno |
| Kontaktovanie | EIA/TIA-568B |
| Ochrana západky | obe strany |
| Označenia | WEEE, CE |
| Farba | oranžová |
| Jednotka spotreby | 1 ks. v polybagu |
| Prevádzková teplota až | 60 °C |
| Prevádzková teplota od | -20 °C |
| max. šírku pásma | 250 MHz |
| Dĺžka kábla | 2 m |

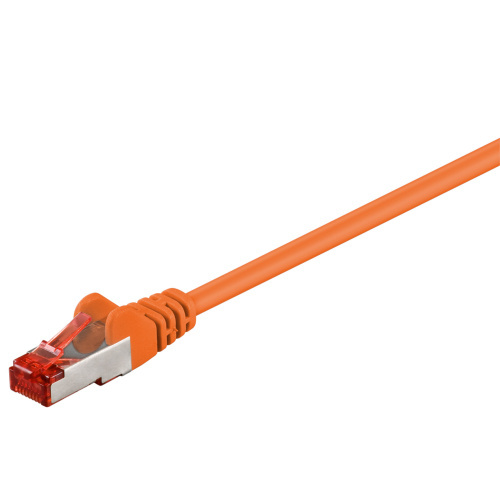

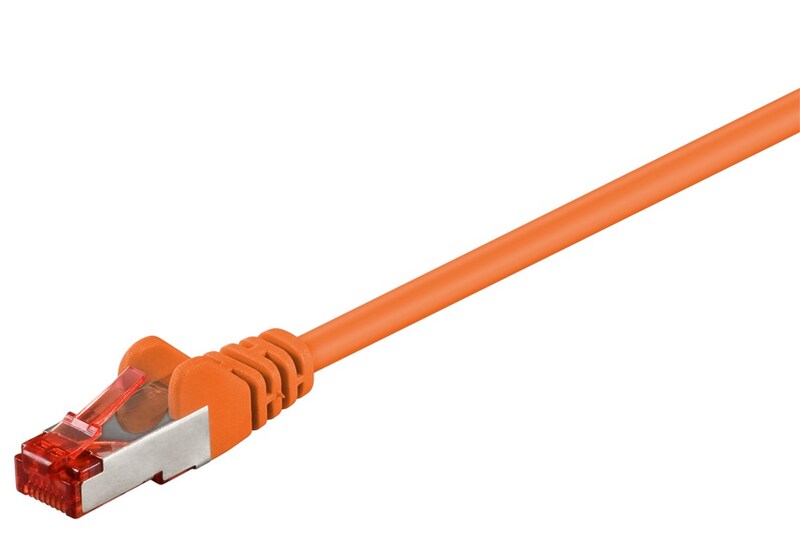

With the Goobay CAT cable, you can connect PCs, laptops, routers, switches, smart TVs, games consoles, NAS systems and many other devices quickly and reliably. The practical, reliable solution for home networks, working from home and professional work environments. Goobay patch cables are available in a wide range of categories, shielding options and lengths – for full flexibility in your network.
- Prewired, double-shielded LAN cable with 2x RJ45 plugs for connecting network components
- CAT 6 internet cable suitable for Gigabit Ethernet with a speed of up to 10/100/1000 Mbit/s
- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- Gold-plated contact surfaces and copper-clad aluminium (CCA) conductors prevent corrosion and ensure clear signal quality without interference
- Bend protection and a sturdy PVC jacket effectively protect the Ethernet cable from breakage.
- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Length of the network cable indicated on the overmoulded slimline strain relief.
Technical specifications
| Connection, type | RJ45 male (8P8C) |
| Connection 2, type | RJ45 male (8P8C) |
| Kink protection | both sides |
| Latch protection | both sides |
| Connection, shielding | yes |
| Cable type | round cable |
| Type 1, shielding | foil (alu) PiMF |
| Type 2, shielding | braid (alu) overall shield |
| Inner conductor material | CCA (copper-clad aluminium) |
| Material cable sheath | PVC |
| Color | orange |
| Special feature | Length indication on connector |
| Consumption Unit | 1 pc. bulk |
| Packaging type | Cable Tag |
| Contacting | EIA/TIA-568 B |
| Specification | CAT 6 |
| Shielding class | S/FTP (PiMF) |
| Number of shieldings | 2 x |
| AWG | 27/7 (stranded) |
| Cable sheath diameter (approx.) | 5.9 mm |
| bending radius > | 48 mm |
| Cable length | 2 m |
| max. bandwidth | 250 MHz |
| max. transmission rate | 1 Gbit/s |
| Markings | WEEE, CE |
| Operating temperature from | -20 °C |
| Operating temperature up to | 60 °C |
Kategória
cat. 6 / class E 250MHz / 1000 BASE-T
Tienenie
S/FTP (PiMF)
Dĺžka
2m
Farba
oranžová
Materiál vodiča
CCA (Copper Clad Aluminum) - pomedený hliník
Predlžovací
nie
Zapojenie
1:1 podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
nie
Vhodný do exteriéru
nie
Uhlový konektor/konektory
nie
Slim / Plochý
Nie
Certifikovaný kábel
nie
Flexibilný
nie
Montáž na panel
nie
Ochrana západky konektora
áno
Typ vodiča
lanko
