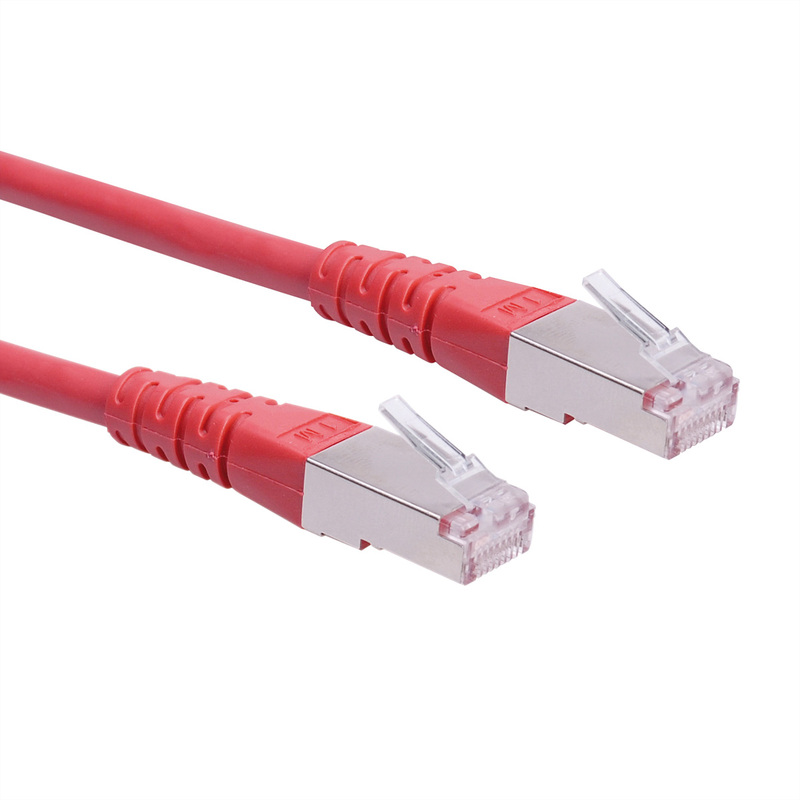

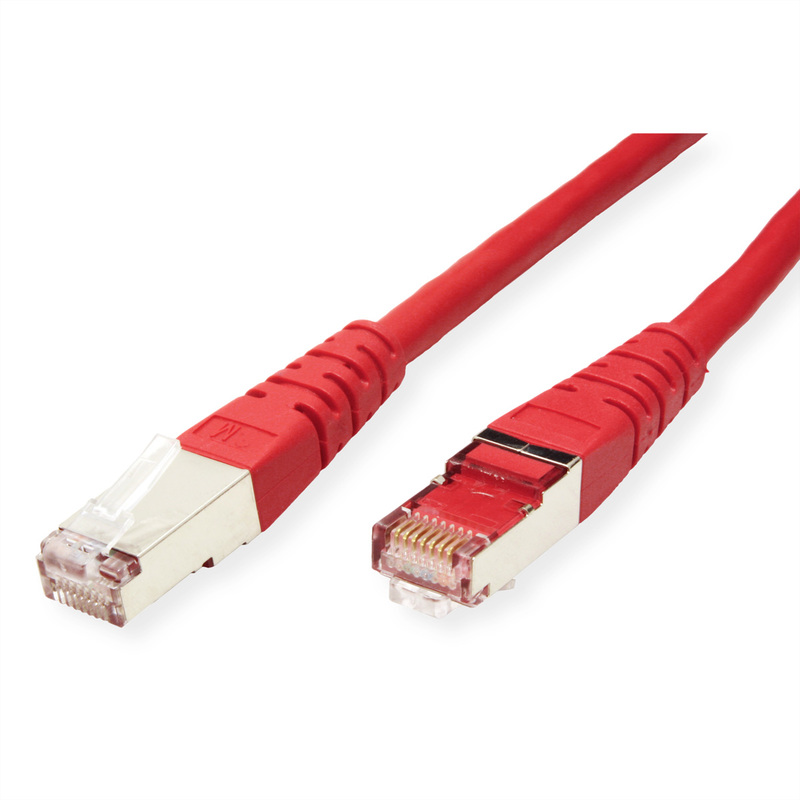

S/FTP (PiMF) Patchkábel 3m cat.6, červený, Cu

S/FTP (PiMF) Patchkábel 3m cat.6, červený, Cu

Kód: {{ productModel }}
Výrobca: Roline
Kat. č.: 21.15.1351-50
EAN: 7611990955961

Patch cable for networking connections between devices. Prepared double shielded Twisted Pair cable with sc..... celý popis

Externý sklad
5,75 €
3,30 € s DPH 2,75 € bez DPH

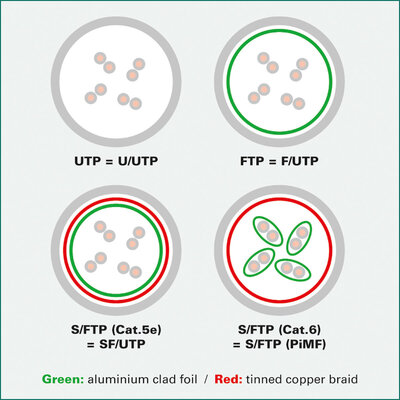

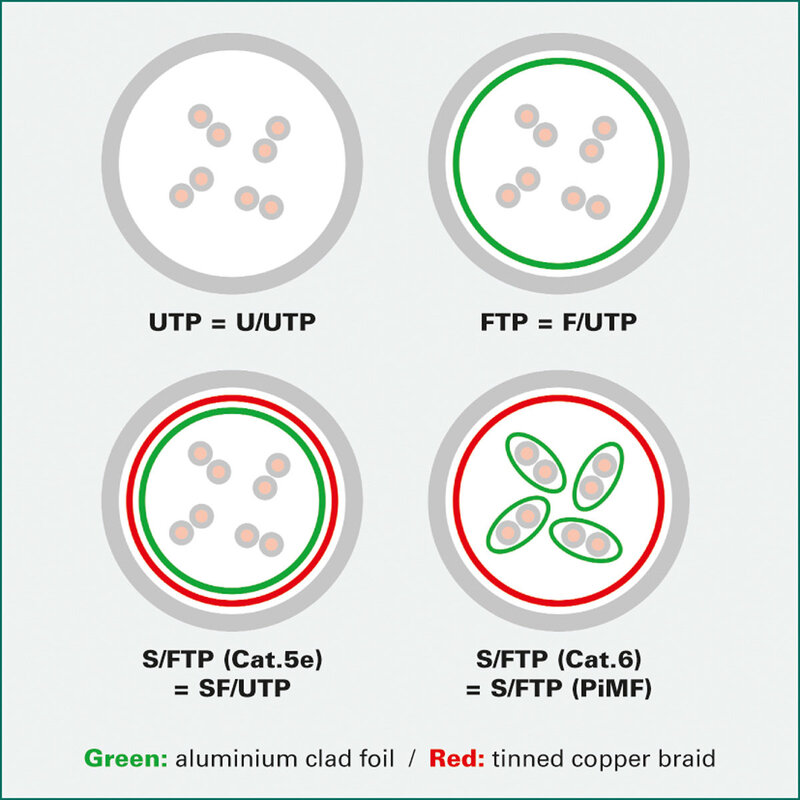

Patch cable for networking connections between devices. Prepared double shielded Twisted Pair cable with screened RJ-45 connectors on both ends. Durable due to moulded kink protection. Flexible cable, suitable for narrow bending. High quality plugs with gold plated contacts. Contact settings 1:1, in accordance with the EIA/TIA 568 standard. Construction: 4-pair stranded copper wire. Complete braid shielding. Pairs shielded with aluminium clad polyester foil.

For a structured cabling system we recommend to use the following components: ROLINE Cat.6 S/FTP Cable, Solid Wire, AWG23: 21.15.0890 (100 m), 21.15.0891 (300 m); ROLINE Cat.6 Flush Mount Wall Jack, shielded: 25.16.8492 (white), 25.16.8493 (ivory); ROLINE Cat.6 Surface Mount Wall Jack, shielded: 25.16.8392 (white), 25.16.8393 (ivory); ROLINE Cat.6 19" Patch Panel, 24 Ports, shielded: 26.11.0351 (light grey), 26.11.0361 (black); ROLINE Cat.6 S/FTP Patch Cord, grey, 5 m: 21.15.0835. The accredited German laboratory GHMT has tested and certified this product combination, in a Channel of 100 meters, as being compliant to Class E specifications; certificate no. z2365b-10-E (with flush mount)/z2364b-10-E (with surface mount).

Technical specifications

Product groupTwisted Pair Cable
Product typeS/FTP Patchcord
Colourred
Length3 m
Shield typeSFTP
Transfer qualityCat6 / Class E
Impedance100 Ohm
Quantity of wires8
Conductor typeWire
CrossedNo
Colour (Spout)red
Cable LSOHNo
Side 1 Connector TypeRJ-45
Side 1 Connector GenderMale
Side 2 Connector TypeRJ-45
Side 2 Connector GenderMale
Connector Type RJ45Standard
Weight119.9 g
Parametre
Zapojenie
1:1 podľa EIA / TIA 568
Tienenie
S/FTP (PiMF)
LSOH/LSZH bezhalogénový
nie
Farba
červená
Materiál vodiča
meď
Kategória
cat. 6 / class E 250MHz
Dĺžka
3m
  • 21151351_en_data_scmp.pdf 21151351_en_data_scmp.pdf
