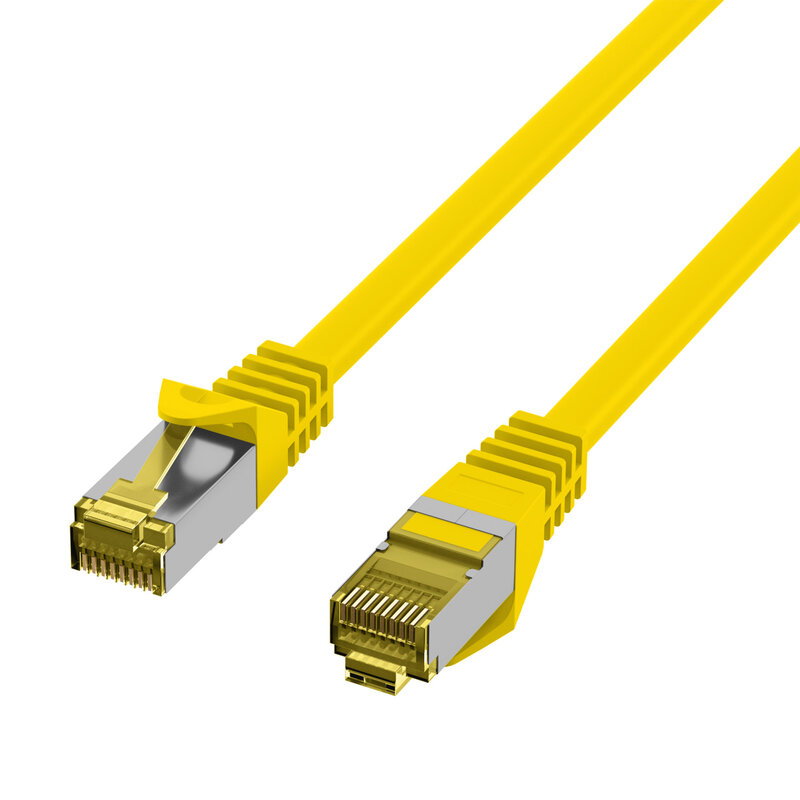

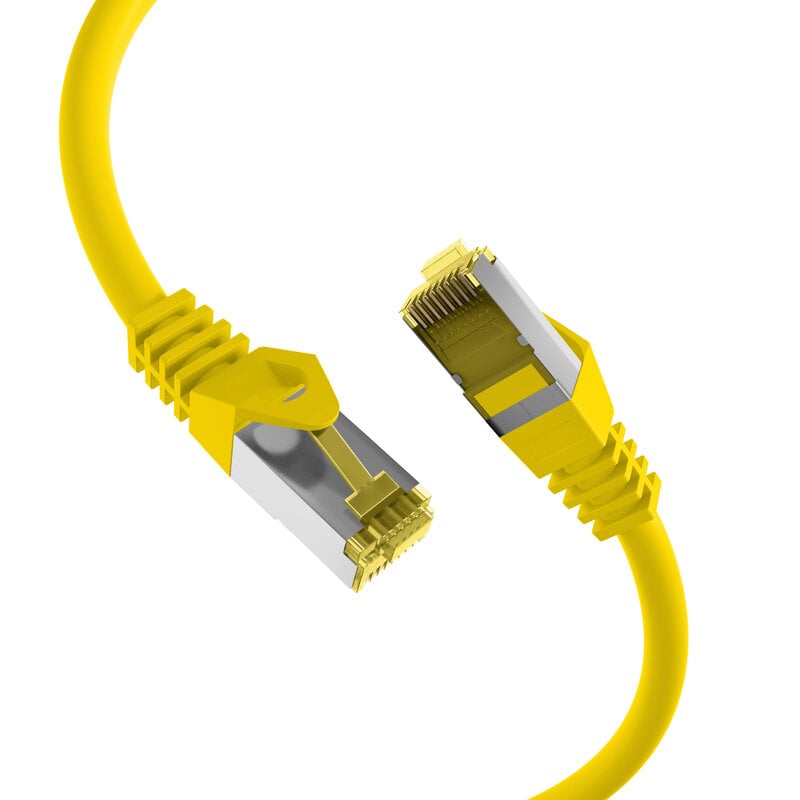

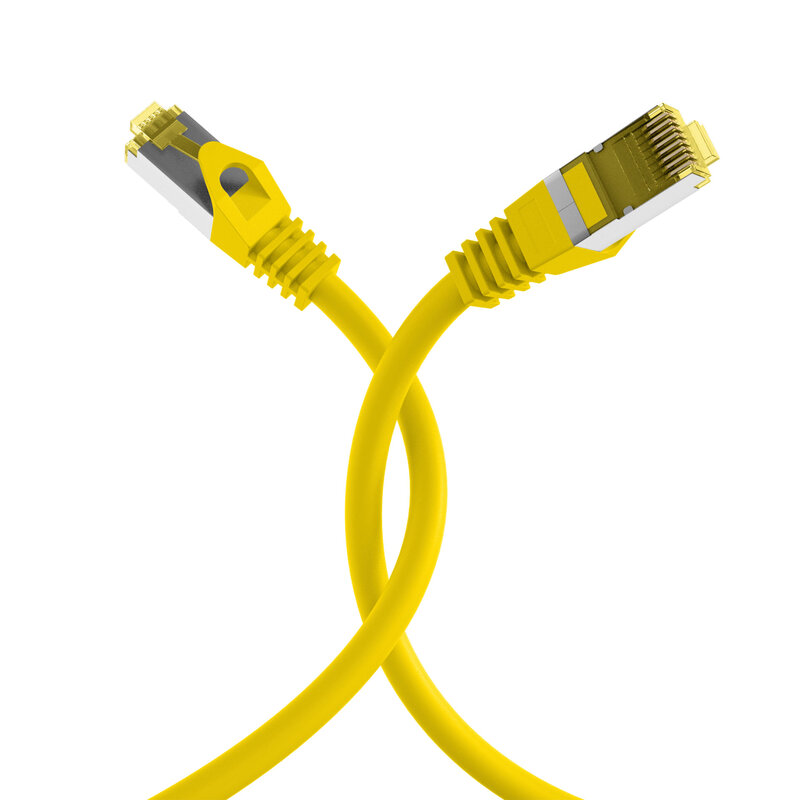

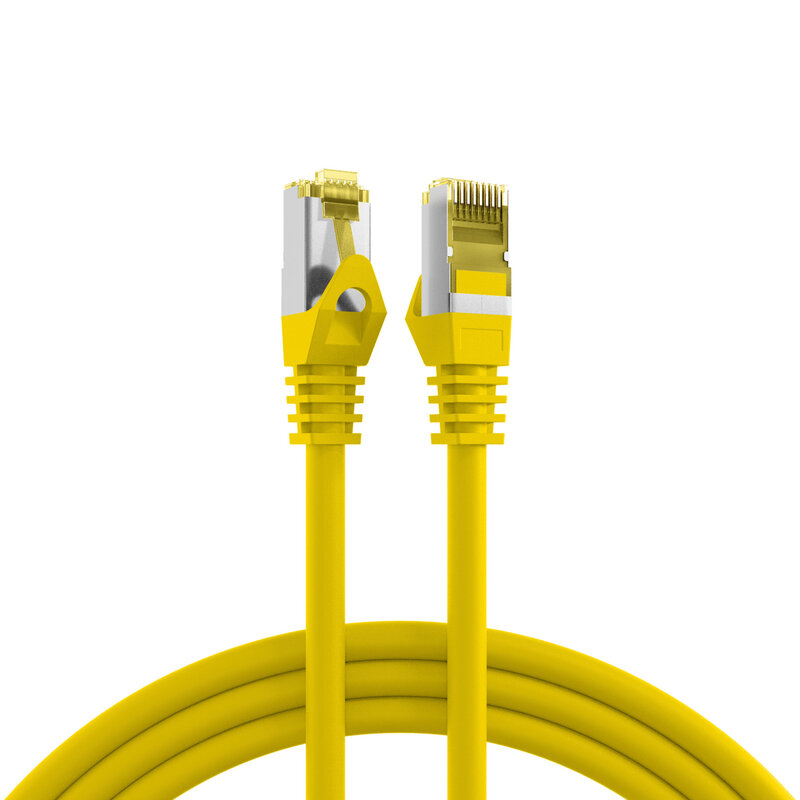

Tienený patch kábel Cat.6A RJ45 zaisťuje vynikajúci výkon pre 10 Gigabit Ethernet aplikácie. Lisovaná priechodka zaujme svojim tenkým dizajnom a zjednoduší tak proces vkladania v stiesnených podmienkach.
Prierez 4 x 2 x AWG26 / 7
Lisovaná priechodka, tenký dizajn
Potlač dĺžky na topánke
VLASTNOSTI PRODUKTU
Kategória
6A (TIA)
Typ pripojenia konektora 1
RJ45 8(8)
Typ pripojenia konektora 2
RJ45 8(8)
Typ konektora
RJ45 štandardná žltá
Kontakty
Pozlátený
Priradenie špendlíka
1:1
Pridelenie
príl. TIA/EIA 568B
Typ
Tienené
Potlač dĺžky
Áno
Rukáv proti zauzleniu
lisované
Farebný rukáv proti zalomeniu
žltá
Blokovacia páka
Áno
Cykly párenia
>=750
Polomer ohybu
>32,5 mm
Vodivý štít
Zvolený kontakt štítu
Surový kábel
Kat.7
Štruktúra kábla
S/FTP
Konštrukcia káblov
4x2
Veľkosť AWG/vlákna na jadro
26/7
Materiál vodiča
Meď
Bez silikónu
Áno
Materiál bundy
ĽSZH
Farebný vonkajší plášť
žltá
Tlač
Cat.7 surový kábel S/FTP 4x2xAWG26/7 PIMF 600MHz ISO/IEC 11801 & EN50173-1 TIA/EIA 568B-2.1 Bezhalogén ***10GIGABIT***
Vonkajší priemer kábla
6,5 mm
Spomaľovač horenia
príl. IEC60332-1
Bez halogénov
príl. IEC60754-2
Nízka dymivosť
príl. IEC61034
Rozsah teplôt
-20 – 60 °C
Impedancia
100 ± 5 ?
Odpor vodiča DC
146 ?/km
Slučkový odpor
292 ?/km
Nerovnováha odporu
5 %
Izolačný odpor
10 M?
Kontaktný odpor
30 m?
Testovacie napätie
1000 (V DC, 1 min) jadro/jadro a jadro/obrazovka
Šírka pásma
500 MHz
Konektor
IEC 60603-7-51
AKCIOVÁ CENA PLATÍ LEN DO VYPREDANIA ZÁSOB!!
The Cat.6A (TIA) network cable of the EFB-Elektronik brand transmits data up to 10Gbit. The S/FTP shielding reliably protects against interference and ensures high-quality signal. Because it is a Cat.6A (TIA) data cable, it offers a frequency range of up to 500MHz, which enables high data transmission performance.• Increase interference immunity in electromagnetically charged environments double shielding (S/FTP) improves EMC reserve, reduces susceptibility to radiation and stabilizes transmission in parallel cable routing.
• Cover fire protection requirements in compliance with standards flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.
• Power and connect end devices via one cable reduces cabling effort because data and power are transmitted via 4PPoE according to IEEE802.3bt on one line (fewer power supplies/sockets, faster installation).
Product Description
The S/FTP network cable has double shielding, which effectively minimizes electromagnetic interference. It can be used in a temperature range of -20 60 řC. The wide range of possible applications is supported by the bending radius of >32.5 mm. The network cable has an IP20 rating. The LSZH jacket is halogen-free and low-smoke. In the event of a fire, it minimizes smoke development and increases indoor safety.
Technical details
• Cat.6A (TIA)
• Connector: RJ45 8(8) to RJ45 8(8) with yellow RJ45 connectors
• Shielding: S/FTP cable with 4x2 x AWG26/7
• Cable shape: round
• Pin assignment: 1:1 according to TIA/EIA 568B
• Equivalent to PoE class: PoE to IEEE802.3af, PoE+ to IEEE802.3at, and 4PPoE to IEEE802.3bt
• Gold-plated contacts
• Sheath: LSZH sheath material
• Outer diameter: 6.5 mm
• With an injected anti-kink grommet
• Fire protection: flame-retardant according to IEC60332-1, low-smoke according to IEC61034, halogen-free according to IEC60754-2
• Degree of protection: IP20
• With a punctual screen contact
• With locking lever protection
• Mating cycles: =750
• With length print
• Brand: EFB-Elektronik
