Vysokorýchlostný sieťový kábel (Ethernet 10BASE-T/ 100BASE-TX/ 1000BASE-T, 10 Gigabit (10/100/1000/10000 Mbit) špeciálne pre herné konzoly s vysokým rozlíšením obrazu (4k/120Hz, 8k/60Hz), ako je Sony Playstation 5 (PS 5) alebo Microsoft Xbox X.
Technické špecifikácie
| AWG | 26/7 (uviaznutý) |
| Ochrana proti zalomeniu | obe strany |
| Špecifikácia | CAT 7 |
| Priemer plášťa kábla (približne) | 6,2 mm |
| Materiál plášťa kábla | ĽSZH |
| Materiál vnútorného vodiča | CU (meď) |
| Vyhovuje LSZH | Áno |
| Trieda tienenia | S/FTP (PiMF) |
| Počet tienenia | 2 x |
| Typ 1, tienenie | fólia (alu) PiMF |
| Typ 2, tienenie | vrkoč (alu) celkový štít |
| Pripojenie, tienenie | Áno |
| Kontaktovanie | EIA/TIA-568B |
| Ochrana západky | obe strany |
| Označenia | CE, WEEE |
| Farba | žltá |
| Jednotka spotreby | 1 ks. v polybagu |
| Prevádzková teplota až | 65 °C |
| Prevádzková teplota od | -20 °C |
| max. šírku pásma | 500 MHz |
| Dĺžka kábla | 30 m |
With the Goobay CAT cable, you can connect PCs, laptops, routers, switches, smart TVs, games consoles, NAS systems and many other devices quickly and reliably. The practical, reliable solution for home networks, working from home and professional work environments. Goobay patch cables are available in a wide range of categories, shielding options and lengths – for full flexibility in your network.

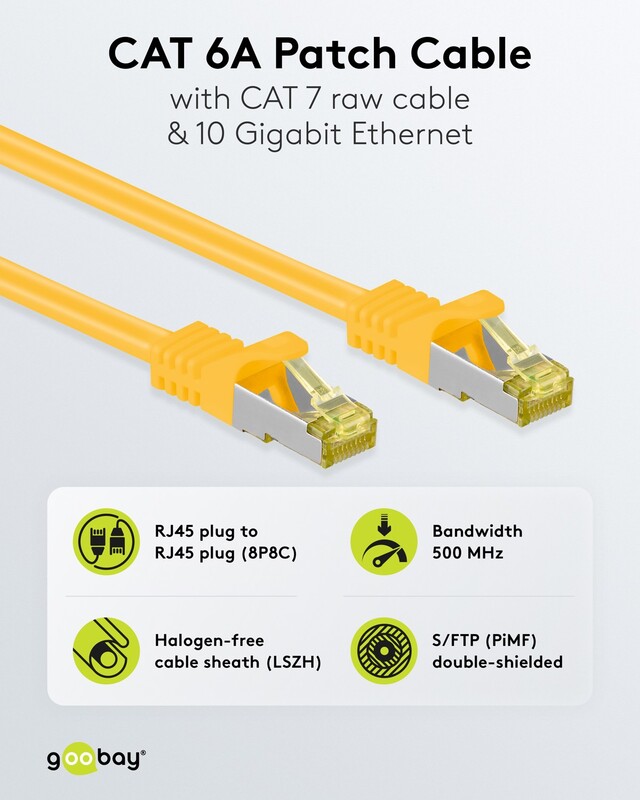

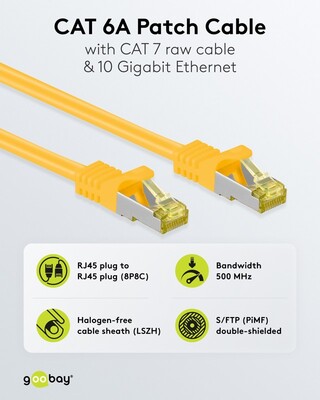

- Prewired, double-shielded LAN cable (CAT 7 with 600 MHz) with RJ45 connectors (CAT 6A with 500 MHz) for connecting network components
- High-speed network cable especially for game consoles with high-resolution picture (8K @ 60 Hz and 4K @ 120 Hz) such as Sony PlayStation 5 or Microsoft Xbox X

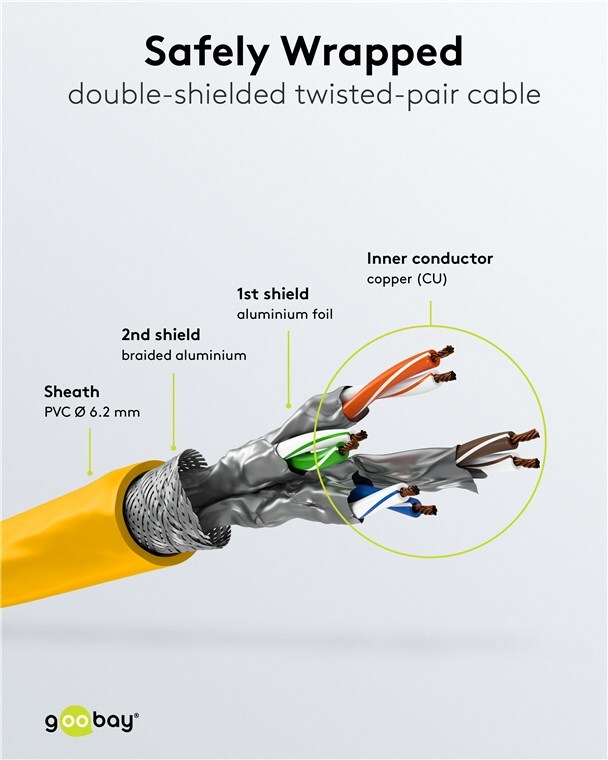

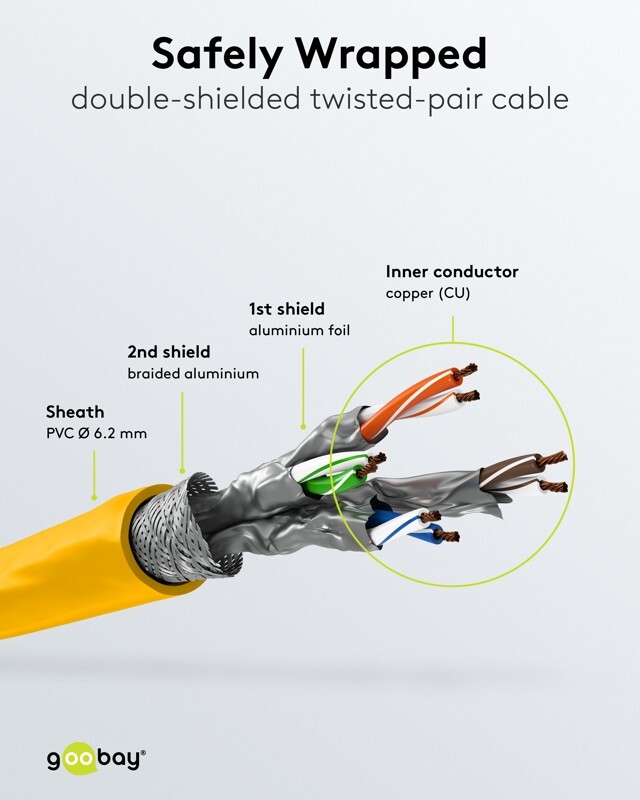

- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- High-quality copper conductor (CU) and 50µ gold-plated contacts guarantee an excellent, powerful network connection

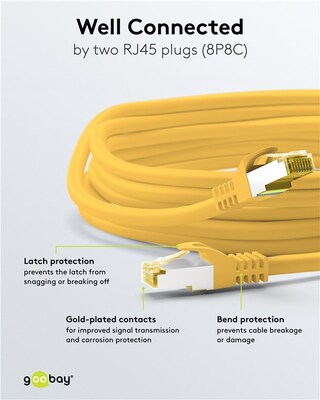

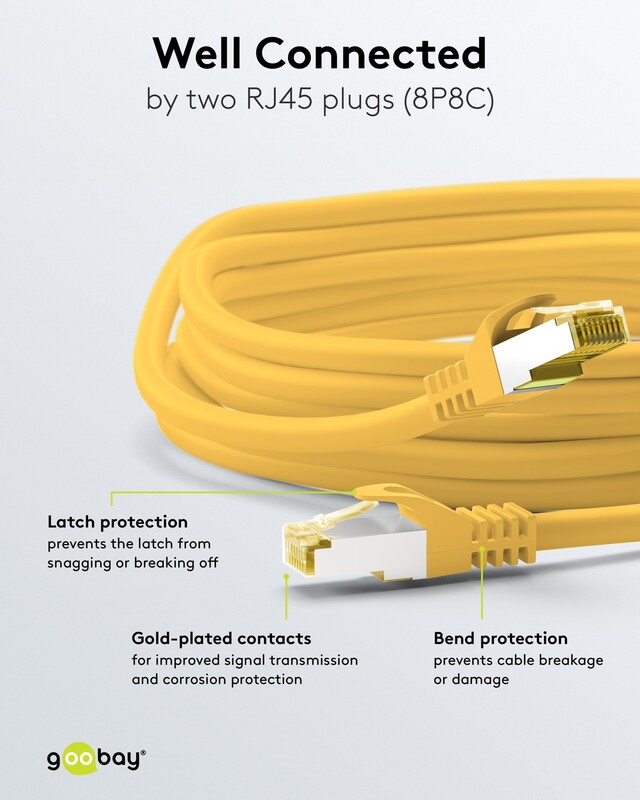

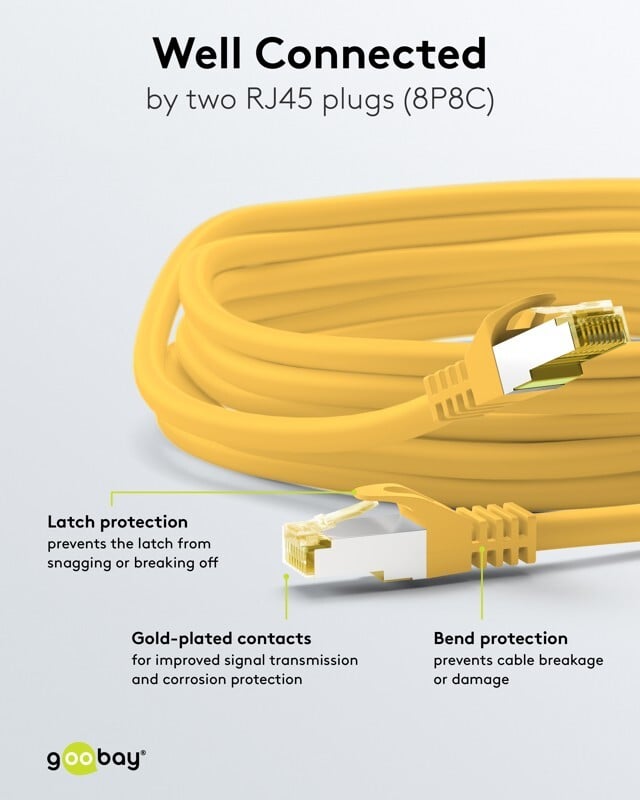

- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection
- Bend protection and a sturdy jacket effectively protect the Ethernet cable from breakage
- CAT 7 cable is suitable for Power over Ethernet (PoE, PoE+) and 10 Gigabit Ethernet with speeds of up to 10/100/1000/10000 Mbit/s

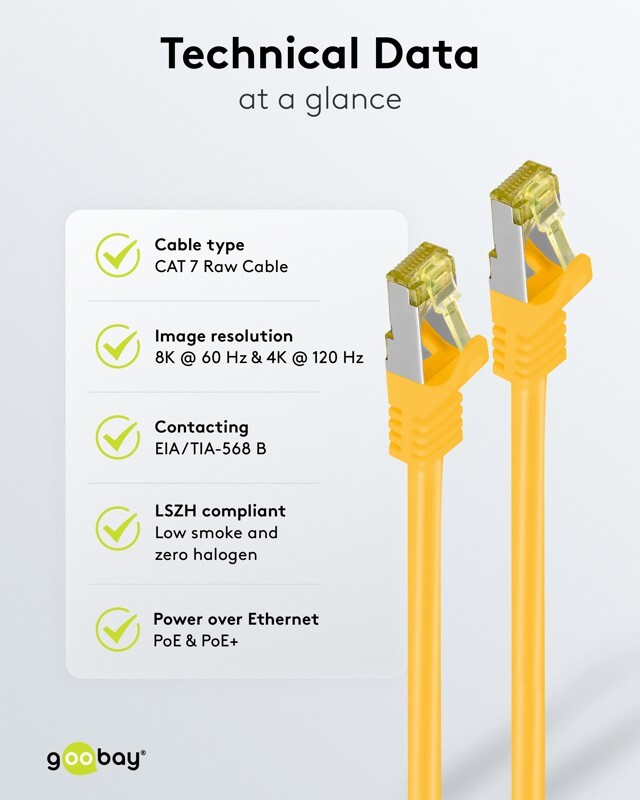

Technical specifications
| Connection, contact material | gold-plated 50µm |
| Connection, shielding | yes |
| Latch protection | both sides |
| Connection 2, type | RJ45 male (8P8C) |
| Cable type | Cat 7 raw cable |
| Material cable sheath | LSZH |
| Inner conductor material | CU (copper) |
| LSZH compliant | yes |
| Type 1, shielding | foil (alu) PiMF |
| Type 2, shielding | braid (alu) overall shield |
| Kink protection | both sides |
| Connection, type | RJ45 male (8P8C) |
| Color | yellow |
| Color version | yellow |
| Special feature | Length indication on connector |
| Consumption Unit | 1 pc. bulk |
| Packaging type | Cable Tag |
| Specification | CAT 7 |
| Cable length | 30 m |
| Contacting | EIA/TIA-568 B |
| AWG | 26/7 (stranded) |
| Number of shieldings | 2 x |
| bending radius > | 48 mm |
| max. bandwidth | 500 MHz |
| Cable sheath diameter (approx.) | 6.2 mm |
| Shielding class | S/FTP (PiMF) |
| max. transmission rate | 10 Gbit/s |
| Markings | CE, WEEE |
| Operating temperature from | -20 °C |
| Operating temperature up to | 65 °C |
Kategória
cat. 7 / class F / 1000MHz / 10G BASE-T
Tienenie
S/FTP (PiMF)
Dĺžka
30m
Farba
žltá
Materiál vodiča
meď
Predlžovací
nie
Zapojenie
1:1 podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
áno
Vhodný do exteriéru
nie
Uhlový konektor/konektory
nie
Slim / Plochý
Nie
Certifikovaný kábel
nie
Flexibilný
nie
Montáž na panel
nie
Ochrana západky konektora
áno
Typ vodiča
lanko
