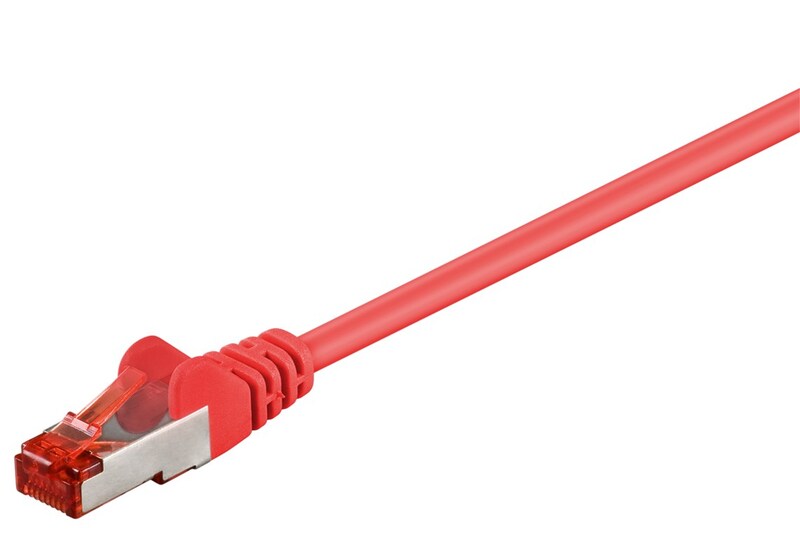

S/FTP (PiMF) Patchkábel LSOH 50m cat.6, červený, Cu
S/FTP (PiMF) Patchkábel LSOH 50m cat.6, červený, Cu
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-qu..... celý popis
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
- Prewired, double-shielded LAN cable with RJ45 plugs for connecting network components
- CAT 6 internet cable suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s

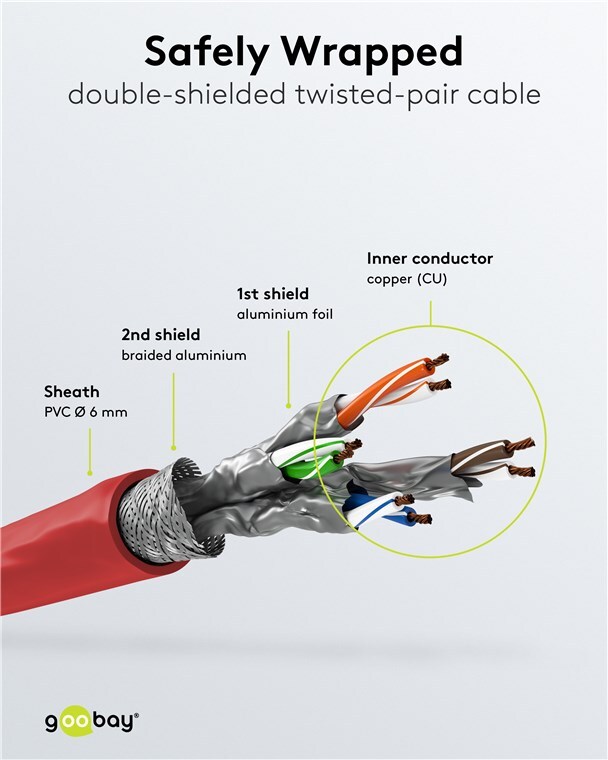

- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- High-quality copper conductor (CU) and gold-plated contacts guarantee an excellent, powerful network connection.
- Bend protection and a sturdy jacket effectively protect the network cable from breakage.

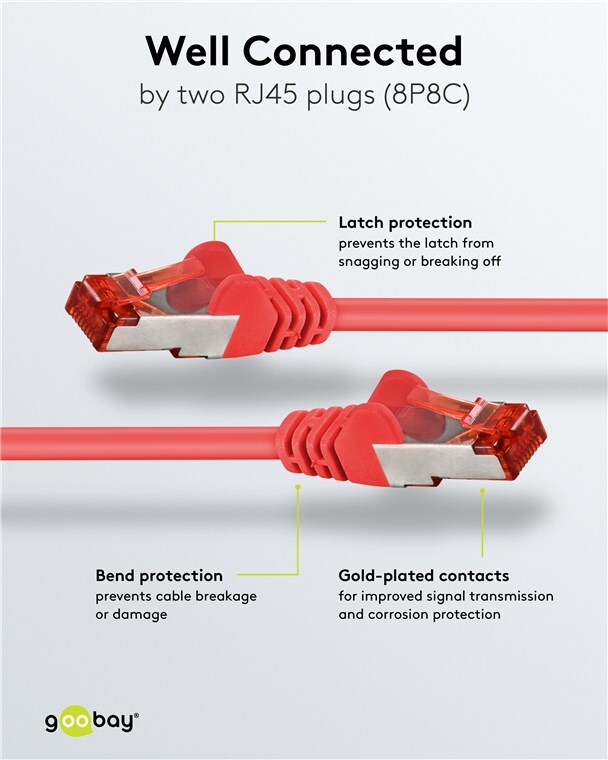

- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Ethernet cable is CAT 6 tested and suitable for Power over Ethernet (PoE, PoE+).
Technical specifications
| Connection, shielding | yes |
| Connection, type | RJ45 male (8P8C) |
| Latch protection | both sides |
| Connection 2, type | RJ45 male (8P8C) |
| Cable type | round cable |
| Material cable sheath | LSZH |
| Inner conductor material | CU (copper) |
| LSZH compliant | yes |
| Type 1, shielding | foil (alu) PiMF |
| Type 2, shielding | braid (alu) overall shield |
| Kink protection | both sides |
| Color | red |
| Color version | red |
| Special feature | Length indication on connector |
| Consumption Unit | 1 pc. bulk |
| Packaging type | Cable Tag |
| Specification | CAT 6 |
| Cable length | 50 m |
| Contacting | EIA/TIA-568 B |
| AWG | 28/7 (stranded) |
| Number of shieldings | 2 x |
| bending radius > | 48 mm |
| max. bandwidth | 250 MHz |
| Cable sheath diameter (approx.) | 6 mm |
| Shielding class | S/FTP (PiMF) |
| Markings | WEEE, CE |
| Operating temperature from | -20 °C |
| Operating temperature up to | 60 °C |
