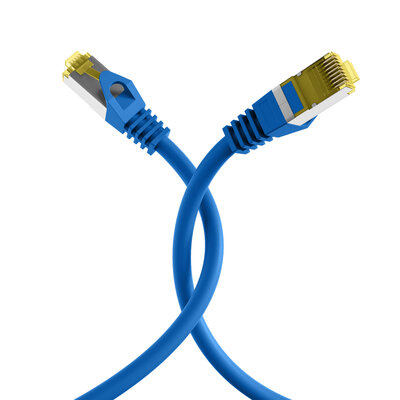

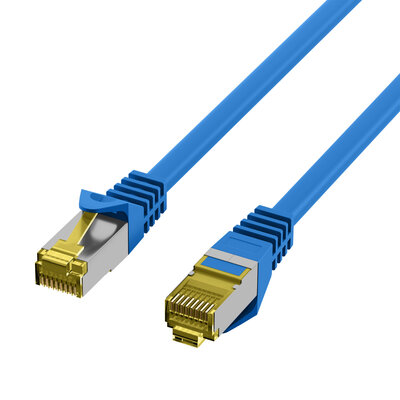

S/FTP (PiMF) Patchkábel LSOH 5m, cat.7, modrý, Cu

S/FTP (PiMF) Patchkábel LSOH 5m, cat.7, modrý, Cu

Kód: {{ productModel }}
Výrobca: EFB
Kat. č.: MK7001.5BL
EAN: 4049759127190

The shielded Cat.6A RJ45 patch cable with ensures excellent performance f..... celý popis

9 ks na sklade
6,90 € s DPH 5,75 € bez DPH
Predajňa dostupné ihneď
E-shop doručenie kuriérom

The shielded Cat.6A RJ45 patch cable with ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

Cross section 4 x 2 x AWG26 / 7
Moulded grommet, slim design
Length imprint on the boot

PRODUCT FEATURES

Category

6A (TIA)

Type of connector connection 1

RJ45 8(8)

Type of connector connection 2

RJ45 8(8)

Connector type

RJ45 Standard yellow

Contacts

Gold plated

Pin assignment

1:1

Allocation

acc. TIA/EIA 568B

Type

Shielded

Length imprint

yes

Anti-kink sleeve

moulded

Colour anti-kink sleeve

blue

Locking lever

yes

Mating cycles

≥750

Bending radius

>32,5 mm

Conductive shield

Selected shield contact

Raw cable

Cat.7

Cable structure

S/FTP

Cable construction

4x2

AWG-size/strands per core

26/7

Conductor Material

Copper

Silicone-free

yes

Jacket material

LSZH

Colour outer sheath

blue

Printing

Cat.7 raw cable S/FTP 4x2xAWG26/7 PIMF 600MHz ISO/IEC 11801 & EN50173-1 TIA/EIA 568B-2.1 Halogen Free ***10GIGABIT***

Outer diameter of the cable

6.5 mm

Flame-retardant

acc. IEC60332-1

Halogen-free

acc. IEC60754-2

Low smoke

acc. IEC61034

Temperature range

-20 – 60 °C

Impedance

100 ±5 Ω

Conductor resistance DC

146 Ω/km

Loop resistance

292 Ω/km

Resistance unbalance

5 %

Insulation resistance

10 MΩ

Contact resistance

30 mΩ

Test voltage

1000 (V DC, 1min) core/core und core/screen

Bandwidth

500MHz

Connector

IEC 60603-7-51
