S/FTP (PiMF) Patchkábel LSOH 7.5m, cat.7, magenta, Cu
Vysokorýchlostný sieťový kábel (Ethernet 10BASE-T/ 100BASE-TX/ 1000BASE-T, 10 Gigabit (10/100/1000/10000 Mbit)..... celý popis
Vysokorýchlostný sieťový kábel (Ethernet 10BASE-T/ 100BASE-TX/ 1000BASE-T, 10 Gigabit (10/100/1000/10000 Mbit) špeciálne pre herné konzoly s vysokým rozlíšením obrazu (4k/120Hz, 8k/60Hz), ako je Sony Playstation 5 (PS 5) alebo Microsoft Xbox X.
Technické špecifikácie
| AWG | 26/7 (uviaznutý) |
| Ochrana proti zalomeniu | |
| Špecifikácia | CAT 7 |
| Priemer plášťa kábla (približne) | 6,2 mm |
| Materiál plášťa kábla | |
| Materiál vnútorného vodiča | |
| Vyhovuje LSZH | |
| Trieda tienenia | S/FTP (PiMF) |
| Počet tienenia | 2 x |
| Typ 1, tienenie | |
| Typ 2, tienenie | |
| Pripojenie, tienenie | |
| Kontaktovanie | EIA/TIA-568B |
| Ochrana západky | |
| Označenia | CE, WEEE |
| Farba | |
| Jednotka spotreby | |
| Prevádzková teplota až | 65 °C |
| Prevádzková teplota od | -20 °C |
| max. šírku pásma | 500 MHz |
| Dĺžka kábla | 7,5 m |
| Farebné prevedenie | purpurová |
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Our solutions are especially suitable for high-resolution image transmission in 8K @ 60 Hz and 4K @ 120 Hz. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!

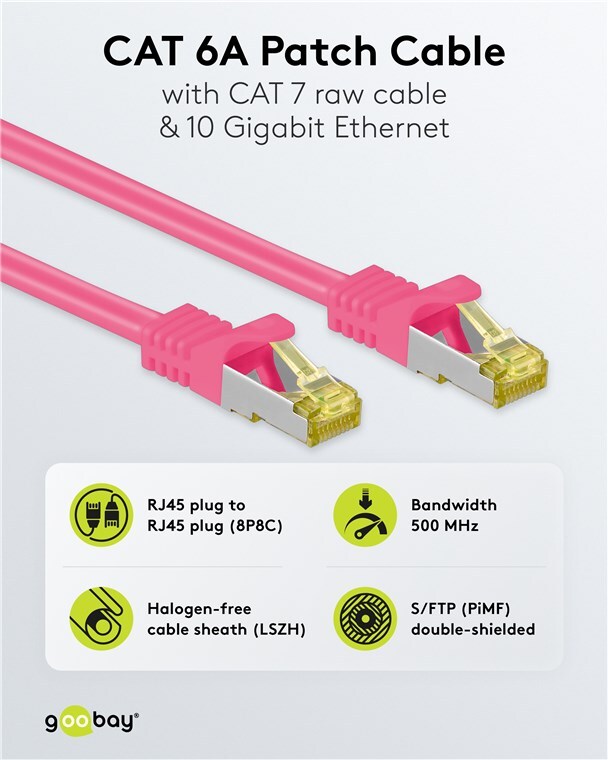

- Prewired, double-shielded LAN cable (CAT 7 with 600 MHz) with RJ45 connectors (CAT 6A with 500 MHz) for connecting network components
- High-speed network cable especially for game consoles with high-resolution picture (8K @ 60 Hz and 4K @ 120 Hz) such as Sony PlayStation 5 or Microsoft Xbox X

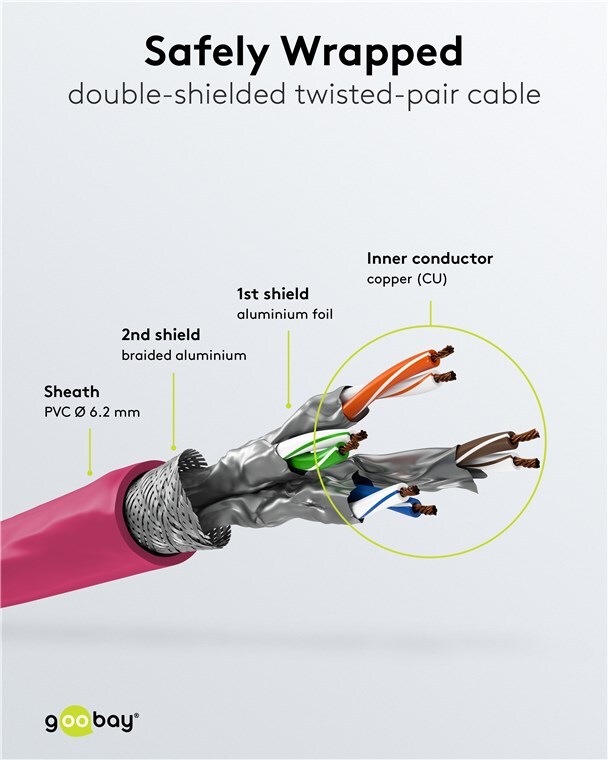

- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- High-quality copper conductor (CU) and 50µ gold-plated contacts guarantee an excellent, powerful network connection

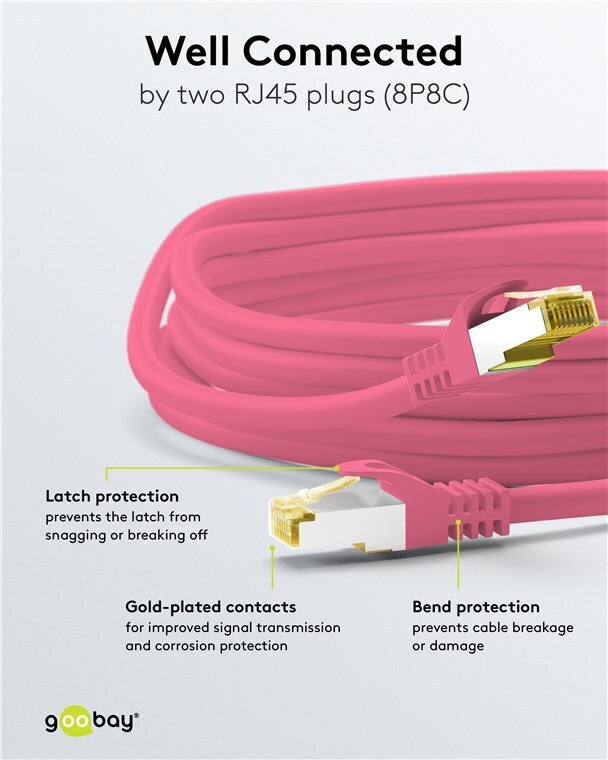

- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection
- Bend protection and a sturdy jacket effectively protect the Ethernet cable from breakage
- CAT 7 cable is suitable for Power over Ethernet (PoE, PoE+) and 10 Gigabit Ethernet with speeds of up to 10/100/1000/10000 Mbit/s

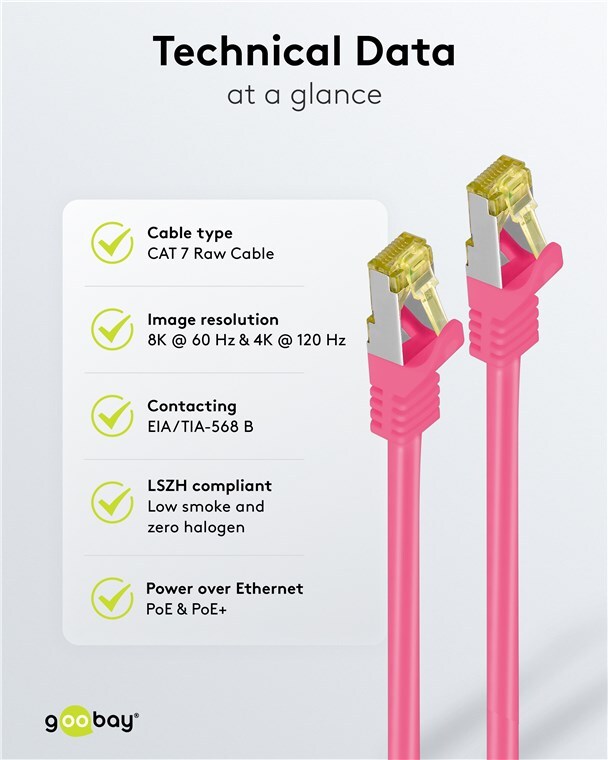

Technical specifications
| AWG | 26/7 (stranded) |
| bending radius > | 48 mm |
| Specification | CAT 7 |
| Cable sheath diameter (approx.) | 6.2 mm |
| Shielding class | S/FTP (PiMF) |
| Number of shieldings | 2 x |
| Contacting | EIA/TIA-568 B |
| Markings | CE, WEEE |
| Operating temperature up to | 65 °C |
| Operating temperature from | -20 °C |
| max. bandwidth | 500 MHz |
| Kink protection | both sides |
| Cable type | Cat 7 raw cable |
| Material cable sheath | LSZH |
| Inner conductor material | CU (copper) |
| LSZH compliant | yes |
| Type 1, shielding | foil (alu) PiMF |
| Type 2, shielding | braid (alu) overall shield |
| Connection, contact material | gold-plated 50µm |
| Connection, shielding | yes |
| Connection, type | RJ45 male (8P8C) |
| Connection 2, type | RJ45 male (8P8C) |
| Latch protection | both sides |
| Color | magenta |
| Consumption Unit | 1 pc. in polybag |
| Special feature | Length indication on connector |
| Cable length | 7.5 m |
| Color version | magenta |
Parametre
                    Kategória

                    cat. 7 / class F / 1000MHz / 10G BASE-T

                    Tienenie

                    S/FTP (PiMF)

                    Dĺžka

                    7.5m

                    Farba

                    magenta

                    Materiál vodiča

                    meď

                    Predlžovací

                    nie

                    Zapojenie

                    1:1 podľa EIA / TIA 568

                    LSOH/LSZH bezhalogénový

                    áno

                    Vhodný do exteriéru

                    nie

                    Uhlový konektor/konektory

                    nie

                    Slim / Plochý

                    Nie

                    GHMT Certifikát

                    nie

                    Flexibilný

                    nie

                    Montáž na panel

                    nie

                    Ochrana západky konektora

                    áno

                    Typ vodiča

                    lanko
