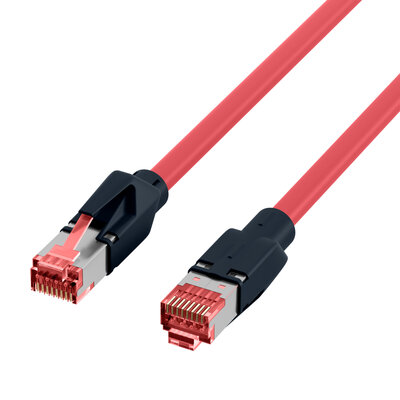

S/FTP (PiMF) Patchkábel LSOH PUR 30m cat.7, červený, Cu, Draka UC900 s TM21
S/FTP (PiMF) Patchkábel LSOH PUR 30m cat.7, červený, Cu, Draka UC900 s TM21
Prepojovací kábel RJ45 Cat.6A S/FTP PUR Draka UC900 TM21 Prepojovací kábel Cat.6A (IEC) má pozlátené kontak..... celý popis
Prepojovací kábel RJ45 Cat.6A S/FTP PUR Draka UC900 TM21
Prepojovací kábel Cat.6A (IEC) má pozlátené kontakty a spĺňa požiadavky pre 2,5 Gb/s, 5 Gb/s a 10 Gb/s Ethernet.
Technické vlastnosti produktu
Kat. 6A (IEC)
Kábel S/FTP s AWG26/7
Materiál plášťa z polyuretánu (PUR)
Protipožiarna ochrana: samozhášacia, bez halogénov, s nízkou úrovňou dymu
Vlastnosti plášťa: odolný voči olejom, ozónu a UV žiareniu
Zásuvkové pripojenie: RJ45 na RJ45
S ochranou uzamykacej páky
Má pozlátené kontakty
Plášť tieneného patch kábla je vyrobený z polyuretánového (PUR) materiálu. Kábel tiež ponúka možnosť napájania cez PoE podľa IEEE802.3af, PoE+ podľa IEEE802.3at a 4PPoE podľa IEEE802.3bt.
Červené konektory TM21 sú priradené podľa normy TIA/EIA 568B a majú pomer zapojenia 1:1.
Sieťový kábel má medené vodiče a je ideálny pre aplikácie v štruktúrovanej kabeláži budov, priemyselnom ethernete a dátových centrách. Frekvenčný rozsah je 500 MHz.
Prepojovací kábel Cat.6A (IEC) má pozlátené kontakty a spĺňa požiadavky pre 2,5 Gb/s, 5 Gb/s a 10 Gb/s Ethernet.
Technické vlastnosti produktu
Kat. 6A (IEC)
Kábel S/FTP s AWG26/7
Materiál plášťa z polyuretánu (PUR)
Protipožiarna ochrana: samozhášacia, bez halogénov, s nízkou úrovňou dymu
Vlastnosti plášťa: odolný voči olejom, ozónu a UV žiareniu
Zásuvkové pripojenie: RJ45 na RJ45
S ochranou uzamykacej páky
Má pozlátené kontakty
Plášť tieneného patch kábla je vyrobený z polyuretánového (PUR) materiálu. Kábel tiež ponúka možnosť napájania cez PoE podľa IEEE802.3af, PoE+ podľa IEEE802.3at a 4PPoE podľa IEEE802.3bt.
Červené konektory TM21 sú priradené podľa normy TIA/EIA 568B a majú pomer zapojenia 1:1.
Sieťový kábel má medené vodiče a je ideálny pre aplikácie v štruktúrovanej kabeláži budov, priemyselnom ethernete a dátových centrách. Frekvenčný rozsah je 500 MHz.
This Cat.6A (IEC) data cable from EFB-Elektronik supports data transmissions up to 10Gbit. S/FTP shielding reliably protects against interference and ensures high-quality signals. Because it is a Cat.6A (IEC) network cable, it supports a frequency range of up to 500MHz, which provides high data transmission performance.
Ě Designed for sun-exposed installations Í UV-resistant jacket materials reduce material ageing caused by sun exposure and increase service life when used in bright/sunny areas (e.g. near windows or in sheltered outdoor areas).
Ě Increase interference immunity in electromagnetically charged environments Í double shielding (S/FTP) improves EMC reserve, reduces susceptibility to radiation and stabilizes transmission in parallel cable routing.
Ě Cover fire protection requirements in compliance with standards Í flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.
Product Description
The S/FTP patch cable has double shielding, which effectively reduces electromagnetic interference. The temperature range of the cable is -20 Í 60 řC. The wide range of possible applications is supported by the bending radius of >25 mm. The Ethernet cable has an IP20 rating. The polyurethane (PUR) jacket is particularly robust, making it suitable for demanding industrial applications. It is also oil-resistant.
Technical details
Ě Cat.6A (IEC)
Ě Connector: RJ45 8(8) to RJ45 8(8) with red TM21 connectors
Ě Shielding: S/FTP cable with 4x2 x AWG26/7
Ě Cable shape: round
Ě Pin assignment: 1:1 according to TIA/EIA 568B
Ě Equivalent to PoE class: PoE to IEEE802.3af, PoE+ to IEEE802.3at, and 4PPoE to IEEE802.3bt
Ě Gold-plated contacts
Ě Sheath: Polyurethane (PUR) sheath material
Ě Oil-resistant according to EN 60811-2-1
Ě Ozone resistant according to EN60811-2-1
Ě Outer diameter: 5.9 mm
Ě With an attached anti-kink grommet
Ě Fire protection: flame-retardant according to IEC60332-1, low-smoke according to IEC61034, halogen-free according to IEC60754-2
Ě Degree of protection: IP20
Ě With a 360ř umbrella attachment
Ě With locking lever protection
Ě Mating cycles: =750
Ě Brand: EFB-Elektronik
Ě Designed for sun-exposed installations Í UV-resistant jacket materials reduce material ageing caused by sun exposure and increase service life when used in bright/sunny areas (e.g. near windows or in sheltered outdoor areas).
Ě Increase interference immunity in electromagnetically charged environments Í double shielding (S/FTP) improves EMC reserve, reduces susceptibility to radiation and stabilizes transmission in parallel cable routing.
Ě Cover fire protection requirements in compliance with standards Í flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.
Product Description
The S/FTP patch cable has double shielding, which effectively reduces electromagnetic interference. The temperature range of the cable is -20 Í 60 řC. The wide range of possible applications is supported by the bending radius of >25 mm. The Ethernet cable has an IP20 rating. The polyurethane (PUR) jacket is particularly robust, making it suitable for demanding industrial applications. It is also oil-resistant.
Technical details
Ě Cat.6A (IEC)
Ě Connector: RJ45 8(8) to RJ45 8(8) with red TM21 connectors
Ě Shielding: S/FTP cable with 4x2 x AWG26/7
Ě Cable shape: round
Ě Pin assignment: 1:1 according to TIA/EIA 568B
Ě Equivalent to PoE class: PoE to IEEE802.3af, PoE+ to IEEE802.3at, and 4PPoE to IEEE802.3bt
Ě Gold-plated contacts
Ě Sheath: Polyurethane (PUR) sheath material
Ě Oil-resistant according to EN 60811-2-1
Ě Ozone resistant according to EN60811-2-1
Ě Outer diameter: 5.9 mm
Ě With an attached anti-kink grommet
Ě Fire protection: flame-retardant according to IEC60332-1, low-smoke according to IEC61034, halogen-free according to IEC60754-2
Ě Degree of protection: IP20
Ě With a 360ř umbrella attachment
Ě With locking lever protection
Ě Mating cycles: =750
Ě Brand: EFB-Elektronik
Parametre
Kategória
cat. 6a / class E 500MHz / 10G BASE-T
Tienenie
S/FTP (PiMF)
Dĺžka
30m
Farba
červená
Materiál vodiča
meď
Predlžovací
nie
Zapojenie
1:1 podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
áno
Vhodný do exteriéru
áno
Uhlový konektor/konektory
nie
Slim / Plochý
Nie
Certifikovaný kábel
nie
Flexibilný
nie
Montáž na panel
nie
Ochrana západky konektora
áno
Typ vodiča
lanko
