Tester siete, Multi-Network RJ45, BNC

Tester siete, Multi-Network RJ45, BNC

Kód: {{ productModel }}
Výrobca: Roline
Kat. č.: 13.01.3383-20
EAN: 7630049698123

Testovanie kontinuity koaxiálnych káblov s BNC konektormi a 8-pólovými dátovými linkami w. osadené kon..... celý popis

Externý sklad
89,59 € s DPH 74,66 € bez DPH
  • Testovanie kontinuity koaxiálnych káblov s BNC konektormi a 8-pólovými dátovými linkami w. osadené konektory RJ-45
  • Zariadenie rozpoznáva prerušené a skratované spojenia (drôt/drôt alebo drôt/tienenie).

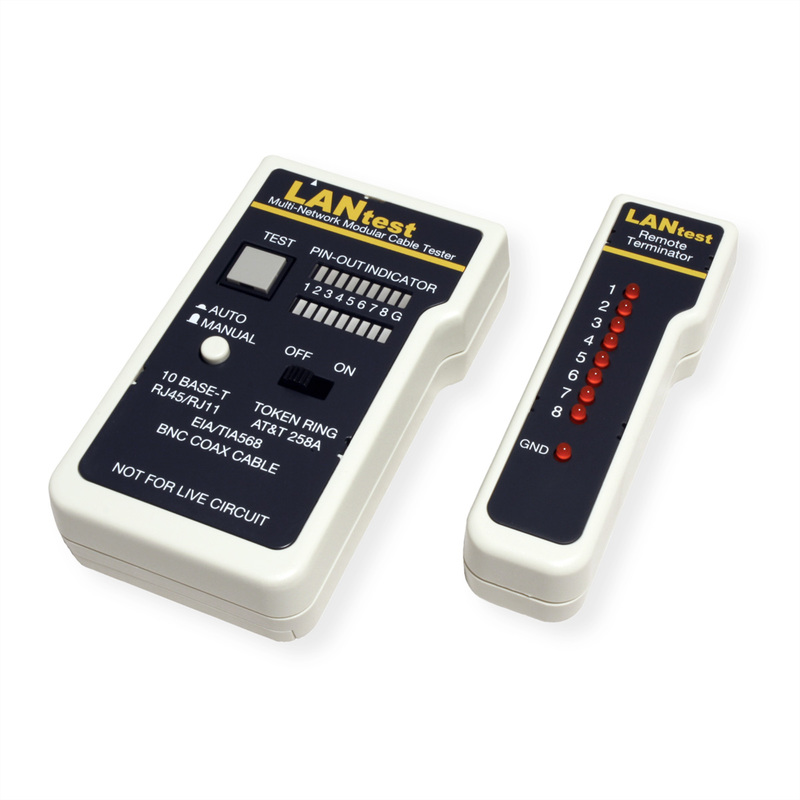

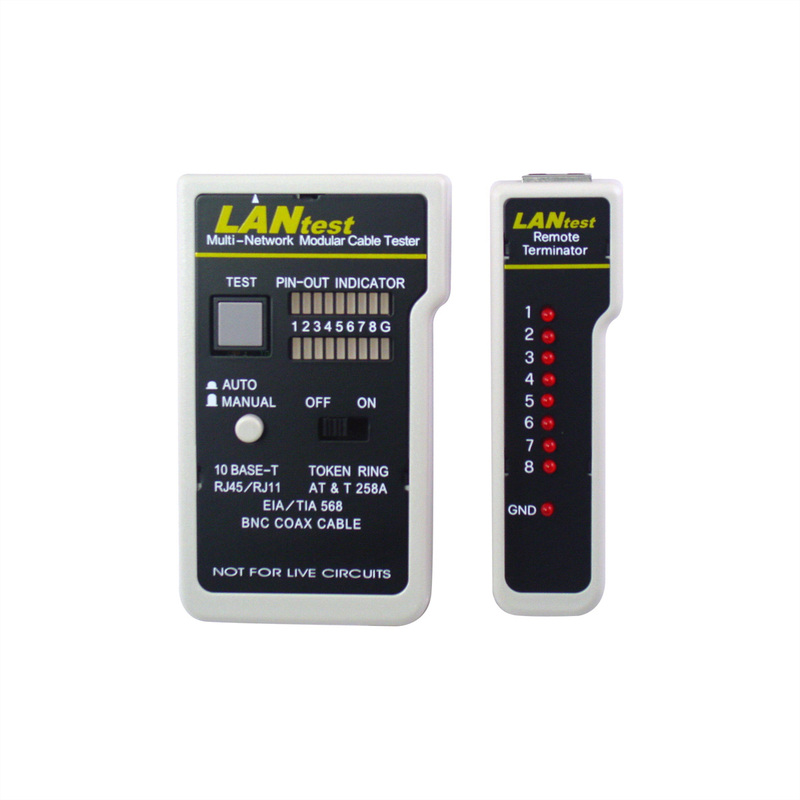

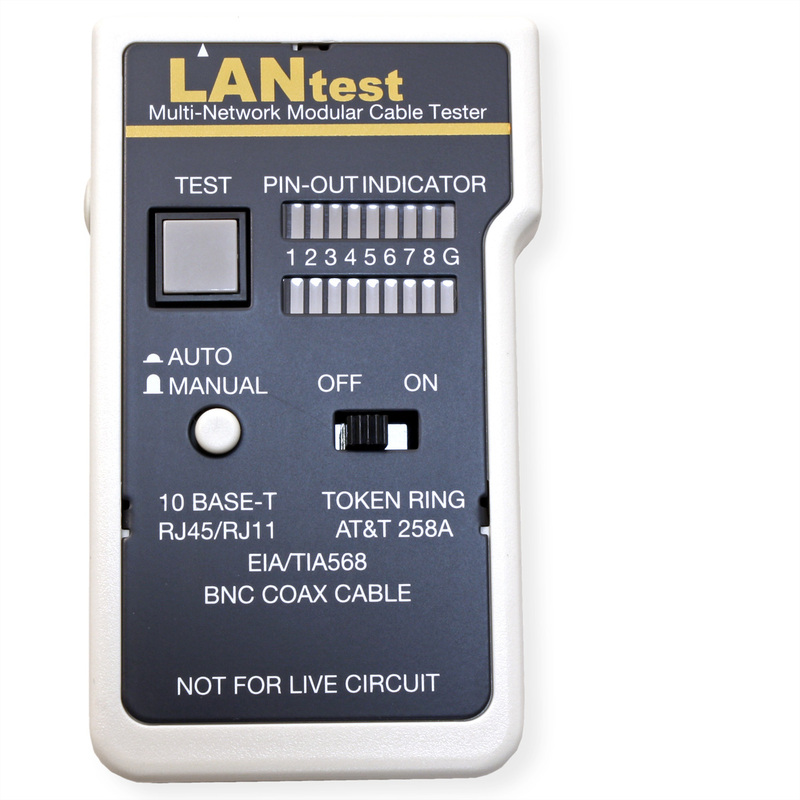

  • Dvojriadkový displej (LED) postupne zobrazuje, ktorý kolík konektora RJ-45 na konci kábla A je spojený s ktorým kolíkom na konci kábla B a je možné manuálne alebo automatické prepínanie; v prípade skratu sa súčasne rozsvietia viac ako dve LED diódy

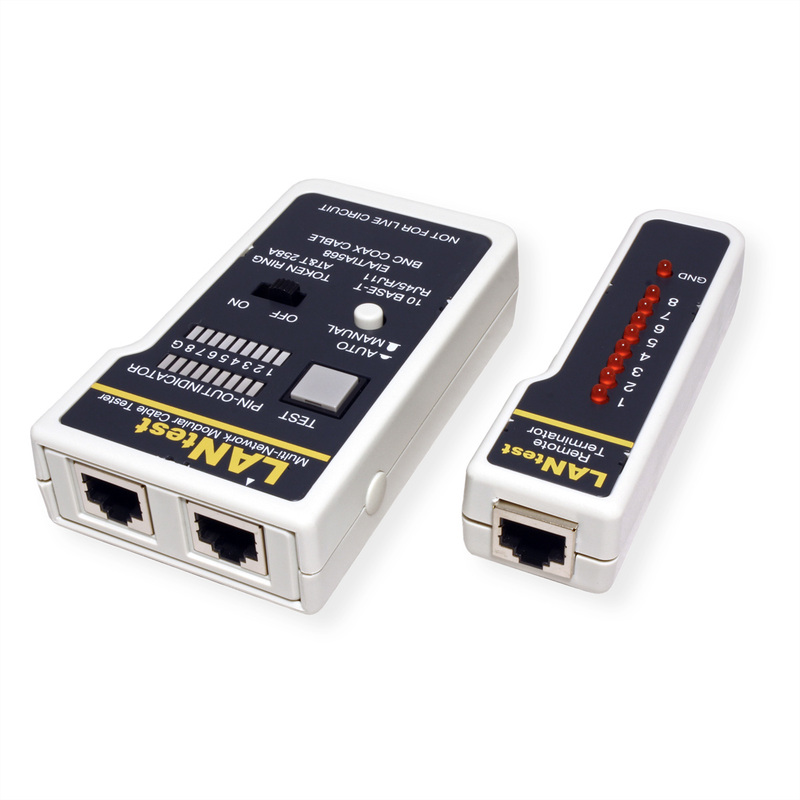

  • Zariadenie má 2 zásuvky RJ-45; pomocou dodávanej súpravy Remote Kit je možné otestovať aj káble položené v stene
  • Na testovanie koaxiálnych káblov sa dodávajú dva adaptérové káble (BNC/RJ-45).
  • Pozor: Kábel netestujte v zapojenom stave! Za určitých okolností môže dôjsť k poškodeniu testera

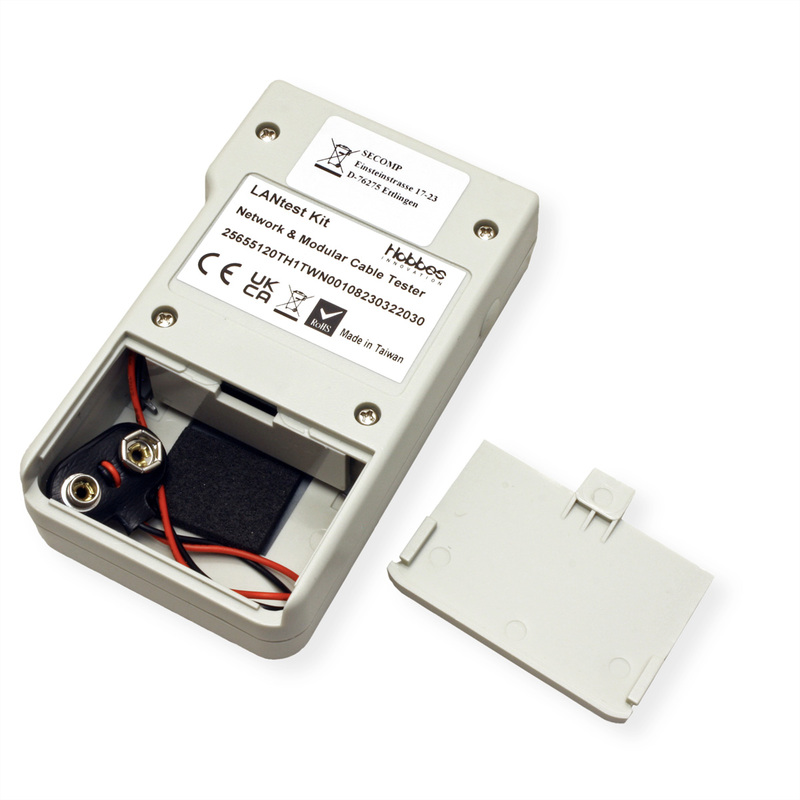

  • Batéria (nie je súčasťou dodávky): 1x E-blok 9V (6LR61/AM-6)

Upozornenie: Nepripájajte testery káblov k zariadeniam počas prevádzky

Technické špecifikácie

Skupina produktov Tester
Typ produktu Tester káblov
Hmotnosť 225,2 g

  • Continuity testing of coax cables with BNC connectors and 8-pole data lines w. fitted RJ-45 connectors
  • The device recognises open and short-circuited (wire/wire or wire/shield) connections
  • A two-line display (LEDs) indicates sequentially which pin of the RJ-45 connector at cable end A is connected with which pin at cable end B and manual or automatic switch advancing is possible; in the case of a short-circuit more than two LEDs light up simultaneously
  • The device has 2 RJ-45 sockets; with the supplied Remote Kit cables laid in the wall can also be tested
  • Two adapter cables (BNC/RJ-45) are supplied for testing coax cables
  • Caution: Do not test the cable in the connected state! Under certain circumstances, the tester may be damaged
  • Battery (not included in delivery): 1x E-block 9V (6LR61/AM-6)

Caution: Do not connect cable testers to devices during operation

Technical specifications

Product groupTester
Product typeCable tester
Weight225.2 g
Height of packaging (single piece)50 mm
Width of packaging (single piece)110 mm
Depth of packaging (single piece)160 mm
Package weight (single piece)0.312 kg
  • 13013383-en-ma-20090504.pdf 13013383-en-ma-20090504.pdf
  • 13013383_en_data_scmp.pdf 13013383_en_data_scmp.pdf
