Tester siete, Multi-Network RJ45, BNC, PoE

Tester siete, Multi-Network RJ45, BNC, PoE

Kód: {{ productModel }}
Výrobca: Value
Kat. č.: 13.99.3003-5
EAN: 7611990933068

Testovanie kontinuity koaxiálnych káblov s BNC konektormi a 8-pólovými dátovými linkami w. osadené kon..... celý popis

3 ks na sklade
27,11 € s DPH 22,59 € bez DPH
Predajňa dostupné ihneď
E-shop doručenie kuriérom

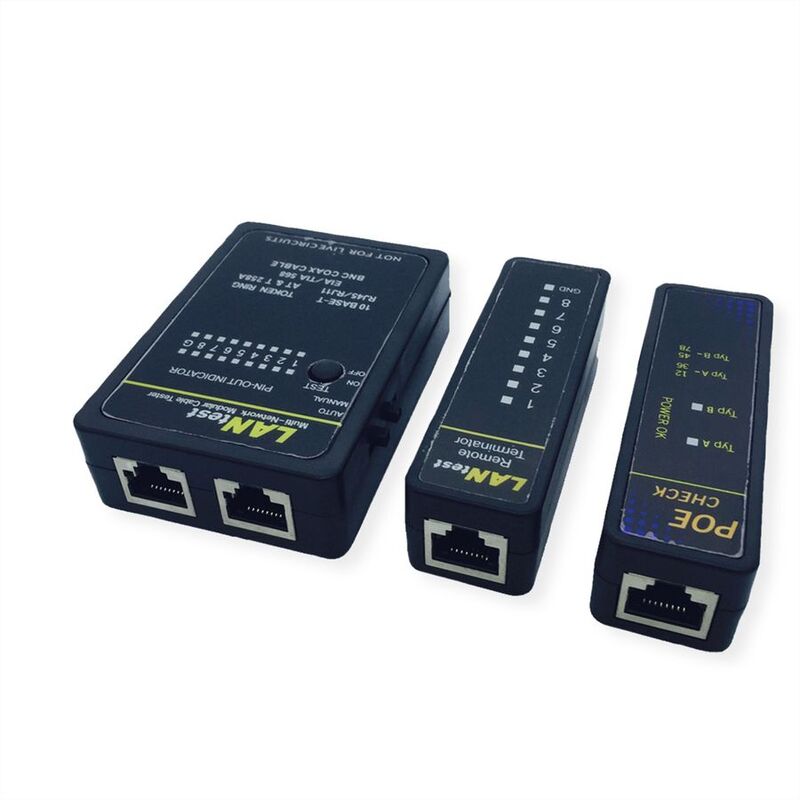

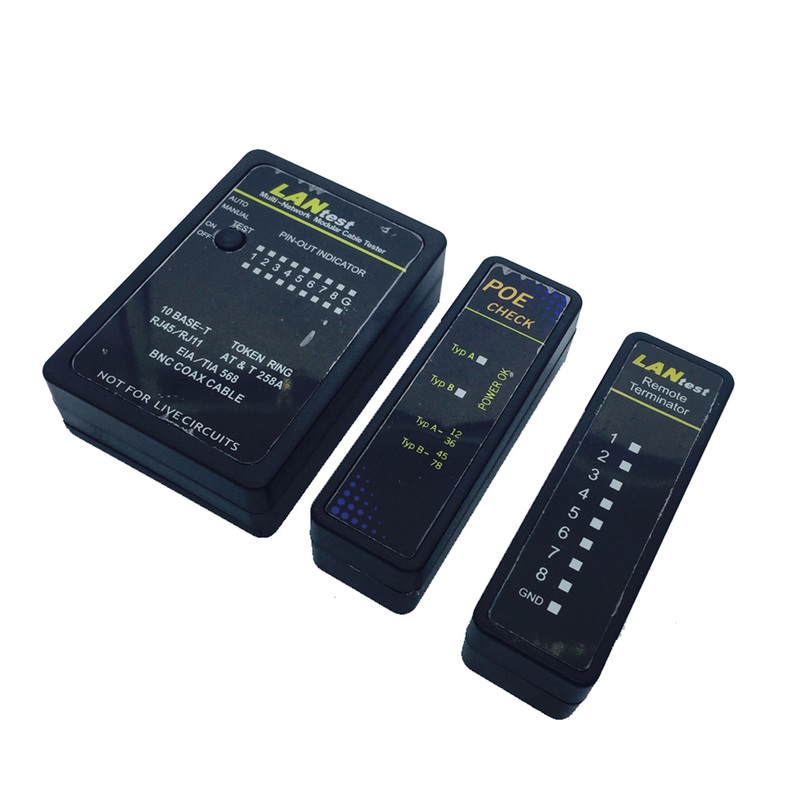

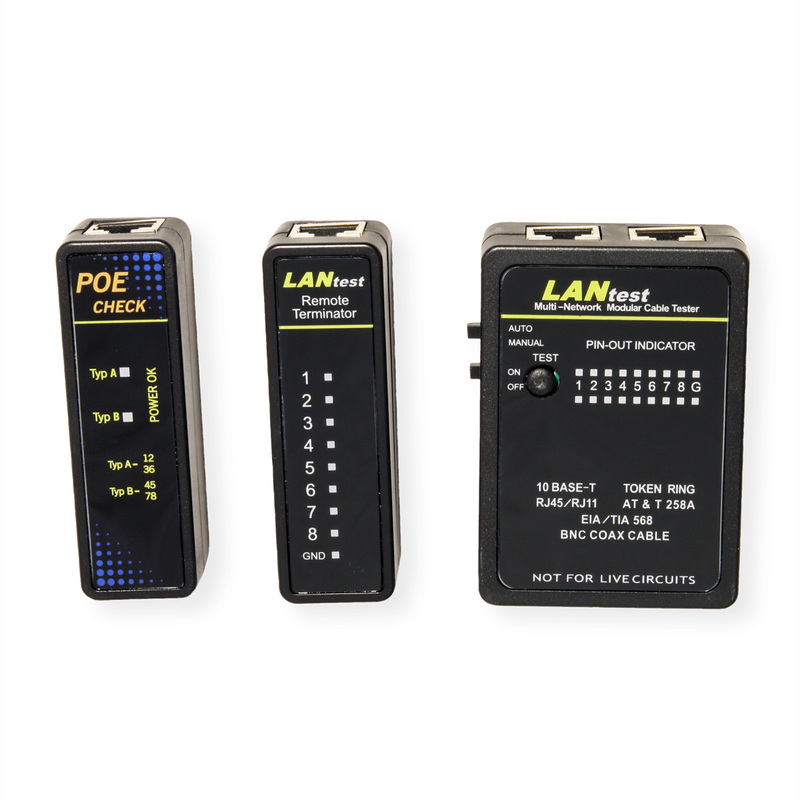

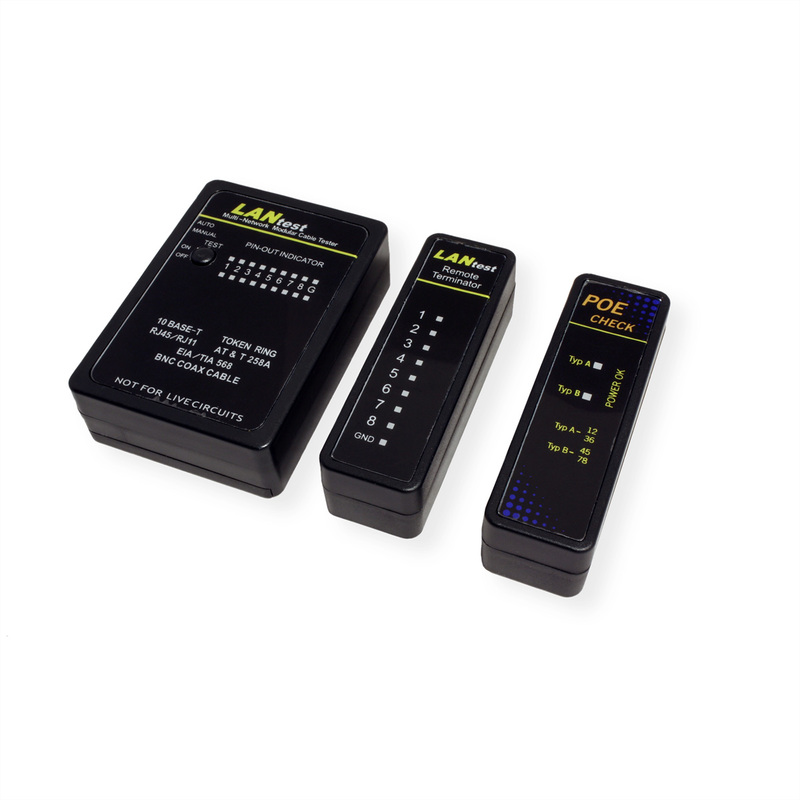

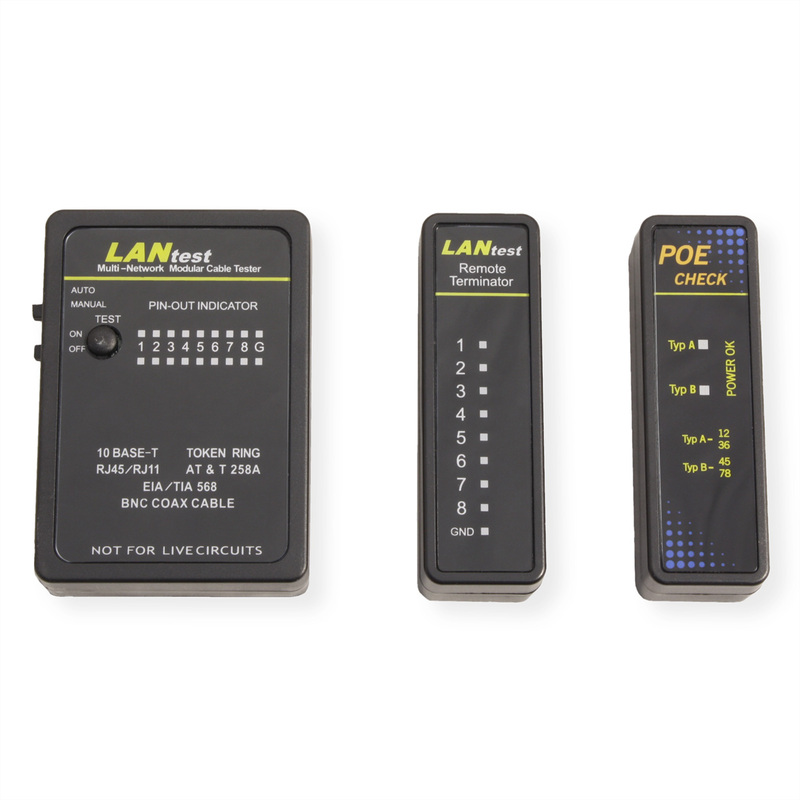

  • Testovanie kontinuity koaxiálnych káblov s BNC konektormi a 8-pólovými dátovými linkami w. osadené konektory RJ-45
  • Zariadenie rozpoznáva otvorené a skratované spojenia (drôt/drôt alebo drôt/tienenie).
  • Dvojriadkový displej (LED) postupne zobrazuje, ktorý kolík konektora RJ-45 na konci kábla A je spojený s ktorým kolíkom na konci kábla B a je možné manuálne alebo automatické prepínanie; v prípade skratu sa súčasne rozsvietia viac ako dve LED diódy
  • Zariadenie má 2 zásuvky RJ-45; pomocou dodávanej súpravy Remote Kit je možné otestovať aj káble položené v stene

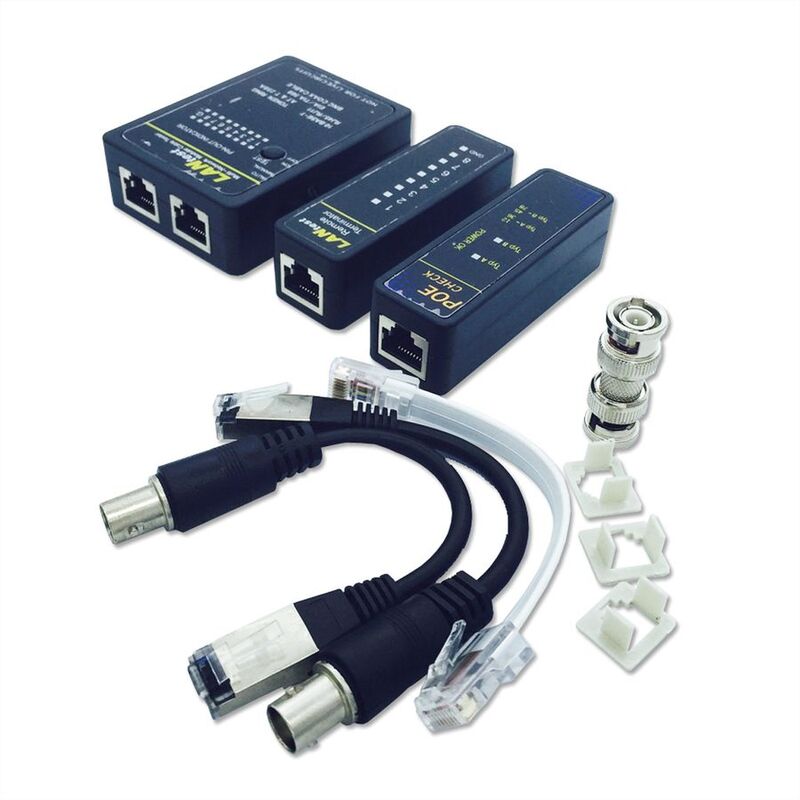

  • Na testovanie koaxiálnych káblov sa dodávajú dva adaptérové káble (BNC/RJ-45).

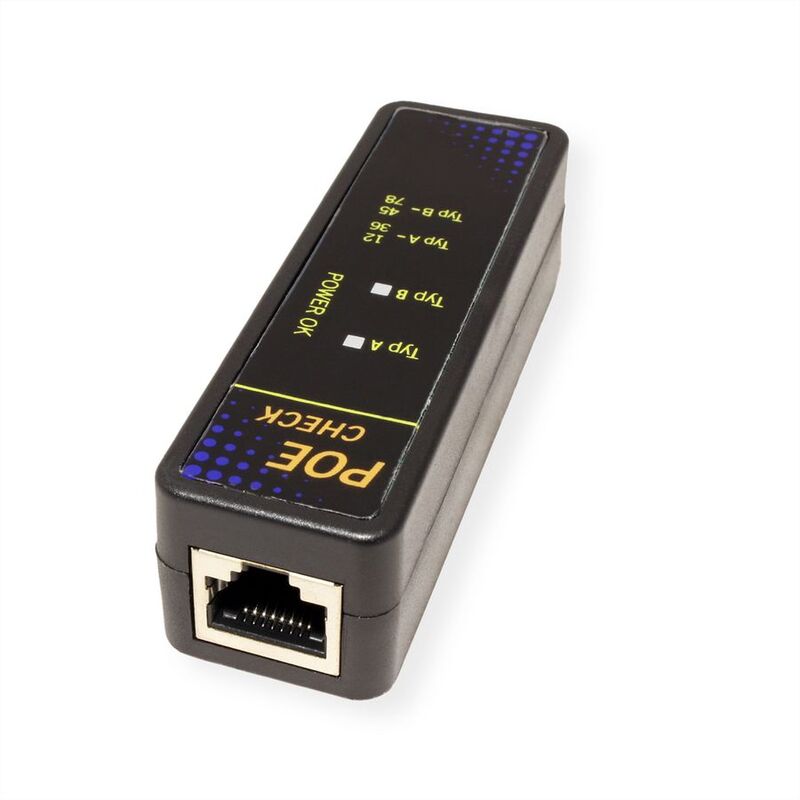

  • Kontrola PoE - PoE Finder umožňuje správcovi newtorku zistiť, či je sieťový kábel dodávaný cez PoE. Stačí zapojiť sieťový kábel, ktorý je potrebné otestovať. LED PoE vyhľadávača bude svietiť, ak je kábel napájaný.
  • Batéria (nie je súčasťou dodávky): 1x E-blok 9V (6LR61/AM-6)

Technické špecifikácie

Skupina produktov Tester
Typ produktu Tester káblov
Farba rôzne
Hmotnosť 175,8 g

  • Continuity testing of coax cables with BNC connectors and 8-pole data lines w. fitted RJ-45 connectors
  • The device recognises open and short-circuited (wire/wire or wire/shield) connections
  • A two-line display (LEDs) indicates sequentially which pin of the RJ-45 connector at cable end A is connected with which pin at cable end B and manual or automatic switch advancing is possible; in the case of a short-circuit more than two LEDs light up simultaneously
  • The device has 2 RJ-45 sockets; with the supplied Remote Kit cables laid in the wall can also be tested
  • Two adapter cables (BNC/RJ-45) are supplied for testing coax cables
  • PoE check - the PoE Finder allows the newtork administrator to find out if a network cable is supplied via PoE. Just plug in the network cable that has to be tested. The LED of the PoE finder will shine if the cable is supplied with power.
  • Battery (not included in delivery): 1x E-block 9V (6LR61/AM-6)

Technical specifications

Product groupTester
Product typeCable tester
Colourvarious
Weight175.8 g
Height of packaging (single piece)40 mm
Width of packaging (single piece)100 mm
Depth of packaging (single piece)200 mm
Package weight (single piece)0.2 kg
