- Automatic opening
- 22 watt USB A/C charger
- Anti-fingerprint coating
- Removable cover

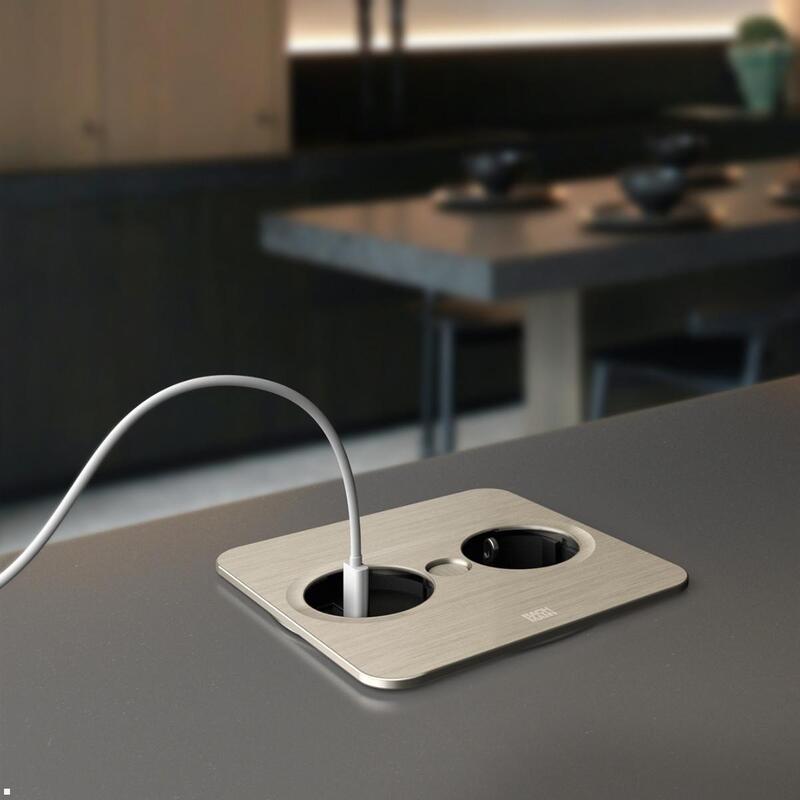

New designs and high-quality surfaces guarantee an elegant and compact design upgrade for kitchens, living rooms and offices. The new TWIST 2 can be opened automatically at the push of a button and is therefore even more convenient to operate. After use, the cover can be closed simply and safely by hand. The new anti-fingerprint coating ensures that no traces of the user or fingerprints are left behind.
New designs and high-quality surfaces guarantee an elegant and compact design upgrade for kitchens, living rooms and offices.
TWIST 2 is characterised by its refreshing, innovative design with high-quality surfaces. TWIST 2 is now also available as a square version and with a 22 watt USB A/C charger for fast end-device charging.
In addition, the new TWIST 2 also features a removable cover that makes cleaning even easier.

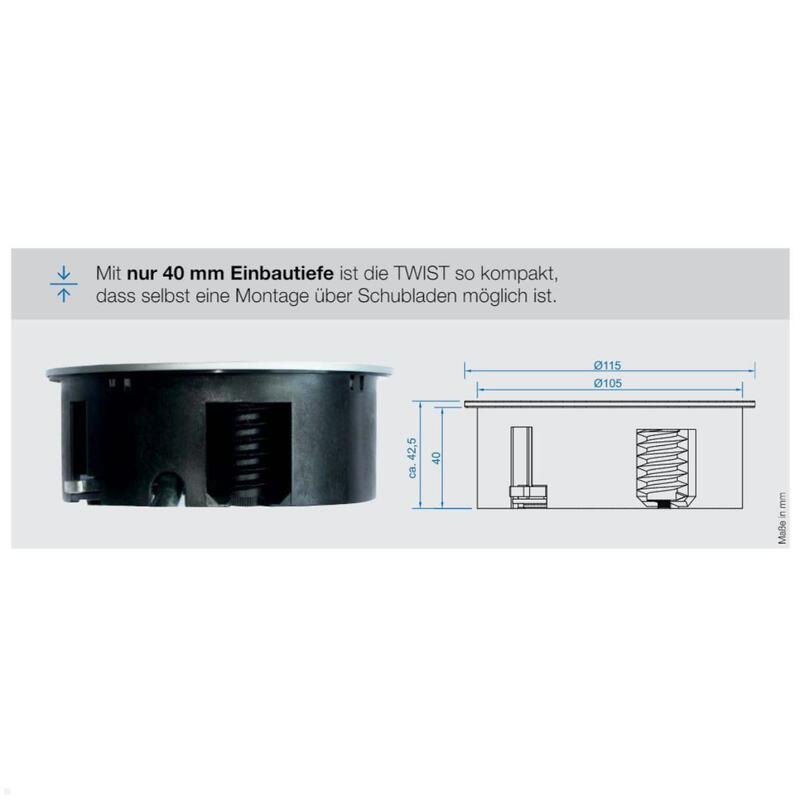

With its compact design and low mounting depth, TWIST 2 can be integrated into kitchen worktops or desks, saving space. The power cable is routed close to the housing and the mounting depth is only around 40 mm. This means that the unit can be installed above drawers without a problem.
TWIST 2 1xUTE 1xUSB A/C 22W 0,2m GST18 strieborný štvorcový
TWIST 2 Kovový kryt hranatý, strieborný, matný lakovaný 1x zásuvka UTE Francúzsko čierna so zvýšenou ochranou proti dotyku 1x USB A/C 22W Napájací kábel pre nabíjačku 0,2 m H05VV-F3G1,5 mm² čierny s GST18 zástrčkou čierny, zabalený v krabici
Verzia UTE - vhodná pre Francúzsko, Českú republiku, Slovensko
| Množstvo v krabici | 1 ks |
| farba | Strieborný |
| Farba | striebro |
| Pripojovací kábel | H05VV-F3G1,5 mm² |
| Obsahuje montážny materiál | + |
| Hĺbka | 0,12 m |
| Hĺbka balenia (jeden kus) | 190 mm |
| Formulár | eckign |
| Celková hmotnosť | 0,682 |
| Výška | 0,04 m |
| Výška balenia (jeden kus) | 110 mm |
| Inštalačný manuál | [pdf] |
| Pozemok | Francúzsko |
| Dĺžka | 0,2 m |
| Výrobca | BACHMANN |
| Výrobca/dovozca | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| kód_výrobcu | 946.015 |
| Počet zásuviek | 1 |
| Počet zásuviek | 1 zásuvka |
| Počet USB pripojení | 2 |
| Hmotnosť balenia (jeden kus) | 0,682 kg |
| Rozmery balenia (DxŠxV v mm) | 180 x 180 x 90 |
| Typ zástrčky | Wieland GST18 |
| Skupina produktov | Energetické tyčinky |
| Produktový list | [pdf] |
| Typ produktu | Integrovaná jednotka TWIST |
| Regionálne použitie | Francúzsko, Česká republika, Slovensko |
| RoHS / REACH | [pdf] |
| Rozsah dodávky | 1x TWIST2 vrátane 2 m kábla s koncovkami, 1x montážna zástrčka, 1x montážny nástroj, 1x montážna doska pre pracovné dosky od 6 do 24 mm |
| skrutkovací | Áno |
| Typ zásuvky | 3P. UTE, CEE 7/5, typ E |
| Technické kreslenie | [pdf] |
| USB nabíjačka | áno |
| USB nabíjačka | USB napájanie |
| Bezpečnostné pokyny/varovania | [pdf] |
| Záruka | 3 roky |
| Hmotnosť | 0,35 kg |
| Šírka | 0,12 m |
| Šírka balenia (jeden kus) | 190 mm |
- Automatic opening
- 22 watt USB A/C charger
- Anti-fingerprint coating
- Removable cover
New designs and high-quality surfaces guarantee an elegant and compact design upgrade for kitchens, living rooms and offices. The new TWIST 2 can be opened automatically at the push of a button and is therefore even more convenient to operate. After use, the cover can be closed simply and safely by hand. The new anti-fingerprint coating ensures that no traces of the user or fingerprints are left behind.
New designs and high-quality surfaces guarantee an elegant and compact design upgrade for kitchens, living rooms and offices.
TWIST 2 is characterised by its refreshing, innovative design with high-quality surfaces. TWIST 2 is now also available as a square version and with a 22 watt USB A/C charger for fast end-device charging.
In addition, the new TWIST 2 also features a removable cover that makes cleaning even easier.
With its compact design and low mounting depth, TWIST 2 can be integrated into kitchen worktops or desks, saving space. The power cable is routed close to the housing and the mounting depth is only around 40 mm. This means that the unit can be installed above drawers without a problem.

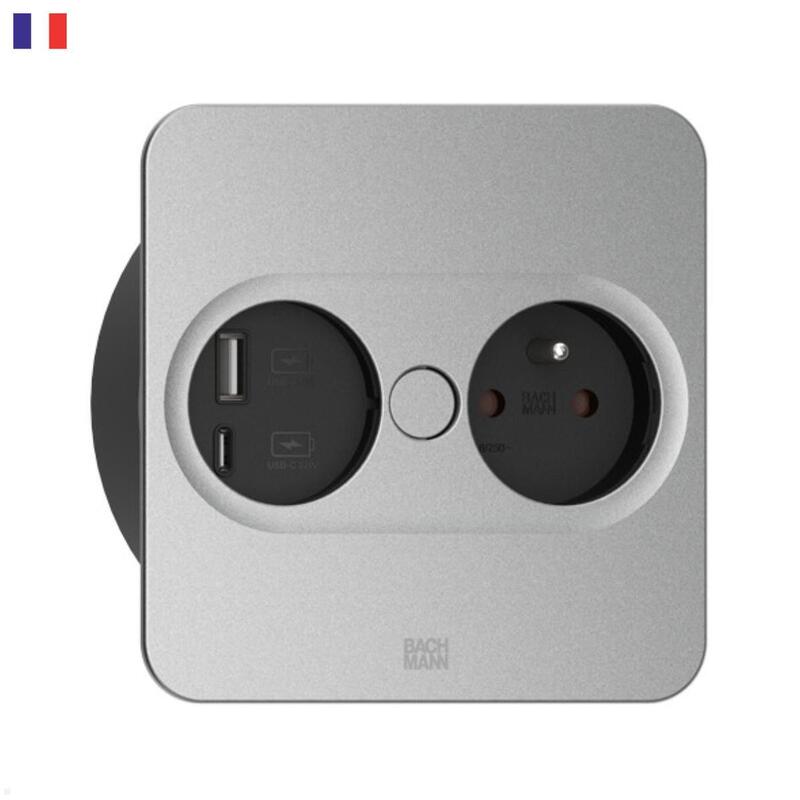

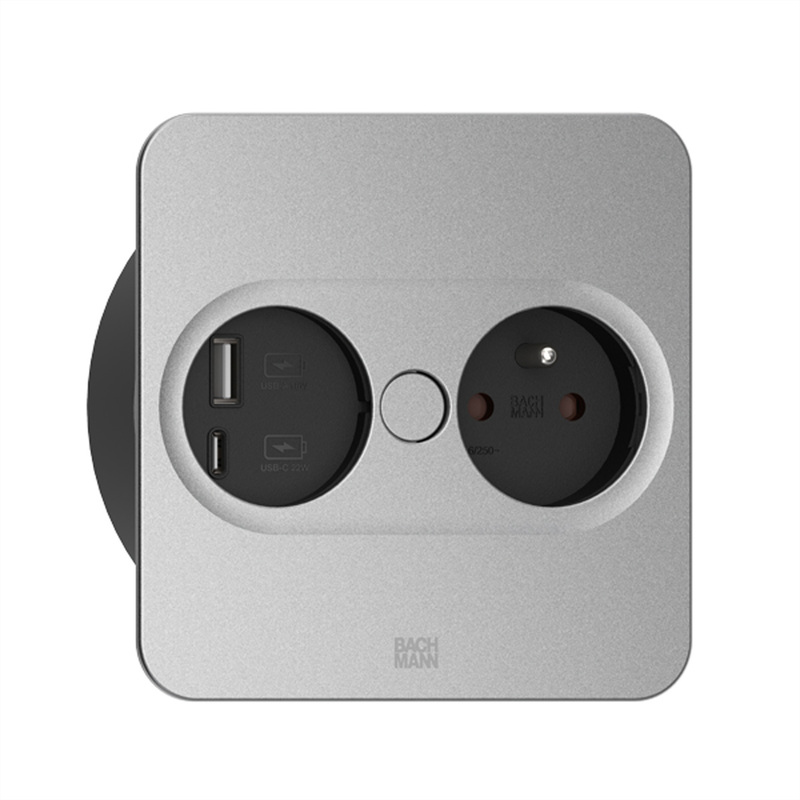

TWIST 2 1xUTE 1xUSB A/C 22W 0.2m GST18 silver square
TWIST 2 Metal cover plate angular silver matt lacquered 1xUTE socket outlet France black with enhanced touch protection 1xUSB A/C 22W Charger supply cable 0.2m H05VV-F3G1.5mm² black with GST18 plug black packed in a box
UTE Version - Suitable for France, Czech Republic, Slovakia
| BOX qty | 1 pcs |
| color | Silber |
| Colour | silver |
| Connection cable | H05VV-F3G1,5mm² |
| Contains installation material | + |
| Depth | 0.12 m |
| Depth of packaging (single piece) | 190 mm |
| Form | eckig |
| Gross weight | 0.682 |
| Height | 0.04 m |
| Height of packaging (single piece) | 110 mm |
| Installation manual | [pdf] |
| Land | France |
| Length | 0.2 m |
| Manufacturer | BACHMANN |
| Manufacturer/Importer | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| manufacturer_code | 946.015 |
| Number of socket pots | 1 |
| Number of sockets | 1 Outlet |
| Number of USB connections | 2 |
| Package weight (single piece) | 0.682 kg |
| Packaging dimensions (LxWxH in mm) | 180 x 180 x 90 |

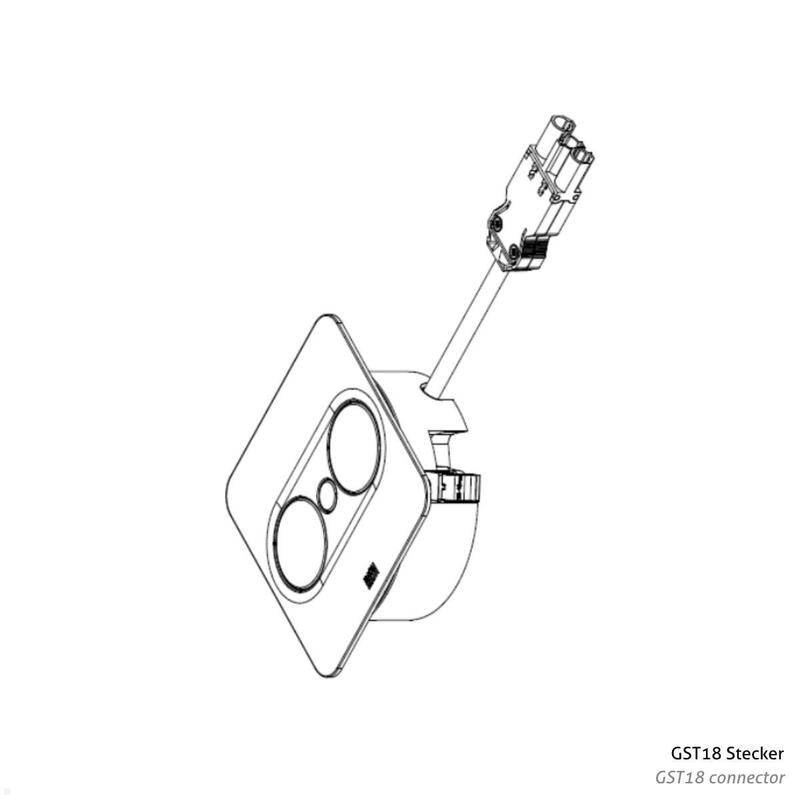

| Plug type | Wieland GST18 |
| Product group | Power Bars |
| Product sheet | [pdf] |
| Product type | Integrated unit TWIST |
| Regional use | France, Czech Republic, Slovakia |
| RoHS / REACH | [pdf] |
| Scope of delivery | 1x TWIST2 incl. 2m cable with ferrules, 1x assembly plug, 1x assembly tool, 1x mounting plate for worktops from 6-24mm |
| screw-on | Yes |
| Socket type | 3P. UTE, CEE 7/5, Type-E |

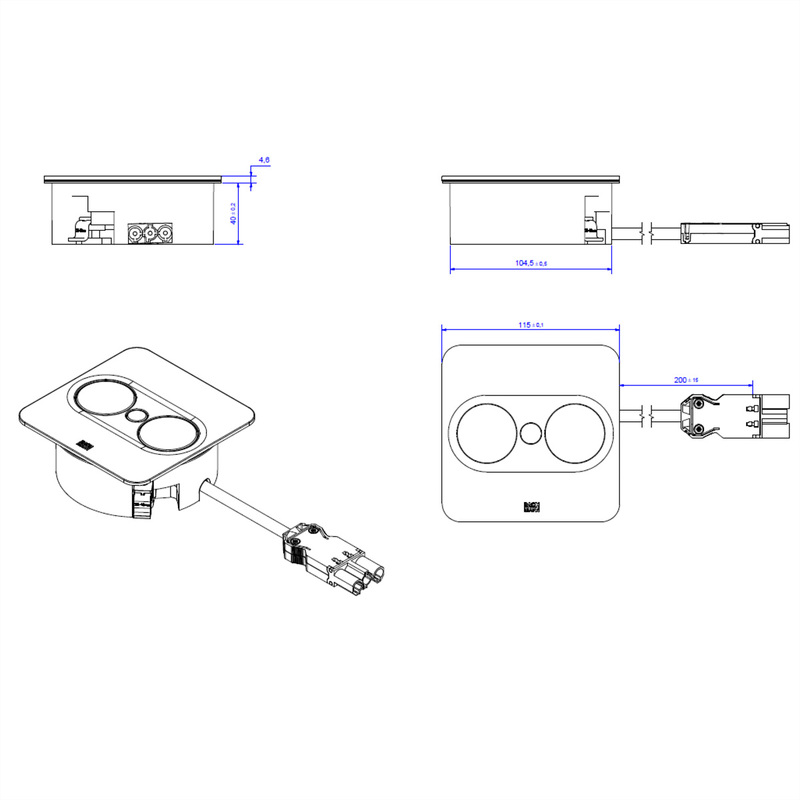

| Technical drawing | [pdf] |
| USB Charger | yes |
| USB-Charger | USB A/C |
| Warning/safety instructions | [pdf] |
| Warranty | 3 years |
| Weight | 0.35 kg |
| Width | 0.12 m |
| Width of packaging (single piece) | 190 mm |
