Ideálne za soklové lišty na položenie pod koberce alebo inú podlahu.
Technické špecifikácie
| AWG | 32/7 (uviaznutý) |
| Ochrana proti zalomeniu | obe strany |
| Typ kábla | plochý kábel |
| Špecifikácia | CAT 6 |
| šírka plášťa kábla | 6.6 |
| Materiál plášťa kábla | PVC |
| výška plášťa kábla | 1.8 |
| Materiál vnútorného vodiča | CU (meď) |
| Trieda tienenia | U/FTP |
| Počet tienenia | 1 x |
| Typ 1, tienenie | fólia (alu) PiMF |
| Kontaktovanie | EIA/TIA-568B |
| Ochrana západky | obe strany |
| Označenia | WEEE, CE |
| Jednotka spotreby | 1 ks. v polybagu |
| Prevádzková teplota až | 60 °C |
| Prevádzková teplota od | -20 °C |
| max. šírku pásma | 250 MHz |
| Dĺžka kábla | 0,5 m |
With the Goobay CAT cable, you can connect PCs, laptops, routers, switches, smart TVs, games consoles, NAS systems and many other devices quickly and reliably. The practical, reliable solution for home networks, working from home and professional work environments. Goobay patch cables are available in a wide range of categories, shielding options and lengths – for full flexibility in your network.

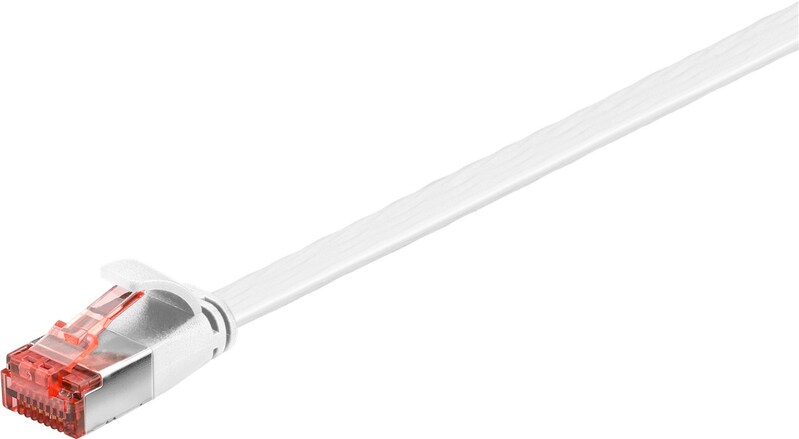

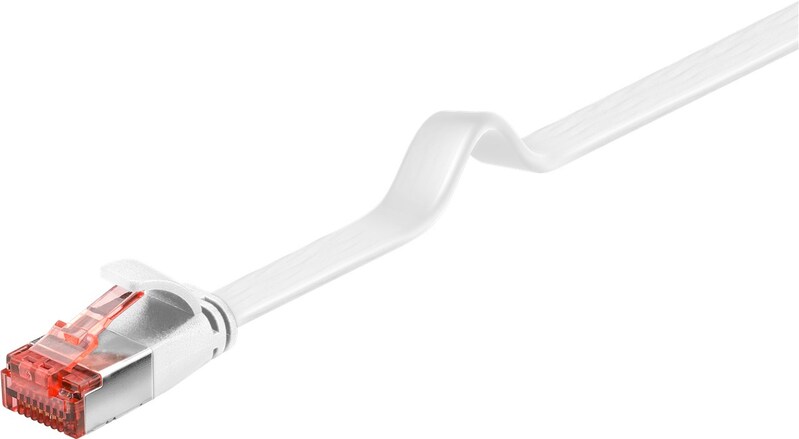

- Prewired, shielded LAN cable with 2x RJ45 plugs for connecting network components

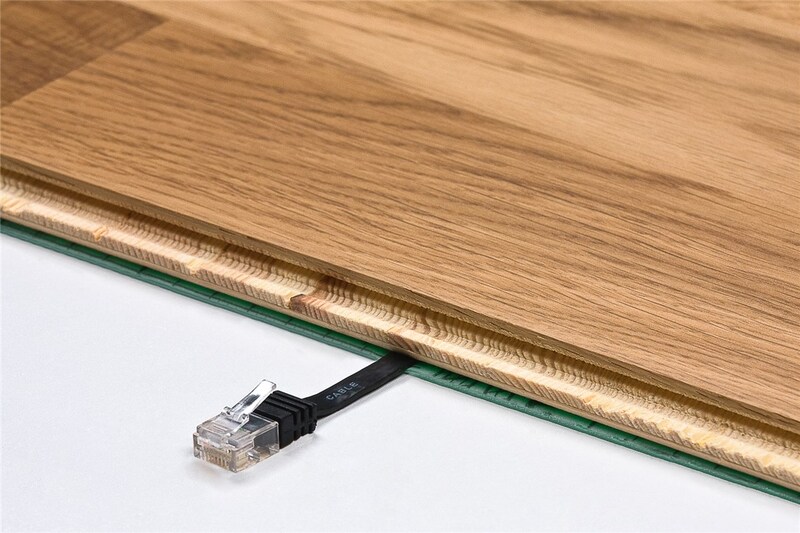

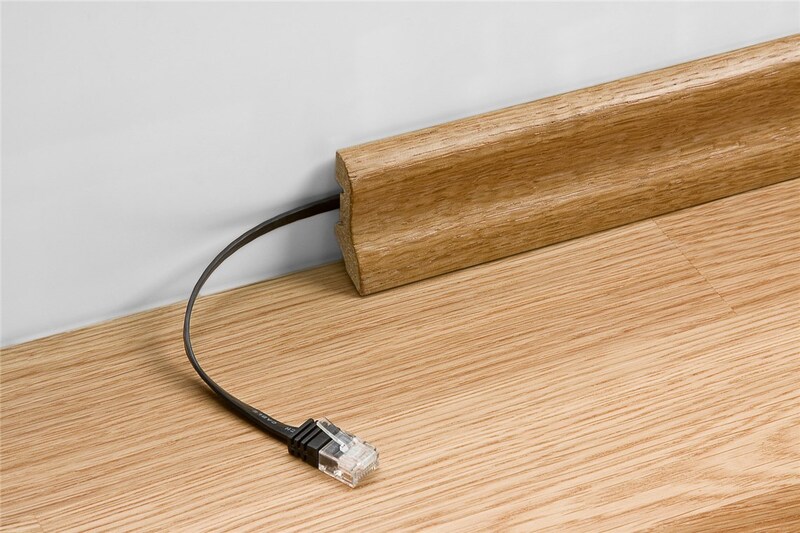

- Extremely flat Ethernet cable with low bending radius and high flexibility, ideal for space-saving installation under floors or skirting boards.
- Network flat cable with external dimensions of approx. 1.8 x 6.6 mm
- U/FTP shield: aluminium foil shield for individual wire pairs (PiMF)
- Short RJ45 connector with latch protection
- High-quality copper conductor (CU) and gold-plated contacts guarantee an excellent, powerful network connection.
- Bend protection and a sturdy PVC jacket effectively protect the network cable from breakage.
Technical specifications
| Latch protection | both sides |
| Connection, type | RJ45 male (8P8C) |
| Connection 2, type | RJ45 male (8P8C) |
| Kink protection | both sides |
| Cable type | flat cable |
| Inner conductor material | CU (copper) |
| Type 1, shielding | foil (alu) PiMF |
| Material cable sheath | PVC |
| Color version | white |
| Color | white |
| Consumption Unit | 1 pc. bulk |
| Packaging type | Cable Tag |
| Contacting | EIA/TIA-568 B |
| Cable length | 0.5 m |
| Specification | CAT 6 |
| Shielding class | U/FTP |
| AWG | 32/7 (stranded) |
| Number of shieldings | 1 x |
| bending radius > | 15 mm |
| height of cable sheath | 1.8 mm |
| width of cable sheath | 6.6 mm |
| max. transmission rate | 1 Gbit/s |
| max. bandwidth | 250 MHz |
| Markings | WEEE, CE |
| Operating temperature from | -20 °C |
| Operating temperature up to | 60 °C |
Kategória
cat. 6 / class E 250MHz / 1000 BASE-T
Tienenie
U/FTP
Dĺžka
0.5m
Farba
biela
Materiál vodiča
meď
Predlžovací
nie
Zapojenie
1:1 podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
nie
Vhodný do exteriéru
nie
Uhlový konektor/konektory
nie
Slim / Plochý
Plochý
Certifikovaný kábel
nie
Flexibilný
nie
Montáž na panel
nie
Ochrana západky konektora
áno
Typ vodiča
lanko
