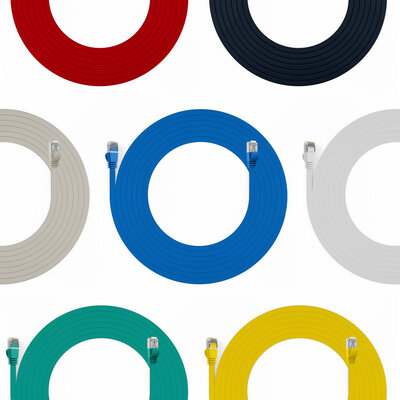

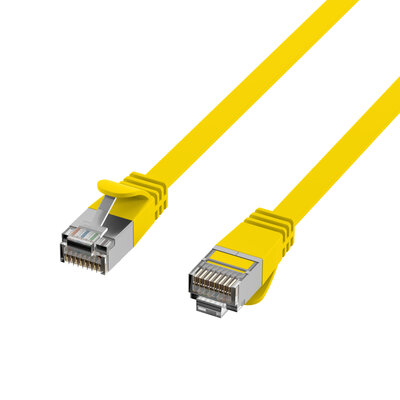

U/FTP (PiMF) Patchkábel 1.5m cat.6a, žltý, plochý, Cu
U/FTP (PiMF) Patchkábel 1.5m cat.6a, žltý, plochý, Cu
Informácie o produkte RJ45 Flat Patch Cord Cat.6A U/FTP PVC žltá Párom tienený plochý patch kábel.. celý popis
Informácie o produkte RJ45 Flat Patch Cord Cat.6A U/FTP PVC žltá

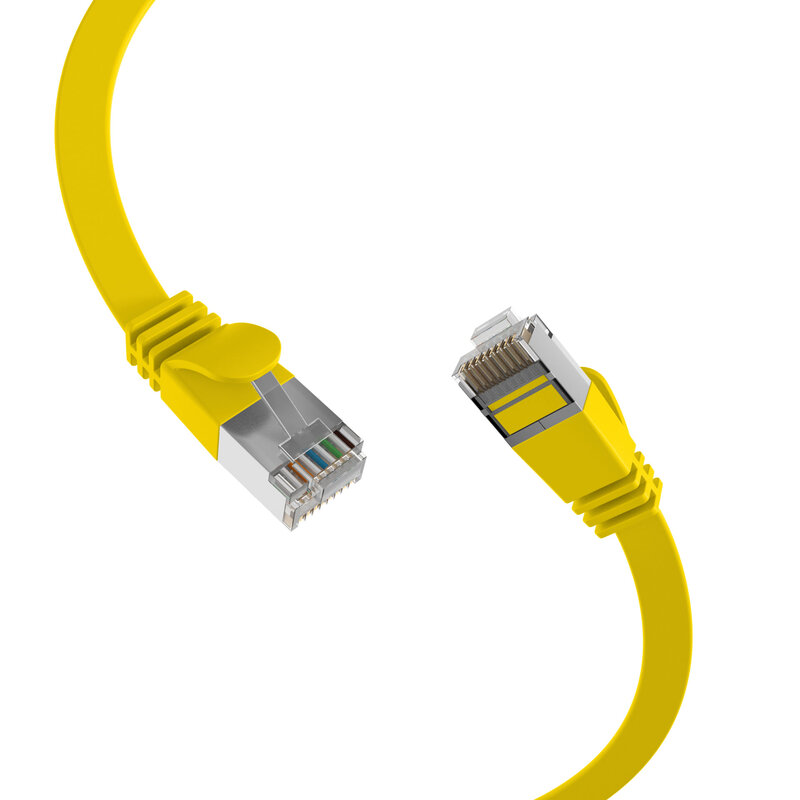

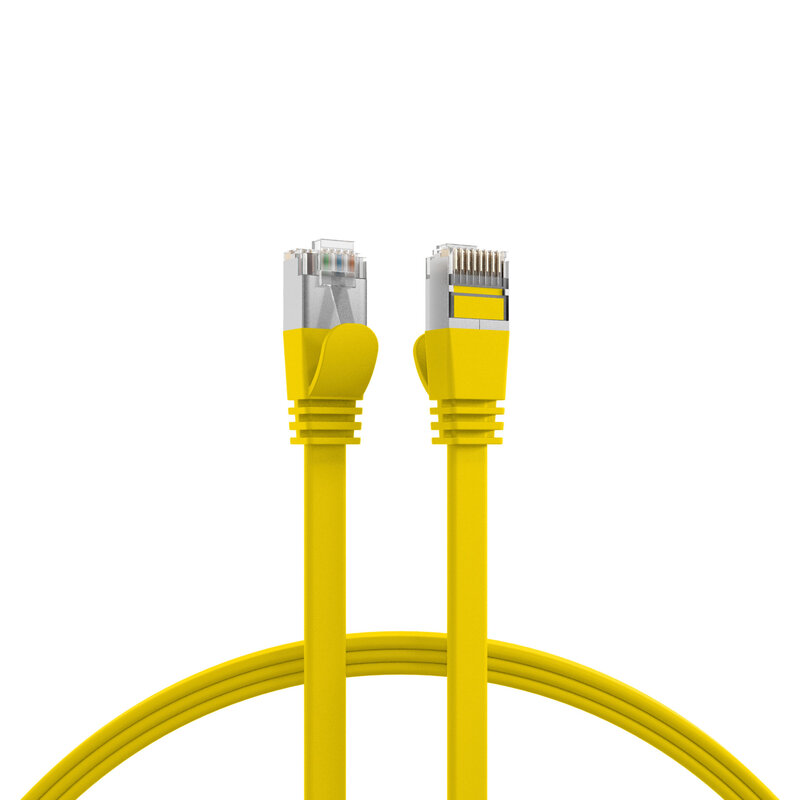

Párom tienený plochý patch kábel Cat.6A RJ45 zaisťuje vynikajúci výkon pre 10 Gigabit Ethernet aplikácie. Plochý patch kábel zaujme svojou plochou konštrukciou a je s výškou 2,2 mm ideálny na položenie napr. za rímsy alebo pod koberec . Liata priechodka zaujme svojim tenkým dizajnom a zjednoduší tak proces upchávania v stiesnených priestoroch.
Materiál plášťa: PVC
Prierez: 4 x 2 x AWG30 / 7
Priemer kábla: 7,0 x 2,2 mm
Typ zástrčky: krátka zástrčka
Materiál plášťa: PVC
Prierez: 4 x 2 x AWG30 / 7
Priemer kábla: 7,0 x 2,2 mm
Typ zástrčky: krátka zástrčka
Technické vlastnosti
| Veľkosť AWG: | 30/7 |
|---|---|
| Pridelenie: | príl. TIA/EIA 568B |
| Rukáv proti zalomeniu: | zapojený |
| Oblasť použitia: | Dátové centrum Priemyselný Ethernet Štruktúrovaná kabeláž |
| šírka pásma: | 500 MHz |
| Polomer ohybu: | > 20 mm |
| Konštrukcia kábla: | 4x2 |
| Typ kábla: | U/FTP |
| Kategória: | 6A (TIA) |
| Farba rukávu proti zalomeniu: | žltá |
| Farba vonkajšieho plášťa: | žltá |
| Vodivý štít: | Zvolený kontakt štítu |
| Materiál vodiča: | Meď |
| Odpor vodiča DC: | 376 ?/km |
| Konektor: | IEC 60603-7-51 |
| Typ konektora: | RJ45 krátka verzia |
| Kontakty: | Pozlátený |
| Súčasné hodnotenie: | max. 1 A |
| Verzia spomaľujúca horenie: | Nepravdivé |
| Bez halogénov: | Nepravdivé |
| Impedancia: | 100 ±15 ? |
| Izolačný odpor: | 100 M? |
| Uzamykacia páka: | Pravda |
| Odolnosť slučky: | 752 ?/km |
| Materiál vonkajšieho plášťa: | Polyvinylchlorid (PVC) |
| Párovacie cykly: | 2000 |
| Model: | Tienené |
| Hodnota NVP: | 76 % |
| Odolné voči olejom (podľa EN 60811-2-1): | Nepravdivé |
| Odolné voči olejom (podľa EN 60811-404): | Nepravdivé |
| Prevádzkové / temperovacie napätie: | max. 50 V DC |
| Vonkajší priemer kábla: | 7,0 x 2,2 mm |
| Trieda POE: | PoE+ podľa na IEEE802.3at PoE podľa na IEEE802.3af |
| Priradenie špendlíka: | 1:1 |
| Tlač: | SLIM PATCHCABLE U/FTP CAT.6A ***10GB*** www.efb-elektronik.de |
| Nerovnováha odporu: | < 4 % |
| Bez silikónu: | Pravda |
| Vhodné pre stupeň ochrany (IP): | IP20 |
| Teplotný rozsah: | -20 – 55 °C |
| Testovacie napätie: | 1000 V DC, 1 min |
| Typ pripojenia konektora 1: | RJ45 8(8) |
| Typ pripojenia konektora 2: | RJ45 8(8) |
This Cat.6A (TIA) network cable from the EFB-Elektronik brand transmits data up to 10Gbit. The U/FTP shielding reliably protects against interference and ensures good signal quality. Because it is a Cat.6A (TIA) data cable, it offers a frequency range of up to 500MHz, which provides high data transmission performance.
Ě Space-saving cabling Í the flat cable is designed for kink-free installation in confined spaces.
Ě Cover fire protection requirements in compliance with standards Í flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.
Ě Supply and connect end devices via one cable Í reduces cabling effort because data and power are transmitted via PoE+ according to IEEE802.3at on a single line. PoE+ according to IEEE802.3at can only be used up to certain cable lengths.
Product Description
This Ethernet cable offers improved interference resistance at the pair level (U/FTP) Í individually foil-shielded wire pairs reduce crosstalk, increase data security, and ensure stable high-speed transmission. It can be used in a temperature range of -20 Í 60 řC. The wide range of possible applications is supported by the bending radius of >20 mm. The Ethernet cable is IP20 rated. The polyvinyl chloride (PVC) jacket is a flexible standard jacket for network applications, without special fire protection properties.
Technical details
Ě Cat.6A (TIA)
Ě Connector: RJ45 8(8) to RJ45 8(8) with extra-short RJ45 connectors
Ě Shielding: U/FTP cable with 4x2 x AWG30/7
Ě Cable shape: flat
Ě Pin assignment: 1:1 according to TIA/EIA 568B
Ě Corresponds to PoE class: PoE according to IEEE802.3af and PoE+ according to IEEE802.3at
Ě Gold-plated contacts
Ě Sheath: Polyvinyl chloride (PVC) sheath material
Ě External dimensions of the cable: 7.0*2.2 mm
Ě With an injected anti-kink grommet
Ě Fire protection: flame-retardant according to IEC60332-1
Ě Degree of protection: IP20
Ě With a punctual screen contact
Ě With locking lever protection
Ě Mating cycles: =750
Ě Brand: EFB-Elektronik
Ě Space-saving cabling Í the flat cable is designed for kink-free installation in confined spaces.
Ě Cover fire protection requirements in compliance with standards Í flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.
Ě Supply and connect end devices via one cable Í reduces cabling effort because data and power are transmitted via PoE+ according to IEEE802.3at on a single line. PoE+ according to IEEE802.3at can only be used up to certain cable lengths.
Product Description
This Ethernet cable offers improved interference resistance at the pair level (U/FTP) Í individually foil-shielded wire pairs reduce crosstalk, increase data security, and ensure stable high-speed transmission. It can be used in a temperature range of -20 Í 60 řC. The wide range of possible applications is supported by the bending radius of >20 mm. The Ethernet cable is IP20 rated. The polyvinyl chloride (PVC) jacket is a flexible standard jacket for network applications, without special fire protection properties.
Technical details
Ě Cat.6A (TIA)
Ě Connector: RJ45 8(8) to RJ45 8(8) with extra-short RJ45 connectors
Ě Shielding: U/FTP cable with 4x2 x AWG30/7
Ě Cable shape: flat
Ě Pin assignment: 1:1 according to TIA/EIA 568B
Ě Corresponds to PoE class: PoE according to IEEE802.3af and PoE+ according to IEEE802.3at
Ě Gold-plated contacts
Ě Sheath: Polyvinyl chloride (PVC) sheath material
Ě External dimensions of the cable: 7.0*2.2 mm
Ě With an injected anti-kink grommet
Ě Fire protection: flame-retardant according to IEC60332-1
Ě Degree of protection: IP20
Ě With a punctual screen contact
Ě With locking lever protection
Ě Mating cycles: =750
Ě Brand: EFB-Elektronik
Parametre
Kategória
cat. 6a / class E 500MHz / 10G BASE-T
Tienenie
U/FTP
Dĺžka
1.5m
Farba
žltá
Materiál vodiča
meď
Predlžovací
nie
Zapojenie
1:1 podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
áno
Vhodný do exteriéru
nie
Uhlový konektor/konektory
nie
Slim / Plochý
Plochý
Certifikovaný kábel
nie
Flexibilný
nie
Montáž na panel
nie
Ochrana západky konektora
áno
Typ vodiča
lanko
