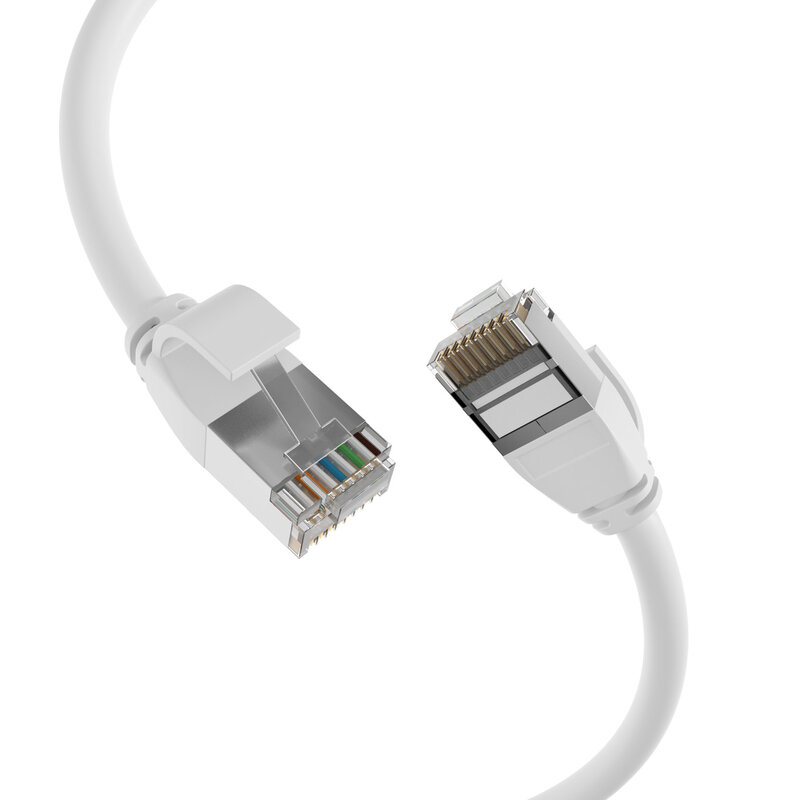

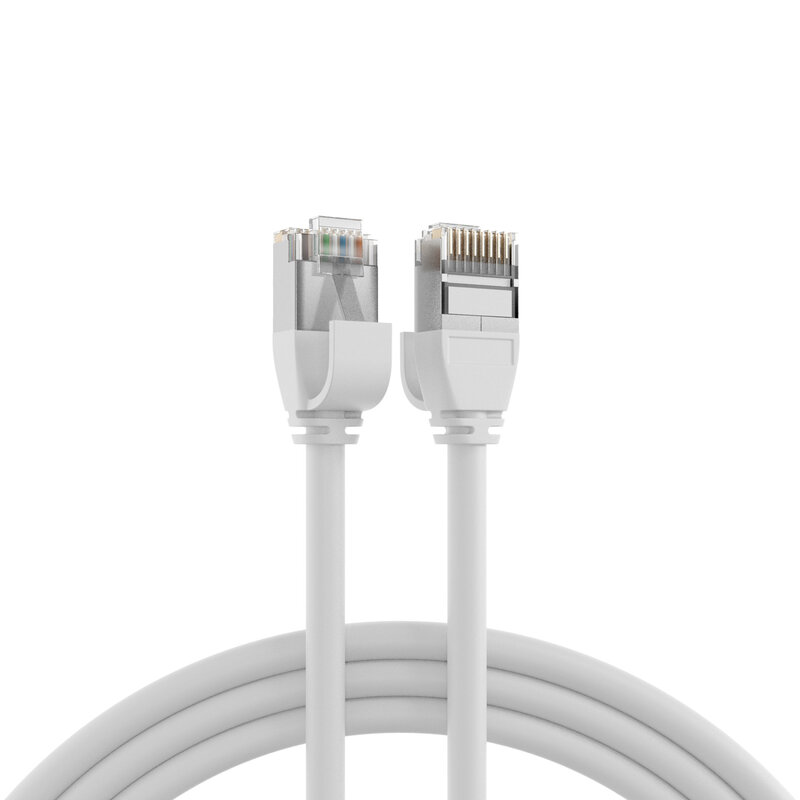

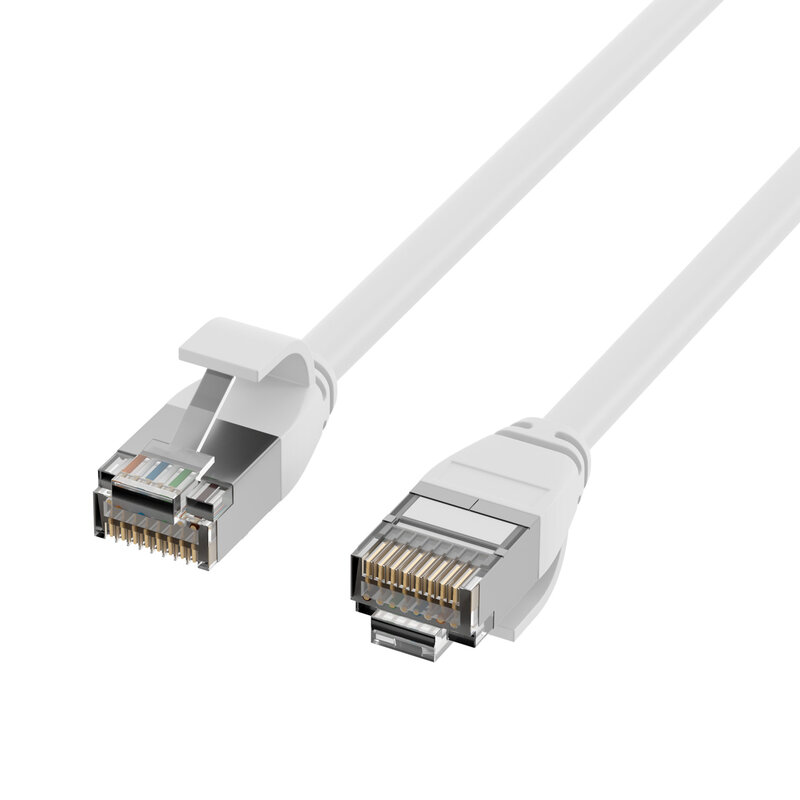

Informácie o produkte pre RJ45 Patch Cord Cat.6A U/FTP TPE4mm ultraflex white
Tienený patch kábel Cat.6A RJ45 zaisťuje vynikajúci výkon pre 10 Gigabit Ethernet aplikácie. Vonkajší plášť z TPE robí kábel vysoko flexibilným , a preto sa s ním ľahšie manipuluje. Lisovaná priechodka zaujme svojim tenkým dizajnom a zjednoduší proces zapájania v stiesnených podmienkach. Krátky konektor v kombinácii s tenkým vonkajším plášťom umožňuje veľmi vysokú hustotu balenia .
Prierez: 4 x 2 x AWG30/7
Priemer kábla: 4,0 mm
Štruktúra kábla: U/FTP
Prierez: 4 x 2 x AWG30/7
Priemer kábla: 4,0 mm
Štruktúra kábla: U/FTP
Technické vlastnosti
| Veľkosť AWG: | 30/7 |
|---|---|
| Pridelenie: | príl. TIA/EIA 568B |
| Rukáv proti zalomeniu: | zapojený |
| Oblasť použitia: | Dátové centrum Priemyselný Ethernet Štruktúrovaná kabeláž |
| šírka pásma: | 500 MHz |
| Polomer ohybu: | >16 mm |
| Konštrukcia kábla: | 4x2 |
| Typ kábla: | U/FTP |
| Kategória: | 6A (TIA) |
| Farba rukávu proti zalomeniu: | biely |
| Farba vonkajšieho plášťa: | biely |
| Vodivý štít: | Zvolený kontakt štítu |
| Materiál vodiča: | Meď |
| Odpor vodiča DC: | 376 ?/km |
| Konektor: | IEC 60603-7-51 |
| Typ konektora: | RJ45 krátka verzia |
| Kontaktný odpor: | < 20 m? |
| Kontakty: | Pozlátený |
| Súčasné hodnotenie: | max. 1 A |
| Verzia spomaľujúca horenie: | Pravda |
| Bez halogénov: | Pravda |
| Impedancia: | 100 ±15 ? |
| Izolačný odpor: | 100 M? |
| Uzamykacia páka: | Pravda |
| Odolnosť slučky: | 752 ?/km |
| Nízka dymivosť: | Pravda |
| Materiál vonkajšieho plášťa: | TPE/LSZH |
| Párovacie cykly: | 2000 |
| Model: | Tienené |
| Hodnota NVP: | 76 % |
| Odolné voči olejom (podľa EN 60811-2-1): | Nepravdivé |
| Odolné voči olejom (podľa EN 60811-404): | Nepravdivé |
| Prevádzkové / temperovacie napätie: | max. 50 V DC |
| Vonkajší priemer kábla: | 4,0 mm |
| Trieda POE: | PoE+ podľa na IEEE802.3at PoE podľa na IEEE802.3af |
| Priradenie pinu: | 1:1 |
| Tlač: | Patchcord Cat.6A ULTRAFLEX U/FTP TPE 10G www.efb-elektronik.de |
| Nerovnováha odporu: | < 4 % |
| Bez silikónu: | Pravda |
| Vhodné pre stupeň ochrany (IP): | IP20 |
| Teplotný rozsah: | -20 – 75 °C |
| Testovacie napätie: | 1000 V DC, 1 min |
| Typ pripojenia konektora 1: | RJ45 8(8) |
| Typ pripojenia konektora 2: | RJ45 8(8) |
The Cat.6A (TIA) patch cable from EFB-Elektronik supports data transmissions up to 10Gbit. U/FTP shielding reliably protects against interference and ensures good signal quality. Because it is a Cat.6A (TIA) LAN cable, it supports a frequency range of up to 500MHz, which provides high data transmission performance.
• Slim cable the extra-thin cable construction with an outer diameter of 4.0 mm makes the network cable particularly suitable for areas with limited space or hard-to-reach areas.
• Cover fire protection requirements in compliance with standards flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.
• Power and connect end devices via one cable reduces cabling effort because data and power are transmitted via PoE+ to IEEE802.3at on one line (fewer power adapters/sockets, faster installation).
Product Description
This data cable offers improved interference resistance at the pair level (U/FTP) individually foil-shielded wire pairs reduce crosstalk, increase data security, and ensure stable high-speed transmission. The temperature range of the cable is -20 75 °C. The wide range of possible applications is supported by the bending radius of >16 mm. The network cable has an IP20 rating. The TPE/LSZH jacket is flexible, halogen-free and low-smoke, making it ideal for safe and professional patch and server cabinet installations.
Technical details
• Cat.6A (TIA)
• Connector: RJ45 8(8) to RJ45 8(8) with extra-short RJ45 connectors
• Shielding: U/FTP cable with 4x2 x AWG30/7
• Cable shape: slim
• Pin assignment: 1:1 according to TIA/EIA 568B
• Corresponds to PoE class: PoE according to IEEE802.3af and PoE+ according to IEEE802.3at
• Gold-plated contacts
• Sheath: TPE/LSZH sheath material
• Outer diameter: 4.0 mm
• With an injected anti-kink grommet
• Fire protection: flame-retardant according to IEC60332-1, low-smoke according to IEC61034, halogen-free according to IEC60754-2
• Degree of protection: IP20
• With a punctual screen contact
• With locking lever protection
• Mating cycles: =750
• Brand: EFB-Elektronik
• Slim cable the extra-thin cable construction with an outer diameter of 4.0 mm makes the network cable particularly suitable for areas with limited space or hard-to-reach areas.
• Cover fire protection requirements in compliance with standards flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.
• Power and connect end devices via one cable reduces cabling effort because data and power are transmitted via PoE+ to IEEE802.3at on one line (fewer power adapters/sockets, faster installation).
Product Description
This data cable offers improved interference resistance at the pair level (U/FTP) individually foil-shielded wire pairs reduce crosstalk, increase data security, and ensure stable high-speed transmission. The temperature range of the cable is -20 75 °C. The wide range of possible applications is supported by the bending radius of >16 mm. The network cable has an IP20 rating. The TPE/LSZH jacket is flexible, halogen-free and low-smoke, making it ideal for safe and professional patch and server cabinet installations.
Technical details
• Cat.6A (TIA)
• Connector: RJ45 8(8) to RJ45 8(8) with extra-short RJ45 connectors
• Shielding: U/FTP cable with 4x2 x AWG30/7
• Cable shape: slim
• Pin assignment: 1:1 according to TIA/EIA 568B
• Corresponds to PoE class: PoE according to IEEE802.3af and PoE+ according to IEEE802.3at
• Gold-plated contacts
• Sheath: TPE/LSZH sheath material
• Outer diameter: 4.0 mm
• With an injected anti-kink grommet
• Fire protection: flame-retardant according to IEC60332-1, low-smoke according to IEC61034, halogen-free according to IEC60754-2
• Degree of protection: IP20
• With a punctual screen contact
• With locking lever protection
• Mating cycles: =750
• Brand: EFB-Elektronik
Kategória
cat. 6a / class E 500MHz / 10G BASE-T
Tienenie
U/FTP
Dĺžka
0.25m
Farba
biela
Materiál vodiča
meď
Predlžovací
nie
Zapojenie
1:1 podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
áno
Vhodný do exteriéru
nie
Uhlový konektor/konektory
nie
Slim / Plochý
Nie
Certifikovaný kábel
nie
Flexibilný
UltraFlex
Montáž na panel
nie
Ochrana západky konektora
áno
Typ vodiča
lanko
