- netienený prekrížený LAN/sieťový kábel na pripojenie sieťových komponentov s 2 x RJ45 konektormi
- s indikáciou dĺžky na štíhlom odľahčení ťahu
- Ochrana západky: Konštrukcia konektora RJ45 „bez zachytenia“ na ochranu západky RJ45 pred zlomením alebo zaseknutím
- croos-wired pair-sequence acc. podľa EIA/TIA 568A/B
- Vhodná gigabitová (10/100/1000 Mbit) sieť
Technické špecifikácie
| AWG | 28/7 (uviaznutý) |
| Ochrana proti zalomeniu | obe strany |
| Typ kábla | okrúhly kábel |
| Špecifikácia | CAT 5e |
| Priemer plášťa kábla (približne) | 4,5 mm |
| Materiál plášťa kábla | PVC |
| Materiál vnútorného vodiča | CCA (hliník potiahnutý meďou) |
| Trieda tienenia | U/UTP |
| Pripojenie, tienenie | č |
| Ochrana západky | obe strany |
| Označenia | WEEE, CE |
| Farba | šedá, zelená |
| Prevádzková teplota až | 60 °C |
| Prevádzková teplota od | -20 °C |
| max. šírku pásma | 100 MHz |
| Dĺžka kábla | 1 m |
| Jednotka spotreby | 1 ks. v polybagu |
| Typ pripojenia | RJ45 samec (8P8C) |
| Pripojenie 2, typ | RJ45 samec (8P8C) |
| Farebné prevedenie | sivozelená |
With the Goobay CAT cable, you can connect PCs, laptops, routers, switches, smart TVs, games consoles, NAS systems and many other devices quickly and reliably. The practical, reliable solution for home networks, working from home and professional work environments. Goobay patch cables are available in a wide range of categories, shielding options and lengths – for full flexibility in your network.

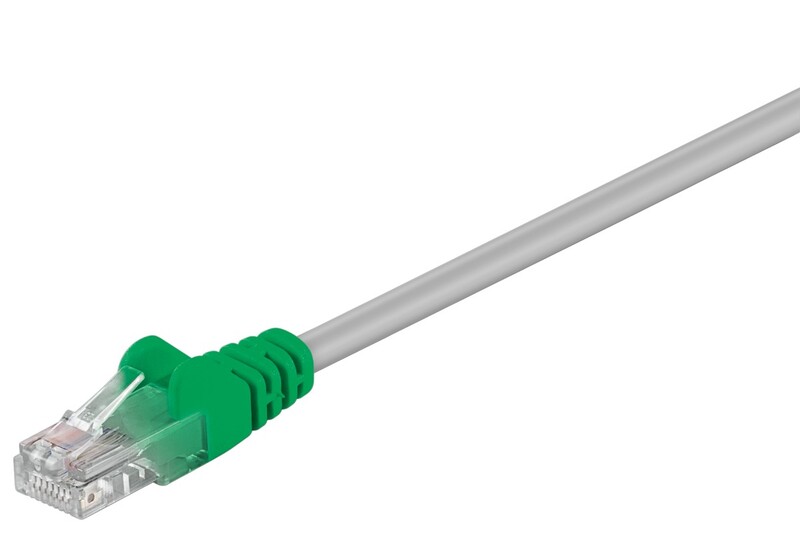

- Prewired, unshielded crossover cable with 2x RJ45 plugs for connecting network components
- High-quality copper-clad aluminium wire (CCA) and gold-plated contacts guarantee an excellent, powerful network connection.
- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Bend protection and a sturdy PVC jacket effectively protect the Ethernet cable from breakage.
- Length of the network cable indicated on the overmoulded slimline strain relief.
- Network connector: cross-wired, pair sequence according to EIA/TIA 568A/B
- CAT 5e LAN cable is suitable for Gigabit Ethernet with speeds of up to 10/100/1000 Mbit/s.
Technical specifications
| Connection, shielding | no |
| Connection, type | RJ45 male (8P8C) |
| Latch protection | both sides |
| Connection 2, type | RJ45 male (8P8C) |
| Cable type | round cable |
| Inner conductor material | CCA (copper-clad aluminium) |
| Material cable sheath | PVC |
| Kink protection | both sides |
| Color | grey, Green |
| Special feature | Length indication on connector |
| Consumption Unit | 1 pc. bulk |
| Packaging type | Cable Tag |
| Specification | CAT 5e |
| Cable length | 1 m |
| AWG | 28/7 (stranded) |
| bending radius > | 36.8 mm |
| Cable sheath diameter (approx.) | 4.5 mm |
| Shielding class | U/UTP |
| max. transmission rate | 1 Gbit/s |
| max. bandwidth | 100 MHz |
| Markings | WEEE, CE |
| Operating temperature from | -20 °C |
| Operating temperature up to | 60 °C |
Kategória
cat. 5e / class D 100MHz / 1000 BASE-T
Tienenie
U/UTP
Dĺžka
1m
Farba
sivá
Materiál vodiča
CCA (Copper Clad Aluminum) - pomedený hliník
Predlžovací
nie
Zapojenie
crossover podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
nie
Vhodný do exteriéru
nie
Uhlový konektor/konektory
nie
Slim / Plochý
Nie
Certifikovaný kábel
nie
Flexibilný
nie
Montáž na panel
nie
Ochrana západky konektora
áno
Typ vodiča
lanko
