Technické špecifikácie
| AWG | 26/7 (uviaznutý) |
| Ochrana proti zalomeniu | obe strany |
| Typ kábla | okrúhly kábel |
| Špecifikácia | CAT 5e |
| Priemer plášťa kábla (približne) | 4,9 mm |
| Materiál plášťa kábla | PVC |
| Materiál vnútorného vodiča | CCA (hliník potiahnutý meďou) |
| Trieda tienenia | U/UTP |
| Pripojenie, tienenie | č |
| Kontaktovanie | EIA/TIA-568B |
| Ochrana západky | jednostranne |
| Označenia | WEEE, CE |
| Farba | biely |
| Jednotka spotreby | 1 ks. v polybagu |
| Prevádzková teplota až | 60 °C |
| Prevádzková teplota od | -20 °C |
| max. šírku pásma | 100 MHz |
| Dĺžka kábla | 2 m |
With the Goobay CAT cable, you can connect PCs, laptops, routers, switches, smart TVs, games consoles, NAS systems and many other devices quickly and reliably. The practical, reliable solution for home networks, working from home and professional work environments. Goobay patch cables are available in a wide range of categories, shielding options and lengths – for full flexibility in your network.

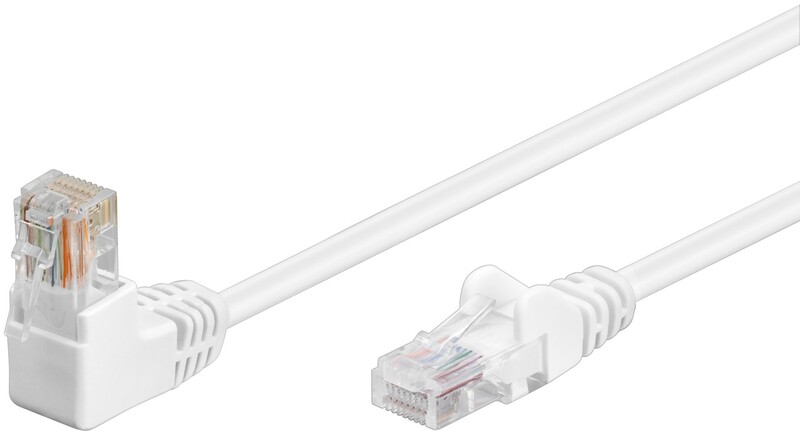

- Prewired, unshielded LAN cable with 2x RJ45 plugs for connecting network components

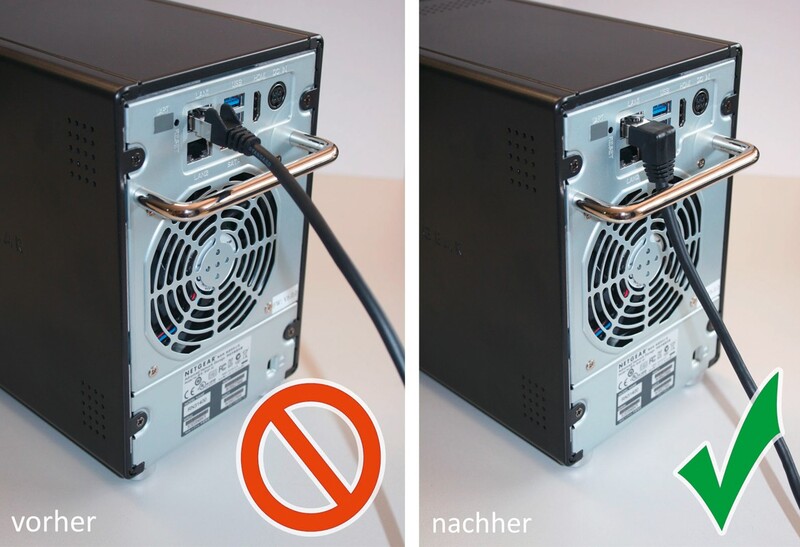

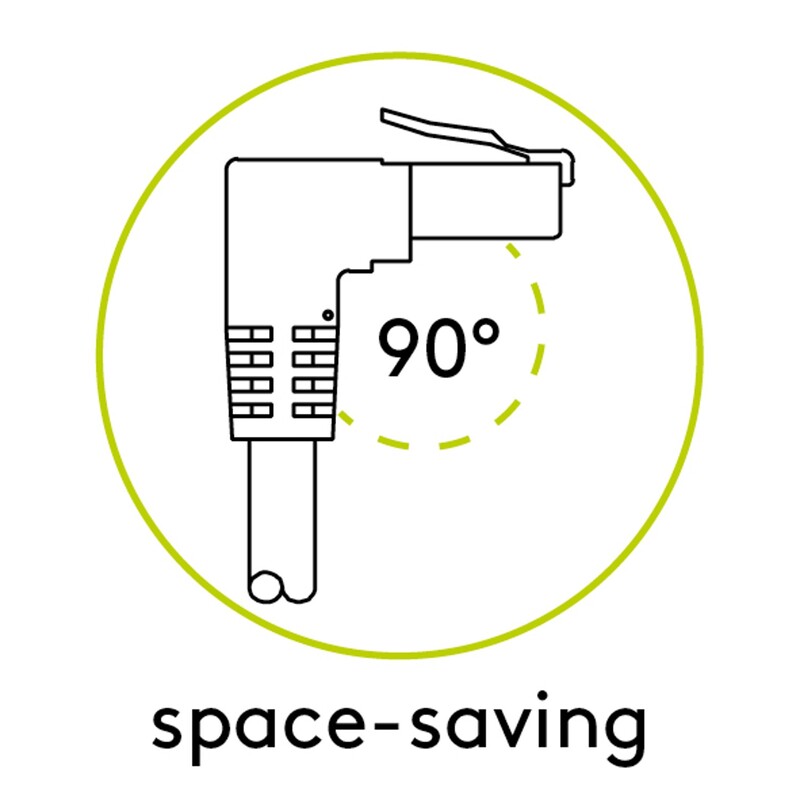

- The 90° right angle RJ45 connector is an ideal solution for confined spaces.
- Latch protection on the straight RJ45 plug prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Copper-clad aluminium (CCA) conductors ensure easy, flexible installation and are ideal for home and office networks
- Bend protection and a sturdy PVC jacket effectively protect the network cable from breakage.
- Length of the Ethernet cable indicated on the overmoulded slimline strain relief on the straight connector.
- CAT 5e internet cable is suitable for Gigabit Ethernet with speeds of up to 10/100/1000 Mbit/s
Technical specifications
| Connection, shielding | no |
| Connection, type | RJ45 male 90° (8P8C) |
| Latch protection | unilaterally |
| Connection 2, type | RJ45 male (8P8C) |
| Cable type | round cable |
| Inner conductor material | CCA (copper-clad aluminium) |
| Material cable sheath | PVC |
| Kink protection | both sides |
| Color | white |
| Special feature | Length indication on connector |
| Consumption Unit | 1 pc. bulk |
| Packaging type | Cable Tag |
| Contacting | EIA/TIA-568 B |
| Specification | CAT 5e |
| Cable length | 2 m |
| AWG | 26/7 (stranded) |
| bending radius > | 50 mm |
| Cable sheath diameter (approx.) | 4.6 mm |
| max. bandwidth | 100 MHz |
| Shielding class | U/UTP |
| max. transmission rate | 1 Gbit/s |
| Markings | WEEE, CE |
| Operating temperature from | -20 °C |
| Operating temperature up to | 60 °C |
Kategória
cat. 5e / class D 100MHz / 1000 BASE-T
Tienenie
U/UTP
Dĺžka
2m
Farba
biela
Materiál vodiča
CCA (Copper Clad Aluminum) - pomedený hliník
Predlžovací
nie
Zapojenie
1:1 podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
nie
Vhodný do exteriéru
nie
Uhlový konektor/konektory
Uhlový konektor (1x90°)
Slim / Plochý
Nie
Certifikovaný kábel
nie
Flexibilný
nie
Montáž na panel
nie
Ochrana západky konektora
áno
Typ vodiča
lanko
