- netienený LAN/sieťový kábel na pripojenie sieťových komponentov s 2 x RJ45 konektormi
- s indikáciou dĺžky na štíhlom odľahčení ťahu
- Ochrana západky: Konštrukcia konektora RJ45 „bez zachytenia“ na ochranu západky RJ45 pred zlomením alebo zaseknutím
- párová sekvencia príp. podľa EIA/TIA 568B
- vhodné pre gigabitové (10/100/1000 Mbit) siete
Technické špecifikácie
| AWG | 28/7 (uviaznutý) |
| Špecifikácia | CAT 5e |
| Priemer plášťa kábla (približne) | 4,5 mm |
| Trieda tienenia | U/UTP |
| Kontaktovanie | EIA/TIA-568B |
| Prevádzková teplota až | 60 °C |
| Prevádzková teplota od | -20 °C |
| max. šírku pásma | 100 MHz |
| Dĺžka kábla | 2 m |
| Označenia | WEEE, CE |
| Jednotka spotreby | 1 ks. v polybagu |
| Ochrana proti zalomeniu | obe strany |
| Typ kábla | okrúhly kábel |
| Materiál plášťa kábla | PVC |
| Materiál vnútorného vodiča | CCA (hliník potiahnutý meďou) |
| Pripojenie, tienenie | č |
| Typ pripojenia | RJ45 samec (8P8C) |
| Pripojenie 2, typ | RJ45 samec (8P8C) |
| Ochrana západky | obe strany |
| Farba | sivá |
| Farebné prevedenie | sivá |
With the Goobay CAT cable, you can connect PCs, laptops, routers, switches, smart TVs, games consoles, NAS systems and many other devices quickly and reliably. The practical, reliable solution for home networks, working from home and professional work environments. Goobay patch cables are available in a wide range of categories, shielding options and lengths – for full flexibility in your network.

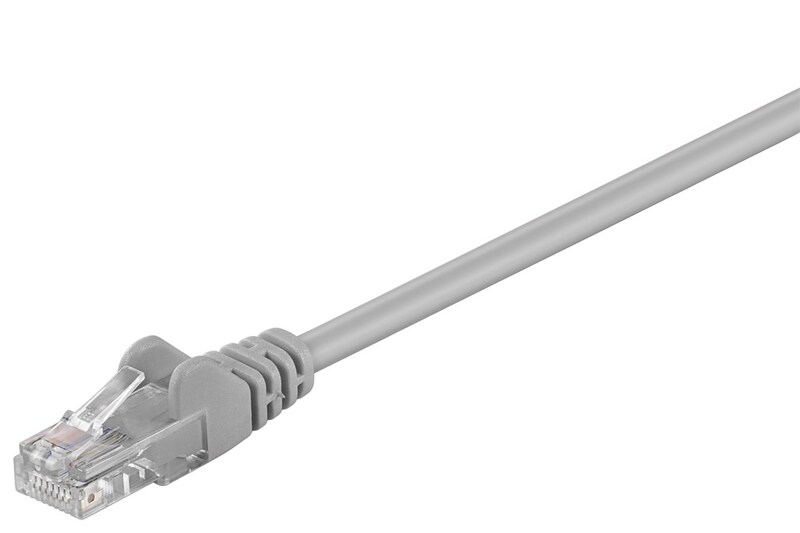

- Prewired, unshielded LAN cable with 2x RJ45 plugs for connecting network components
- Gold-plated contact surfaces and copper-clad aluminium (CCA) conductors prevent corrosion and ensure clear signal quality without interference
- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Bend protection and a sturdy PVC jacket effectively protect the Ethernet cable from breakage.
- Length of the network cable indicated on the overmoulded slimline strain relief.
- Network connector: pair sequence according to EIA/TIA 568B
- CAT 5e network cable suitable for Gigabit Ethernet with speeds of up to 10/100/1000 Mbit/s
Technical specifications
| Connection, shielding | no |
| Connection, type | RJ45 male (8P8C) |
| Latch protection | both sides |
| Connection 2, type | RJ45 male (8P8C) |
| Cable type | round cable |
| Inner conductor material | CCA (copper-clad aluminium) |
| Material cable sheath | PVC |
| Kink protection | both sides |
| Color | grey |
| Special feature | Length indication on connector |
| Consumption Unit | 1 pc. bulk |
| Packaging type | Cable Tag |
| Contacting | EIA/TIA-568 B |
| Specification | CAT 5e |
| Cable length | 2 m |
| AWG | 27/7 (stranded) |
| bending radius > | 36.8 mm |
| Cable sheath diameter (approx.) | 4.5 mm |
| max. bandwidth | 100 MHz |
| Shielding class | U/UTP |
| max. transmission rate | 1 Gbit/s |
| Markings | WEEE, CE |
| Operating temperature from | -20 °C |
| Operating temperature up to | 60 °C |
Kategória
cat. 5e / class D 100MHz / 1000 BASE-T
Tienenie
U/UTP
Dĺžka
2m
Farba
sivá
Materiál vodiča
CCA (Copper Clad Aluminum) - pomedený hliník
Predlžovací
nie
Zapojenie
1:1 podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
nie
Vhodný do exteriéru
nie
Uhlový konektor/konektory
nie
Slim / Plochý
Nie
Certifikovaný kábel
nie
Flexibilný
nie
Montáž na panel
nie
Ochrana západky konektora
áno
Typ vodiča
lanko
