UTP Patchkábel 5m cat.5e, čierny, CCA, zahnutý (1x90°)
UTP Patchkábel 5m cat.5e, čierny, CCA, zahnutý (1x90°)
Technické špecifikácie AWG.. celý popis
Technické špecifikácie
| AWG | 26/7 (uviaznutý) |
| Špecifikácia | CAT 5e |
| Priemer plášťa kábla (približne) | 4,9 mm |
| Trieda tienenia | U/UTP |
| Kontaktovanie | EIA/TIA-568B |
| Označenia | WEEE, CE |
| Prevádzková teplota až | 60 °C |
| Prevádzková teplota od | -20 °C |
| max. šírku pásma | 100 MHz |
| Dĺžka kábla | 5 m |
| Farebné prevedenie | čierna |
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!

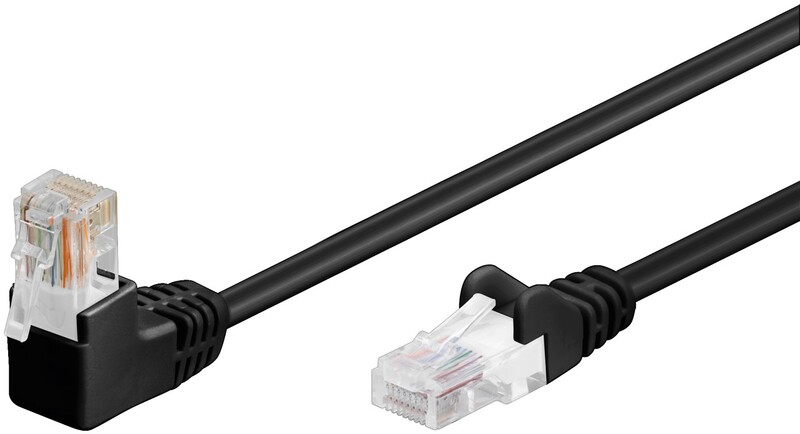

- Prewired, unshielded LAN cable with 2x RJ45 plugs for connecting network components

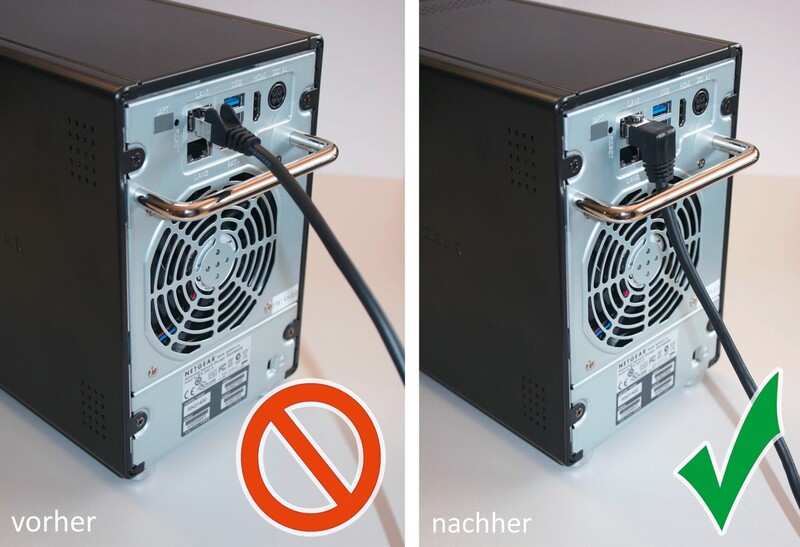

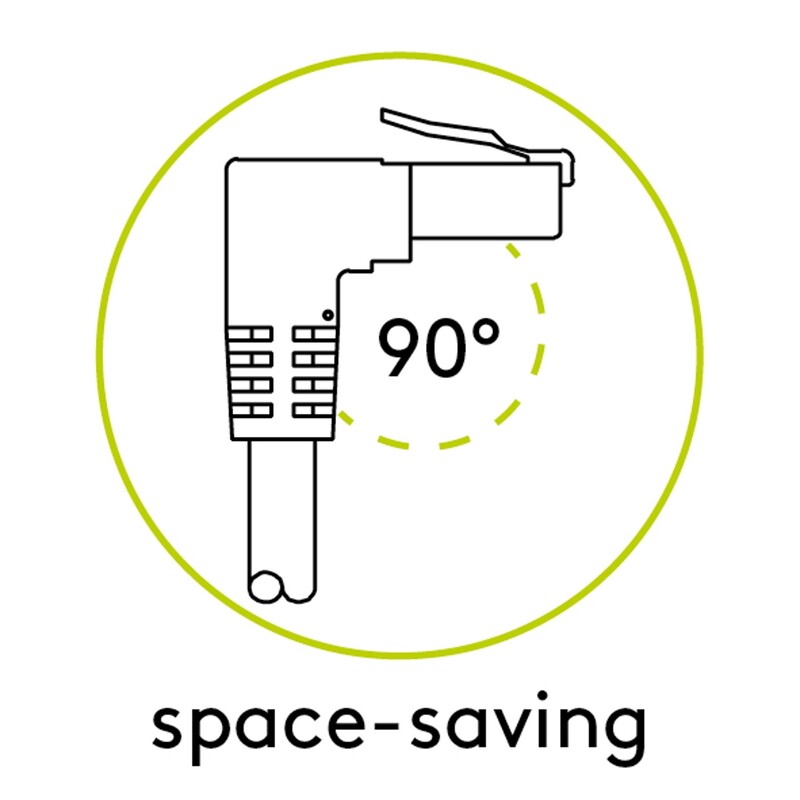

- The 90° right angle RJ45 connector is an ideal solution for confined spaces.
- Latch protection on the straight RJ45 plug prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- High-quality copper-clad aluminium wire (CCA) and gold-plated contacts guarantee an excellent, powerful network connection.
- Bend protection and a sturdy PVC jacket effectively protect the network cable from breakage.
- Length of the Ethernet cable indicated on the overmoulded slimline strain relief on the straight connector.
- CAT 5e internet cable is suitable for Gigabit Ethernet with speeds of up to 10/100/1000 Mbit/s
Technical specifications
| AWG | 26/7 (stranded) |
| bending radius > | 50 mm |
| Specification | CAT 5e |
| Cable sheath diameter (approx.) | 4.9 mm |
| Shielding class | U/UTP |
| Contacting | EIA/TIA-568 B |
| Markings | WEEE, CE |
| Operating temperature up to | 60 °C |
| Operating temperature from | -20 °C |
| max. bandwidth | 100 MHz |
| Kink protection | both sides |
| Cable type | round cable |
| Material cable sheath | PVC |
| Inner conductor material | CCA (copper-clad aluminium) |
| Connection, shielding | no |

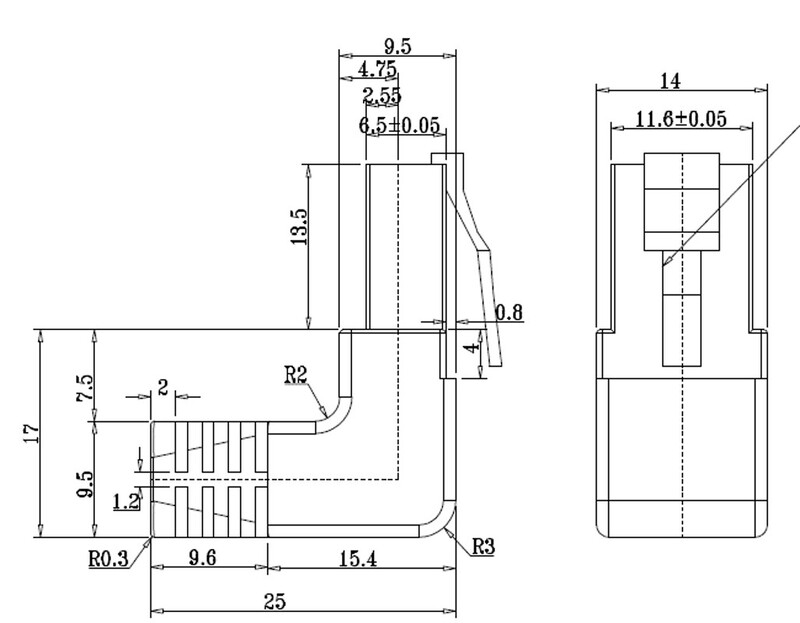

| Connection, type | RJ45 male 90° (8P8C) |
| Connection 2, type | RJ45 male (8P8C) |
| Latch protection | unilaterally |
| Color | black |
| Color version | black |
| Consumption Unit | 1 pc. in polybag |
| Special feature | Length indication on connector |
| Cable length | 5 m |
Parametre
Zapojenie
1:1 podľa EIA / TIA 568
Tienenie
U/UTP
LSOH/LSZH bezhalogénový
nie
Farba
čierna
Materiál vodiča
CCA (Copper Clad Aluminum) - pomedený hliník
Kategória
cat. 5e / class D
Dĺžka
5m
Vhodný do exteriéru
nie
Uhlový konektor/konektory
Uhlový konektor (1x90°)
Slim / Plochý
Nie
GHMT Certifikát
nie
Flexibilný
nie
Montáž na panel
nie
Predlžovací
nie
