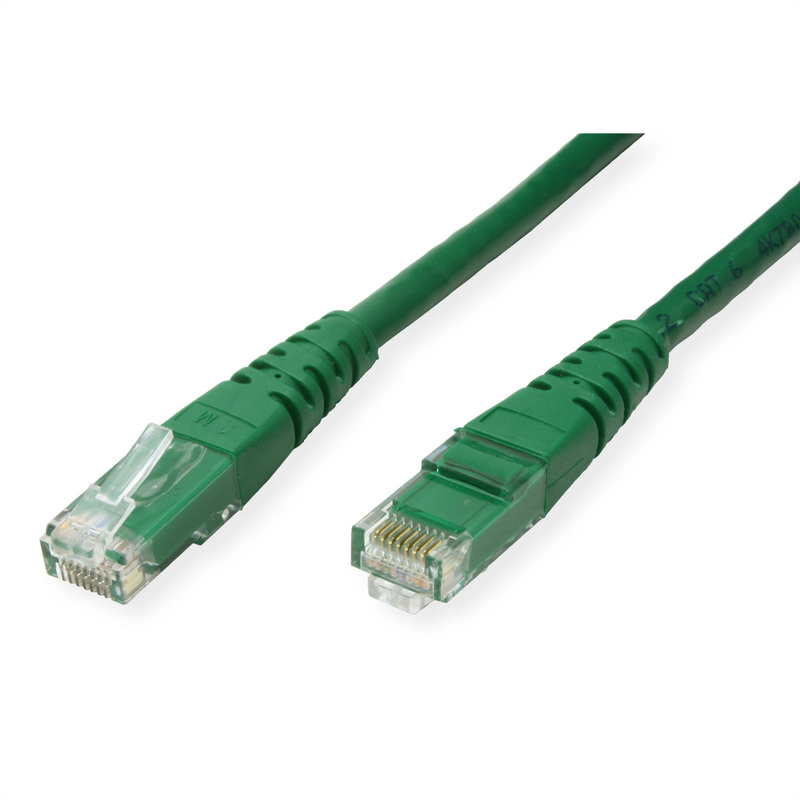

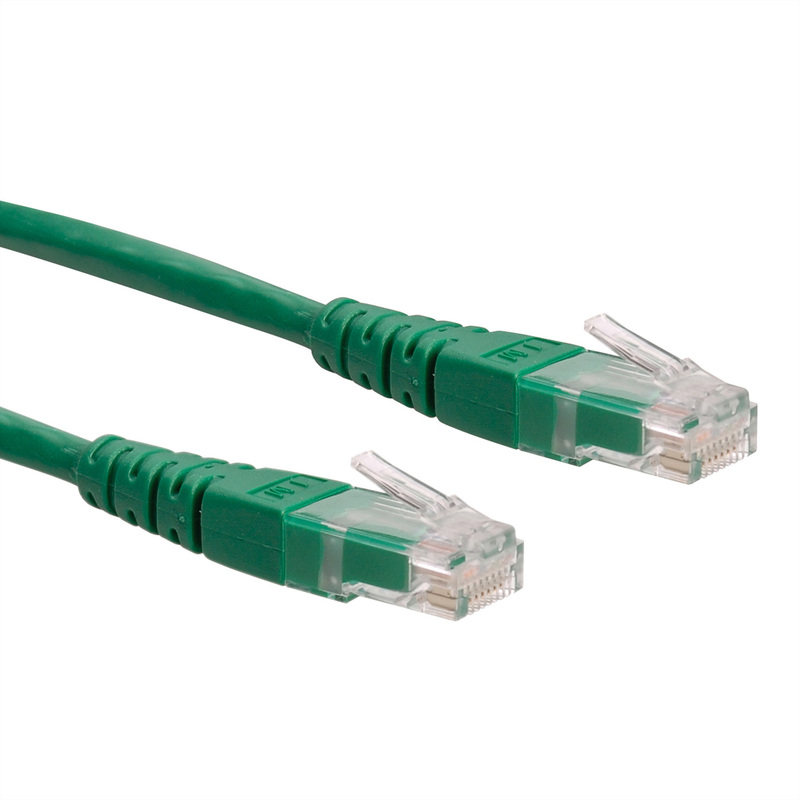

Prepojovací kábel pre sieťové pripojenia medzi zariadeniami. Pripravený netienený kábel Twisted Pair s konektormi RJ-45 na oboch koncoch. Odolné vďaka tvarovanej ochrane proti zalomeniu. Flexibilný kábel, vhodný na úzke ohýbanie. Vysoko kvalitné zástrčky s pozlátenými kontaktmi. Nastavenia kontaktu 1:1, v súlade s normou EIA/TIA 568. Konštrukcia: 4-párový lankový medený drôt.
Pre systém štruktúrovanej kabeláže odporúčame použiť nasledujúce komponenty: UTP kábel ROLINE Cat.6, pevný drôt, AWG23: 21.15.0990 (100 m), 21.15.0991 (300 m); ROLINE Cat.6 Flush Mount Jack, netienený: 25.16.8494 (biely), 25.16.8500 (slonovina); ROLINE Cat.6 Surface Mount Wall Jack, netienený: 25.16.8394 (biely), 25.16.8395 (slonovina); Patch Panel ROLINE Cat.6 19", 24 portov, netienený: 26.11.0355 (svetlosivá), 26.11.0362 (čierna); Patch Cord ROLINE Cat.6 UTP, sivá, 5 m: 21.15.0935. Akreditované nemecké laboratórium Spoločnosť GHMT testovala a certifikovala túto kombináciu produktov v kanáli 100 metrov ako vyhovujúcu špecifikáciám triedy E: číslo certifikátu z2329b-10-E (so zapustenou montážou)/z2330b-10-E (s povrchovou montážou).
Technické špecifikácie
| Skupina produktov | Twisted Pair kábel |
| Typ produktu | Patch káble UTP |
| Farba | zelená |
| Dĺžka | 5 m |
| Typ štítu | UTP |
| Kvalita prenosu | Cat6 / Trieda E |
| Impedancia | 100 ohmov |
| Množstvo drôtov | 8 |
| Typ vodiča | Drôt |
| Prekrížené | nie |
| Farba (výtok) | zelená |
| Kábel LSOH | nie |
| Strana 1 Typ konektora | RJ-45 |
| Strana 1 Pohlavie konektora | Muž |
| Typ konektora na strane 2 | RJ-45 |
| Strana 2 Pohlavie konektora | Muž |
| Typ konektora RJ45 | Štandardné |
| Hmotnosť | 179,7 g |
Patch cable for networking connections between devices. Prepared unshielded Twisted Pair cable with RJ-45 connectors on both ends. Durable due to moulded kink protection. Flexible cable, suitable for narrow bending. High quality plugs with gold plated contacts. Contact settings 1:1, in accordance with the EIA/TIA 568 standard. Construction: 4-pair stranded copper wire.
For a structured cabling system we recommend to use the following components: ROLINE Cat.6 UTP Cable, Solid Wire, AWG23: 21.15.0990 (100 m), 21.15.0991 (300 m); ROLINE Cat.6 Flush Mount Wall Jack, unshielded: 25.16.8494 (white), 25.16.8500 (ivory); ROLINE Cat.6 Surface Mount Wall Jack, unshielded: 25.16.8394 (white), 25.16.8395 (ivory); ROLINE Cat.6 19" Patch Panel, 24 Ports, unshielded: 26.11.0355 (light grey), 26.11.0362 (black); ROLINE Cat.6 UTP Patch Cord, grey, 5 m: 21.15.0935. The accredited German laboratory GHMT has tested and certified this product combination, in a Channel of 100 meters, as being compliant to Class E specifications; certificate no. z2329b-10-E (with flush mount)/z2330b-10-E (with surface mount).
Technical specifications
| Product group | Twisted Pair Cable |
| Product type | U/UTP patch cord |
| Colour | green |
| Length | 5 |

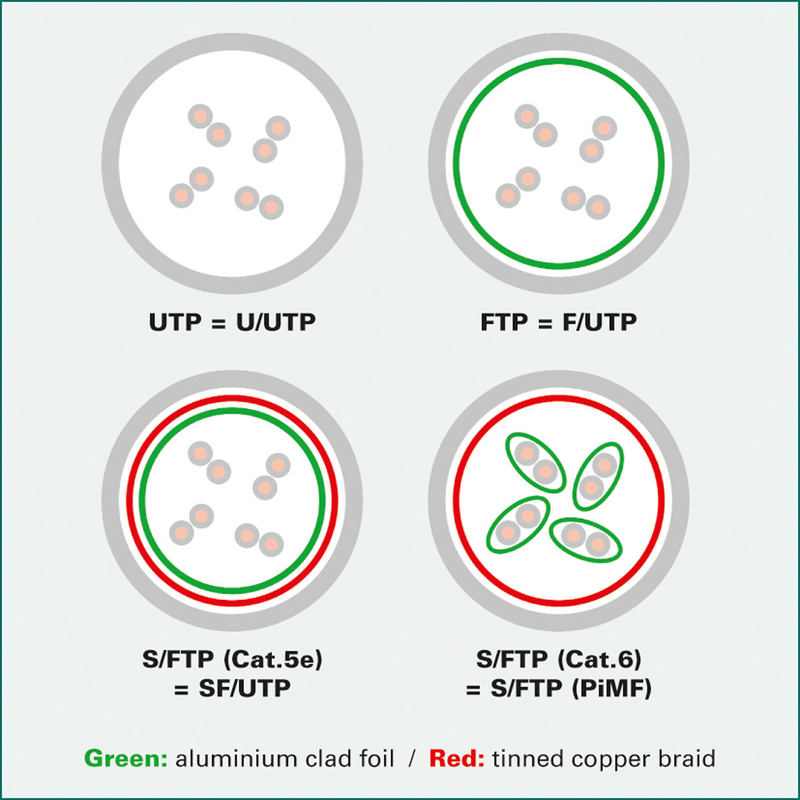

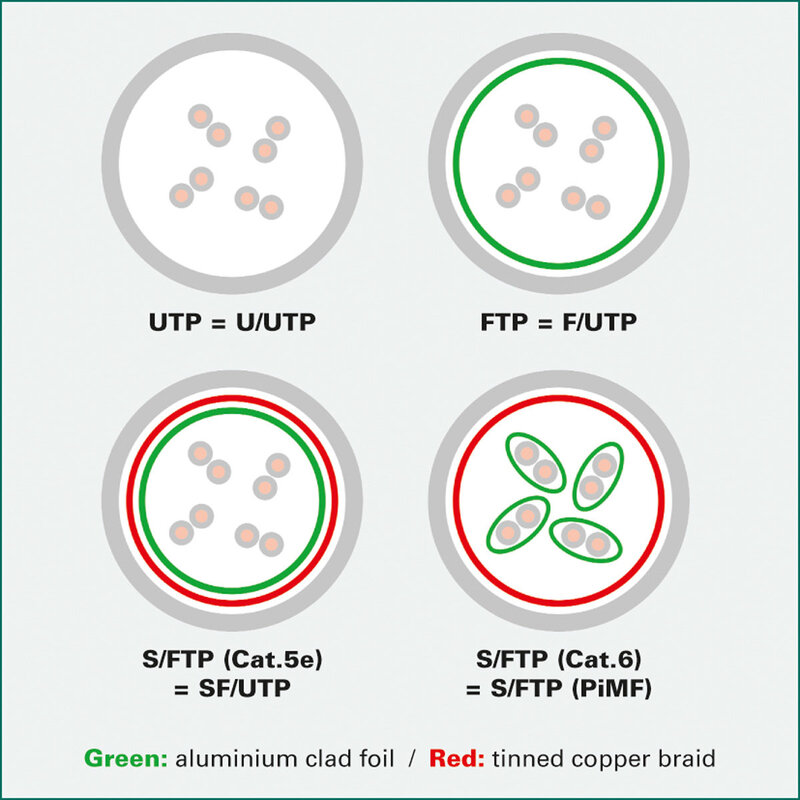

| Shield type | U/UTP |
| Transfer quality | Cat6 / Class E |
| Impedance | 100 Ohm |
| Quantity of wires | 8 |
| Conductor cross section (AWG) | AWG 24 |
| Power over Ethernet (PoE) | yes |
| Inner conductor material | BC (Bare Copper) |
| Conductor type | Stranded |
| Crossed | no |
| Locking lever | no |
| Anti-kink sleeve | Moulded-on |
| Colour (Spout) | green |
| Cable LSOH | no |
| Side 1 Connector Type | RJ-45 |
| Side 1 Connector Gender | Male |
| Side 2 Connector Type | RJ-45 |
| Side 2 Connector Gender | Male |
| Connector Type RJ45 | Standard |
| Weight | 179.7 |
| Height of packaging (single piece) | 50 |
| Width of packaging (single piece) | 170 |
| Depth of packaging (single piece) | 210 |
| Package weight (single piece) | 0.191 |
| Gross weight | 0.191 |
