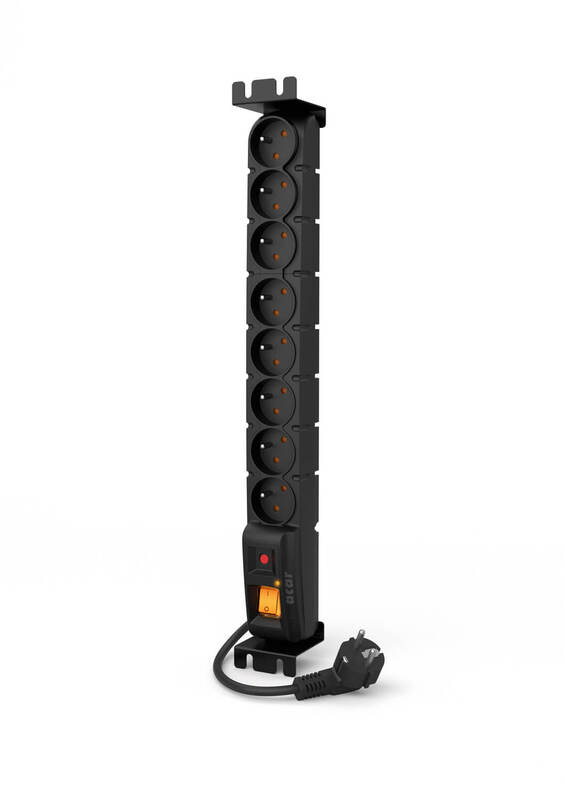

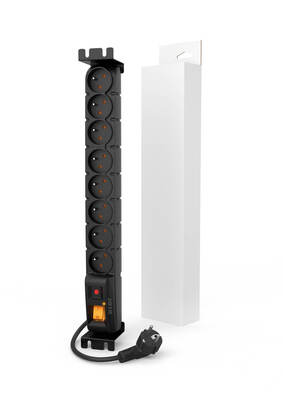

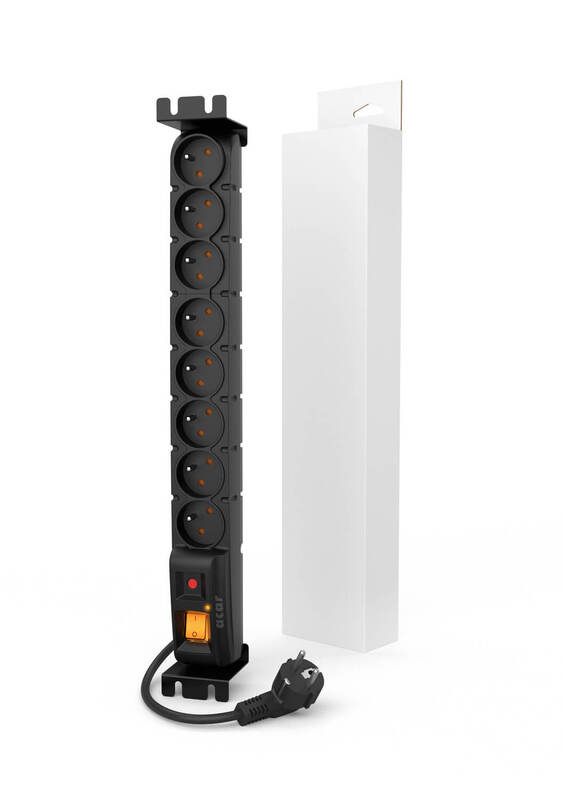

Acar S8 FA Rack 1.5m cable, 8 sockets, surge protection, rack mount, black

Acar S8 FA RACK is a professional device from the Acar S8 product family, designed for installation in 19-inch rack cabinets. It is equipped with eight sockets protected against overvoltage, which in most cases are sufficient to power all devices mounted in a 19" distribution cabinet. The high-frequency filters used against interference significantly increase the safety of the connected devices. The device also has an indicator of the correct functioning of the overvoltage protection, is made of durable and rigid self-extinguishing plastic, meets all the requirements for devices for professional use. Features: 8 sockets with a protective pin Integrated sheet metal holder for mounting in a 19" cabinet Signaling of the correct functioning of the device EMI/RFI integrated filter against interference Backlit mains switch Power indication Automatic fuse with time delay Child lock on each socket Self-extinguishing plastic case Ergonomic design Black color Length 1.5m

Parameters:
Max. load 2,300 W
Nominal voltage             230 V
Nominal frequency        50 Hz
Max. current load        10 A max.
Response time                 <25 ns
Protection level Up 1.3 kV (L/N)
Nominal discharge current in 2kA (L / N) - 8 / 20µs
Maximum discharge current Imax 6.5kA (L / N) - 8 / 20µs
Fusing                             1 automatic fuse, slow, 10A/250V
RFI/EMI attenuation                     <= 35dB
Housing                                 self-extinguishing plastic
Dimensions                            445x54x55mm
Weight 730g

THE DEVICE MUST BE CONNECTED ONLY TO SOCKETS WITH A PROTECTIVE (EARTHING) PIN
WARNING! The technical data defines the maximum values   of overvoltages against which the device protects
