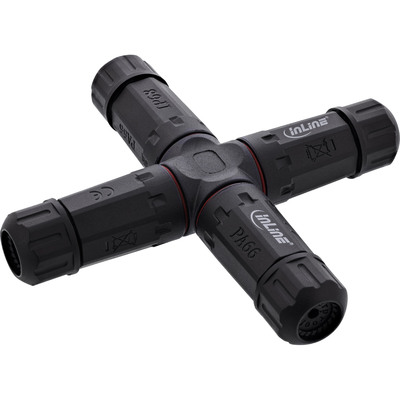

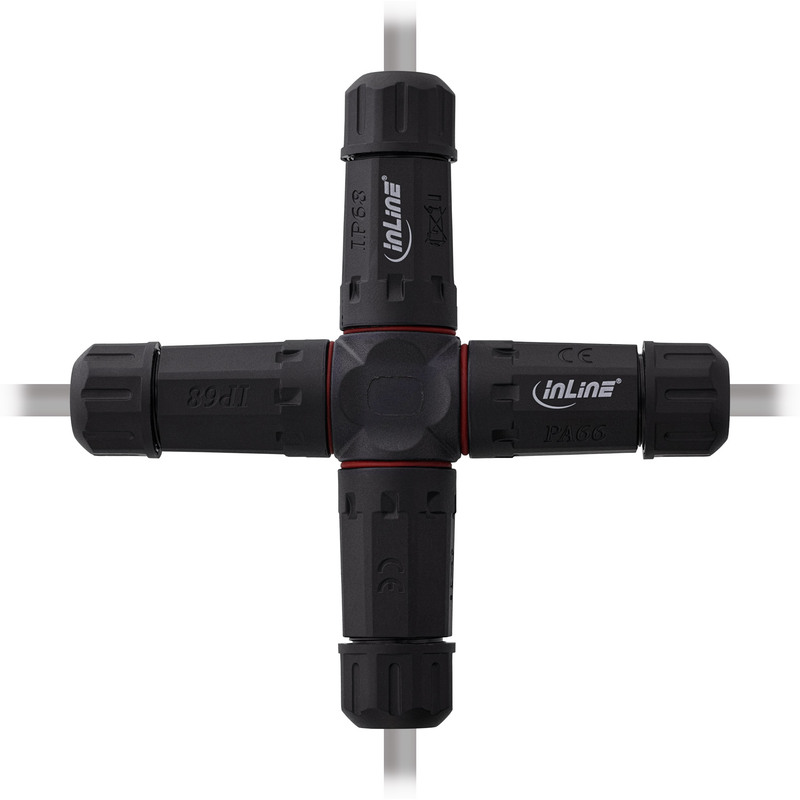

Cross distributor for power connections: Quadruple connection for 3-core cables – ideal for structured power distribution outdoors or in damp rooms. Permanently waterproof: IP68-certified, silicone seal and sturdy nylon housing protect against water, dust, and mechanical stress. Flexible use: Suitable for cable diameters of 4–14 mm and cable cross-sections of 0.5–6 mm² – rated for up to 500 V and 24 A. Tool-free installation: Quick screw system with secure hold – ensures a tight, mechanically stable connection without tools. Ideal for complex installations: Perfect for garden systems, pond pumps, LED systems, or power grids with multiple branches. The InLine power cable coupler with 4-way cross distribution is the perfect solution for complex power distribution – whether in private gardens, on construction sites, or in industrial installations. With four separate connection directions for 3-core cables, this coupler is ideal for branched power networks. The 3-pole connection supports voltages up to 500 V and currents up to 24 A. Thanks to its robust nylon housing (PA66), high-quality copper contacts, and reliable silicone seal, it offers maximum safety and durability – even in adverse weather conditions. The IP68 protection rating ensures permanently tight and weatherproof connections. Installation is tool-free thanks to the practical screw cap system. Simply insert the cable, connect it, insert the seal, and tighten the caps – the connection is then mechanically secured and waterproof. The coupling is suitable for cable diameters from 4 to 14 mm and cable cross-sections from 0.5 to 6 mm². Typical areas of application include garden and outdoor lighting, pond installations, power distribution in workshops, events, or machine parks. The cross shape allows multiple consumers to be supplied with power in a clear and safe manner – ideal for demanding applications. Material: Nylon (PA66) Thread size: M20 Contact material: Copper Seal: Silicone Temperature range: -40 °C to +105 °C IP protection rating: IP68 Cable diameter: 4–14 mm Conductor cross-section: 0.5–6 mm² Design: 4-way Number of poles: 3-pole Rated voltage: 500 V Rated current: 24 A

Article height	2.5 cm
Article length	13.5 cm
Article width	13.5 cm
Brand	InLine®
Colour	Black
Country of origin	Taiwan
Customs tariff number	8536699099
EAN Barcode	4043718346899
Height packaging	0.050 m
Length packaging	0.240 m
Manufacturer information	INTOS ELECTRONIC AGSiemensstrasse 1135394 GießenDeutschlandservice@inline-info.com
Manufacturer No.	69927V
Net weight	0.1 kg
Packaging volume	0.0009 m³

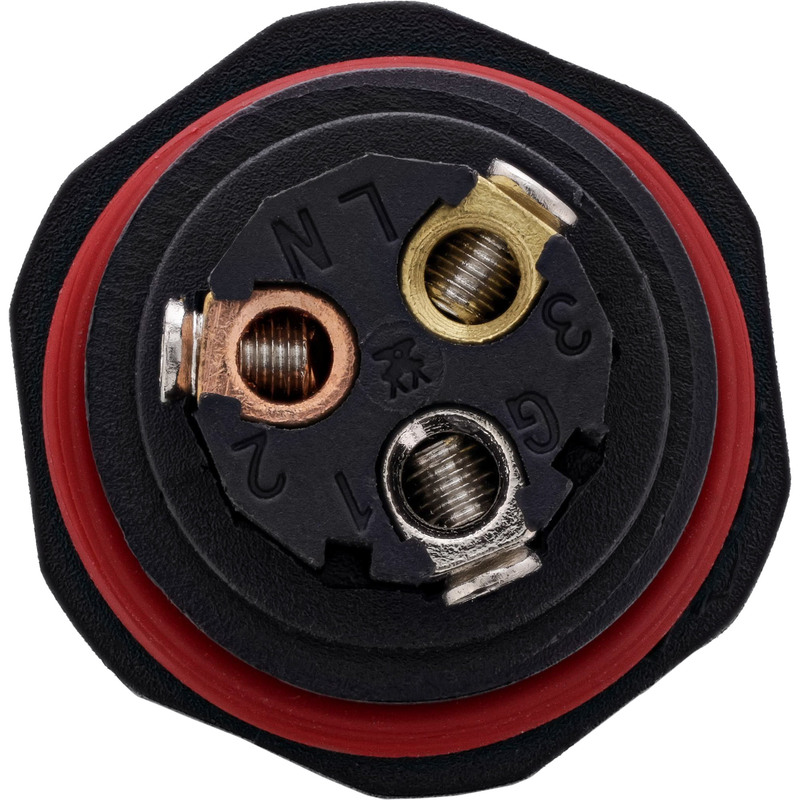

Side A	3-pin screw connection
Side B	3-pin screw connection
Variant	IP68
Weight	0.143 kg
Width packaging	0.170 m
