| Výška článku | 2,8 cm |
| Dĺžka článku | 12,5 cm |
| Šírka článku | 2,8 cm |
| Značka | InLine® |
| Farba | Čierna |
| Krajina pôvodu | Taiwan |
| Číslo colného sadzobníka | 8536699099 |
| Čiarový kód EAN | 4043718346905 |
| Výška balenia | 0,050 m |
| Dĺžka balenia | 0,240 m |
| Informácie o výrobcovi | INTOS ELECTRONIC AGSiemensstrasse 1135394 GießenDeutschlandservice@inline-info.com |
| Číslo výrobcu | 69927W |
| Čistá hmotnosť | 0,055 kg |
| Objem balenia | 0,0002 m³ |
| Strana A | 3-kolíkové skrutkové pripojenie |
| Strana B | 3-kolíkové skrutkové pripojenie |
| Variant | IP68 |
| Hmotnosť | 0,074 kg |
| Šírka balenia | 0,070 m |
- Plug/socket connection with IP68: For 3-wire cables, ideal for modular applications with easy separation and secure protection indoors and outdoors.
- High conductivity thanks to gold-plated contacts: Minimizes contact resistance, protects against corrosion, and ensures a durable connection even with frequent use.

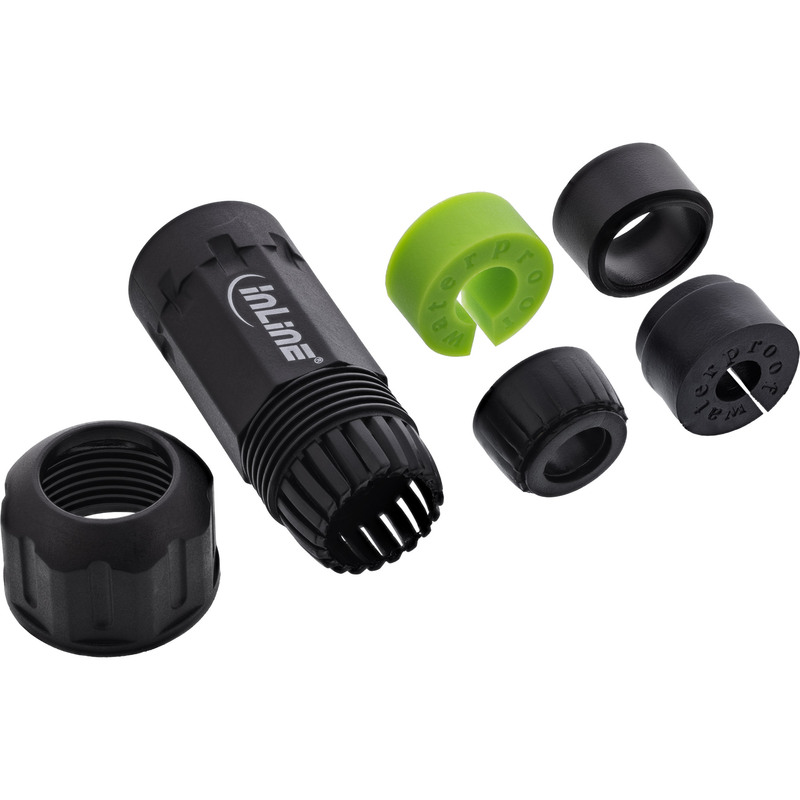

- Securely connected in all weather conditions: Robust housing with silicone seal and screw caps – protection against water, dust, and mechanical influences.
- Suitable for fine cables: Handles cable diameters from 4–14 mm and cross-sections up to 6 mm² – ideal for smaller consumers and control lines.
- Easy installation with snap-lock: Securely connect and disconnect plug and socket – perfect for mobile or temporary installations.

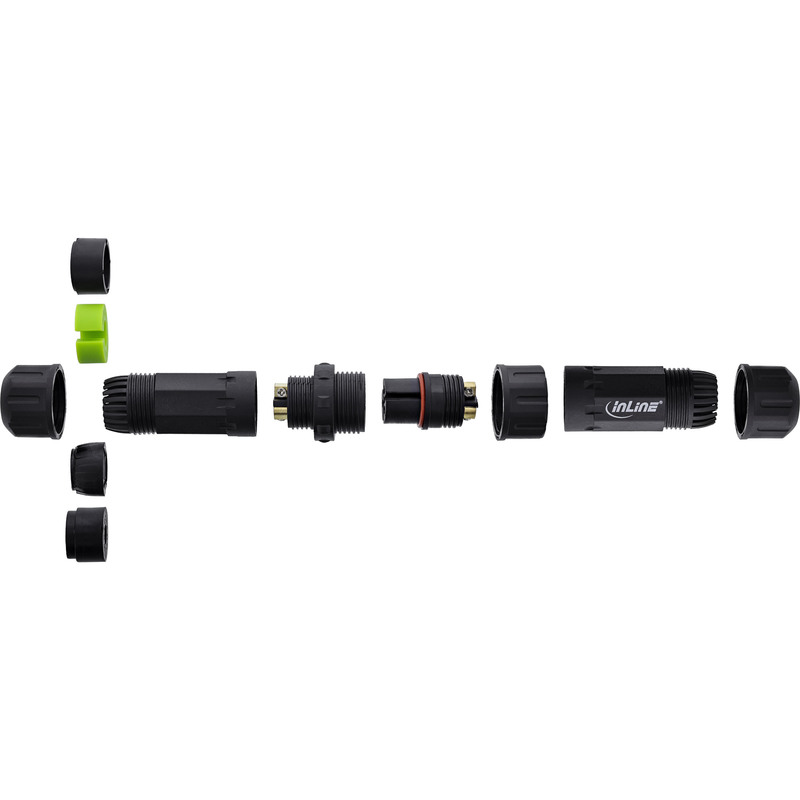

The InLine power cable coupler with plug-socket system is the ideal solution for secure, weatherproof, yet detachable power connections. The 2-way version with a 3-pin design is suitable for a wide range of applications – from outdoor lighting and pump systems to mobile power supplies.
With IP68 protection, the connection is permanently sealed against water and dust. Connection is via a screw system with snap-lock – secure, quick, and tool-free installation. The gold-plated copper contacts ensure high conductivity, minimize contact resistance, and guarantee a long-lasting electrical connection – even with frequent disconnection and reconnection.
This coupling is particularly suitable for fine cables with a cross-section of up to 6 mm². The cable diameter can vary between 4 and 14 mm, covering a wide range of applications. The housing is made of robust nylon (PA66) and can withstand temperatures between -40 °C and +105 °C.
Whether in industry, on the campsite, or for garden lighting – this coupling is ideal wherever a detachable, reliable, and weatherproof connection is required. Thanks to the plug-socket principle, devices or cables can be connected flexibly and quickly disconnected if necessary – safely and professionally.
- Material: Nylon (PA66)
- Thread size: M20
- Contact material: Gold-plated copper contacts
- Seal: Silicone
- Temperature range: -40 °C to +105 °C
- IP protection rating: IP68
- Cable diameter: 4–14 mm
- Conductor cross-section: 0.5–6 mm²
- Design: 2-way (plug/socket)
- Number of poles: 3-pole
- Rated voltage: 500 V
- Rated current: 20 A
