| Výška článku | 2,5 cm |
| Dĺžka článku | 8 cm |
| Šírka článku | 2,5 cm |
| Značka | InLine® |
| Farba | Čierna |
| Krajina pôvodu | Taiwan |
| Číslo colného sadzobníka | 8536699099 |
| Čiarový kód EAN | 4043718346707 |
| Výška balenia | 0,050 m |
| Dĺžka balenia | 0,240 m |
| Informácie o výrobcovi | INTOS ELECTRONIC AGSiemensstrasse 1135394 GießenDeutschlandservice@inline-info.com |
| Číslo výrobcu | 69927C |
| Čistá hmotnosť | 0,029 kg |
| Objem balenia | 0,0002 m³ |
| Strana A | LC samica |
| Strana B | LC samica |
| Variant | IP68 |
| Hmotnosť | 0,035 kg |
| Šírka balenia | 0,070 m |
- Compact fiber optic coupling: Extra short design (only 74 mm long) – ideal for confined spaces in network cabinets or outdoor enclosures.
- Waterproof and dustproof: Thanks to IP68 protection, the connection is reliably protected against moisture, dirt, and mechanical influences.

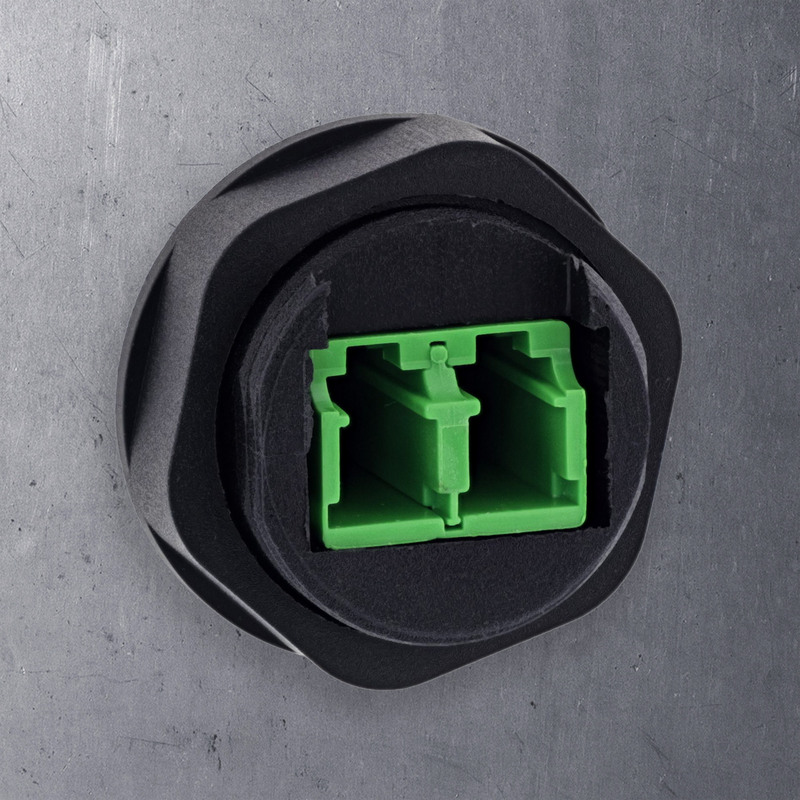

- Simple and secure: Pre-assembled LC duplex sockets with tool-free screw connection – quick to install, permanently stable.
- For professional applications: Supports single-mode connections (UPC/APC) with 2x LC duplex – ideal for industry and network technology.
- Standard M20 thread: Fits into common housing openings – for easy integration into existing systems.

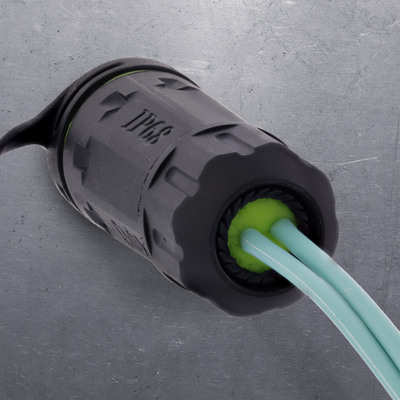

The InLine® LC fiber optic cable coupler in a short design offers reliable protection and a stable connection for fiber optic installations – even in limited installation space. With a length of only 74 mm, this coupler is ideal for use in tight distribution cabinets, outdoor enclosures, or industrial applications.
The coupler is equipped with two LC duplex sockets and supports single-mode fibers with UPC or APC polish. IP68 protection reliably protects the connection against moisture, dust, and temperature fluctuations from -40 °C to +85 °C. The robust PA66 plastic housing and high-quality silicone seal ensure durability and easy handling.

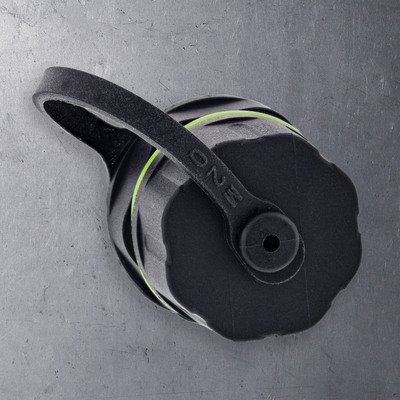

Installation is tool-free thanks to the integrated screw system. The M20 thread allows the coupler to be quickly and securely fastened in enclosures or junction boxes. The green sealing ring and rubber seal ensure reliable sealing even with repeated use.
This compact fiber optic coupler is ideal for applications where space is at a premium, without compromising on quality and protection.
- Material: Nylon (PA66)
- Seal: Silicone
- Module: LC duplex female/female
- Thread size: M20
- Application: Single-mode UPC/APC
- For cable diameter: 2.9 mm
- Dimensions: 74 x 26 mm
- IP protection class: IP68
- Temperature resistance: -40 °C to +85 °C
