Chránička "SPOJKA" RJ45 Cat.6 vodeodolná prachuvzdorná IP68

Chránička "SPOJKA" RJ45 Cat.6 vodeodolná prachuvzdorná IP68

Kód: {{ productModel }}
Výrobca: Goobay
Kat. č.: W.79566
EAN: 4040849795664

Zum einfachen Verbinden alebo Verlängern von Patchkabeln im Freien. IP68 prachotesná a vodotesná káblo..... celý popis

Externý sklad
10,32 € s DPH 8,60 € bez DPH
Zum einfachen Verbinden alebo Verlängern von Patchkabeln im Freien.
  • IP68 prachotesná a vodotesná káblová vývodka
  • pre vonkajšie/priemyselné aplikácie
  • ponúka zvýšenú ochranu spoja pred vlhkosťou a znečistením
  • rýchla a jednoduchá inštalácia
  • 2x tienený port RJ45, priradenie: 1:1
  • pre priemery káblov 4 – 8 mm
  • vhodné pre PoE+ podľa IEEE 802.3at

Technické špecifikácie

Špecifikácia CAT 6
Trieda tienenia STP
Označenia WEEE, CE
Priemer 28 mm
Dĺžka 120 mm
Prevádzková teplota až 70 °C
Prevádzková teplota od 0 °C
trieda ochrany IP68
max. šírku pásma 250 MHz
Typ pripojenia RJ45 samica (8P8C)
Pripojenie 2, typ RJ45 samica (8P8C)

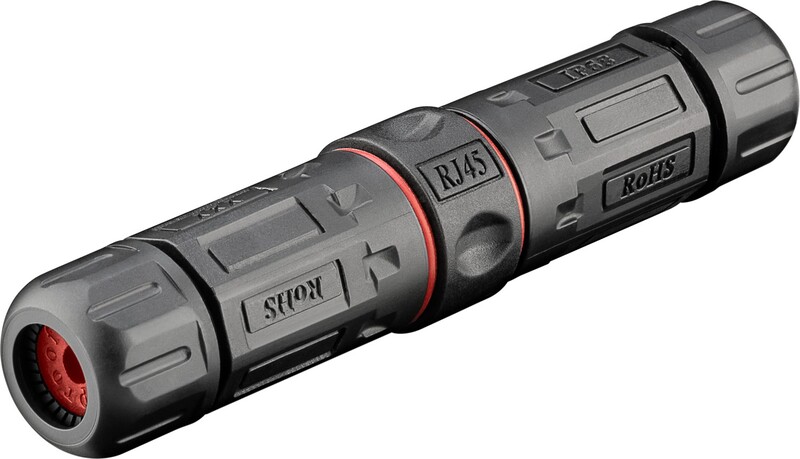

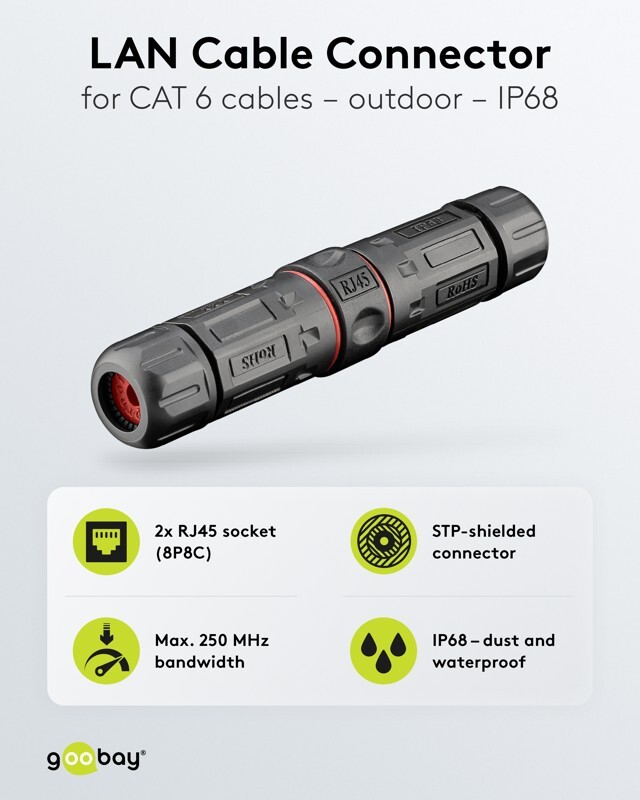

The cable connector is designed for 8-wire connection, extension, repair or rerouting of CAT 6 data cables. The major advantage of the connector over CAT connection boxes is its slim design. With the product, you can realise cable extensions even in confined space, e.g. in cable ducts. Goobay always provides the perfect products for your needs. Simply. All. You need!

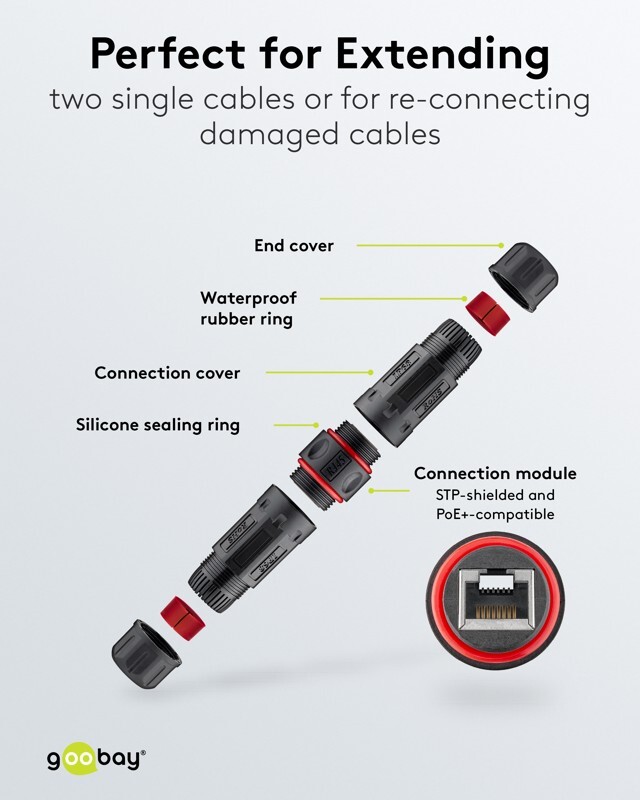

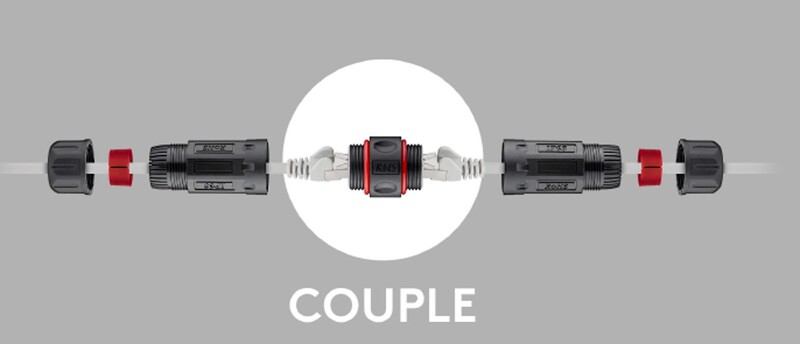

  • Shielded cable connection (STP) for extending or linking 2x LAN cables with RJ45 plugs

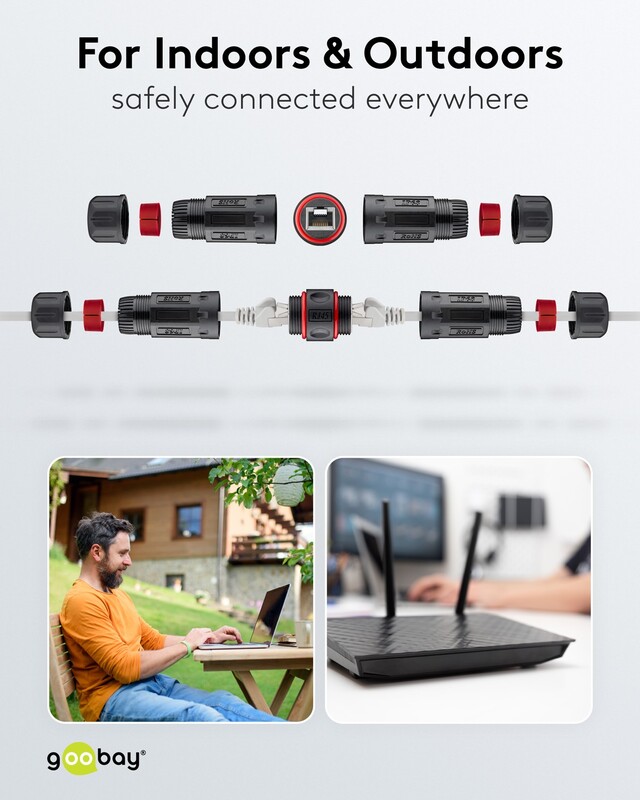

  • Cable connector for outdoor and industrial applications offers protection against dirt and moisture (protection class IP68).
  • Connector module to extend Ethernet cables without re-routing an entire cable segment
  • Very slim connection module with waterproof cable gland
  • Max. data transmission of 250 MHz guarantees an excellent network connection.

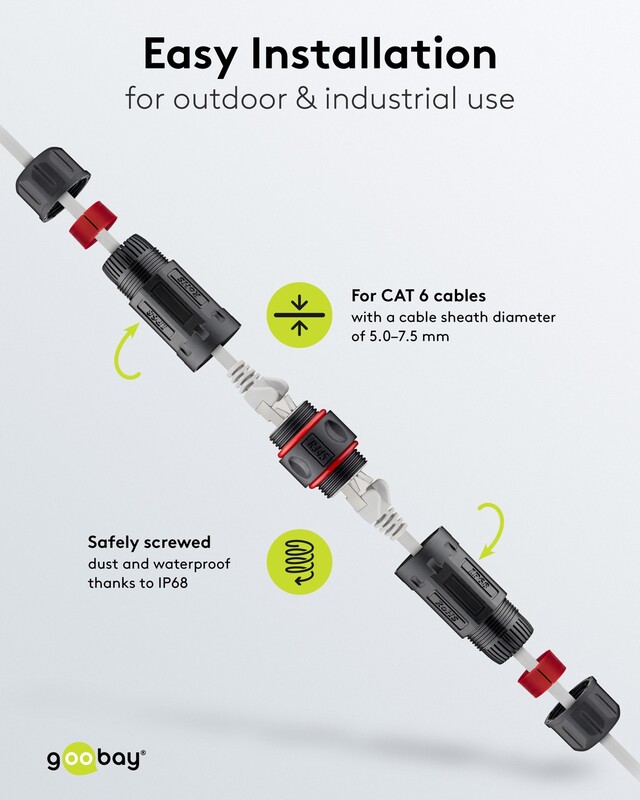

  • Suitable for terminated patch cables with a cable diameter of 4.0 - 8.0 mm
  • Supports PoE+ applications (IEEE 802.3at)

Technical specifications

SpecificationCAT 6
Shielding classSTP
MarkingsWEEE, CE

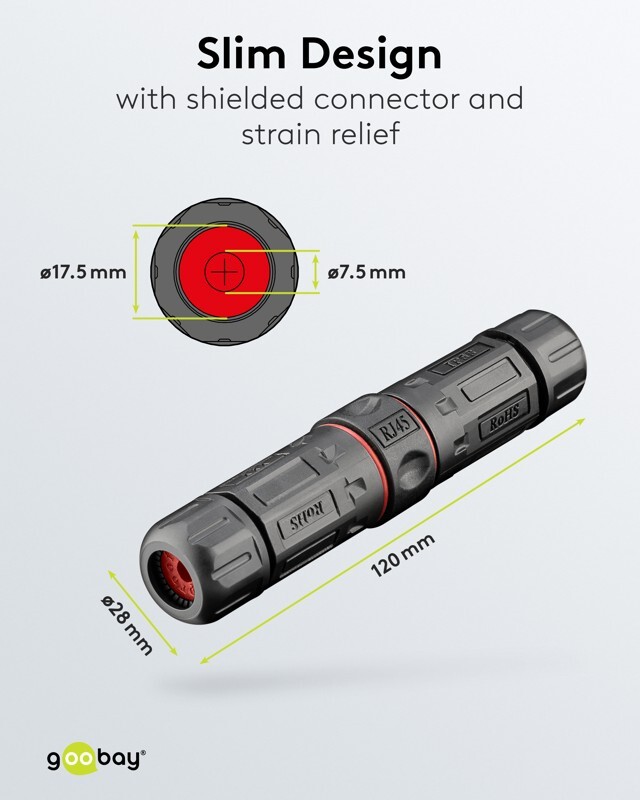

Diameter28 mm
Length120 mm
Operating temperature up to70 °C
Operating temperature from0 °C
protection classIP68
max. bandwidth250 MHz
Connection, typeRJ45 female (8P8C)
Connection 2, typeRJ45 female (8P8C)
