| Výška článku | 2,5 cm |
| Dĺžka článku | 8 cm |
| Šírka článku | 2,5 cm |
| Značka | InLine® |
| Farba | Čierna |
| Krajina pôvodu | Taiwan |
| Číslo colného sadzobníka | 8536699099 |
| Čiarový kód EAN | 4043718346745 |
| Výška balenia | 0,050 m |
| Dĺžka balenia | 0,240 m |
| Informácie o výrobcovi | INTOS ELECTRONIC AGSiemensstrasse 1135394 GießenDeutschlandservice@inline-info.com |
| Číslo výrobcu | 69927G |
| Čistá hmotnosť | 0,027 kg |
| Objem balenia | 0,0002 m³ |
| Strana A | SC samica |
| Strana B | SC samica |
| Variant | IP68 |
| Hmotnosť | 0,036 kg |
| Šírka balenia | 0,070 m |
- Compact SC duplex coupler: Only 74 mm long – ideal for confined installations in outdoor boxes or network cabinets.
- Protection in all weather conditions: The connection is reliably protected against dust, water, and mechanical influences thanks to IP68.
- Suitable for single-mode applications: SC duplex module (female/female) for UPC and APC fibers – universally applicable.
- Quick installation: Integrated screw mechanism with rubber seal – tool-free and secure installation.
- Standard M20 thread: Easy integration into distribution housings, connection panels, or industrial systems.

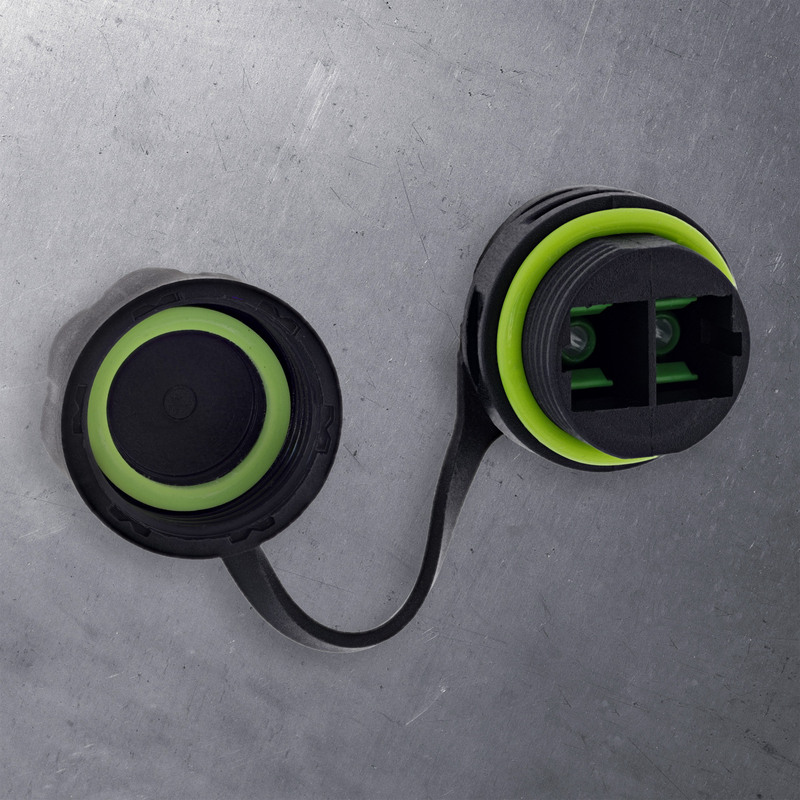

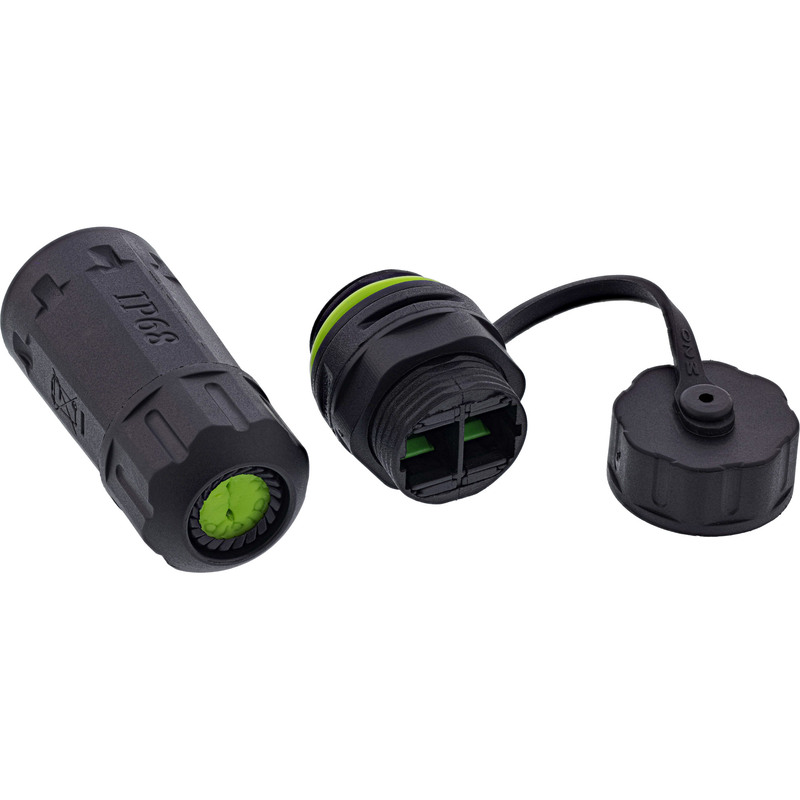

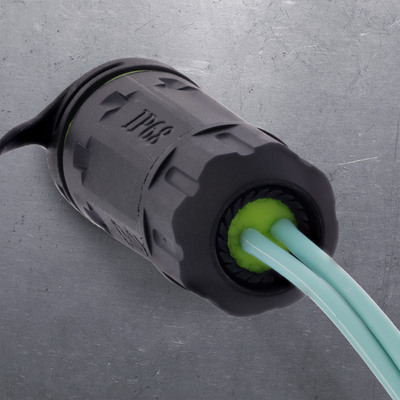

The InLine® SC fiber optic cable coupler in a short version (only 74 mm long) provides a stable, weatherproof connection for SC duplex fiber optic cables. Thanks to its compact design, the coupler is ideal for installations in tight enclosures, DIN rail boxes, or outdoor applications.
The robust PA66 plastic housing, combined with the high-quality silicone seal, ensures reliable protection against dust, water, and mechanical stress – in accordance with IP68. The pre-assembled SC duplex module is compatible with UPC or APC polish and is perfect for single-mode applications.

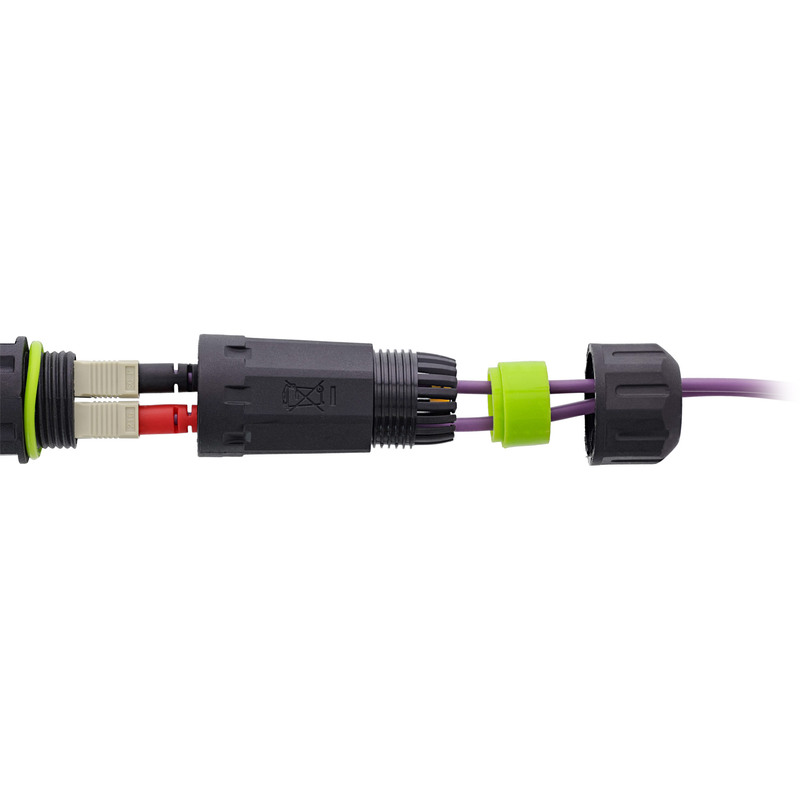

Tool-free installation is achieved using the proven screw system with green sealing ring and rubber seal – simply feed the cable through, screw it in place, and seal it. The M20 thread allows integration into standardized housing openings. According to the instructions, repeated installation is also possible without losing the protective effect.
This fiber optic coupling is ideal for applications where reliability, protection, and space savings are required – e.g., in network technology, automation, or building cabling.
- Material: Nylon (PA66)
- Seal: Silicone

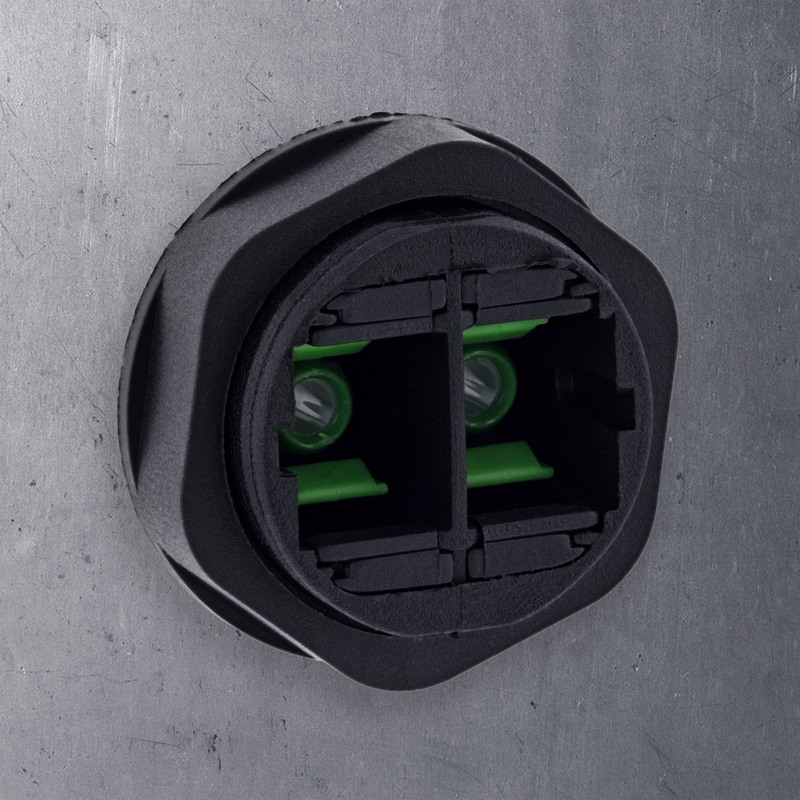

- Module: SC duplex female/female
- Thread size: M20
- Application: Single-mode UPC/APC
- For cable diameter: 2.9 mm
- Dimensions: 74 x 26 mm
- IP protection class: IP68
- Temperature resistance: -40 °C to +85 °C
