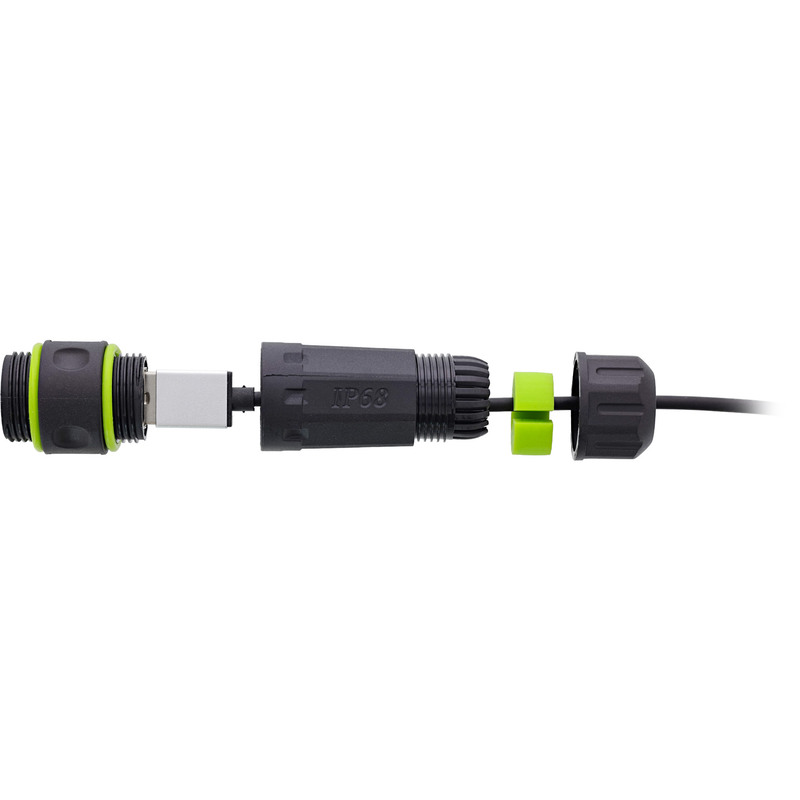

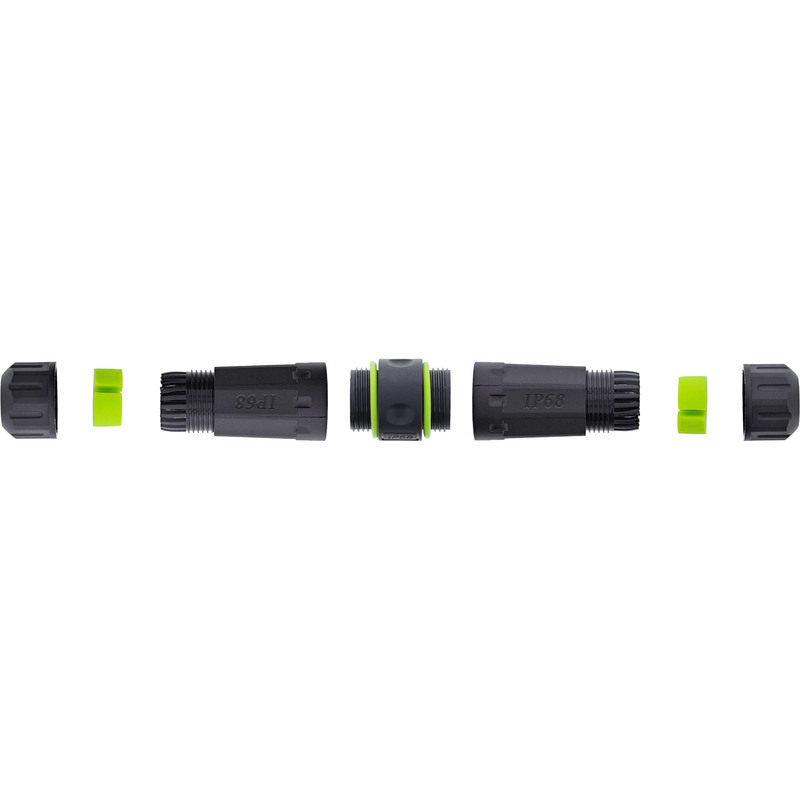

USB-A connector for outdoor use: The shielded connector protects your connection from water, dust, and environmental influences thanks to its IP68 protection rating. Reliable data transfer: Supports transfer rates of up to 5 Gb/s—ideal for industrial and outdoor applications. Power supply included: Charging function with 5 V / 2 A – suitable for live USB connections. Compact design with M20 thread: Enables integration into standard housings and distribution systems. Flexible cable compatibility: Suitable for cable diameters of 1.5–4.5 mm, 4.5–7.5 mm – tool-free installation via silicone seal. The InLine® USB-A cable coupling with IP68 protection is the robust solution for shielded USB connections in harsh environments. It connects two USB-A cables securely and permanently – ideal for industrial applications, outdoor areas, or measurement and control technology. The coupling supports data transfers of up to 5 Gb/s and can simultaneously provide a power supply of 5 V at 2 A – for combined charging and data connections. The robust PA66 housing reliably protects the interface from dust, water, and mechanical stress. Thanks to its M20 thread, the coupler can be integrated into common housing openings or distribution systems. A flexible silicone seal ensures reliable sealing for cable diameters from 1.5 to 4.5 mm and 4.5 to 7.5 mm. Installation is tool-free and is done by simply screwing it in place. Whether for connecting embedded systems, supply units, or peripheral devices, the InLine® USB-A coupler ensures that your USB connection is permanently secured and protected. Material: Nylon (PA66) Thread size: M20 Module: USB-A female/female Seal: Silicone Transfer rate: 5 Gb/s Current: 2 A Voltage: 5 V Charging: yes Protection rating: IP68 Temperature resistance: -25 °C to +105 °C Cable diameter: 1.5–4.5 mm, 4.5–7.5 mm

Article height	2.5 cm
Article length	12.5 cm
Article width	2.5 cm
Brand	InLine®
Colour	Black
Country of origin	Taiwan
Customs tariff number	8536699099
EAN Barcode	4043718346837
Height packaging	0.050 m
Length packaging	0.240 m
Manufacturer information	INTOS ELECTRONIC AGSiemensstrasse 1135394 GießenDeutschlandservice@inline-info.com
Manufacturer No.	69927P
Net weight	0.044 kg
Packaging volume	0.0002 m³
Side A	USB-A female
Side B	USB-A female
Variant	IP68
Weight	0.065 kg
Width packaging	0.070 m
